Black & Decker T4680B Toaster Oven Instructions Guide

Black & Decker T4680B Toaster Oven

Safety instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. DO NOT leave unattended with children or pets.
2. KEEP this appliance and cord away from children.
3. Close supervision is necessary when any appliance is used by or near children.
4. ALWAYS place the appliance on a flat, heat-resistant surface.
5. DO NOT place on or near a hot gas or electric burner or in a heated oven.
6. DO NOT operate the appliance in an enclosed space or under hanging cabinets.
7. DO NOT let the cord hang over the edge of the table or counter or touch hot surfaces.
8. DO NOT use this appliance for anything other than its intended use.
9. NEVER use an outlet below the counter. DO NOT use the appliance outdoors.
10. UNPLUG the appliance from the outlet when not in use and before cleaning.
11. Allow the appliance to cool before attaching or removing parts.
12. Do not reach into the liquid if the appliance is plugged in and immersed.
13. Do not immerse or rinse cords or plugs in water or other liquids.
14. The appliance’s outer surfaces may become hot during use.
15. Wear oven mitts when handling hot surfaces and components.
16. When cooking, DO NOT place the appliance against a wall or other appliances.
17. Leave at least 5 inches of free space on the top, back, and sides, and above the appliance.
18. If you are unsure, place a trivet or hot pad under the appliance before using it.
19. This appliance is intended for normal household use only.
20. It is NOT INTENDED for use in commercial or retail environments.

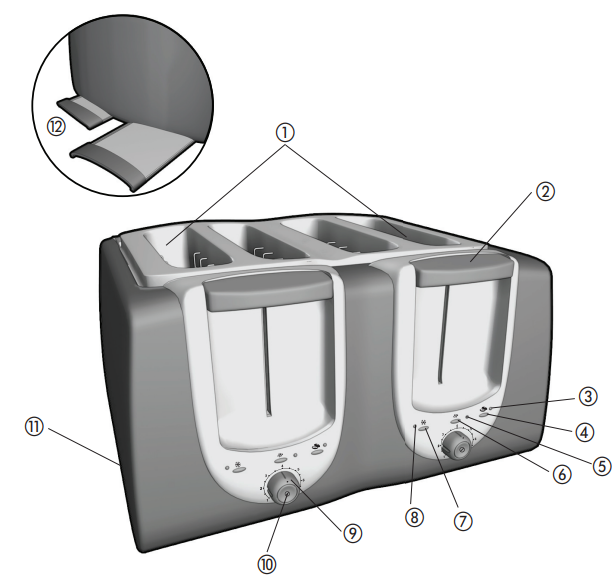

Description

The product may vary slightly from what is illustrated

1. Extra-wide slots with automatically adjusting guides
2. Easy-touch toast lever
3. Bagel function LED indicator
4. Bagel button
5. Reheat function LED indicator
6. Reheat button
7. Defrost button
8. Defrost function LED indicator
9. Toast shade selector dial
10. Cancel button
11. Cord wrap (under unit)
12. Removable slide-out trays

How to Use

This product is for household use only.

• Unpack the unit and remove any packing materials or labels.
• Wipe the toaster with a damp cloth and dry thoroughly.
• Insert slide-out crumb trays in place in the back of the unit, at the bottom.
• Plug the power cord into a standard wall outlet.

Toast Functions

Models T4680 and T4680B only: Your toaster features two sets of independent slots, each with individual toast shade selectors, Bagel, Frozen, Reheat, and Cancel buttons. Be sure to adjust each toast shade selector individually so that you can toast two different kinds of foods (for example, waffles on one side, bagels on the other) at once using different settings.

1. Adjust the toast shade Black & Decker T4680B Toaster Oven selector to the desired setting (1 to 7).
2. For first use, set the dial to the setting. Adjust as desired to suit your taste.
3. Place bread slices or other foods in the slots and press down the toast lever until it locks in place.
4. The bread guides will automatically adjust to hold thick or thin slices in place.
5. When toasting is done, the toast control lever goes up, and the unit shuts off.

Bagel Functions

Use the BAGEL function to toast bagels crispy on the cut side and gently warm on the outside.

1. Insert the cut bagel into the slots with the cut side toward the outside of the toaster.
2. Adjust the toast shade selector to the desired setting (1 to 7).
3. Press down the toast lever until it locks in place, then press the BAGEL button.
4. The BAGEL LED indicator illuminates until toasting is done or until you press the CANCEL button.
5. The bread guides will automatically adjust to hold thick or thin slices in place.
6. When toasting is done, the toast control lever goes up, and the unit shuts off.

Reheat Functions

Use the REHEAT function to warm up toast, without browning it, for easy buttering. This function will keep an automated low heat temperature for approximately 30 seconds and then return the lever (and toast) to the upright position.

1. Reinsert bread into the Black & Decker T4680B Toaster Oven slots and press down the toast control lever until it locks into the down position.
2. Press the REHEAT button. The REHEAT LED indicator illuminates until the warming cycle is done or until you press the CANCEL button.

Defrost Functions

1. Place food in the slots and press down the toast control lever until it locks into the down position.
2. The Defrost LED indicator illuminates until toasting is done or you press the CANCEL button.
3. When toasting is done, the toast control lever goes up, and the unit shuts off.

Care, Cleaning and Storage

This product contains no user-serviceable parts. Refer the service to qualified service personnel. Always unplug the cord from Black & Decker T4680B Toaster Oven and the electrical outlet, and allow the toaster to cool before cleaning. Do not immerse the toaster in water.

1. Grasp the handle at the back of the toaster and slide out the crumb trays.
2. Dispose of crumbs and wash the trays in warm, sudsy water.
3. The trays are not dishwasher safe. You can remove stubborn spots using a nylon mesh pad.
4. Dry trays thoroughly before sliding them back into the toaster.

Cleaning Outside Surfaces

The cool-touch exterior on the sides will not burn your hand if accidentally touched. However, the metal top does get hot. Allow the toaster to cool completely before cleaning.

• Wipe the exterior with a damp cloth or sponge and dry with a paper towel.
• Do not use strong cleaners or abrasives that may scratch surfaces, and never spray cleaners directly onto the toaster.
• Use the cord wrap on the bottom of the toaster to minimise clutter on your counter and for easy storage.

One-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

• Any defect in material or Black And Decker RC3303 3-Cup Rice Cooker workmanship provided; however, Applica’s liability will not exceed the purchase price of the product.

For how long?

• One year after the date of original purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.

What does your warranty not cover?

• Damage from commercial use
• Products used or serviced outside the country of purchase
• Shipping and handling costs associated with the replacement of the unit

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to
  state or province to province.

Customer Service

• Website: https://support.blackanddecker.com/
• Timings: Monday–Friday, 8:00 a.m. – 5:00 p.m.
• Ph: +1-800-544-6986

FAQs

Q: What is the Black & Decker T4680B Toaster Oven used for?

A multipurpose 4-slice toaster oven, the Black & Decker T4680B may be used for baking, broiling, toasting, and reheating. It is ideal for short family meals, dorms, and small kitchens because it is both powerful and compact.

Q: Do I need to preheat the toaster oven?

Yes, you should preheat the oven for five to seven minutes before putting food in it for optimal results. This makes it easier to guarantee precise baking timings and even cooking.

Q: What does the indicator light mean?

When the oven is heating up, the indicator light turns on; when the timer cycle or temperature is reached, it turns off. Knowing when the oven is on is helpful.

Q: Why does smoke or odour come from the oven the first time I use it?

When protective coatings burn off during the initial use, a slight quantity of smoke or odour is typical. Before cooking, run the oven empty for 10 minutes at 450°F to get rid of this.

Q: How do I remove the crumb tray for cleaning?

Take the crumb tray out of the oven’s bottom. After a few uses, empty it to avoid crumbs burning and producing smoke.

Q: Can I bake cookies or cakes in this toaster oven?

Indeed! Since small toaster ovens frequently bake faster than full-sized ovens, use the Bake function, preheat the oven, and modify the cooking duration. Use oven-safe bakeware that is appropriate for the internal space at all times.

Q: Is it normal for the exterior to get hot?

The glass door and outside will indeed heat up when in use. Keep the oven away from walls and combustible objects, and always use oven mitts or handles.

Q: How do I store the toaster oven properly?

Unplug it and let it cool fully. All attachments should be taken out and cleaned before being put inside the oven. The unit should be kept out of direct sunlight and in a dry, well-ventilated location.
