Black & Decker TO1303SB Door Spring Removal
Introduction
This guide will help repair the spring in your toaster oven door. If your door is squeaky or not opening/closing properly, this will help fix that problem. Even though this guide only has a couple of steps, you must be careful when pulling the spring and twisting it. This guide is best done when using needle-nose pliers.
Safety instructions
When using electrical appliances, basic safety precautions should always be followed, including the following:
- DO NOT leave unattended with children or pets.
- KEEP this appliance and cord away from children.
- Close supervision is necessary when any appliance is used by or near children.
- ALWAYS place the appliance on a flat, heat-resistant surface.
- DO NOT place on or near a hot gas or electric burner or in a heated oven.
- DO NOT operate the appliance in an enclosed space or under hanging cabinets.
- DO NOT let the cord hang over the edge of the table or counter or touch hot surfaces.
- DO NOT use this appliance for anything other than its intended use.
- NEVER use an outlet below the counter. DO NOT use the appliance outdoors.
- UNPLUG the appliance from the outlet when not in use and before cleaning.
- Allow the appliance to cool before attaching or removing parts.
- Do not reach into the liquid if the appliance is plugged in and immersed.
- Do not immerse or rinse cords or plugs in water or other liquids.
- The appliance’s outer surfaces may become hot during use.
- Wear oven mitts when handling hot surfaces and components.
- When cooking, DO NOT place the appliance against a wall or other appliances.
- Leave at least 5 inches of free space on the top, back, and sides, and above the appliance.
- If you are unsure, place a trivet or hot pad under the appliance before using it.
- This appliance is intended for normal household use only.
- It is NOT INTENDED for use in commercial or retail environments.
Installation

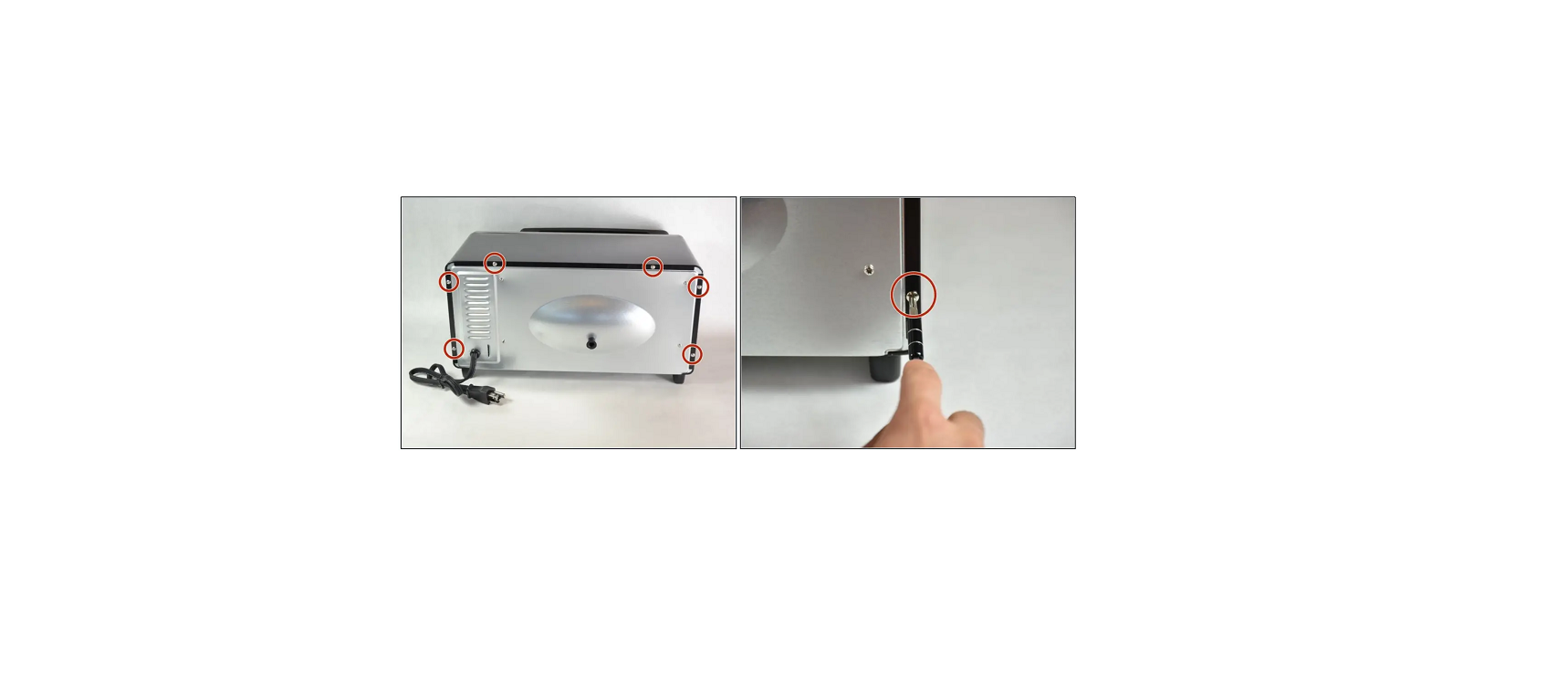

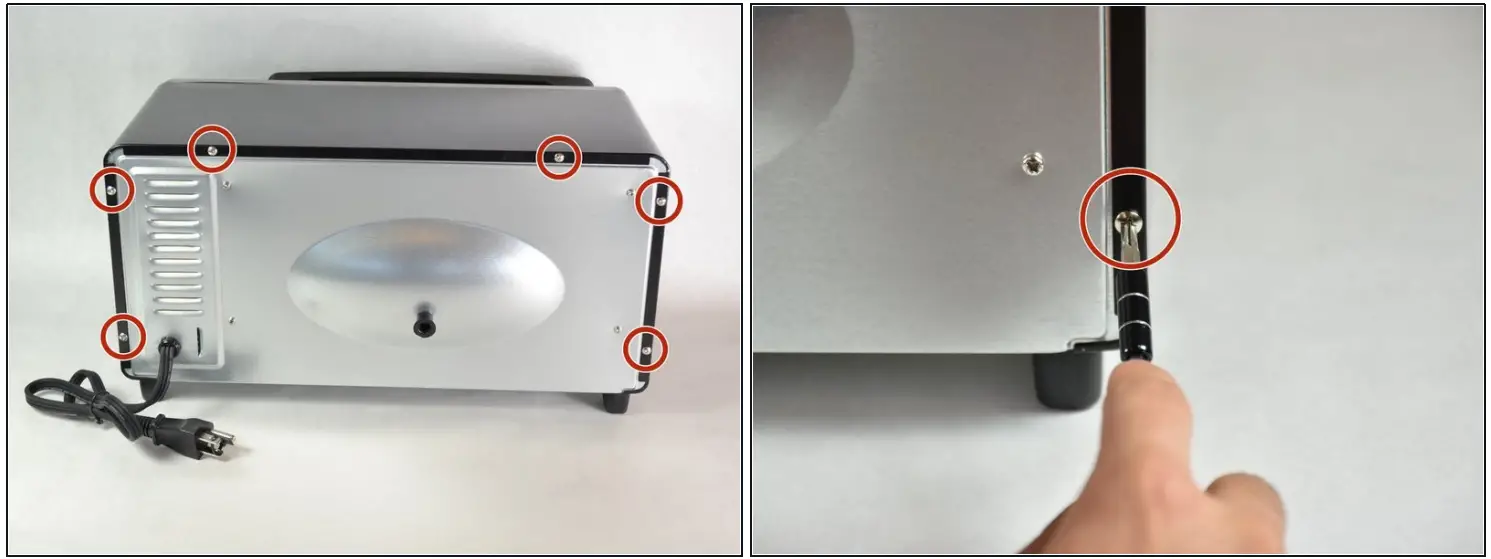

- Remove the six 9.5mm screws on the back panel using a #2 Phillips screwdriver.

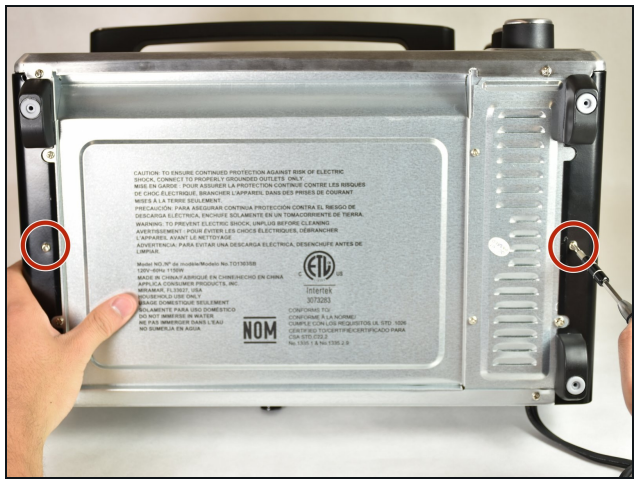

- Remove the two 13mm screws, located between the feet on the bottom of the cover, using a Torx T15 screwdriver.
- On the TO1313SB, a Security Torx T15 driver is required — the screws have a center pin that prevents use of a regular T15 driver.

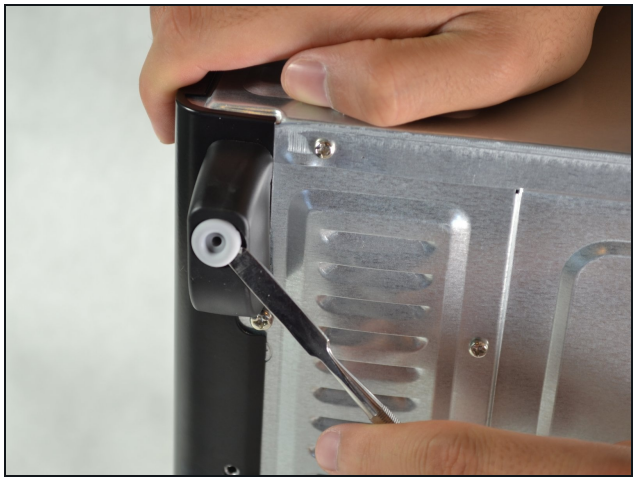

- Using the metal spudger, carefully pry out the rubber base on each foot to access the screws.

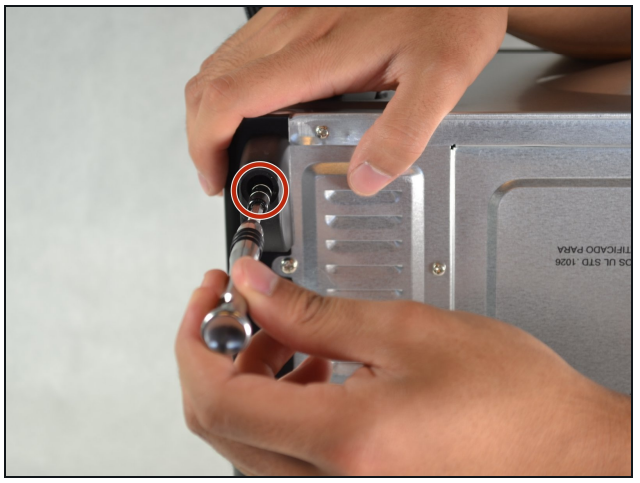

- Remove the 11.5 mm screws using a #2 Phillips screwdriver.

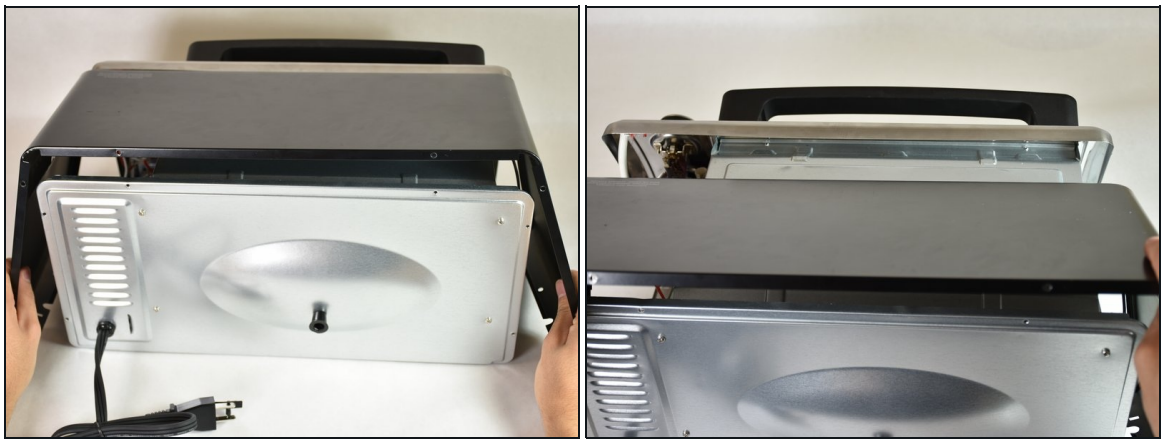

- Remove the back cover by gently pulling the sides of the cover apart from the rest of the oven. Then, tilt the cover towards the face and pull back at an upward angle. The cover should slide right off.
Door Spring

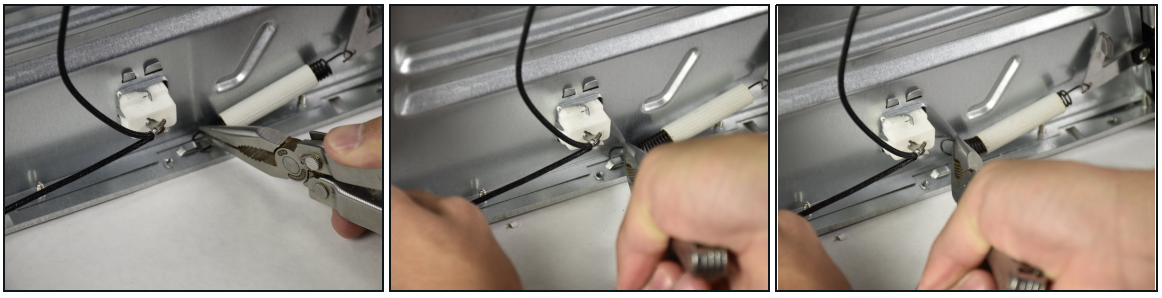

- With the needle-nose pliers, grasp the hook of the rear spring as close as you can to the coils. Stretch the spring back and, with a twisting motion, pull the hook out of its catch.
It is recommended to close the door before doing this. Slowly relieve the tension after pulling it out of the catch, or else it may damage the spring attachment.

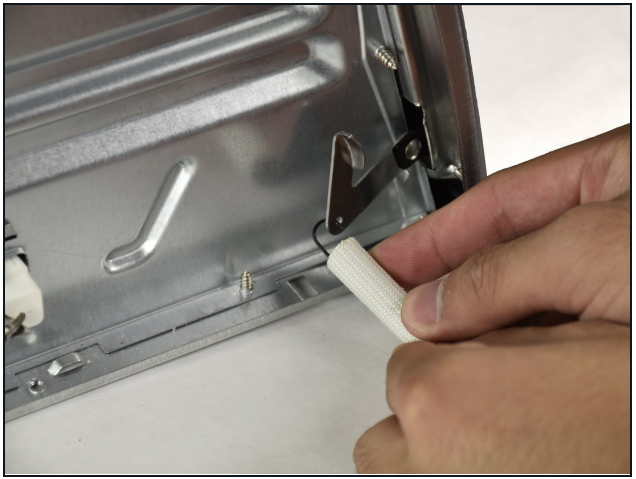

- Pull the front hook out of the spring attachment.
- When replacing the spring, it is recommended that Black & Decker TO1303SB Door Spring Removal start by reattaching the hook to the rear catch, and then the front spring attachment.
- Attaching the front spring attachment first will cause unnecessary stress to the attachment and may cause it to deform. To reassemble your device, follow these instructions in reverse order.
One-Year Limited Warranty
Applies only in the United States and Canada.
What does it cover?
- Any defect in material or Black And Decker RC3303 3-Cup Rice Cooker workmanship provided; however, Applica’s liability will not exceed the purchase price of the product.
For how long?
- One year after the date of original purchase.
What will we do to help you?
- Provide you with a reasonably similar replacement product that is either new or factory refurbished.
How do you get service?
- Save your receipt as proof of the date of sale.
What does your warranty not cover?
- Damage from commercial use
- Products used or serviced outside the country of purchase
- Shipping and handling costs associated with the replacement of the unit
How does state law relate to this warranty?
- This warranty gives you specific legal rights, and you may also have other rights that vary from state to
state or province to province.
Customer Service
- Website: https://support.blackanddecker.com/
- Timings: Monday–Friday, 8:00 a.m. – 5:00 p.m.
- Ph: +1-800-544-6986
FAQs
Q: What is the purpose of the door spring in the TO1303SB toaster oven?
The oven door’s opening and closing tension is managed in part by the door spring. It guarantees that the door won’t snap or hang loosely and will stay firmly closed while cooking.
Q: Can I operate the oven without the door spring attached?
No, you should never operate the oven without the door springs. Inadequate tension could cause the door to not close completely, which could result in uneven cooking, heat loss, or safety risks from exposed heat sources.
Q: Is it normal for the spring to make noise when opening or closing the door?
It is usual to hear a slight stretching or clicking sound. On the other hand, metallic snapping, squeaking, or grinding sounds suggest that the spring is worn out or misaligned.
Q: Can I lubricate the door spring to reduce noise?
Applying oil or grease to the spring is not advised. Lubricants have the potential to draw dust and disrupt the oven’s heating function. Instead, look for worn attachment points or debris if the noise continues.
Q: How often should I inspect or maintain the door spring?
Every six to twelve months, or whenever you observe unequal door tension, check the door and hinges. To avoid grease accumulation that could impair spring movement, clean the hinge area on a regular basis.
Q: The door still feels loose after replacing the spring—what should I do?
Make sure that both springs are firmly and uniformly positioned. The door hinge assembly or mounting brackets may be bent or misaligned and need professional service if the problem persists.
