DOMO DO230SR Handleiding Steam Cleaner Instruction Manual

DOMO DO230SR Handleiding Steam Cleaner

Safety Instructions

When using your DOMO Ultra Steam Shark II, always follow the safety instructions below:

1. Read all instructions before using your Ultra Steam Shark II.
2. Only use the appliance for its intended use.
3. Never immerse any part of the appliance in water, because of the danger of electrocution.
4. Never pull the cord to remove the plug from the socket; always take hold of the plug itself.
5. Turn the cord loosely around the appliance for storage.
6. Open the safety cap from the unit slowly so any residual steam and pressure can escape gradually.
7. . Never try to repair your Ultra Steam Shark II yourself.
8. Always return the unit to the vendor for repair.
9. When the appliance isn’t repaired correctly, you can run the risk of electrocution or injury.
10. Close supervision is necessary when the appliance is used by or near children.
11. Never leave the appliance unattended when it is still plugged in.
12. Contact with hot metal parts, hot water, or steam can cause burns.
13. Be extra careful when emptying the unit; there can still be hot water inside.
14. Never steam towards persons. The steam is very hot and can cause burns.
15. Never use the appliance near combustible or explosive materials.
16. This appliance is only intended for household use. Follow all the directions in this instruction booklet.
17. DO NOT use any chemicals or other liquids other than water in the unit
18. Other liquids may damage the unit and will invalidate your warranty.

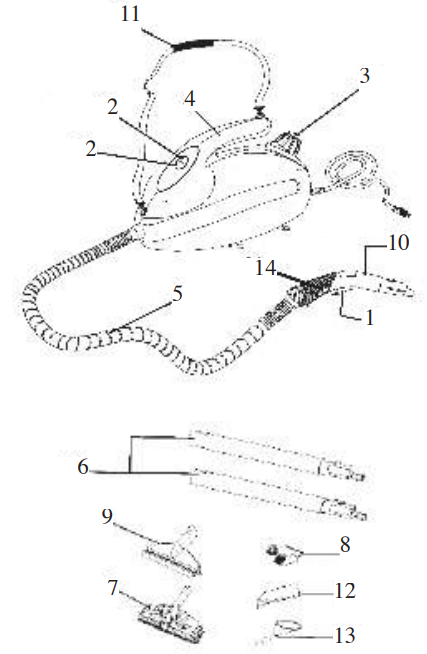

Parts

1. Control button on the handle
2. Red indicator light/green indicator light
3. Safety filler cap
4. Handle
5. Flexible steam tube
6. Extension tubes
7. Floor brush
8. 2 detail brushes
9. Squeegee
10. Concentrator
11. Shoulder strap
12. Angle adaptor
13. Funnel
14. Steam regulation

Features

1. No detergent or chemicals anymore. Only add water.
2. Lightweight and portable.
3. Steam generator in stainless steel: anti-corrosive 18/10 boiler. Welded construction.
4. Shockproof
5. Easy-to-use multi-functional accessories
6. For use indoors and outdoors: bathroom, kitchen, living room, animal cages, appliances, car, patio, windows, etc.

Functions

Fiiling

• Step 1: Make sure to remove the plug from the socket before filling the steam cleaner.
• Step 2: Screw off the safety fill cap by turning it counterclockwise.
• Step 3: Place the funnel in the fill opening and fill the water tank with 1.2 l water.
• Step 4: Place the plug in an earthed socket of 230V. The red indicator light will light up.
• Step 5: Wait for 8 – 10 minutes until the steam reaches the correct temperature and pressure.
• Step 6: Attach the accessory you want to use to the flexible tube.
• Step 7: Initially, water will flow out of the tube, which is normal. This is unheated water in the tube.

Filling the steam cleaner with water

• Step 1: Remove the plug from the socket.
• Step 2: Press the steam button and keep it pressed in until all pressure is gone from the boiler.
• Step 3: Unscrew the fill cap carefully by turning it counterclockwise, remaining steam can escape.
• Step 4: Let the steam cleaner cool down for 15 minutes before filling it again.
• Step 5: Fill the water tank by using the funnel.
• Step 6: Place the safety fill cap bag on the unit by turning it clockwise.
• Step 7: Place the plug in the socket.

Using the Floor Brush

• Step 1: Place the extension tubes on the handle of the flexible tube. To connect the extension tubes to the handle or each other, press the button so it fits into the hole. To disconnect, press the button again and pull the two parts apart.
• Step 2: When the angle adapter isn’t attached to the floor brush, keep the brush with the bristles up in your left hand. Turn the angle adaptor downward and place it in the opening at the back of the floor brush. Now turn the angle adaptor 180°.
• Step 3: Place the plug in the socket. To heat the water will take about 8-10 minutes. When using hot water, the heat-up time will shorten. Attach a cloth to the floor brush. You should use a white terry cloth to absorb dirt and to protect delicate surfaces. This can also be used to clean vertical surfaces.

Accessories

Squeegee

Very useful for cleaning large windows, plastic material, ceramics, tile, or marble surfaces. How to use? Place the squeegee on the handle or use the extension tubes for hard-to-reach places. Steam abundantly, clean with a soft sponge, and remove excess water and dirt with the squeegee.

Concentrator

Very efficient for cleaning hard-to-reach places. Ideal for radiators, doorposts, roll-down shutters, or sanitary fixtures. The concentrator fits directly on the handle and can also be used with the extension tubes.

Detail brushes

Place the detail brushes on the concentrator, which can be connected directly to the handle or the extension tubes. It can be used to clean the seams of tiles, ceramics, or marble.

Using the Device

Wood, vinyl, and marble floors

Use the floor brush with a white cloth. Move the brush as you are mopping. When the cloth is soiled, allow it to cool, then turn the cloth over or replace it with a clean cloth. If you are working on a very dirty area, you can move the brush over the area slowly, several times. If it is a wood floor, move fast to avoid heat or moisture buildup in the wood. By cleaning with the cloth over the brush, you will not affect the shine on the floor.

To strip wax

Use fl floor brush for open areas, a detail brush for corners or tight areas – no towel, slow strokes. Work a small area at a time – remove the emulsified wax from the floor. When all of the wax has been stripped, immediately clean the floor and brushes with water before the residue has a chance to harden on them. Go back over the stripped area with the floor brush with a towel to remove any remaining residue before waxing.

To clean waxed floors

Wrap a clean towel around the floor brush, and rush quickly. This will cause the dirt to be removed, but not the wax.

Vinyl floors

Do not allow the heat to build up on any kind of vinyl, since it can soften it enough to affect its texture. Work fast on vinyl.

Tile Floors

Use the concentrator with the detail brush attached to an extension. Have the floor brush with a cloth attached, ready as well. Clean the grout between the tiles with the detail brush. Remove the detail brush and attach the floor brush. Move the brush across the floor to clean the tile and remove excess moisture and residue. For areas of tile that are very dirty, remove the towel and agitate with the brush. Do not let the area dry before you wipe it with a towel.

Spot cleaning (carpets)

Use the concentrator with or without the detail brush. Move slowly over the soiled area, allowing the steam to penetrate. Agitate with a detail brush or a clean towel. Dab the spot with the towel (do not rub). Repeat as necessary to remove the stain. Vacuum only after the carpet has completely dried. Always test the colour fastness of carpet in an inconspicuous area before cleaning. If your Ultra Steam Shark II fails to remove stubborn stains, a commercially available carpet
shampoo may be required. Do not add cleaning solutions, scented perfumes, oils, or any other chemicals to the water used in this appliance, as this may damage the unit or make it unsafe for use.

Upholstery

Use the floor brush attached directly to the hand grip with a clean white terry cloth. Use fast, light strokes to avoid getting the fabric wet. Be patient with stubborn spots. Work on a spot gently for no more than a minute at a time, then wait fi five minutes for the area to dry and repeat. Use circular movements or back-and-forth and side-to-side movements to get all sides of the surface fibers, then blot with a towel. Finish by brushing in one direction to give the fabric a uniform appearance.

Window, glass surfaces, and mirrors

Use the dual-edge glass and tile squeegee. Work with the vapor jet on using the top-to-bottom movements. Use the squeegee with the vapor off to clean the water from the DOMO DO230SR Handleiding Steam Cleaner on the glass. To do this without leaving streaks, use lateral movements from the top to the bottom of the surface.

Fiberglass or Stainless Steel Surfaces

Use the floor brush or detail brush. Slowly move the brush over the surface to be cleaned. The vapor will emulsify the dirt and grease on the surface. Follow behind with a terry cloth towel over the brush to remove excess moisture and residue.

Soap scum

Soap scum dissolves almost immediately under a combination of heat and moisture. Rinse the surface with a small amount of water afterwards, or go back over it once more with a clean terry cloth towel. Moving too slowly can dry out the soap scum and cause it to DOMO DO230SR Handleiding Steam Cleaner granulate on the surface. The surface will have a gritty feel. If this happens, apply vapor to the surface with the open brush again and re-clean.

Garden furniture

Use any of the brushes depending on the surface area. Work the DOMO DO230SR Handleiding Steam Cleaner quickly when cleaning resin outdoor furniture. Finish by wiping with a towel.

Blinds

Use the detail brush to clean blinds. Move the brush over the surface, allowing enough time for the vapor to penetrate. Work quickly on PVC blinds. Test for colour fastness on fabric blinds before using. Finish by wiping with a towel.

Bathroom Areas

To clean the bathtub or shower area, use the detail brush for grout, shower door tracks, hard-to-get areas, and heavily soiled areas. The dual-edge window/tile squeegee DOMO DO230SR Handleiding Steam Cleaner will be the most efficient way to clean the rest of the area. Allow plenty of time for the heat to penetrate the surface. This is especially helpful in the shower area if there is tile or grout.

Wipe with a towel.

Removal of soap scum on tile, grout, and shower doors is also easier with the steam cleaner. To clean sanitary fixtures, use the concentrator with or without da detail brush. Use a terry cloth towel or paper towel to wipe up excess moisture and residue. To clean the sink and faucets, use a detail brush, then finish by wiping with a towel.

Exterior areas

To clean inside your car, use the floor brush with a terry cloth towel attached to clean upholstery and interior areas, just as in the home. You should not expose the bristles to leather – use only the brush with the terry cloth attached. For detailing the wheels, use the concentrator and the detail brush. Exterior windows are cleaned best by applying the vapor with the concentrator DOMO DO230SR Handleiding Steam Cleaner and following with a paper towel.

Artificial Plants

Use the concentrator with a brush attached to blow off the dust and dirt. Clothing: A vapor cleaning system is excellent for removing wrinkles from fabric. Simply “vaporize” the surface from a distance (30-45 cm). The dry vapor removes wrinkles without leaving the fabric wet, like ordinary fabric steamers do.

Nicotine and tar

Nicotine and tar dissolve at high temperatures and become a light yellow oil that has the consistency of sewing machine oil. When the nicotine/tar film is touched by a hot terry cloth clipped over the floor brush, it immediately dissolves and flows into the towel. You can remove it from flat surfaces as fast as you can move the brush over the surface.

Removing wax, tar, etc.

Many stains are only stuck on the surface of materials and can be easily and quickly removed by “blowing” excess material away from the surface from the side. This is accomplished by using the concentrator. Hold the terry cloth to the side to catch the loose residue as it is blown by the concentrator.

Care & Maintainance

If you consistently use demineralized or distilled water, cleaning the tank is unnecessary. Normally, a periodic rinse of your Ultra Steam Shark II will free it from deposits. This is recommended every 10 – 15 tankfuls to free up any scale deposits from the tank. Fill the boiler with water and shake the cleaner vigorously. Tilt the cleaner upside down to empty DOMO DO230SR Handleiding Steam Cleaner the boiler of water and any scale deposits.

Descaling

If the tap water in your area contains a high level of calcium deposits and you have been using tap water to do your steam cleaning, you should descale your unit after 10 – 15 tankfuls.

• Step 1: Unplug the steam cleaner from the power source before you descale the boiler. Allow to cool.
• Step 2: Fill the boiler with 1 part vinegar and 4 parts water and leave overnight or for a period of approximately 8 hours. Do not screw the safety/filler cap onto the steam cleaner while you are descaling the boiler. Do not use the steam cleaner while the scaling solution is inside the boiler.
• Step 3: After the period of soaking, turn the steam cleaner upside down to empty the solution from the boiler. Due to the fact that a small amount of solution will be left in the boiler, it is necessary to rinse the boiler out with clean water 2 or 3 times. Your steam cleaner is now ready for use.

Attaching the Shoulder Strap

Using the detachable shoulder strap allows for greater freedom of movement when both hands are needed for various cleaning tasks. To attach the shoulder strap to the steam cleaner, simply snap the shoulder strap hooks onto the connection rings on the unit body. When using the Ultra Steam Shark II with the shoulder strap, avoid rocking or tilting the unit excessively, as this may cause water to enter the hose and be discharged along with the steam.

Technical Specifications

• Voltage: 230V 50Hz
• Wattage: 2000 Watts
• Water capacity: 1.2 litres
• Max. steam temperature: 116°C
• Steam generator: stainless steel

Environmental Instructions

For more detailed information about the recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.

Warranty

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request that you contact our customer service. Our staff will gladly assist you. This appliance has a two-year warranty period. During this period, the manufacturer is responsible for any failures that are the direct result of construction failure.

Warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear and tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases.

• In case of incorrect connection, e.g., electrical voltage that is too high.
• In case of incorrect, rough, or abnormal use.
• In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

Customer Support

• Timings: Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00. Friday: 8.30 – 12.00 and 13.00 – 16.30
• Address: LINEA 2000 – Dompel 9 – 2200 Herentals, Belgium
• Website: http://webshop.domo-elektro.be
• Tel: +32 14 21 71 91
