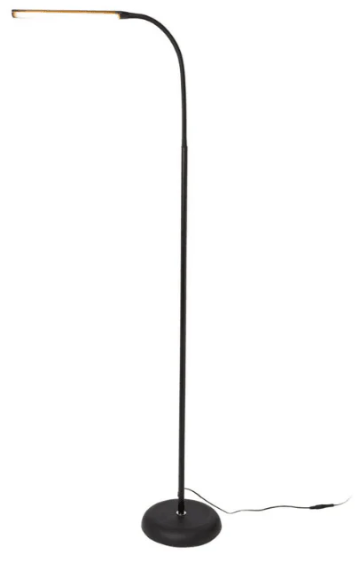

Livarno IAN 452506_2310 Led Floor Lamp
Introduction
Congratulations on the purchase of your new LED floor lamp (hereinafter also referred to as “product” or “luminaire”). You have chosen a high-quality product. Please be sure to carefully read all the instructions for use. Fold out the page with the diagrams. These instructions for use are part of the product and contain important information on setup and handling. Always observe all safety information. If you have any questions or are unsure about operating the product, please contact your retailer or the service centre. Please keep these instructions for use in a safe place and include them when passing this product on to others.
Safety Instructions
Damage due to failure to comply with these operating instructions will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury caused by improper handling or failure to observe the safety notes!
Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Always keep children away from the product. This product is not a toy.
This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory, or mental capacities, or lacking experience and knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.
Description
- Lamp head
- Flexible lamp arm
- Upper support tube
- Centre support tube
- Lower support tube
- Lower cord
- Mains adapter
- Lamp base
- ON / OFF touch button (including dimmer function)
Initial Use
Assembling the lamp
- Carefully take the lamp out of the packaging and remove all packaging materials.
- Screw the upper support tube 3a anti-clockwise onto the flexible lamp arm 2 (see Fig. A).
- Carefully feed the power cord 4 through the central support tube 3b.
- Screw the centre support tube 3b anti-clockwise into the lower support tube 3a.
- Then feed the remainder of the power cord 4 through the lower support tube 3c.
- Screw the lower support tube 3c anti-clockwise into the centre support tube 3b.
- Now, screw the lower support tube 3c clockwise into the screw connection provided in the lamp base 6
- Place the lamp on a stable and level surface.
- Make sure that nobody can trip over the power cord 4.
- Plug the mains adapter 5 into a mains socket that has been professionally installed.
- Only adjust the flexible lamp arm 2 when the lamp is switched off.
- Adjust the flexible lamp arm 2 to the desired position (see Fig. B).
Switching the lamp on / off
- Switch the lamp on or off using the ON / OFF touch button 7 on the lamp base 1.
Dimming the lamp
- You can dim the lamp in four stages (see Fig. A).
- The highest brightness level (100 %) is activated automatically when you switch on the lamp.
- By repeatedly pressing the ON / OFF touch button, 7 the lamp can be dimmed to three further levels (75 %, 50 %, 25 %) and switched off again.
Maintenance and Cleaning
First, allow the lamp to cool down completely.
- Do not use solvents, petrol, etc. These would damage the lamp.
- Only clean with a dry, lint-free cloth.
- Plug the power supply 5 back into the mains socket after cleaning.
- Regularly inspect the motion sensor 4 and the solar panel 2 to make sure they are not dirty.
- Remove any dirt to ensure the product works correctly
- Keep the product and especially the solar panel free of snow and ice in winter
- Use only a dry, lint-free cloth for cleaning If the product is very dirty, dampen the cloth slightly.
Technical Data
- Item number: 56343/56344
- Operating voltage: 220-240 V~ 50/60 Hz
- Max. wattage: max. 6 Watt
- Total output of LED module: 4.8 W, 600 lm (360°), 3000 K, Ra=82
- Dimensions: Height (luminaire head at 90°): approx. 130 cm
- Diameter lamp base: approx. 21 cm
- Length of lamp head: approx. 27 cm
- Cable length: approx. 1.8 m
- The light source can only be replaced by a specialist. Protection class: II
Disposal
Return batteries and/or the product to the local recycling facilities provided.
Warranty
Dear customer, This product comes with a 3-year warranty. LIVARNO IAN 459049_2401 Led Solar Light from the date of purchase. If this product is faulty, you have legal rights against the seller of the product. No new warranty period shall begin upon repair or replacement of the product.
Warranty processing
- Please have the receipt and the article number (e.g IAN 123456) ready as proof of purchase for all enquiries.
- Please refer to the type plate on the product, an engraving on the product, the cover of the manual (bottom left) or the sticker on the back or base of the product to find out the product number.
- In the case of any malfunctions or other defects, please call or email the service department indicated below as a first step.
- Please include the proof of purchase (receipt) and information about the defect and when it occurred.
Customer Service
- Tel: 00800 80040044
- E-Mail: administration@mynetsend.de
FAQs
Q: What type of light does the Livarno LED floor lamp provide?
The lamp’s integrated LED technology offers long-lasting, brilliant, and energy-efficient illumination. Depending on the model specs, it usually emits a warm white or customizable light.
Q: What is the maximum power consumption?
When compared to conventional lamps, the integrated LEDs’ low power—typically between 10 and 15 W—is energy-efficient. Unless the integrated LEDs malfunction, there is no need to change the bulbs.
Q: Can I use a standard replacement bulb?
Consult the warranty or get in touch with Livarno support if the LEDs stop working.
Q: Is the lamp adjustable?
To prevent damaging the lamp by straining joints, adhere to the instructions.
Q: Can the lamp be used outdoors?
No, this lamp should only be used indoors. Rain or moisture exposure could harm electrical components or present a safety risk.
Q: Is there a warranty for this lamp?
Indeed, Livarno usually offers a limited warranty that covers manufacturing flaws. For precise warranty details and duration, consult your purchase receipt or instruction manual.
Q: Can I use a smart plug with this lamp?
It is possible to remotely control power using a suitable smart plug. But don’t overload the plug or go above the lamp’s rated voltage, and don’t use the smart plug’s dimming features unless the light supports them.
Q: Can the lamp be used near water or in humid areas?
No. The lamp is intended for dry indoor settings. It can harm the LED module and cause electric shock if used close to sinks, restrooms, or the outdoors.
