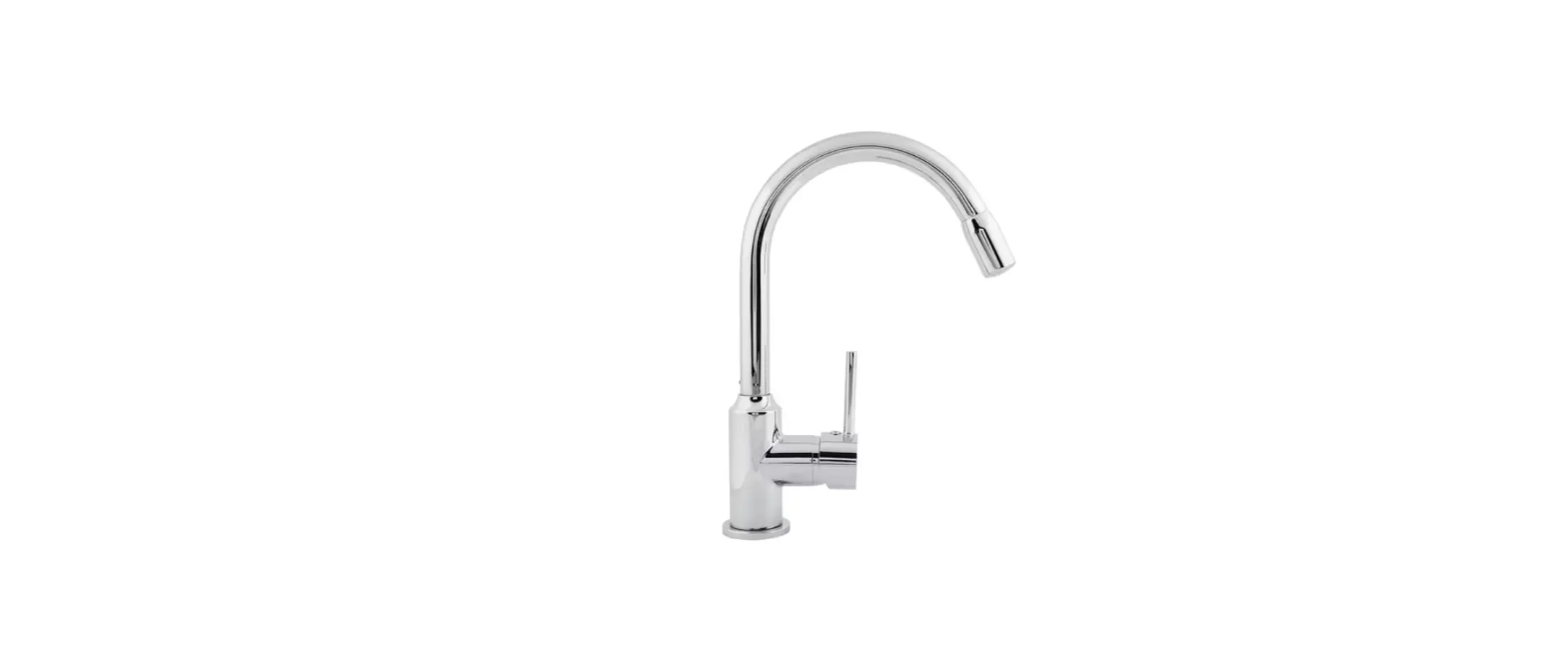

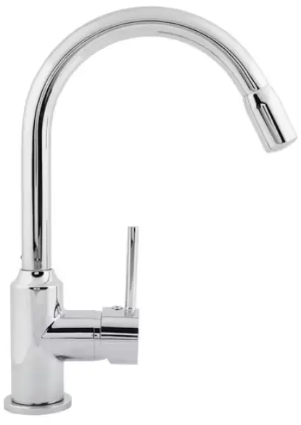

LIVARNO IAN 460061_2401 Led Kitchen Tap
Introduction
Congratulations on the purchase of your new product. You have chosen a high-quality product. The assembly and operating instructions are part of this product. Please read these assembly and operating instructions carefully before use and observe all the information. These instructions contain important information about installation, settings, and care. Therefore, we ask that you retain these assembly and operating instructions and pass them on to any future owner.
Parts Description
- Warm/cold plaque
- Hexagon socket
- Tap lever
- Cartridge covering
- Cartridge safety device
- Cartridge
- Cartridge base
- Flexible connecting hoses
- Hex key
- Fastening nut
- Transparent washer
- Silicone
- Plastic triangle
- Tap thread
- Base ring seal
- Base ring
- Installation key
- Cap
- Silicone seal
- LED insert
- Aerator
- Silicone seal
- Tap
- Tap body
- pre-assembled
Intended use
The product is exclusively designed for the regulation of hot and cold water flow and installation on sink units. This product is a water-saving tap. The product is suitable for use with all pressure-tight hot water systems such as central heating, instantaneous water heaters, pressurised boilers, etc. The product is not suitable for low-pressure water heaters such as wood or coal water heaters, oil or gas water heaters, or open electrical storage heaters. If in doubt, consult a plumber or heating specialist.
Any use other than those stated above, or any product modification, is prohibited and can result in injuries and/or product damage. Furthermore, improper use may result in life-threatening risks and injuries. The tap is only for private use and is not intended for medical or commercial use. The manufacturer is not liable for damages due to improper use.
Installation
- Detach the fastening nut 10 from the tap thread 14.
- Screw the short side of the tap thread 14 into the tap body 24.
- Place the base ring seal 15 into the groove on the base ring 16.
- Ensure that the base ring seal 15 is positioned correctly in the corresponding groove.
- Screw the connecting hoses onto the corner valve on your wall connection.
- Make sure that you attach both connecting hoses correctly to the hot or cold water connections.
- After successfully installing the product, turn on the hot and cold water supplies.
- Guide the plastic triangle 13, the silicone sealing ring 12, the transparent washer 11, and the fastening nut 10, if necessary, over the connecting hoses 8 from below.
- When using the plastic triangle, ensure that the flat side is facing upwards so that it lies directly on the underside of the sink unit when installed.
- Fix the tap to the sink unit by hand-screwing the fastening nut 10 into the tap base from below until it stops.
Use
Initial use
Carefully check all connections for leaks after the first use to ensure that they are sealed sufficiently.
- Check that the tap is operational.
- To do so, swing the tap lever 3 into all permissible positions.
- Open the main water supply.
- Lift the tap lever 3 and swing it to the right or left to regulate the flow or temperature of the water.
- Hot water: Swing the tap lever 3 to the left.
- Cold water: swing the tap lever 3 to the right.
Maintenance and Cleaning
Maintaining and cleaning the fitting
Please note that sanitary taps require special care and attention. Therefore, please follow the instructions.
- Never clean with petrol, solvents, or aggressive cleaners, or hard-bristle brushes, etc. These could damage the product surface.
- Dry your tap with a cloth after every use to prevent any lime deposits.
- Clean the product with a damp, soft cloth and, if necessary, mild detergent.
Failure to observe the above care advice can be expected to result in damage to the surfaces of the product. This will inevitably invalidate the warranty.
Replacing the LED insert
- If the LED bulbs fail to light up, the LED insert 20 can be replaced.
- LED service life: approx. 10,000 operating hours. A new LED insert can be obtained from the specified service address.
To replace the LED insert, proceed as follows
- Use the LED installation key 17 to remove the cap 18 on the tap spout 23.
- Remove the silicone seal 19 and then – using the LED installation key 17 again – remove the LED insert 20 from the aerator housing 21.
- Install the new LED insert and the silicone seal in the opposite way to disassembly.
Replacing the Cartridge
Cartridges are wearing parts that must be replaced at regular intervals, depending on the lime content and contamination levels of the water. If the tap lever becomes stiff to operate, this can be a sign that the cartridge must be replaced. Replacement cartridges can be obtained directly at the specified service point.
Proceed as follows
- Carefully remove the hot/cold plaque 1 from the tap lever 3 with the help of a small flat-tip screwdriver.
- Loosen the underlying Allen grub screw 2 using the Allen key 9 by turning it anti-clockwise for a few turns. Do not unscrew the Allen grub screw 2 completely, only loosen it until the tap lever 3 can be easily removed.
- Remove the tap lever 3.
- Unscrew the cartridge covering ring 4 by hand in an anti-clockwise direction.
Technical Data
- Connections: G⅜
- Min. flow pressure: 1.5 bar (150,000 Pa)
- Max. flow pressure: 16 bar (1,600,000 Pa)
- LED light: approx. 32 °C blue approx. 33–40 °C green approx. 41–45 °C red approx. 45 °C flashing red
- Temperature sensor tolerance: +/- 2 °C
Scope of Delivery
- 1 Sink unit single-lever mixer (pre-assembled) including fastening set
- 2 Flexible connecting hoses ⅜
- 1 Hex key
- 1 LED installation key
- 1 Set of assembly/operating instructions
Disposal
Contact your local refuse disposal authority for more details on how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
The product, incl. accessories and packaging material, is recyclable and subject to extended producer responsibility. Dispose of them separately, following the illustrated Info-tri (sorting information), for better waste treatment. The Triman logo is valid in France only.
Disposal
Return batteries and/or the product to the local recycling facilities provided.
Warranty
Dear customer, This product comes with a 3-year warranty. LIVARNO IAN 459049_2401 Led Solar Light from the date of purchase. If this product is faulty, you have legal rights against the seller of the product. No new warranty period shall begin upon repair or replacement of the product.
Warranty processing
- Please have the receipt and the article number (e.g IAN 123456) ready as proof of purchase for all enquiries.
- Please refer to the type plate on the product, an engraving on the product, the cover of the manual (bottom left) or the sticker on the back or base of the product to find out the product number.
- In the case of any malfunctions or other defects, please call or email the service department indicated below as a first step.
- Please include the proof of purchase (receipt) and information about the defect and when it occurred.
Customer Service
- Tel: 00800 80040044
- E-Mail: administration@mynetsend.de
FAQs
Q: What is the Livarno LED Kitchen Tap?
In order to improve safety and provide a contemporary look, the LED usually changes colour in response to the water’s temperature.
Q: Does the LED require batteries?
No, a little turbine inside the tap uses the flow of water to light the LED.
Q: Can this tap be used with any type of sink?
To make sure it works with the mounting base, check the hole’s diameter.
Q: Can I adjust the water flow?
Adjust the temperature by moving the handle left or right, and the flow by moving it up or down.
Q: Is the tap safe for hot water?
When hot water is flowing, the LED indicator gives a visual alert.
Q: Can I use a water filter with this tap?
As long as they don’t lower the water pressure below the LED’s operating threshold, it is possible to add appropriate under-sink filters.
Q: Is this tap compatible with all water pressures?
Standard domestic water pressures are ideal for the tap’s operation. Extremely high pressure might need a pressure reducer to stop leaks, while very low pressure might have an impact on LED brightness.
