Nutribullet NBI50100 Immersion Blender Instruction Manual

Nutribullet NBI50100 Immersion Blender

Getting started

Before using your blender for the first time, please take a moment to perform the steps below.

Unpack

• Open the box. Remove the blender and attachments.
• Place all parts on a flat, dry surface.

Clean

• Rinse all detachable parts and accessories (except the motor body) with warm,  soapy water.
• Dry. Clean the motor body with a damp cloth.

Safety Instructions

1. Close supervision is necessary when any appliance is used by or near children.
2. Keep the cord out of reach of children.
3. Do not use outdoors.
4. Use care when handling any blade.
5. To avoid laceration injury, do not handle or touch any blade edge.
6. Always hold the S-blade by its upper plastic part.
7. Never blend using the blending arm without at least some liquid, as doing so may damage the blade or motor.
8. Do not use this product in locations with different electrical specifications or plug types.
9. Do not operate with any type of plug adapter or voltage converter device, as these may cause electrical shorting, fire, electric shock, personal injury, or product damage.
10. This appliance has important markings on the plug blade.
11. The cord is not suitable for replacement.
12. If the appliance shall be replaced.

Polarized Plug Safety

• If the plug does not fit fully in the outlet, reverse the plug.
• If it still does not fit, contact a qualified electrician.
• For your safety, do not modify the plug or motor body in any way.
• Doing so will increase the risk of injury and void the product’s warranty.
• Discontinue use if the cord, plug, or motor body is damaged.
• To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

Ventilation

• Never place your NutriBullet® on top of flammable materials such as newspapers, tablecloths, napkins, dish towels, place mats, or other similar types of materials.

Heating Safety

• Do not place any NutriBullet® parts in the microwave or oven.
• Only the Blending Arm attachment or Whisk attachment may be immersed in liquid or used on the stove top, but always keep the motor body dry.

Medical Safety

• The information contained in this user guide is not meant to replace the advice of your physician. Always consult your physician regarding health and nutrition concerns.
• If you are taking any medication, especially cholesterol-lowering medication, blood thinners, blood pressure drugs, tranquilizers, or antidepressants, please check with your physician before trying any of the recipes contained in this guide.

Additional Safety

• Make sure to always allow room at the top of whatever container you are blending in.
• Blending in a full container can result in leakage or spillage.
• Remove the whisk from the product before washing.

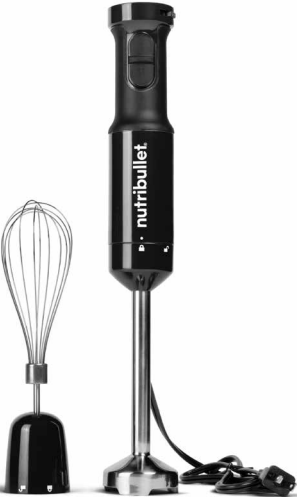

What’s included

1. motor body
2. 8” blending arm
3. whisk & whisk holder

Assembly guide

1. variable speed dial
2. low & high speed buttons
3. motor body
4. 8” blending arm
5. whisk holder
6. whisk
7. Before starting assembly, make sure that the appliance is unplugged.
8. Attach one of the accessories (blending arm, whisk) to the bottom of the main motor body:

Blending Arm

1.  Insert the bottom of the motor body into the top of the blending arm; push the motor body down and turn it clockwise until it locks.

Whisk

1.  Insert the top of the whisk into the bottom of the whisk holder.
2. Then insert the bottom of the motor body into the top of the whisk holder, pushing the motor body down and turning clockwise until it locks.

Use

1. Prepare foods for blending; make sure only blendable foods are used.
   • Remove any hard seeds, pits, and skin – for example, peel, pits, and rind should be removed from oranges, lemons, grapefruits, and melons.
   • Cut foods into smaller pieces if needed.
   • Do not attempt to process overly thick or hard foods (since these may damage the motor or blade).
   • Do not blend hard fruits or vegetables without liquid.
2. Place mixing vessel (cup, cooking pot, or mixing bowl) on a flat, dry surface.
3. The blender is now ready to operate.
4. Place the prepared food and/or liquid into your cup or mixing bowl, without forcing items in and without overfilling.
5. Carefully submerge the blending arm or whisk into the mixing vessel with the ingredients that you wish to mix or blend.

6. Press and hold the Low-speed (I) or High-speed (II) Power Button to operate the unit.
7. If desired, fine-tune blending speed by the Variable Speed Dial while pressing the LowSpeed button.
8. Before pressing either Power Button, you can finely adjust the speed by turning the Speed Dial and then pressing the Low-Speed (I) button.
9. Pressing either speed button activates the motor.

10. When you are done, release the power button to shut off the blender.
11. Remove the blender from your mixing vessel. Gently shake off any excess mixture from the blending arm.
12. Remove the blender from your mixing vessel. Gently shake off any excess mixture from the blending arm.

13. Place the motor body and blending arm or whisk on the counter (or other flat, dry surface).

Using the blending arm

1. Place the mixing vessel on a flat, dry surface. Make sure your selected attachment is tightly fastened to the bottom of the motor body and locked in place. (See Assembly section). The blender is now ready to operate.
2. Place the prepared food and/or liquid into your mixing vessel, without forcing items in and without overfilling
3. Place the blending arm into the mixing vessel containing the items you wish to blend.

4. Press and hold the Low-speed (I) or High-speed button (II) to begin the blending operation.
5. If desired, fine-tune blending speed using the Variable Speed Dial before starting blending by pressing the Low-speed button.
6. When you are done, release the button and wait for the blending action to stop. Unplug the unit.
7. Remove the blender from your mixing vessel. Gently shake off any excess mixture from the blending arm.
8. Place the motor body and blending arm on the counter (or other flat, dry surface).

Using the whisk

1. Place the mixing vessel on a flat, dry surface. Make sure your selected attachment is tightly fastened to the bottom of the motor body and locked in place. (See Assembly section.). The blender is now ready to operate.
2. Place the prepared food and/or liquid into your mixing vessel, without forcing items in and without overfilling.
3. Place the whisk upright in your mixing vessel.
4. Press and hold either the low-speed button (I) to begin whisking operation.
5. When you are done, release the low-speed button (I) and wait for the whisking action to stop. Unplug the unit.
6. Remove the blender from your mixing Nutribullet NBI50100 Immersion Blender vessel. Gently shake off any excess mixture from the blending arm.

Disassembly

1. Make sure the blender is OFF and unplugged.
2. Ensure that the motor has completely stopped, the blade or whisk has stopped moving, and all moving parts have stopped before disassembling the blender.
3. Remove the blender from your Nutribullet NBI50100 Immersion Blender mixing cup or bowl.
4. Detach the motor body from the blending arm or whisk attachment.
5. Separate attachment parts, if needed (Whisk– Whisk holder). The blending arm attachment is one single part.

Care and maintenance

1. Detach and separate the parts of the blender (see Disassembly section).
2. Remove the contents of the mixing vessel.
3. Clean all blender parts (except the motor body) with warm, soapy water. Do not soak parts in water, as it may damage the internal gears.
4. Be sure to properly clean the blade or whisk every time you use it. Leftover traces of food can cause residue buildup on the blade or whisker, which may degrade blending performance or inhibit maximum blending.
5. Clean the motor body with a damp cloth only.
6. Let all parts dry thoroughly, then store the appliance and its attachments in a dry place.

How to store

• You can save blended or whisked contents for future use by putting them in a cup or bowl, covered by plastic wrap or other cover, and storing them Nutribullet NBI50100 Immersion Blender in your refrigerator.
• When not in use, store the blender in a safe, dry place where the parts will not be damaged and won’t cause harm.

Troubleshooting

Before Blending

• If the unit is not operating, this may be the Nutribullet NBI50100 Immersion Blender due to parts not being fully locked in place.
• Check to make sure the attachment you are using is locked tightly onto the main body of the blender.

During Operation

• If the problem seems to be an overly thick mixture that caused the blade to stop moving, try adding water or other liquid to soften the mixture, or try separating the mixture by hand, or removing some of the mixture.

Overheating

• To avoid overheating, allow the Immersion Blender to cool down for at least 5 minutes between uses.

One-year limited warranty

• NutriBullet, LLC (“NutriBullet”) warrants this NutriBullet® against defects in materials and workmanship for one year from the date of original retail purchase.
• A replacement product assumes the remaining warranty of the original product. A repaired product has a one-year warranty from the date of repair.

Obtaining Warranty Service

• Before sending your product for limited warranty service, please make sure to keep a copy of all relevant documents for your files (receipt, etc.).

Exclusion & Limitations

• This limited warranty extends only to the original consumer purchaser and is not transferable.
• Repair or replacement of the product (or, if repair or replacement is not feasible, a refund of the purchase price) is the exclusive remedy of the consumer under this limited warranty.
• NutriBullet shall not be liable for any incidental or consequential damages for breach of this limited warranty or any implied warranty on this product.

Warranty registration

• The registration will enable us to contact you in the unlikely event of a product safety notification.
• By registering your product, you acknowledge that you have read the instructions and understood the warnings as outlined in the accompanying instructions.
• To find the serial number, check the warranty Nutribullet NBI50100 Immersion Blender card that came with the Immersion Blender.
• If you cannot find the serial number, call customer service for assistance.

Customer Support

• websites: nutribullet.com/shop/accessories, nutribullet.com;
• toll: 1 (800) 523-5993.

FAQs

Q: What materials are safe to blend in?
Ans: You can combine in the included beaker, pots, pitchers, or deep bowls. Always make sure the container is deep enough to avoid splashing, strong, and heat-safe.

Q: Can I use the immersion blender in hot liquids?
Ans: Yes, it is okay to use with hot or warm drinks; however, do not mix boiling liquids. Allow the liquid to cool somewhat to avoid burns from steam or splash.

Q: Does the NBI50100 have multiple speeds?
Ans: Indeed, the NBI50100 has variable speed control, which lets you fine-tune the intensity of the blending for greater accuracy.

Q: Can I crush ice or frozen fruit with this blender?
Ans: Crushing huge ice cubes or hard frozen things immediately is not advised. To safeguard the motor and blades, use smaller pieces or soften frozen foods first.

Q: Is the blending arm dishwasher-safe?
Ans: The whisk attachment and mixing arm are indeed top-rack dishwasher safe. Use a moist cloth to clean the motor base instead of immersing it or putting it in the dishwasher.

Q: Can I use the whisk attachment for heavy dough?
Ans: No, the whisk attachment works best for simple mixing jobs like whisking eggs or cream. Use a hand mixer or stand mixer for thick batters or dough.
