    Paradox RTX3 Wireless Expansion Module Instruction Guide

    By Gabriel SmithNovember 16, 2025Updated:April 17, 20262 Comments8 Mins Read
    Facebook Twitter Pinterest LinkedIn Tumblr WhatsApp Telegram Email
    Paradox RTX3 Wireless Expansion Module
    Share
    Facebook Twitter LinkedIn Pinterest Email

    paradox-logo

    Paradox RTX3 Wireless Expansion Module

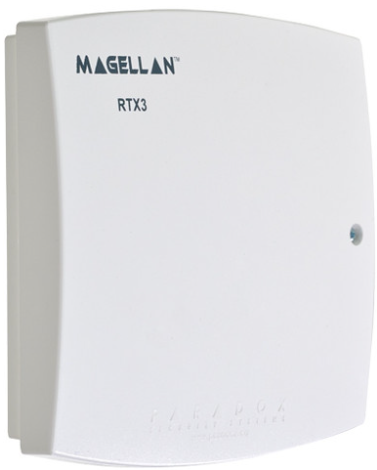

    Paradox-RTX3-Wireless-Expansion-Module-product

    Introduction

    The Paradox RTX3 Wireless Expansion Module is a 2-way, 32-zone device that enables EVO and SP Series control panels to support wireless hardware such as sirens, motion detectors, water detectors, and remote controls. It works seamlessly with other Paradox devices, including the Paradox IPC10 IP to CMS Converter, for enhanced monitoring and control capabilities.

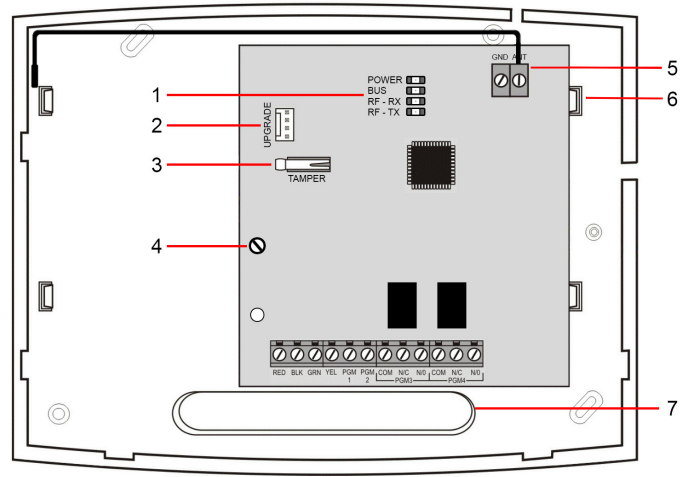

    RTX3 Board and Connectors

    Paradox-RTX3-Wireless-Expansion-Module-figure-1

    1. LED display
    2. Firmware upgrade serial connector
    3. Anti-tamper switch
    4. PCB screw
    5. Antenna
    6. Mounting clips (2)
    7. Wiring slot

    Installation

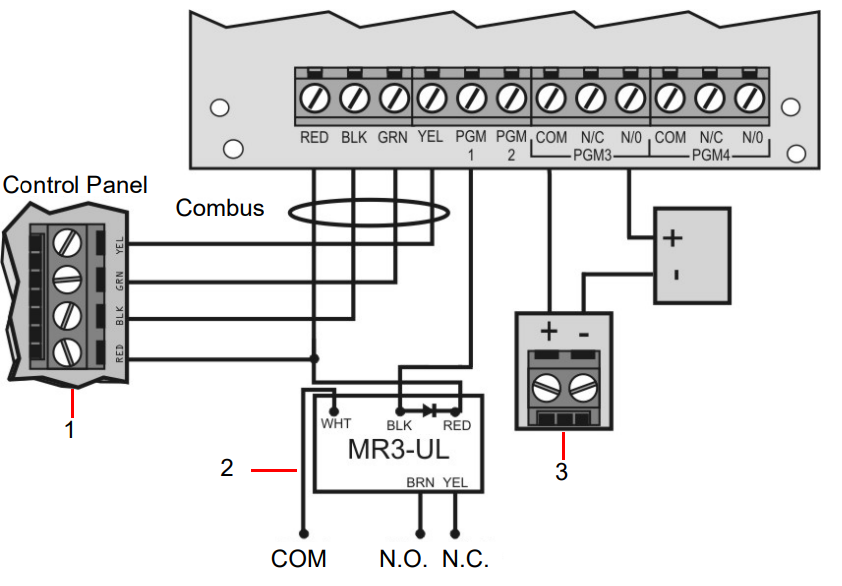

    Paradox-RTX3-Wireless-Expansion-Module-figure-2

    Installation

    Refer to Figure 2 for the following connections and instructions when installing the Paradox RTX3 Wireless Expansion Module.

    1. Control panel Digiplex connection.
    2. Use a relay if the current draw exceeds 150mA on PGM1 or PGM2.
    3. Connect the RTX3’s RED connector to the relay’s RED connector, and the RTX3’s PGM connector (PGM1 or PGM2) to the relay’s BLK connector.
    4. Connect PGM3 and PGM4 to external power supplies if additional power is required.
    5. Connect the power supply’s “-” connector to the device’s “-” connector.
    6. Connect the PGM’s COM connector to the device’s “+” connector.
    7. Write down the serial number of all wireless modules used with the RTX3.
    System Reset for EVO Panels
    1. Press and hold the [0] key.
    2. Enter the [INSTALLER CODE].
    3. Enter section [4001].
    4. Enter the module [SERIAL NUMBER].
    5. System Reset restores the RTX3’s factory settings.

    LED Feedback

    LED OFF ON
    POWER OFF OK (10.5V to 16V)

    BUS No clock or data exchange Clock and data OK
    RF – RX Not receiving data Flashes green when receiving data
    RF – TX Not transmitting data Flashes green when transmitting data

    Programming RTX3 for SP Series Panels

    When connected to a SP Series control panel, the settings of the Paradox RTX3 Wireless Expansion Module are programmed through the control panel programming sections. For detailed instructions, refer to the SP Series Programming Guide. Only one Paradox RTX3 Wireless Expansion Module can be connected to a SP Series panel.

    Programming for EVO Series Panels

    Program RTX3 settings for EVO panels with either a keypad or BabyWare PC software.

    Programming RTX3 with a Keypad

    When connected to an EVO panel, program RTX3 settings through the keypad by entering Module Programming Mode.

    To enter Module Programming mode

    1. Press and hold the [0] key.
    2. Enter the [INSTALLER CODE].
    3. Enter section [4003].
    4. Enter the module [SERIAL NUMBER].
    5. Enter the required [DATA].
    After Programming RTX3 for EVO Control Panels

    Program the zones, PGMs, sirens, and remote controls into the EVO panel. Refer to EVO section [3034] and RTX3 section [001] options [2] and [3] for wireless transmitter supervision options. Requirement: Configure all wireless sirens in an EVO system to a single RTX3.

    RTX3 Programming Sections for EVO Panels

    Section Feature Details
    [001] Option
    [1] Low battery supervision For RTX3 version 1.5 and higher, this option is always on

    ON:     default

    [2] Check-in supervision OFF: default
    [3] Check-in supervision time interval OFF ON: : 24 hours (default)

    80 minutes

    [4] RF Jamming supervision OFF: default
    [5] On-board module tamper supervision OFF: default
    [6] PGM1 initial state OFF: Normally Open (default)
    ON: Normally Closed
    [7] PGM2 initial state OFF: Normally Open (default)
    ON: Normally Closed
    [8] Transmit tamper signal OFF: RTX3 ignores the tamper signal

    (default)

    ON: RTX3 reports tamper signal
    [002] Remote Control Options
    [1] REM2 visual and auditory feedback compatibility options* OFF:

    ON:

    Old visual and auditory feedback (Supported by REM2

    v2.00 or lower)

    New visual and auditory feedback

    (default)

    Note: Requires REM2 v2.01 and higher

    * The new visual and audit ory feedback includes the following
    System status: stay armed , instant armed, and exit delay. Other
    Status feedback has not c hanged. For REM2 v1.04 or older, stay.
    arm, instant arm, and exit delay status is not supported, and a
    The rejection beep will be heard d when the system is in this status.
    [030] View Transmitter, Remote

    Control and PGM Serial

    Numbers

    To view a transmitter’s 6-digit serial number:

    Press and hold the transmitter’s anti-tamper switch

    [101] to

    [132]

    Assign Wireless Transm

    [101] = Zone Input 1; [132

    itters

    = Zone Input 32

    Enter 6-digit serial number  or press and release the transmitter’s
    Tamper switch. To delete the serial number. An assigned transmitter, enter 000000 as
    See

    Details

    Remote Controls To program remote controls:

    •     Refer to User Code and Remote Control Programming sections in the EVO Programming Guide OR:

    •     Program through BabyWare

    PGM Programming for EVO

    This applies to EVO panels version 6.90 and below.

    1. Enter section [0901] – [0932].
    2. Enter the 8-digit serial number and 3-digit output number.
    3. Enter the 3-digit Event Group, Feature Group, Start #, and End # for PGM activation.
    4. Enter the 3-digit Event Group, Feature Group, Start #, and End # for PGM deactivation.
    5. Define the PGM Delay Value (001 to 255 x 1 sec./min). Default set to 15 minutes.
    6. Set your PGM options, refer to the table below.
    OPTION DESCRIPTION PGM #
    OFF ON
    1 PGM deactivation after (OFF = deactivation event; ON = PGM timer) p
    2 PGM base time (OFF = seconds; ON = minutes) p
    3 Flexible PGM deactivation option(OFF = PGM timer only; ON = PGM timer and/ or deactivation event) p
    4 PGM initial state (OFF = normally open; ON = normally closed) p
    5 PGM time base (OFF = follow option 2, ON = hour) p
    6 to 8 Future use – –
    PGM Option Programming for EVO
    PGM Activation*
    Event Group Feature

    Group

    Start # End #
    PGM1 [910] [911] [912] [913]
    PGM2 [920] [921] [922] [923]
    PGM3 [930] [931] [932] [933]
    PGM4 [940] [941] [942] [943]
    PGM5 [950] [951] [952] [953]
    PGM6 [960] [961] [962] [963]
    PGM7 [970] [971] [972] [973]
    PGM8 [980] [981] [982] [983]
    Default Data 000 000 000 000
    PGM Deactivation*
    Event Group Feature

    Group

    Start # End #
    PGM1 [914] [915] [916] [917]
    PGM2 [924] [925] [926] [927]
    PGM3 [934] [935] [936] [937]
    PGM4 [944] [945] [946] [947]
    PGM5 [954] [955] [956] [957]
    PGM6 [964] [965] [966] [967]
    PGM7 [974] [975] [976] [977]
    PGM8 [984] [985] [986] [987]
    Default Data 000 000 000 000
    PGM Delay
    Delay (000 to 255) Options
    PGM1 [918] [919]
    PGM2 [928] [929]
    PGM3 [938] [939]
    PGM4 [948] [949]
    PGM5 [958] [959]
    PGM6 [968] [969]
    PGM7 [978] [979]
    PGM8 [988] [989]
    Default Data 005 OFF
    The following options apply to sections [919], [929]…[989]:
    • Option [1]: PGM deactivation after, refer to the table.
    • Option [2]: PGM Base Time: On = minutes; Off = seconds (default).
    • Option [8]: Flexible PGM deactivation**, refer to the table
    [1] [8] Details
    OFF OFF Deactivation event
    OFF ON Deactivation Event
    ON OFF PGM Timer
    ON ON PGM Timer or Deactivation event

    * For a complete list of events, refer to the PGM programming section of your EVO Programming Guide.
    ** To use the “Flexible PGM deactivation” option [8], the PGM deactivation after option [1] must be ON.

    Firmware Upgrade

    Upgrade RTX3 firmware using a serial connection (307USB). For firmware upgrade instructions, see the Firmware Upgrade Instructions document at: Paradox.com > Software > BabyWare.

    Hardware Compatibility

    EVO SP Series
    Zones 32 32
    Remotes 32/999 32
    Remote Control Type REM1

    RAC1

    REM2

    REM3

    REM15

    REM25

    Wireless PGMs 8 16
    Wireless Keypads – 8
    Wireless Siren 8 4
    Wireless Repeater – 2

    Technical Specifications

    Power input voltage 12 Vdc
    Frequency 433 or 868 MHz
    Sensitivity -120 dBm
    Current consumption 50 mA
    Dimensions and weight 15 x 16 x 3 cm (6 x 6 x 1.1 in.) / 24g
    Operating temperature 0°C to 49°C (32°F to 120°F)
    Humidity 5 – 90%
    PGM outputs PGM1 and PGM2 – 150mA PGM transistor outputs
    PGM3 – Form C relay output rated at 5A/28Vdc,
    N.O./N.C. (PGM4 optional)
    Range Refer to the appropriate transmitter instructions
    Other Di-pole antenna; error correction algorithm
    Approvals CE, EN 50131-1 and EN 50131-3,

    Security Grade 2, Environmental Class II

    FCC and Industry Canada Compliance Statement
    This device complies with FCC Rules Part 15 and with Industry Canada license-exempt RSS standard(s). Operation is subject to two conditions:

    1. This device may not cause harmful interference
    2. This device must accept any interference that may be received or that may cause undesired operation.
      This Class B digital apparatus complies with Canadian ICES-003.
      Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
      FCC ID: KDYRTX3
      IC: 2438A-RTX3

    FCC Statements

    This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

    This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

    • Reorient or relocate the receiving antenna.
    • Increase the separation between the equipment and the receiver.
    • Connect the equipment to an outlet different from that to which the receiver is connected.
    • Consult the dealer or an experienced radio/TV technician for help.
    • Changes or modifications to this equipment not expressly approved by the party responsible for compliance (Paradox Security Systems Ltd.) could void the user’s authority to operate the equipment.

    Warranty

    For complete warranty information on the Paradox RTX3 Wireless Expansion Module, please refer to the Limited Warranty Statement, which can be found on paradox.com/terms or contact your local distributor.

    Customer Support

    • Website: www.paradox.com
    • Tel: (954) 933-2156

    US, Canadian, and international patents may apply. Paradox IPC10 IP to CMS Converter is a trademark or registered trademark of Paradox Security Systems (Bahamas) Ltd.  © 2024 Paradox Security Systems (Bahamas) Ltd. All rights reserved.
