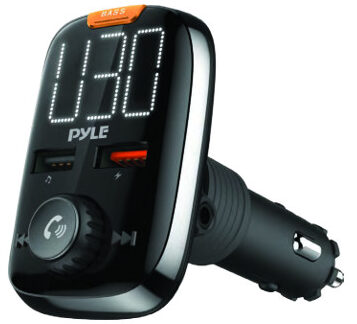

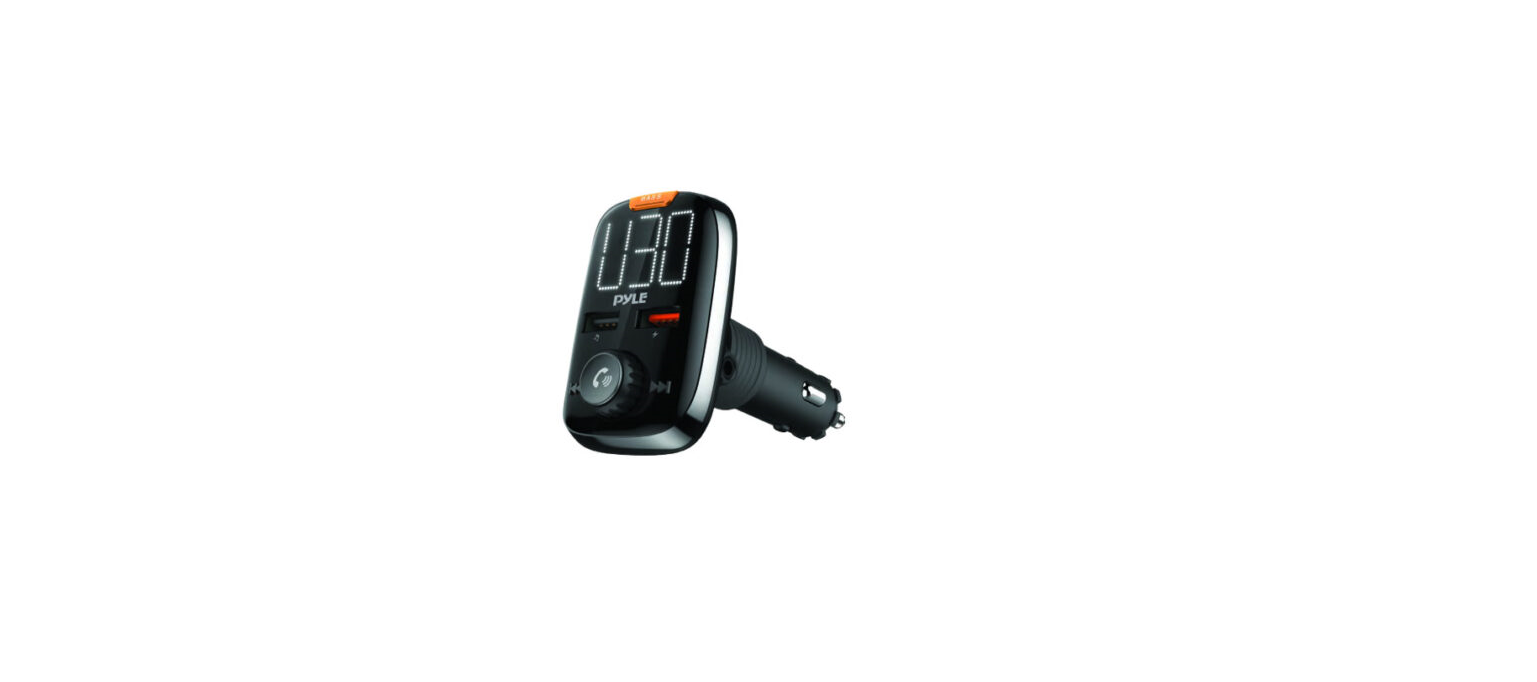

PYLE PBT98 Wireless FM Transmitter with USB Quick Charge
Introduction
This device streams music and calls directly from your Bluetooth device to your car’s FM stereo system. The built-in microphone provides you with an amazing hands-free function, it also with a Micro SD card/USB Disk slot that lets you enjoy your favourite MP3 and WMA tunes through your car’s stereo system, and most functions are achieved by the rotation knob. Please read the User Manual carefully before using. Hope this device makes your driving more interesting and safer.

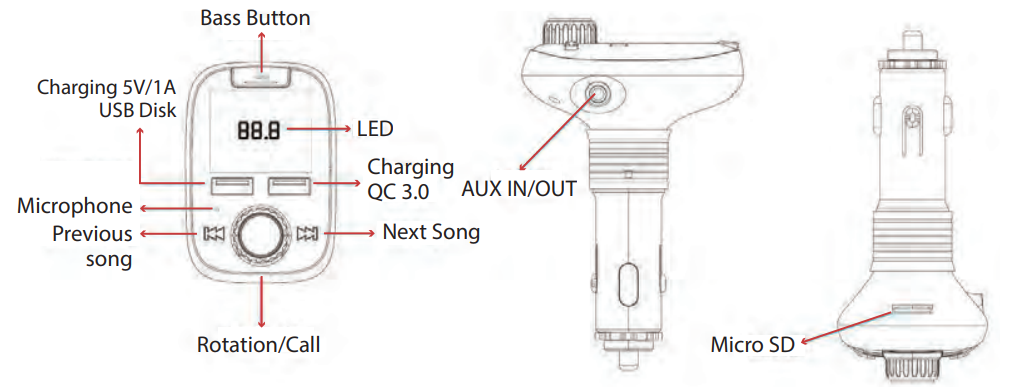

Overview
Operation Instructions
Set up the FM Transmitter Connection:
- Plug the unit into your vehicle’s cigarette lighter or power port.
- Tune your radio to an unused FM frequency, then match the same frequency as this unit.
- Insert a Micro SD card or a USB disk that contains MP3/WM(Follow the Fig. 3 as below to control your music easily.
- Line-out function: Plug the provided PYLE Wireless FM Transmitter audio cable into the car’s Aux-in port to connect with the car system, and another connector to the audio out port of this unit.
- When you use this function, the high-quality music or phone call will come out from the car system.
- Line-in function: Use the provided audio cable to connect an MP3/MP4 or another external device to the Aux port. Press the “Bass” button to activate the high-quality sound.
Bluetooth Function
- Using Bluetooth for the first time, you need to pair your mobile phone with this unit. Activate your mobile phone’s Bluetooth function, then search new device.
- When the mobile phone detects this unit (named as “PyleUSA”), normally the connection will be built up automatically and doesn’t request a password, but if there is a need (special design of some cell phones), please use the password “0000”.
- In the music playing mode, when there is an incoming call, this unit will automatically switch to telephone mode. When you pause the music after 10 seconds, the music source will automatically switch to the USB disk or Micro SD.
Calling
- Press to answer the incoming call, press and hold for 3 seconds to reject the incoming call.
- Press to hang off a call.
- Press twice to dial the last number automatically, press again to cancel the current dialling.
- During a call, press and hold for 3 seconds to switch to a private conversation.
Connectivity
- Built-in Bluetooth for Wireless Music Streaming
- Built-in Microphone for Hands-Free Calling
- Simple & Hassle-Free Pairing
- Works with All of Today’s Latest Devices (Smartphones, Tablets, Laptops, Computers, etc.)
- Bluetooth Version: v5.0 (AVRCP, HFP, A2DP)
- Bluetooth Pairing Name: ‘PyleUSA’
- Bluetooth Password: ‘0000’ (4 Zeros)
- Wireless Range: Up to 30’+’ ft.
Features
- Universal Car & Truck Compatible
- Bluetooth Wireless Streaming Receiver
- Play Music & Answer Phone Calls via Car Stereo System
- Connects to Cigarette Lighter Accessory Power Outlet
- 1.2’’ -inch Digital LED Display Screen
- Built-in FM Transmitter
- USB 3.0 Device Quick Charge Port
- USB Flash Reader for Music Playback
- Micro SD Memory Card Slot
- Aux (3.5mm) Jack
- Directly connect Your Device via the Aux for Audio Playback
- Scroll Through Music Playlists with the Rotary Control Knob
- Unique ‘Bass Boost’ Sound Button Activation
- Hassle-Free Design with Simple Plug-in Operation
What’s in the Box
- Bluetooth Car Adapter
- Audio (3.5mm) Cable
Technical Specifications
- Frequency Range: 87.5-108.0MHz
- Frequency Stability: ±10ppm
- Music Format Support: MP3/WMA
- Maximum USB/Micro SD Flash Support Size: 32GB Max
- Construction Material: Engineered ABS
- USB Power: Quick Charge QC 3.0 + Standard 5V/1A
- Vehicle Power Supply: 12-24V
- Dimensions (L x W x H): 2.7’’ x 1.8’’ x 4.2’’ –inches
Customer Support
- Email: support@pyleusa.com
- Tel: (718) 535-1800
- Working Hours: Mon–Thurs 9:00–17:00 EST | Fri 9:00–14:00 EST | Sat–Sun Closed
FAQs
Q: Can I use it to make hands-free phone calls?
Indeed! You can make and receive calls hands-free thanks to the integrated microphone. To answer, hang up, or redial the last number, just hit the call button.
Q: Does the PBT98 support fast charging?
Indeed. You can effectively charge several devices while driving thanks to its USB Quick Charge connections, one of which has a QC 3.0 output and the other has a 5V/2.4A output.
Q: What kind of devices can I connect?
Any Bluetooth-enabled device, including music players, tablets, and smartphones, can be connected. Additionally, you can use a microSD card or USB flash drive to play music.
Q: How do I play music from a USB drive or microSD card?
Just place your microSD card or USB flash drive that has MP3 or WMA files on it into the corresponding slot. Your music will start playing immediately on the transmitter.
Q: How do I find the best FM frequency for clear sound?
Set the transmitter to the same frequency after tuning your car radio to an FM station with no music or chat. In the event that interference is detected, move slightly up or down.
Q: Can I adjust the volume on the transmitter?
Indeed. The PBT98’s multifunction controls let you manage the volume, play/pause, and skip music. You can also use your smartphone to change the sound.
Q: Does the device remember my settings after turning off the car?
The PBT98 does indeed have memory recall. When turned on again, it remembers the last FM frequency utilised and instantly reconnects to the previous associated device.
