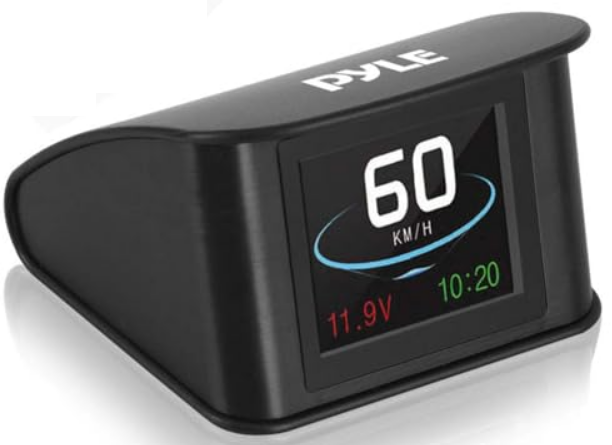

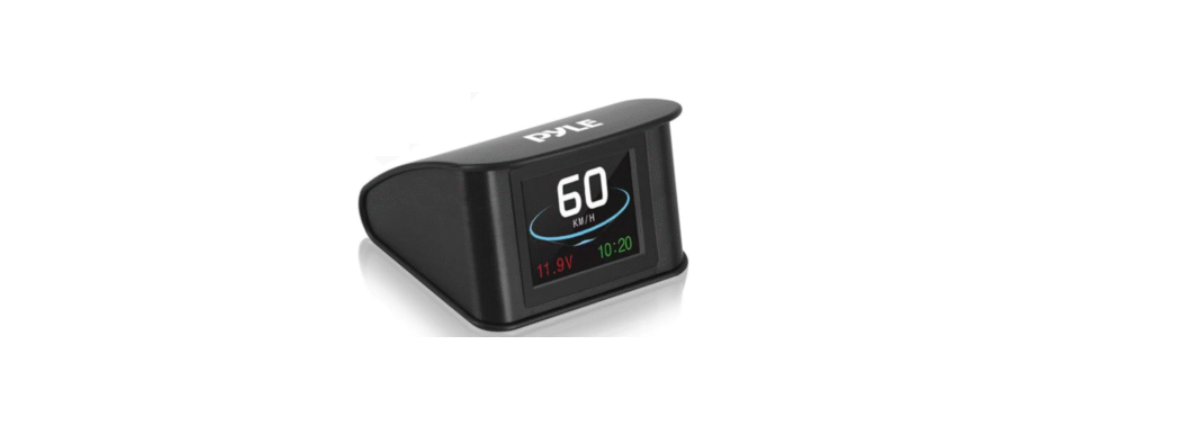

PYLE PHUD19 Portable Car Heads-Up Display
Introduction
The unit is designed to display the driving information, offering a safer driving experience day to day, as well as more importantly, at high speeds and during night driving. As it removes the need for the driver to dip their head to view the instrument cluster. Installing this unit correctly will enable you to effectively monitor your speed, which is helpful for novice drivers as well as experienced drivers in potentially avoiding speeding infringements.
Installation
Put the unit near the front of the dashboard, then connect the USB car charger to the car’s cigarette lighter. Start the engine, the unit will power ON and search for the satellite number, and the unit will work after a few seconds.
Main Functions and Features
- compatible with all vehicles, easy installation, plug and play
- TFT LCmulti-coloror smart display
- The language can be changed (Chinese or English)
- Multi multi-function display or a simple function display can be switched freely.y
- New Functions: Accelerating competitive mode. Brake performance test
- Rich Contents: Driving speed, voltage, single driving distance, driving direction, altitude, satellite numbers, system local time, driving trip time, over speed alarm, switch freely between kilometers and miles.
Key Functions
- Setting Button: Push left/right, short press/press and hold IN
- Light Sensor
- USB Interface
Setting Button Functions
- Short Press IN: (1) Switch for display mode (2) confirm the menu after entering the menu
- Push Left: (1) Switch for left area functions (2) change the function setting after entering the menu
- Push Right: (1) Switch for right area functions (2) change the function setting after entering the me. nu
- Long Press IN: After entering the menu and finishing the settings, press and hold for 5 seconds to save and exit.
Push Left/Right to switch function
Below are function abbreviations:
- G: PS The available satellites
- VLT Voltage
- DIR Driving Direction
- Sys Local System Time
- TIM Trip Time
- DIS Single Driving distance
- ASL Altitude
Performance Testing
- Speedup Test Shows the speed, PYLE Portable Car Heads-Up Display distance, driving 400m takes time, driving 0-100km takes time
- Brake: Test Brake when the speed is over 60km/h, it will show brake distance and time.
Setting Mode
Press and hold IN to enter the setting mode, push right to choose the menu, and short-press IN to confirm. Once the setting is done, press and hold to exit.
Setting Functions
- Language Set: Please choose your familiar language (EN-English, CN-Simplified Chinese, TW-Traditional Chinese)
- Sound Switch: Turn ON/OFF the buzzer
- Speed Alarm: Default value is 150 (the default value can be changed, push left to decrease, push right to increase)
- BAT Alarm: Default setting is OFF.. Turn the setting button to open the BAT Alarm and set the default alarm value.
- Speed Adjust: Adjust the speed according to the dashboard; the default value is 107%
- Speed Offset: When the vehicle turns OFF, but the device speed is not 0, then adjust the device Speed Offset value. If the device speed shows 5MPH, then change the device Speed Offset default value to 5
- BAT Adjust: If the battery voltage is different from the vehicle, it can be adjusted.
- Change Color 1: Default color is white (top speed part in the default interface)
- Change Color 2: Default color is red (left part in the default interface)
- Change Color 3: Default color is green (right part in the default interface)
- Brightness: Default is Auto, which means Auto brightness adjustment.
- 1-Darkest
- 2 to, the brightness will increase
- 8- is the most bright.
- Speed Unit: Default is miles, can be changed to KM
- Power OFF Time: The Default power off time is 180.For auto start and stop cars, please set the power off time to 180-240s
- Sleep Voltage: Default is OFF. If the device can’t auto shut off , please adjust the voltage to 13.2V or higher
- Time Adjust: When the device searches the satellite successfully, adjust the device time to your local time and exit.
- Factory Set: Short-press IN to reset to factory settings
Portable Car Heads-Up Display
Vehicle Speed & GPS Compass HUD Monitor System
Features
- Heads-Up Display System with Vehicle Readout
- 2.6-inch Digital Multi-Color PYLE Portable Car Heads-Up Display Smart Display
- Mounts onto the Dashboard for Driving Info Projection
- Convenient Vehicle Data: Displays Speed & GPS Compass
- New! Speed-Up and Brake Test Feature
- Dual-Core Processor Chip for Real-Time Data
- Clear Readout Visibility in Day or Night Time Driving
- Integrated Light Sensors for Automatic Image Balance
- Automatic Sync, Power ON/OFF with Engine Ignition
- Universal Compatibility for Automobile, Car, Truck, Vehicle
- Easy Set-Up: Plug and Play via Car Charging Port
What’s in the Box
- HUD Interface
- Dashboard Housing Mount
- Power Cable Adapter
- Manual
Technical Specs:
- Alarm Sound Level: ≥ 30dB
- Power Cord Length: 8.2’ Feet
- Working Voltage: 9V ~ 16Vdc (12Vdc / 400mA)
- Unit Dimensions (L x W x H): 2.87”x2.68”1.81” inches
Technical Parameters
- Environment Temperature: -40c- + 80c
- Atmospheric Pressure: 86-106KPa
- Relative Humidity: 10% -95%
- Environmental Noise: ≤60dB (a)
- (A) Alarm Sound Level: 30dB (A)
- Working Voltage: 9V ~ 16Vdc (12Vdc / 400mA)
- Product Size: 73*68*46(cm)
- Product Weight: 50g
Troubleshooting
- No Power and Display on Screen
Start the car engine, check if the cable line is tight, or connect the USB to the computer to check - Inaccurate Time
When the device searched the satellite successfully (The default is New York time), set it to your local time, then save and exit. - Inaccurate Speed
When the product is powered ON, press and hold the IN button to enter into menu option, and right-press once switched to settings, then short-press the button to enter the menu, and right-press the button to switch to the speed adjust option. (If the dashboard shows 100, and the device shows 101, change the default value to 106%) - Over Speed Alarm
The default alarm is 150MPH. Please refer to the settings to change the value. - The Device cannot Auto Power OFF.
After the device turns on, the device still displays the speed. Switch the setting to Speed Off set and adjust the value same as the device speed. (If the device shows 5mph after the vehicle turns off, then change the speed offset to 5mph) - Wrong Operation Leads to Crash
Reset to factory settings.
Customer Support
- Email: support@pyleusa.com
- Tel: (718) 535-1800
- Working Hours: Mon–Thurs 9:00–17:00 EST | Fri 9:00–14:00 EST | Sat–Sun Closed
FAQs
Q: How do I reset the PYLE PHUD19 to factory settings?
Simultaneously press the up and down buttons (or select the reset option from the settings menu). All of the device’s default settings will be restored upon restarting.
Q: Can I use the PHUD19 without the OBD-II port (e.g., in older cars)?
No, in order to get data from your car’s ECU, the PHUD19 needs an active OBD-II connection. PYLE provides GPS-based HUD models for older cars that don’t use OBD data.
Q: How do I update the firmware on my HUD?
The PHUD19 does not currently enable firmware updates using an app or USB. Every function comes pre-installed and calibrated.
Q: The display keeps turning off after a few minutes—why?
When the engine stops, some cars cut the OBD-II power. In order to avoid battery depletion, this is a standard auto power-off feature. Check your car’s OBD settings or try another OBD port (if available) if the display goes off while you’re driving.
Q: Can I adjust the brightness manually?
Indeed. Find the brightness control option in the settings menu. For your chosen visibility, you can alternate between manual and automated (light sensor) settings.
Q: Does the PHUD19 automatically turn on and off?
Indeed. When you start your car, the HUD turns on automatically, and when you turn off the ignition, it turns off. To save battery consumption, you can manually turn it off using the power button if it’s still on after turning off your car.
Q: Is the PHUD19 waterproof or weather-resistant?
It’s not true that the PYLE PHUD19 is waterproof. It is intended exclusively for indoor usage and should not be subjected to prolonged exposure to direct sunlight or heavy dampness.
