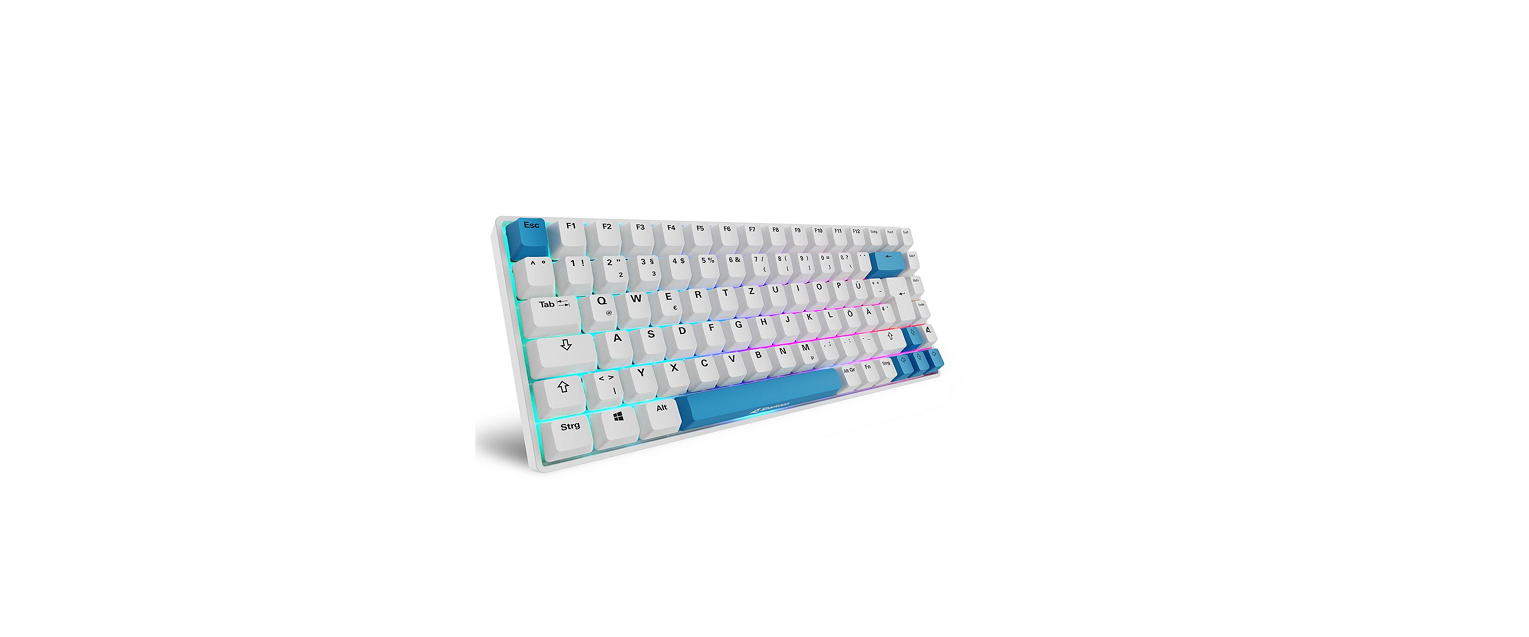

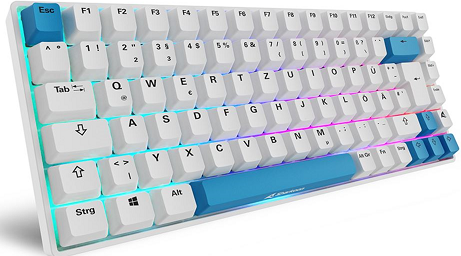

Sharkoon SKILLER SGK50 S3 Gaming keyboard
Macro Keys

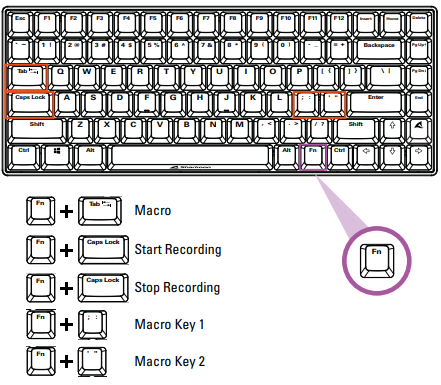

Set up Macros
To set up macros, first press and hold down the function key and then press the tab key. Once you have done this, the two macro keys will start flashing. Press and hold down the function key and press one of these two macro keys to select it for macro recording. In the next step, first press and hold down the function key, and then press the Caps Lock key. The macro key you selected will now start to light up continuously. You can now start entering your macro actions.
You can enter up to 16 individual actions. When you have reached the maximum number of actions, the selected macro key starts to flash, and the recording is automatically ended. However, if you would like to end the recording before all 16 available macro actions have been entered, first press and hold down the function key and then press the Caps Lock key to end the recording.
Lighting Effects

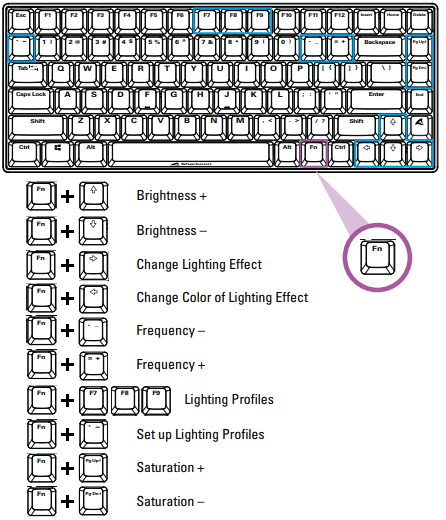

Set up Lighting Profiles Fn Ctrl
To set up or modify lighting profiles, first press and hold down the function key, and then also press the key. Up to three lighting profiles can be accessed separately via the F7, F8, or F9 key. These keys begin to flash. To choose one of these three profiles, press and hold down the function key again and then also choose and press one of the keys that are now flashing. You can then select and press any keys that you wish to be illuminated. When you have finished with the selection of keys, press and hold down the function key again, and then press the key once more to save the personalized illumination. This can now be accessed via the previously chosen F7-F9 key.

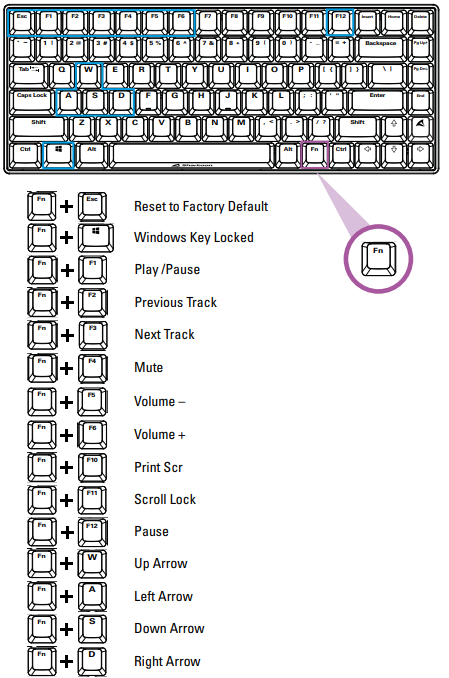

Additional Functions

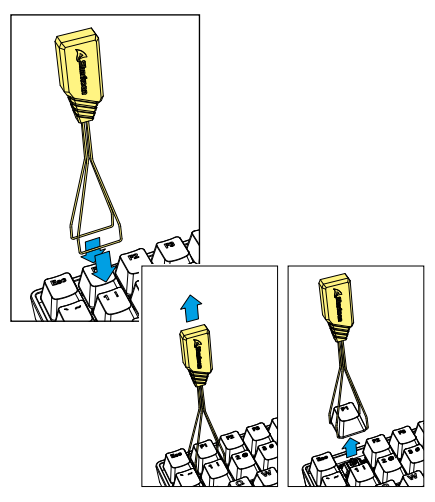

Remove Keycaps
Before removing a switch, first remove the keycap. To do this, place the arms of the keycap puller tool either to the left or right or to the top or bottom of the keycap, and then pull the keycap upwards with careful but constant pressure. Whenever possible, avoid pulling the keycaps from the switch directly with your fingers, as this may damage the switch.
Remove Switches

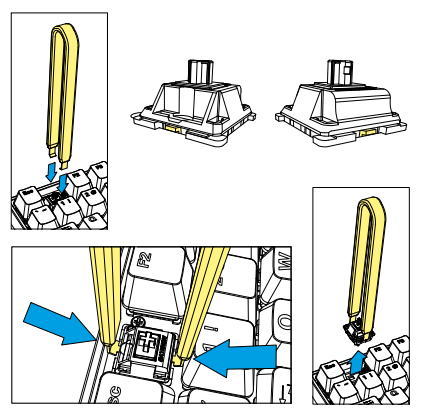

Once you have removed the keycap from the switch, position the switch puller tool correctly on the tabs of the switch. These are positioned at the front and the back of the switch. Before pulling out the switch, make sure that both tabs are securely pressed with the switch puller tool and that the switch can be removed from the socket without resistance. If necessary, remove the adjacent keycaps to allow the switch puller tool sufficient freedom of movement. After you have removed the keycap, press both tabs of the switch with the switch puller tool and then slowly pull the switch out of the socket. Be sure to always pull vertically from the socket in a straight, upward direction. Avoid pulling in a slanted direction, as this can result in damage.

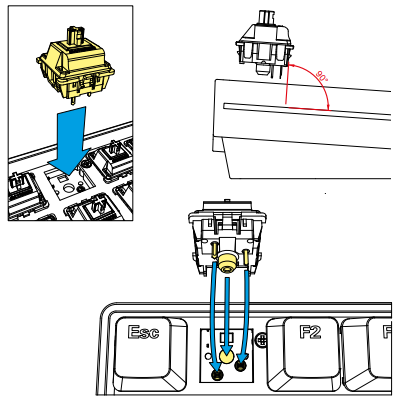

Install Switches
To install the switches, position the switch so that one tab is at the front and the other tab is at the back. Each pin on the underside of the switch should be pointing exactly to its relevant contact in the keyboard socket. Make sure that the switch is led vertically Sharkoon SKILLER SGK50 S3 into the socket opening (at a 90-degree angle to the socket). Installing the switch incorrectly can lead to damage or malfunction of the switch. After you have placed the switch in its socket, push very gently on the switch to secure it in place. Make sure that you do not use too much force, as this can damage or destroy fragile components.

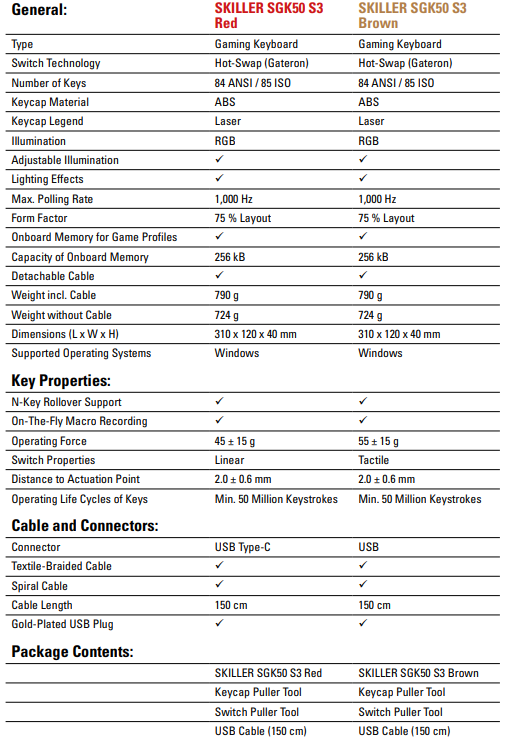

Specifications
Legal Disclaimer
For potential loss of data, especially due to inappropriate handling, SHARKOON assumes no liability.
As a continuing policy of product improvement at SHARKOON, the design and specifications are subject to change without prior notice. National product specifications may vary. The legal rights of the enclosed software belong to the respective owner. Please observe the license terms of the manufacturer before using the software.
All rights reserved, especially (also in extracts) for translation, reprinting, reproduction by copying or other technical means. Infringements will lead to compensation. All rights reserved, especially in case of assignment of a patent or utility patent. Means of delivery and technical modifications reserved.
Disposal of your old product
Sharkoon Skiller SGK4. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences to the environment and human health. Sharkoon Technologies GmbH Grüninger Weg 48 35415 Pohlheim Germany© Sharkoon Technologies 2020
Customer Support
- Phone:Â +886 2 2999 5888
- Fax:Â +886 2 2999 1188
- Website:Â https://en.sharkoon.com
