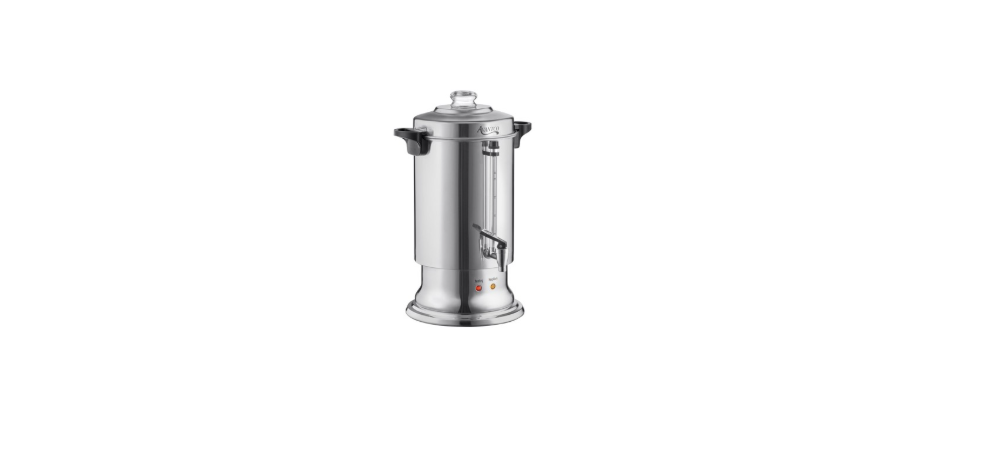

AVANTCO 177CUC60 Stainless Steel Coffee Urn
Safety Information
- Protect against electrical shock by keeping all cords, plugs, and other electrical components away from water or other liquids.
- Unplug this unit when not in use and before cleaning.
- Allow the unit to cool before putting on or taking off parts.
- DO NOT operate this or any appliance with a damaged electrical cord or plug.
- DO NOT use outdoors.
- DO NOT place on or near a hot gas or electric burner.
- Attach the plug to the appliance first, then plug the electrical cord into the wall outlet.
- Disconnect the unit by removing the electrical plug from the wall outlet.
- DO NOT use the appliance for any application other than its intended use.
- DO NOT insert metal utensils or oversized foods into this unit, as they may cause a fire and heighten the risk of electrical shock.
- DO NOT store any item on top of this unit when in operation.
- DO NOT clean with metal scouring pads, as pieces can break off and touch electrical components, heightening the risk of electrical shock.
- Never place materials such as paper, cardboard, plastic, etc. in this conveyor toaster.
- DO NOT cover the interior of this unit with metal foil, as it may cause the conveyor toaster to overheat.
- Turn off the appliance by removing the plug from the wall outlet.
- Note that the use of accessories not recommended by the manufacturer may result in injury.

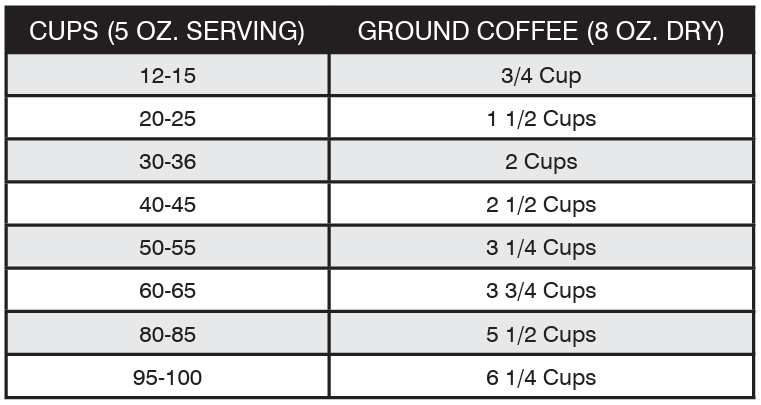

Coffee Measuring Guide
Before First Use
- Remove all packaging from inside and outside of the coffee urn.
- Fill the coffee urn with water, boil it, and discard it. This clears the urn of any packaging residue.
How to Use
- Place on a flat, level surface.
- Turn the lid counterclockwise to open.
- Pour in water. Make sure the water AVANTCO 177CUC60 Stainless Steel Coffee Urn is above the “MIN” indicator and below the “MAX” indicator.
- Place the lid on top of the urn and turn clockwise to lock it into place.
- The percolator filter and basket are not required for boiling water.
- Switch ON. a. The “HEATING” light will turn on to indicate that the boiling process has begun.
- Tilt the faucet lever to dispense.
Boil Dry Protection
- Boil dry accidents are the result of boiling all the water out of an urn.
- These kinds of accidents shorten the component and product life in all water boiling appliances.
- To prevent boil dry accidents, this appliance is equipped with a thermal limiter with an auto reset limit on.
- If the water in the tank is below a certain low level, the appliance will turn itself off automatically.
- It takes up to 8 minutes to get back to work after the temperature cools down.
- To decrease the chance of a boil dry accident, operators are advised to turn the appliance off when not in use, especially overnight.
- Otherwise, the auto reset limit will keep the furnace running from being heated to being off back and forth, therefore damaging the heating system.
Cleaning and Maintenance
- Unplug the unit and pour out any remaining water or coffee. Allow the unit to cool.
- After the urn has cooled, add hot water, brush the interior sides, and rinse with hot water until the water exiting the faucet runs clear.
- Clean the filter unit and the lid with a non-abrasive detergent. Dry both components with a soft, dry cloth. The Noble Chemical Klearly Koffee Cleaner (#147KKOFFEE QT) is recommended.
- The stainless steel, as well as the tube inside, can be cleaned with detergent and a scouring pad.
- The urn’s tap must also be cleaned to ensure proper cleaning. If necessary, use a de-scaling agent on the tap.
- Clean the urn’s faucet with a bottle brush. Then wash the tap with warm, soapy water and rinse.
- Use a soft cloth to wipe the body dry. Do NOT use benzene, thinners, or harsh abrasives for cleaning, as these will damage the exterior finish of the urn.
- Always clean the coffee urn immediately after each use.
De-Scaling
- Scale buildup can affect the urn, tap, and faucet.
- Supermarket de-scaling agents work well, along with a variety of other techniques. We recommend Urnex (#15-DLQ12-1) 1 Liter Dezcal Coffee Equipment Liquid Scale Remover as a de-scaling agent.
- For a more natural approach, follow these steps.
- Slice a lemon into four pieces, wrap them in a cloth, and place them in the urn.
- Pour in water up to the “MAX” water level indicator.
- Boil the water and allow the lemons to sit inside the unit for about 1 hour.
- Pour out the water and lemons, and use a nylon brush to scrub the inside of the urn.
- To completely remove the smell AVANTCO 177CUC60 Stainless Steel Coffee Urn or aftertaste, refill the urn, boil the water again, and dispose of the water.
Thermal Fuse
- This coffee urn is fitted with a thermal fuse for added safety.
- If the boil-dry protection measures fail, its thermal fuse will activate and shut off the appliance.
- The thermal fuse is a one-time-use component.
- Once it activates, the fuse automatically breaks and cannot be used again.

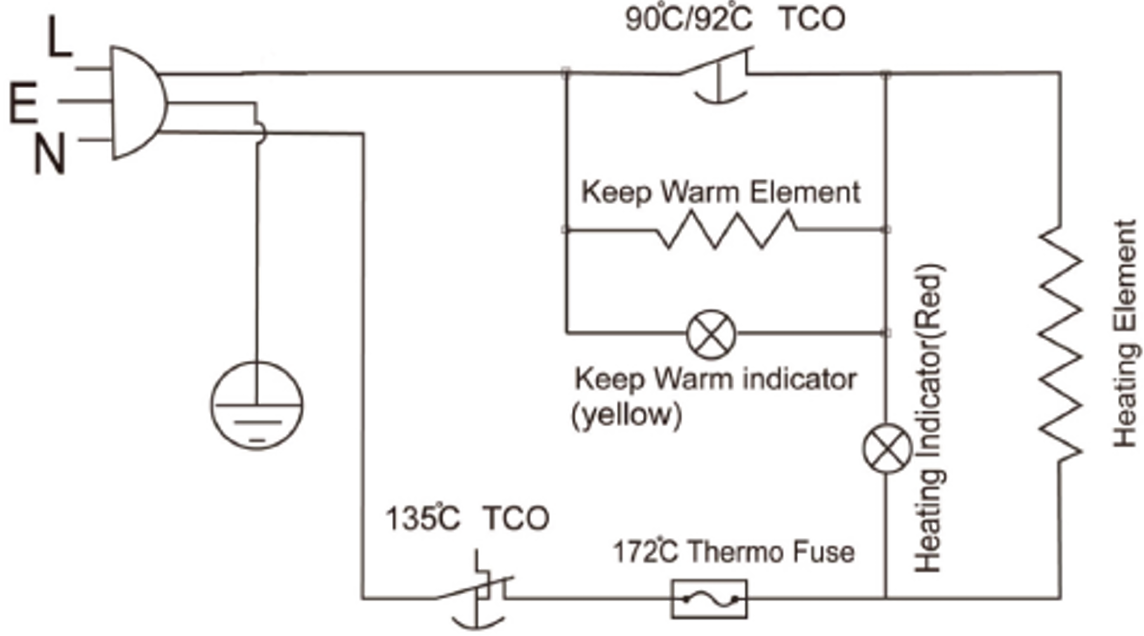

Electrical Circuit Diagram
Specifications
- MODEL NO. 177CUC60
- POWER 950W
- VOLTAGE 110-120V/60Hz
- VOLUME 60 Cup
Customer Service
- Website: https://www.avantcoequipment.com/
- Tel: 717-381-4844
FAQs
Q: What is the capacity of the Avantco 177CUC60 Coffee Urn?
Ans: With a 60-cup (about 14.2-liter) capacity, the Avantco 177CUC60 is perfect for heavy use in business environments, including offices, buffets, and gatherings.
Q: How long does it take to brew a full urn of coffee?
Ans: Depending on the water temperature, voltage, and surrounding circumstances, brewing a full 60-cup batch takes roughly 45 to 60 minutes.
Q: What type of filter should I use in this urn?
Ans: Make use of the urn’s included stainless steel coffee basket. Although not necessary, paper filters can be used (optionally) to lessen sediment if desired.
Q: Does the urn keep coffee hot after brewing?
Ans: Yes, as soon as the brewing process is finished, the device immediately enters keep-warm mode.
Q: Can I use the urn to heat water for tea or other beverages?
Ans: Indeed, the urn can only be used as a hot water dispenser if it is filled with water. Just fill with cold, clean water and leave out the coffee basket.
Q: How do I know when the coffee is ready?
Ans: When the brewing cycle is finished, the indicator light will either turn on or change (typically from red to green). As the percolation ceases, you’ll also notice a little difference in sound.
