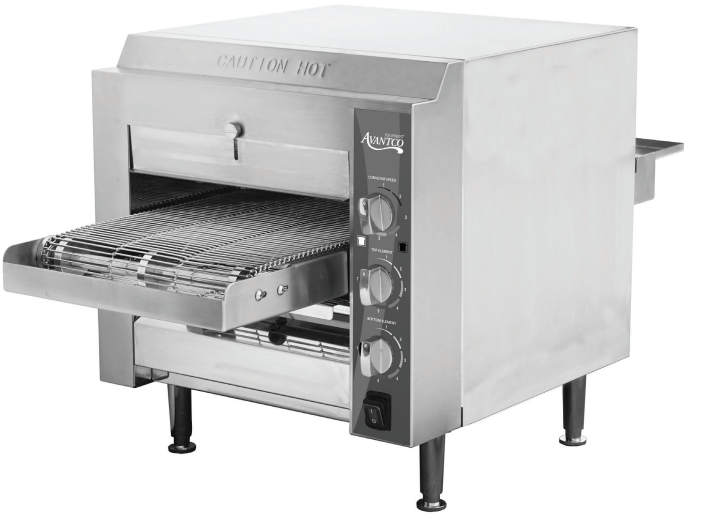

AVANTCO 177CVROV10RA Adjustable Speed Oven
Safety Information
- Protect against electrical shock by keeping all cords, plugs, and other electrical components away from water or other liquids.
- Unplug this unit when not in use and before cleaning.
- Allow the unit to cool before putting on or taking off parts.
- DO NOT operate this or any appliance with a damaged electrical cord or plug.
- DO NOT use outdoors.
- DO NOT place on or near a hot gas or electric burner.
- Attach the plug to the appliance first, then plug the electrical cord into the wall outlet.
- Disconnect the unit by removing the electrical plug from the wall outlet.
- DO NOT use the appliance for any application other than its intended use.
- DO NOT insert metal utensils or oversized foods into this unit, as they may cause a fire and heighten the risk of electrical shock.
- DO NOT store any item on top of this unit when in operation.
- DO NOT clean with metal scouring pads, as pieces can break off and touch electrical components, heightening the risk of electrical shock.
- Never place materials such as paper, cardboard, plastic, etc. in this conveyor toaster.
- DO NOT cover the interior of this unit with metal foil, as it may cause the conveyor toaster to overheat.
- Turn off the appliance by removing the plug from the wall outlet.
- Note that the use of accessories not recommended by the manufacturer may result in injury.

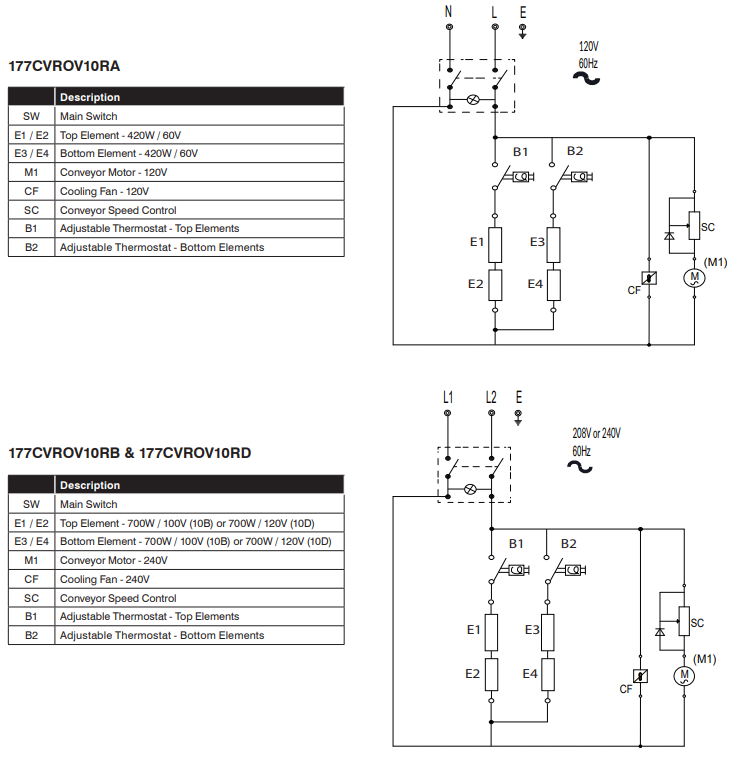

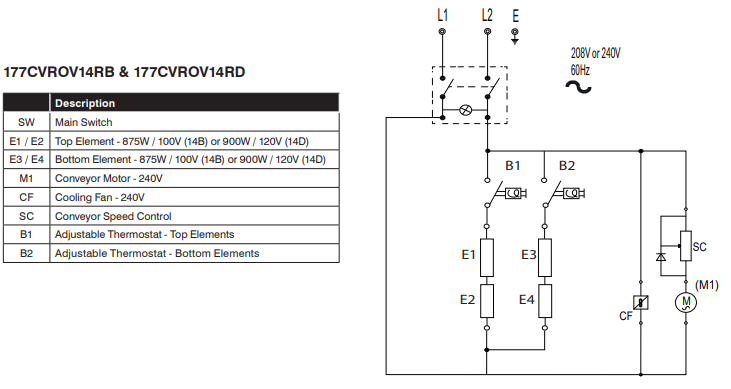

Circuit Diagrams
Installation
Before Use
- The conveyor oven has been designed to toast sandwiches, melt cheese, and finish pizza/flatbreads.
- It is intended for use in low to medium-volume commercial establishments.
- Ensure the support feet are assembled to the unit before commencing operation.
- Thoroughly clean as described in the cleaning section (page 7) of this manual.
- For best results, allow the unit to preheat for 20-25 minutes before use so that the correct operating
temperature can be reached.
Operation Instructions
Controls
- Conveyor Speed: Determines the length of time the product is in the heating chamber.
- The slower the speed, the longer the exposure, and the darker the product.
- Top Heating Element Control:
- The lowest setting, 7, is the hottest setting.
- Bottom Heating Element Control:
- Is the lowest setting, 7 is the hottest setting.
Testing the Unit
- Test the control settings by placing a slice of bread in the oven. It can be placed directly onto the conveyor belt.
- Observe the results and adjust the settings to the desired temperature and conveyor speed.
Product appearance or color will vary depending on conveyor speed and temperature setting.
Other factors that may affect the toasting color:- The moisture content of the product
- The sugar content of the product
- Initial product temperature
Cleaning & Maintenance
- Unplug the power cord from the wall outlet.
- Wait for the oven to cool completely.
- Wipe off the unit with a dry cloth and wait at least 30 minutes before reconnecting to the power outlet.
Crumb Tray
- Unplug the power cord from the wall outlet.
- Wait for the oven to cool completely.
- Remove the crumb tray from the unit by pulling forward.
- Dispose of the crumbs and clean the tray with a damp cloth or sponge dipped in soapy water.
- Allow tray to dry.
- Insert the tray back into the unit before using the conveyor oven.
Conveyor Belt
- Turn off the toaster and allow the unit to cool completely.
- Turn the unit on and adjust the belt to slow speed and no heat.
- To remove baked-on product, use an abrasive pad to wipe the conveyor belt side to side as it rotates.
- For general cleaning, use a damp cloth to wipe the conveyor belt side to side as it rotates.

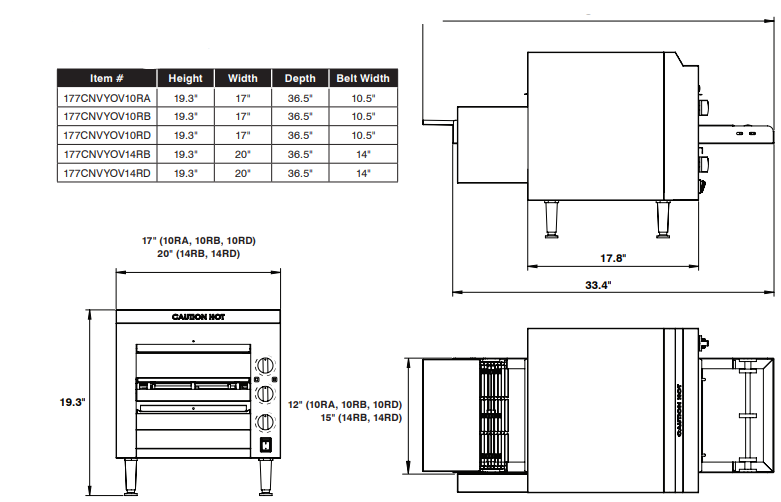

Specifications
Customer Service
- Website: https://www.avantcoequipment.com/
- Tel: 717-381-4844
FAQs
Q: What type of oven is the Avantco 177CVROV10RA?
Ans: For quicker cooking times, the Avantco 177CVROV10RA commercial adjustable speed oven combines high-speed air impingement with convection heating. In busy kitchens, it’s perfect for small-batch things like sandwiches, flatbreads, and pastries.
Q: What is the maximum temperature setting for this oven?
Ans: Generally speaking, the oven can reach temperatures of up to 500°F (260°C). For precise specifications and safety limitations, consult the user manual at all times.
Q: Do I need to preheat the oven before use?
Ans: Yes, for optimal outcomes. Before putting food inside, let the oven reach the proper temperature. Depending on the temperature setting, preheating typically takes three to five minutes.
Q: Can I use metal pans or trays inside this oven?
Ans: Yes, you can use oven-safe metal trays or pans. Anything with non-stick coatings that aren’t approved for high heat, however, should be avoided. Avoid using containers made of paper or plastic.
Q: My oven is making a loud fan noise. Is this normal?
Ans: However, get in touch with service assistance if you experience strange grinding or rattling.
Q: Can I cook frozen items directly, or should they be thawed first?
Ans: The majority of frozen foods can be prepared in the oven. For complete heating, you might need to change the cooking time or temperature.
Q: Does the oven have programmable cooking presets?
Ans: For complete heating, you might need to change the cooking time or temperature.
Q: Is this oven energy efficient?
Ans: Indeed, the Avantco 177CVROV10RA is made for quick cooking cycles, which eventually use less energy than conventional ovens. Additionally, the movable settings prevent overcooking or overheating.
