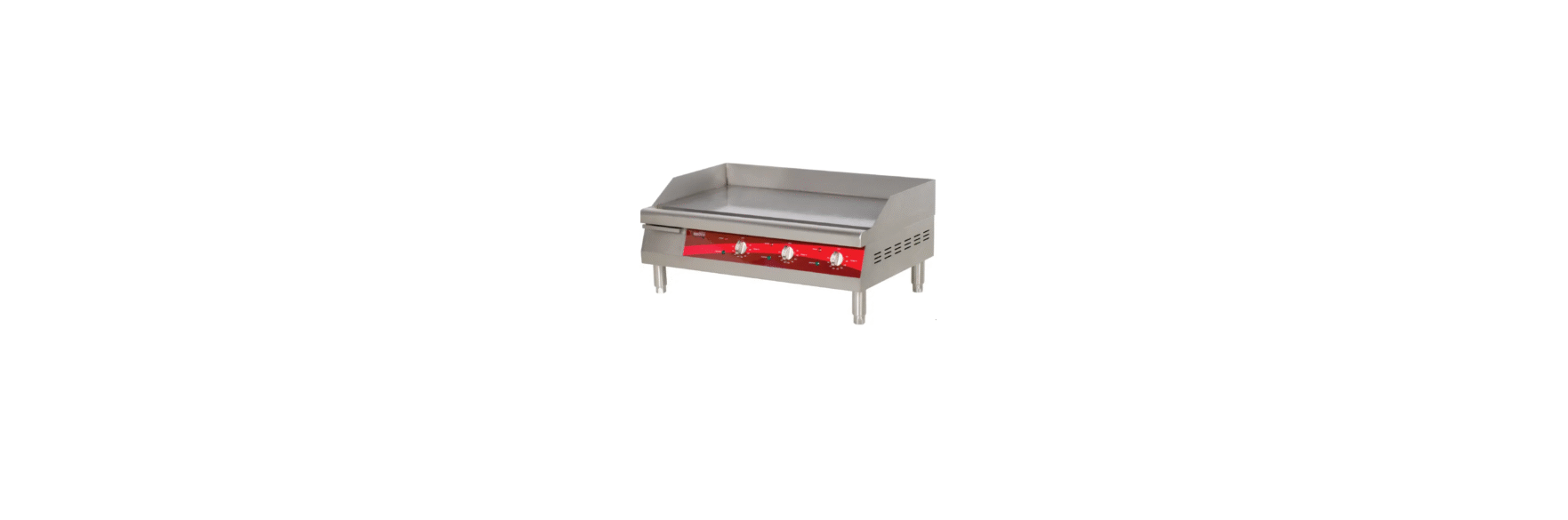

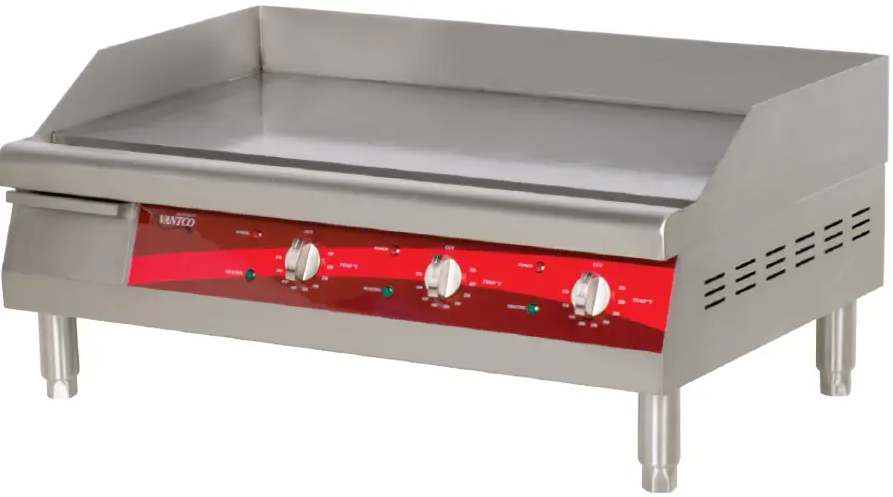

AVANTCO 177EG30N Electric Griddles
Safety Instructions
- Make sure that the unit has reached the desired temperature before loading the unit with products.
- Make sure that there is proper ventilation around the unit in the area where it will operate.
- Do not attempt to remove or repair any component of the unit. Consult an authorized service technician for servicing/repair.
- Do not stand inside the unit.
- Read through the manual in its entirety.
- This unit is designed to perform in a temperature-controlled environment at 55% relative humidity. The unit should be located away from doors, air ducts, and fans that could disrupt airflow and negatively impact performance.
Cabinet Location Guide
- Install the unit on a strong and level surface.
- If the surface is uneven, the unit may be noisy.
- The unit may malfunction if the surface is uneven.
- Uneven floors may cause leakage.
- Install the unit in an indoor, well-ventilated area.
- For best performance, please maintain a clearance of 6″ on the back of the unit.
- Brackets should be attached to the back of the unit.
- Do not use outdoors. For indoor use only.
- Avoid direct sunlight.
- Avoid installation in a high-humidity and/or dusty area.
- Humidity above 55% can cause the unit to rust, collect condensation, and decrease efficiency.
- Dust collected on the condenser coil will cause the unit to malfunction.
- Malfunctions due to temperatures above 75ºF, humidity above 55%, or improperly maintained condenser coil will void the warranty.
- Select a location away from heat and moisture-generating equipment.
- Ambient temperatures above 75ºF may cause the compressor to malfunction.
- The unit should not be used in areas over 90ºF.
- Malfunctions due to ambient temperatures above 75ºF will void the warranty.
- Do not install the unit inside a closet or alcove.
Electrical
- Please ensure that the required voltage is being supplied at all times.
- The unit should be plugged into a grounded and properly sized electrical circuit with appropriate over-current protection.
- This equipment must be run on a dedicated circuit. Not doing so may damage the equipment.
- Do not use extension cords.
- Do not unplug your cooler by pulling on the power cord. Grip the plug firmly and pull straight out from the outlet.
- Ensure the unit is not resting on or against the electrical cord.
- If the unit is not in use for a long period of time, please unplug the unit from the outlet.
- To avoid shock and fire hazards, do not plug in or unplug the unit with wet hands.
- After unplugging the unit, wait at least 10 minutes before plugging it back in.
- Failure to do so could cause damage to the compressor.
Initial Setup
Inspect the Packaging
- Examine the griddle’s packaging for any signs of damage that may have occurred during shipping. If damage has occurred, please reach out to the manufacturer immediately.
Unboxing
- Open the packaging with care. Use scissors or a box cutter to cut open the box, ensuring you do not damage the griddle or its components.
- Remove the machine from its packaging.
- Ensure that all foam and plastic have been removed from both the inside and outside of the machine before use.
Verify Package Contents
Confirm that the packaging includes the following parts.
- Griddle
- Waste Drawer
- Adjustable Feet
Placement
- Ensure a minimum clearance of 12″ on all sides from flammable surfaces. Place the griddle on a stable surface near an electrical outlet.
- It is required to place the griddle in a climate-controlled room to enhance its durability. Level placement is crucial for the griddle to work effectively.
Heat and Smoke
- Griddles produce significant heat and smoke, requiring an efficient exhaust hood with flame-proof filters.
Vertical Clearance
- A vertical distance of at least 48” is required between the griddle and filters or combustible materials.
Compliance with Codes
- Exhaust installation must comply with local codes.
Hard-Wired Units
- Professional installation by a certified electrician is required for 36”–60” models.
- Hardwired models may be wired for operation in the field for either 1-phase or 3-phase power supplies by making line connections at the junction box(es) located at the rear of the unit.
Junction Box and Breaker
- A separate junction box is needed for each connection, or an 80-amp breaker if wiring into a single breaker. The wiring diagram and load chart are on the unit.
Clearance from Combustibles
- Maintain at least 12” of clearance from combustible materials on all sides.
Cleaning
Remove Protective Covering
- Remove the wax paper from the griddle plate.
Preheat Griddle
- Preheat the griddle to liquefy the protective food-safe oil applied during shipment.
Clean Surface
- Wipe off the melted oil with a clean cloth and rinse using a mixture of ¼ cup vinegar and 1 quart of water.
Season Griddle
- Apply unsalted solid shortening or liquid frying compound evenly over the Turn all burners to medium until the shortening begins to smoke, then turn them off.
Rub in Shortening
- Rub the melted shortening onto the griddle using burlap or a cloth, following the grain of the metal.
Apply Final Coat
- Allow the griddle to cool, then apply a AVANTCO 177EG30N Electric Griddles thin coat of shortening or oil.
Operation
Plug Units
- Plug the griddle into the appropriate outlet; the red “Power” light will illuminate.
Set Temperature
- Turn the temperature knob to the desired setting. The green “Heating” light will illuminate, indicating the heating element is active.
Preheat Griddle
- Preheat for at least 30 minutes before use.
Turn Off Griddle
- To turn off, set the temperature knob to “Off” and unplug the unit to turn off the red “Power” light.
Maintenance
Unplug Before Maintenance
- Always unplug the griddle from the outlet when not in use, before putting on or taking off parts, and before cleaning.
Cleaning Guidelines
- Regularly clean the griddle according to the instructions to ensure safe and hygienic operation. Do not immerse any part of the appliance in water.
Chemical Usage
- If using cleaning chemicals, follow the chemical manufacturer’s guidelines for safe handling and storage.
Unplug Before Maintenance
- Always unplug the griddle from the outlet when not in use, before putting on or taking off parts, and before cleaning.
Leaning Guidelines
- Regularly clean the griddle according to the instructions to ensure safe and hygienic operation. Do not immerse any part of the appliance in water.
Chemical Usage
- If using cleaning chemicals, follow the chemical manufacturer’s guidelines for safe handling and storage.
Inspection
- Regularly inspect the griddle for signs of wear, damage, or malfunction, and address any issues promptly.
Emergency & Labeling
- Know how to quickly turn off the griddle in case of emergencies or accidents.
- Ensure that any operational or safety labels on the griddle are visible and legible.
- Do not remove any operational or safety labels.
- Turn off the machine and disconnect it from the power source.
- Remove any remaining food particles.
- Please perform a complete cleaning process as outlined in the “Cleaning” section.
- Turn off and disconnect the machine from the power source.
- Inspect the plug and cord for any indications of excessive wear, which may encompass discoloration, burn marks, cuts, and tears.
- Check the integrity of electrical cords and plug points.
- Contact a service provider for recommended actions or replacement.
- Schedule an annual service appointment with a certified technician who specializes in griddles.
- The technician will perform a comprehensive inspection, checking electrical components.
- Obtain a detailed service report for your records, beneficial for both warranty claims and future
troubleshooting.
Troubleshooting
| PROBLEM | POSSIBLE CAUSES | SOLUTIONS |
| Fat appears to smoke excessively. | The heat is set too high. | Turn the heat down. |
| Moisture in the food may be turning into steam. | This is normal. No solution necessary. | |
| Food sticks to the griddle or is burning around the edges. | The heat is set too high. | Turn the heat down. |
| The griddle surface needs to be cleaned and/or re-seasoned. | Clean the griddle surface (See cleaning section). | |
| Food is undercooked inside. | The heat is set too high or too low. | If cooked on the outside, turn the heat down and increase the cook time. |
| Food may not have been cooked for long enough. | If undercooked on the outside, turn the heat up and increase cook time. | |
| Griddle with no heat. | The circuit breaker is off or tripped. | Reset the circuit breaker. |
| The indicator light will not illuminate. | No power, thermostat is OFF, or thermostat failure. | Check the power and ensure the thermostat is set to the desired
temperature. If the problem persists, contact customer service. |
Customer Service
- Website: https://www.avantcorefrigeration.com/
- Tel: 717-381-4844
FAQs
Q: What is the Avantco 177EG30N Electric Griddle designed for?
Ans: Pancakes, eggs, burgers, bacon, grilled sandwiches, and vegetables may all be prepared with the 177EG30N, a 30-inch wide industrial electric griddle. It’s perfect for breakfast bars, diners, food trucks, and restaurants.
Q: What is the total cooking surface area?
Ans: With a cooking surface that is roughly 30 inches wide by 15.5 inches deep, the 177EG30N offers enough room to make several dishes at once.
Q: Does the unit have separate heat zones?
Ans: Indeed. You can adjust the temperature on the left and right sides of the griddle thanks to its two separate thermostatic controls. When preparing multiple kinds of food at once, this is ideal.
Q: What is the temperature range of the griddle?
Ans: The temperature range for each thermostat is 150°F to 570°F (65°C to 300°C), allowing you complete control over high-heat searing or low-heat warming.
Q: How do I preheat the griddle, and how long does it take?
Ans: Set the thermostats to the temperature you choose. It usually takes 10 to 15 minutes to preheat, depending on the setting. When the griddle reaches the desired temperature, a pilot light will turn on.
Q: What types of utensils can be used on this griddle?
Ans: Use cooking utensils made of silicone, wood, or metal. Steer clear of sharp metal instruments that could rip or harm the surface. The best tools are tongs, scrapers, and flat spatulas.
