AVANTCO 177HWDA2 Hot Water Dispenser
Safety Information
- Protect against electrical shock by keeping all cords, plugs, and other electrical components away from water or other liquids.
- Unplug this unit when not in use and before cleaning.
- Allow the unit to cool before putting on or taking off parts.
- DO NOT operate this or any appliance with a damaged electrical cord or plug.
- DO NOT use outdoors.
- DO NOT place on or near a hot gas or electric burner.
- Attach the plug to the appliance first, then plug the electrical cord into the wall outlet.
- Disconnect the unit by removing the electrical plug from the wall outlet.
- DO NOT use the appliance for any application other than its intended use.
- DO NOT insert metal utensils or oversized foods into this unit, as they may cause a fire and heighten the risk of electrical shock.
- DO NOT store any item on top of this unit when in operation.
- DO NOT clean with metal scouring pads, as pieces can break off and touch electrical components, heightening the risk of electrical shock.
- Never place materials such as paper, cardboard, plastic, etc. in this conveyor toaster.
- DO NOT cover the interior of this unit with metal foil, as it may cause the conveyor toaster to overheat.
- Turn off the appliance by removing the plug from the wall outlet.
- Note that the use of accessories not recommended by the manufacturer may result in injury.
Installation
- Carefully unpack the hot water dispenser and check for damage and missing parts.
- Place the hot water dispenser on a sturdy, level, heat-resistant, non-flammable surface near a power supply and a water supply. Do not connect the water line or the power cord at this time.
- Attach the water line to the inlet located on the rear of the dispenser. Hold the water inlet fitting with a wrench when tightening the water line.
- Turn on the water supply. Make sure to check for leaks at the water inlet. Tighten-fitting if necessary.
- Connect the power supply cord into the proper power supply as indicated on the nameplate of the machine. Make sure the machine is switched OFF before connecting to the power supply.
Check Before Starting
- The power cord should be connected to a 110/120V outlet.
- The water line should be connected and not leaking.
- The dispenser should be installed on a level, stable surface.
| Recommended Accessories | |
| Item Number | Description |
| 790OCLOKITLG | C Pure Oceanloch-L Water Filtration System & Pressure Gauge |
| 147LIMEBGONE1G | Lime B Gone, Noble Delimer/Descaler |

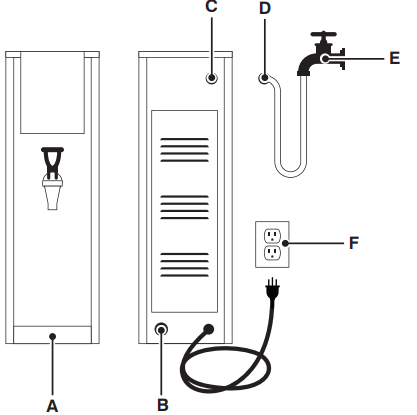

- Tray
- Drain Outlet
- Water Inlet
- Inlet Pipe
- Water Faucet
- 110-120V
Operation Instructions
- Plug the machine into the power supply.

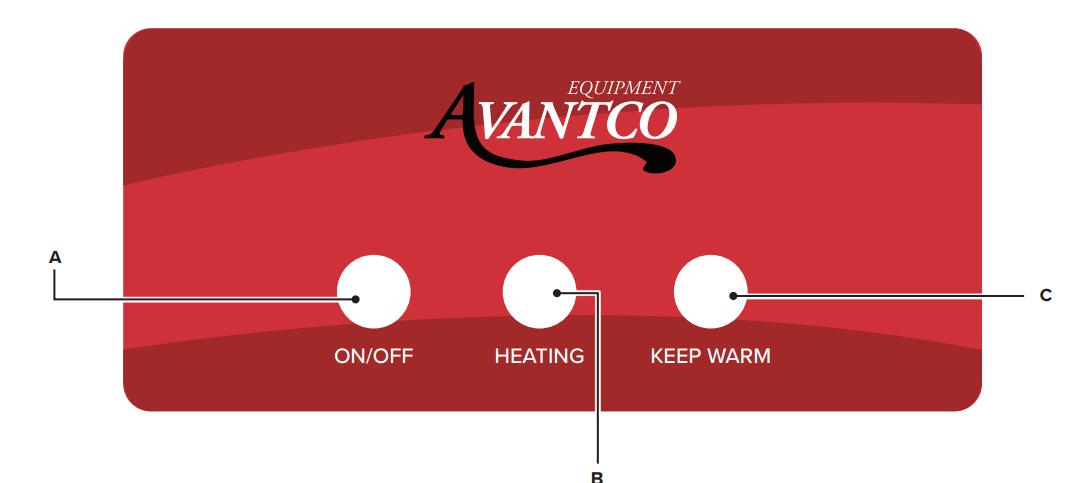

- Verify that the water supply is on and lightly press the ON/OFF Button (A) to turn the unit on.
- The unit will automatically start filling and heating water. The “Heating” indicator light (B) will be on during this step.
- Once the water reaches the appropriate temperature, the unit will be in “Keep warm” status (C).
- When the unit is ready, place an empty cup or container directly under the faucet and pull the handle towards you. When finished, release the handle.
- When the water level becomes low, the unit will fill and heat water. The heating indicator light (B) will once again be on during this step.
Cleaning and Maintenance
- Turn the unit OFF, unplug, and allow the unit to completely cool before cleaning.
- Use a clean cloth with hot water mixed with Noble Chemical Sunbright liquid dish soap (or a neutral soap) to clean the outside of the unit.
- For dirt smudges on the unit’s exterior, a damp cloth will suffice.
Specifications
| Model | 177HWDA2 |
| Voltage | 110-120 V |
| Frequency | 60Hz |
| Wattage | 1500W |
| Capacity | 2 Gallons |
| Output | 5 Gal/Hour |
| Water Input Pressure | 10-58 psi |
| Water Connection | ¼” |
| Dimensions | 7 1/10” x 14 9/10” x 22 9/10“ |
Customer Service
- Website: https://www.avantcoequipment.com/
- Tel: 717-381-4844
FAQs
Q: What is the capacity of the Avantco 177HWDA2 Hot Water Dispenser?
Ans: With its 2-gallon (7.6-liter) hot water capacity, the Avantco 177HWDA2 is appropriate for moderate to high-volume beverage service in commercial spaces such as hotels, cafés, and break rooms.
Q: What is the temperature range for this hot water dispenser?
Ans: The water in the dispenser is kept between 190°F and 198°F (88°C and 92°C), which is perfect for tea, instant coffee, muesli and other hot food or beverage requirements.
Q: Can I adjust the water temperature manually?
Ans: No. A preset thermostat is built into the 177HWDA2 to ensure the best possible hot water dispensing. This guarantees a constant temperature and does away with the necessity for manual adjustments.
Q: Is the unit insulated to keep water hot?
Ans: Indeed. Internal insulation helps the tank retain heat effectively and use less energy in between uses.
Q: Does this unit require a direct water line?
Ans: No. Since the 177HWDA2 is a manual-fill machine, cold, clean water must be manually added. Because it doesn’t need a plumbing hookup, it’s portable and adaptable.
Q: Can I dispense hot water while it’s still heating?
Ans: Yes, but wait until the heating indication light goes out, indicating that the water has reached the ideal temperature, for the greatest results.
Q: Is it safe to leave the unit on all day?
Ans: Indeed. The dispenser will automatically cycle the heater to maintain temperature and is suited for sustained commercial use. Make sure it is always watched while in use.
Q: What type of outlet is required?
Ans: The gadget requires a standard 120V outlet and consumes roughly 1500 watts. Make sure it is connected to a dedicated circuit to avoid overloading.
