AVANTCO 193BCD36B Bakery Display Cases Instruction Manual

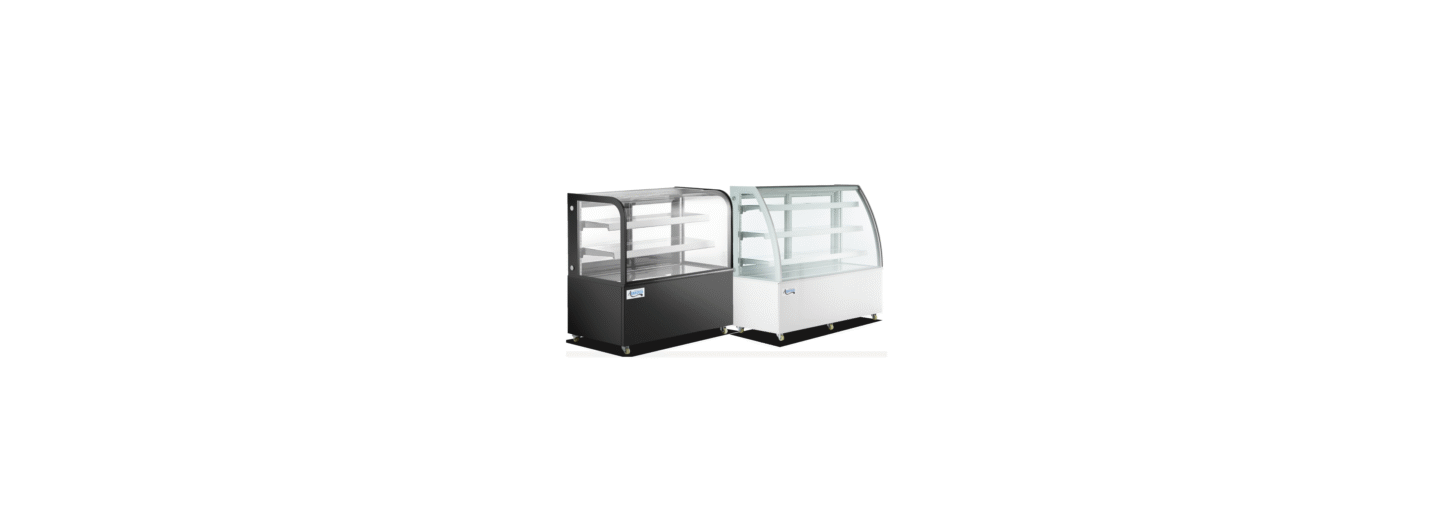

AVANTCO 193BCD36B Bakery Display Cases

Safety Information

• To minimize shock and fire hazards, be sure not to overload the outlet.
• This unit should be given its outlet.
• DO NOT use extension cords.
• DO NOT put your hands under the unit while it is being moved.
• When the unit is not in use for a long period of time, unplug the unit from the outlet.
• After unplugging the unit, wait at least 10 minutes before plugging it back in.
• Failure to do so could cause damage to the compressor.
• To minimize shock and fire hazards, do not plug or unplug the cord with wet hands.
• Unplug the unit before performing maintenance or cleaning.
• To minimize shock and fire hazards, make sure that the unit is properly grounded.
• DO NOT attempt to remove or repair any component unless instructed by the factory.
• DO NOT allow the unit to rest on or against the electrical cord and/or plug.
• DO NOT store any flammable/explosive gas or liquids inside the unit.
• DO NOT attempt to alter or tamper with the electrical cord.
• DO NOT use the unit if the power cord is damaged.

Structure and Components

Installation

This unit is intended for use in a temperature-controlled environment of less than 75°F and 55% relative
humidity. Malfunction due to improper conditions is not covered under warranty.

Before Installation

• Make sure that the unit has reached the desired temperature before loading the unit with products.
• Make sure that there is proper ventilation around the unit in the area where it will operate.
• Make sure all accessories are installed (i.e., shelves, shelf clips, casters) before plugging in the unit.
• Do not attempt to remove or repair any component of the unit. Consult an authorized service technician for servicing/repair.
• Do not sit inside the unit or hang on doors.
• This unit should be located away from doors, air ducts, and fans that could disrupt airflow and negatively impact performance.
• Please read through the manual in its entirety.

Cabinet Location Guidelines

• Install the unit on strong and level surfaces.
• If the surface is uneven, the unit may be noisy.
• The unit may malfunction if the surface is uneven.
• Install the unit in an indoor, well-ventilated area.
• For best performance, please maintain clearance of 6” on the back of the unit.
• Do not use outdoors. For indoor use only.
• Avoid direct sunlight.
• Avoid installation in a high-humidity and/or dusty area.
• Humidity above 55% can cause the unit to rust, collect condensation, and decrease efficiency.
• Dust collected on the condenser coil will cause the unit to malfunction.
• Malfunction due to temperatures above 75 degrees Fahrenheit, humidity above 55%, or improperly
  maintained condenser coil will void the warranty.
• Select a location away from heat and moisture-generating equipment.
• Ambient temperatures above 75 degrees Fahrenheit may cause the compressor to malfunction.
• Malfunction due to ambient temperatures above 75 degrees Fahrenheit will void the warranty.
• Do not install the unit inside a closet or alcove.

Electrical

• Ensure that the required voltage is being supplied at all times.
• The unit should be plugged into a grounded and properly-sized electrical outlet with appropriate over-current protection. Refer to the electrical requirements on the unit’s nameplate.
• The unit should have its dedicated outlet.
• DO NOT use extension cords.
• Ensure the unit is not resting on or against the electrical cord.
• If the unit is not in use for a long period of time, unplug it from the outlet.
• To avoid shock and fire hazards, DO NOT plug in or unplug the unit with wet hands.
• After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so could cause damage to the compressor.

Temperature Controls

Adjusting the Temperature

• Your new refrigerator is already factory-set to run at optimum temperatures for food safety and should require no adjustments.

Front Panel Operation

• Set temperature. Press the “SET” button, and the set temperature is displayed.
• Use the arrow buttons to adjust the displayed value.
• Press the “SET” button to exit the adjustment and display the unit’s current temperature.
• If no buttons are pressed within 10 seconds, the unit’s current temperature will be displayed.
• Lights. Press the “LIGHT” button to turn the lights on or off.
• Manual start/stop defrost:
• Press and hold the “LIGHT” button for 6 seconds.
• Refrigerant LED. When the compressor is running, the LED is on.
• When the refrigerator temperature is constant, the LED is off.
• During the delay start, the LED flashes.
• Defrost LED. During the defrost cycle, the LED is on.
• When the defrost cycle is done, the LED is off.
• During the delayed display of defrost, the LED flashes.

Operation

Defrost System

• Refrigerator coils are kept below the freezing point (32°F).
• During compressor downtime, the evaporator fan continues to circulate air through the evaporator coil. This air circulation raises the coil temperature above the freezing point, melting any accumulated frost.
• Run-off water is drained into the evaporator pan and evaporated.

Loading Product

• Ensure there is at least 4″ of clearance from the AVANTCO 193BCD36B Bakery Display Cases to the evaporator.
• Ensure all shelves are sitting level and properly secured before loading products.
• DO NOT store flammable/explosive gas or liquids inside the unit.

Cleaning

Fan Blades & Motor

• If necessary, clean the fan blades and motor with a soft cloth.
• If it is necessary to wash the fan blades more thoroughly, cover the fan motor to prevent moisture damage, then use a damp cloth to clean the fan blades.

Interior

• Use warm water and a mild soap with a clean cloth to wipe down the interior of the unit.
• DO NOT use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the interior finish.
• Periodically, remove the shelves and pilasters from the unit and clean them with mild soap and warm water.

Cleaning the Condenser Coil

• A dusty condenser may lead to high energy consumption, less cooling effectiveness, and compressor damage.
• For efficient operation, keep the condenser surface free of dust, dirt, and lint.
• We recommend cleaning the condenser coil at least once per month.
• The condenser coil is located at the bottom behind the panel.
• Once a month, remove the condenser filter and gently clean it with a dry brush.

Cleaning the Condenser Coil Instructions

1.  Disconnect the electrical power from the unit.
2.  Remove the front cover and base cover with a screwdriver.
3.  Using a soft brush and/or vacuum, remove the AVANTCO 193BCD36B Bakery Display Cases dirt, lint, etc. from the finned condenser coil in a vertical
   direction.
4. After cleaning, straighten any bent condenser fins with a fin comb.
5. When finished, be sure to reinstall the AVANTCO 193BCD36B Bakery Display Cases front cover and base cover.
6. Reconnect the electrical power to the unit.

Troubleshooting

Customer Service

• Website: https://www.avantcoequipment.com/
• Tel: 717-381-4844
