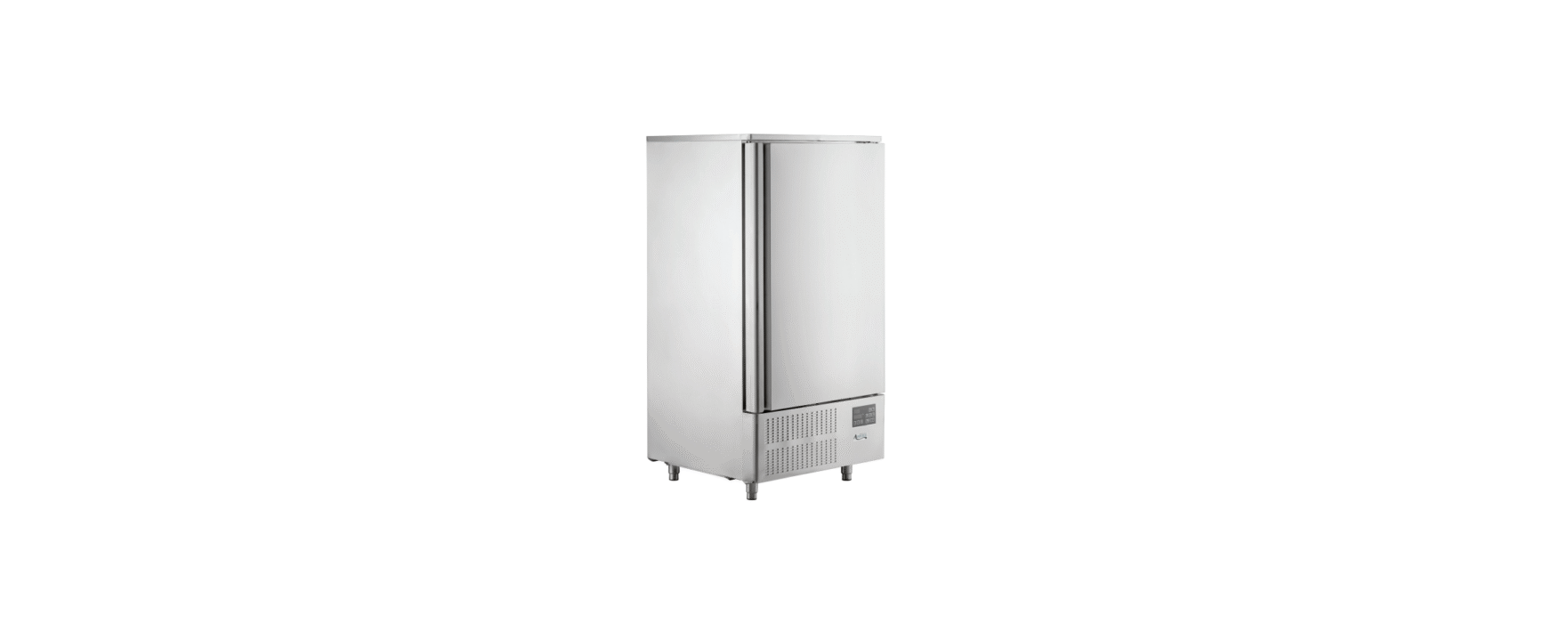

AVANTCO 449SF3 Blast Chiller Freezer
Safety Information
- Protect against electrical shock by keeping all cords, plugs, and other electrical components away from water or other liquids.
- Unplug this unit when not in use and before cleaning.
- Allow the unit to cool before putting on or taking off parts.
- DO NOT operate this or any appliance with a damaged electrical cord or plug.
- DO NOT use outdoors.
- DO NOT place on or near a hot gas or electric burner.
- Attach the plug to the appliance first, then plug the electrical cord into the wall outlet.
- Disconnect the unit by removing the electrical plug from the wall outlet.
- DO NOT use the appliance for any application other than its intended use.
- DO NOT insert metal utensils or oversized foods into this unit, as they may cause a fire and heighten the risk of electrical shock.
- DO NOT store any item on top of this unit when in operation.
- DO NOT clean with metal scouring pads, as pieces can break off and touch electrical components, heightening the risk of electrical shock.
- Never place materials such as paper, cardboard, plastic, etc. in this conveyor toaster.
- DO NOT cover the interior of this unit with metal foil, as it may cause the conveyor toaster to overheat.
- Turn off the appliance by removing the plug from the wall outlet.
- Note that the use of accessories not recommended by the manufacturer may result in injury.
Installation
- If the unit has recently been transported on its side, please let the unit stand upright for a
minimum of 24 hours before plugging it in. - Make sure all accessories are installed (shelves, shelf clips, et) before plugging in the unit.
- Make sure the unit has pre-cooled to the proper temperature before loading the unit with product.
- Do not attempt to remove or repair any component of the unit. Consult an authorized service
technician for servicing/repair. - Do not hang on doors or stand inside the unit.
- Please read through this manual in its entirety.
Cabinet Location Guidelines
- Install the unit on a strong and level surface.
- If the surface is uneven, the unit may be noisy.
- The unit may malfunction if the surface is uneven.
- Install the unit in an indoor, well-ventilated area.
- For best performance, maintain 6” of clearance on the sides and the back of the unit at all times.
- Outdoor use may cause decreased efficiency and damage to the unit.
- Avoid direct sunlight.
- Avoid installation in a high-humidity and/or dusty area.
- High humidity can cause the unit to rust and may decrease efficiency.
- Dust collected on the condenser coil may cause the unit to malfunction.
- Malfunction due to high ambient temperatures, humidity, or improperly maintained condenser coil will void the warranty.
- Select a location away from heat and moisture-generating equipment.
- High ambient temperatures may cause the compressor to malfunction.
- Malfunction due to high ambient temperatures and humidity will void the warranty.
Digital Temperature Controller
| # | Control | Description | |
| 1 | Power Button | When the power button is engaged, the unit will engage in pre-cooling mode. T | |
| 2 | Set Key | From the Pre-cool mode, press the set button to change the time or temperature. When temperature flashes, press ‘+’ or ‘-’ to change the temperature from -22°F to 77°F. When hours or minutes flash, press the ‘+’ or ‘-’ to adjust the time from 00:10 to 99:59. | |
| 3 | Start/ Stop | After setting the time and temperature. Press the start/stop button. The cooling indicator should light up, and the timer should start counting down. | |
| 4 | ‘+/-‘ | Adjustment buttons, used to adjust time and temperature settings. | |
| 5 | Quick Freeze | Quick freeze function reduces temperatures from 194°F to 0°F in 240 minutes. | |
| 6 | Quick Chill | Quick Chill function reduces temperatures from 194°F to38°FF in 90 minutes. | |
| 7 | Food Probe | Insert the Probe into the food and press the Food Probe Key. The probe icon will light up, and the display will show the temperature of the probe. Press a second time to return the display to the cabinet temperature. | |
| 8 | Heat Probe | To make probe removal easier in frozen food, press the heat probe button. The probe heating icon will light up, and the temperature display will show the temperature of the probe. When the heat probe icon is off, the food probe can be removed. | |
| 9 | Hard Freeze | This setting will cool the food to the target temperature set on the display as read by the probe. Use this option for the fastest cooling performance. | |
| 10 | Defrost button | ||
| 12 | Time Display | Displays the last set time value, or the remaining time on the cooling cycle. | |
Electrical
- Please ensure that the required voltage is being supplied at all times.
- The unit should be plugged into a grounded and properly-sized electrical outlet with appropriate
over-current protection. Please refer to the electrical requirements on the unit’s nameplate. - The unit should have its dedicated outlet.
- Do not use extension cords.
- Ensure the unit is not resting on or against the electrical cord.
- If the unit is not in use for a long period of time, please unplug the unit from the outlet.
- To avoid shock and fire hazards, do not plug in or unplug the unit with wet hands.
- After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so could cause damage to the compressor.
Defrost System
- Refrigeration units contain an automatic defrost system.
- Refrigeration coils are kept below the freezing point (32 degrees Fahrenheit).
- During compressor downtime, the evaporator fan continues to circulate air through the evaporator coil.
- This air circulation raises the coil temperature above the freezing point, melting any accumulated frost.
- Run-off water is drained into the evaporator pan and evaporated.
Use
- High liquid content foods should be limited to 50% capacity of the machine’s total cooling capacity.
- To avoid surpassing the internal pressure limit of the compressor and extend the life of the
compressor, allow the unit 2 minutes in between cycles. - After 2 minutes, press the start/stop button; the
compressor will start, and after another 2 minutes, the evaporator fan will start. - In the quick freeze modes, if the start/stop button is pressed, and the temperature of the cabinet is less than the set temperature, the compressor will not start until the temperature is greater than or equal to the set point.
Quick Start Guide
Getting Started
- To get started, press the Power Button (1) to enter AVANTCO 449SF3 Blast Chiller Freezer the precooling mode. Allow the unit to precool for 20 minutes before starting the cooling process.
Manual Set
- Under the precooling mode, press the Set Button (2) to switch between the temperature and time settings.
- When the field is flashing, press the (4) or to change the time and temperature settings.
- After setting the desired time and temperature, press the Start/Stop Button (3) to initiate the cooling cycle.
- During the cooling process, pressing and holding the Set Button (2) will show the current time and temperature setting.
- The Start/Stop Button (3) can be pressed at any time to stop the cooling cycle during cooling.
Quick Chill
- Pressing this button is a shortcut alternative to manually setting the unit for 38°F and time to 1 hour and 30 minutes.
- Under the precooling mode, press the Quick Chill Shortcut Button (6).
- Then, simply press the Start/Stop Button (3) to initiate the cooling cycle.
Quick Start Guide
Hard Freeze
- The hard freeze setting is used to switch AVANTCO 449SF3 Blast Chiller Freezer between reading and displaying the temperature of the
probe and the temperature of the cabinet (probe is the default). - The Snowflake (11) indicator light will illuminate to show that the unit is reading the temperature
of the core of the product using the probe. - To use the hard freeze mode, press the Hard Freeze Button (9) and insert the probe before
pressing the Start/Stop Button (3). - When using the Hard Freeze mode, the Heat Probe Button (8) will heat the core probe to allow
The user is to remove the probe from the core of the frozen food product.
Manual Defrost
- To initiate a Manual defrost process, AVANTCO 449SF3 Blast Chiller Freezer press the Half Snowflake Button (10). The manual defrost indicator light (12) will illuminate.
Operation/Maintenance
- Do not block the air vents.
- Ensure all shelves are sitting level and properly secured before loading products.
- Do not store flammable and explosive gases or liquids inside the unit.
- Do not use trays or containers deeper than 25/8″.
- Do not stack food. The thickness of the food product should not be more than 15/8″.
- For efficient operation, keep the condenser surface free of dust, dirt, and lint.
- We recommend cleaning the condenser coil and filter at least once per month.
- Clean the condenser with a commercial condenser coil cleaner such as Noble Chemical Tech Line Evaporator/Condenser coil cleaner.
- If necessary, clean the fan blades and motor with a soft cloth.
- If it is necessary to wash the fan blades, cover the fan motor to prevent moisture damage.
- When cleaning the cabinet interior, use a solvent of warm water and mild soap such as Noble Chemical Sunbright and Sani-512 to sanitize/disinfect.
- Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the interior finish.
- Periodically remove the shelves and shelf brackets from the unit, and clean them with a mild soap and warm water.
- Models 449SF5 and 449SF10 have a condensation drain that should be cleaned and cleared whenever in use.
- 449SF3 does not have a drain for condensation and should be wiped out periodically to prevent damage from moisture.
Troubleshooting
| Fuse blown or circuit breaker tripped. | Replace the fuse or reset the circuit breaker. |
| Power cord unplugged. | Plug in the power cord. |
| Thermostat set too high. | Set the thermostat to a lower temperature. |
| The cabinet is in defrost cycle. | Wait for the defrost cycle to finish. |
| The compressor is continuously running. | Check the evaporator for frost. Clean condenser coils and run the manual defrost cycle. |
| The thermostat is set too high. | Set the thermostat to a lower temperature. |
| Airflow is blocked. | Rearrange pans for proper air flow. Ensure the food product weight limit has not been exceeded. |
| Low refrigerant levels. | Contact a service technician to check refrigerant levels. |
| The door is slightly ajar. | Make sure the door is completely closed. |
Error Codes
| # | Control | Description |
| HI | Cabinet probe high
Temperature Alarm (Temperature over 113°F) |
Press the START/STOP button to start the cooling. After 2 hours, check the temperature inside the cabinet. If the cabinet temperature is greater than or equal to the high temperature alarm temperature of 45 °C / 113 °F, the temperature display column alternately displays the cabinet temperature and HI until the temperature is lower than the alarm temperature. At this time, check whether the door of the machine is closed, or stop the machine to check whether the temperature probe or compressor is faulty. |
| LO | Cabinet probe low Temperature Alarm.
(Temperature under -49°F) |
Press START/STOP to START the refrigeration, and test the temperature inside the cabinet 2 hours later. If the temperature of the cabinet is less than or equal to the low temperature alarm temperature of -45°C/-49°F, the temperature display bar will alternately display the temperature of the cabinet and LO until the temperature is higher than the alarm temperature. At this time to stop the cabinet temperature probe and other devices to check whether there is a fault. |
| E01 | Communication Failure Code | Power off and restart the machine, or check that the connection between the motherboard and the panel cable is connected to the right. Restore factory settings: In the pre-cooling mode, press the “+” and “-” keys simultaneously for 3 seconds, the temperature bar will display “rS”, and then automatically shut down. Press the Power button to start the machine, and the machine parameters will be restored to factory Settings. The factory setting is: temperature unit: °C; Set the temperature value: -18°C; Setting time: 4:00. If there is no mention of the fault, do not disassemble the machine at will. Please contact our authorized service technician for related testing and maintenance to avoid safety failure. |
Customer Service
- Website: https://www.avantcoequipment.com/
- Tel: 717-381-4844
