BROMIC COBALT 2000W Electric Heater Instruction Manual

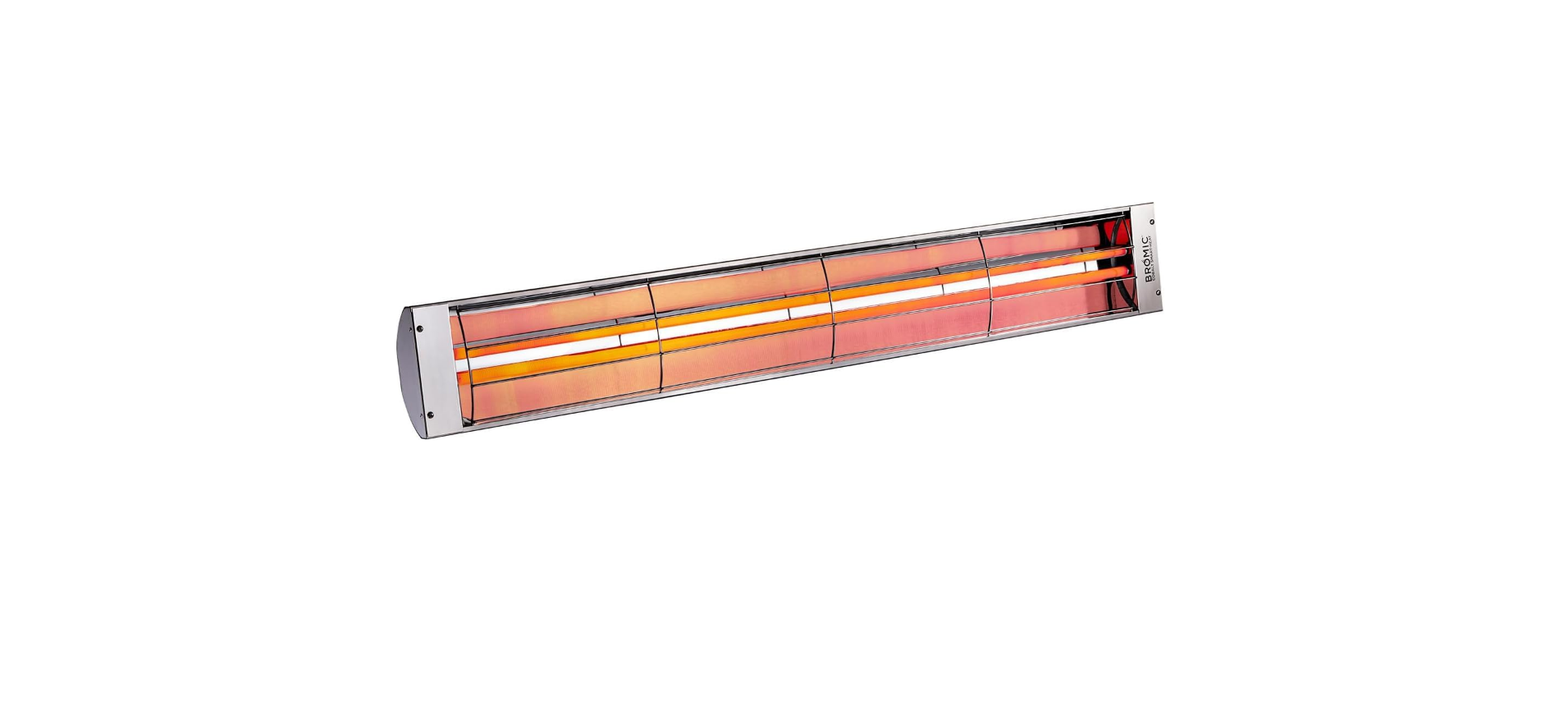

BROMIC COBALT 2000W Electric Heater

Safety Instruction

• Do not attempt to alter the unit in any manner.
• Do not paint any surface of the heater.
• Do not touch the heater with wet hands at any time.
• Do not insert or allow foreign objects to enter the front cover or front opening, as this may cause an electric shock or fire, or damage the heater.r
• For further information on waste collection and disposal, contact your local waste disposal service or the place of purchase.

Product Overview

Product Features

• The Cobalt Smart-Heat Electric heaters are designed to provide efficient spot heating for commercial and residential applications.
• Suitable for indoor and outdoor heating applications such as restaurants, cafes, bars and clubs, factories, office spaces, designated smoking areas, public areas, hotels and more.
• The heaters are available in 2000W, 3000W, 4000W, and 6000W models to suit a range of environments.
• IPX4 water ingress protection rating.
• Soft glow infrared heating element – No harsh glare.
• Wall and ceiling mounting brackets allow an adjustable angle of the heating direction.
• Tube elements are included with the heater and easily installed.
• The heater is equipped with a spectral reflector for excellent radiant heat output.
• Patent Pending & Registered Design.

Installation

• Installation Clearances for 2000w & 3000w Models
  2000W & 3000W models must be installed with the minimum installation clearances shown in the diagrams below. 2000W & 3000W models are supplied with short mounting brackets to be used for both ceiling & wall mounting.

• Installation Clearances for 4000w & 6000w Models
  4000W & 6000W models must be installed with the minimum installation clearances shown in the diagrams below. 4000W & 6000W models are supplied with long mounting brackets to be used for both ceiling & wall mounting.

Element Installation

1. Remove the wire cover by pulling it out from under the edge of the heater and in between the reflector.
2. Check that ring terminals are crimped securely to cables. 2000W & 3000W models have one cable at each end for assembly of one element. 4000W & 6000W models have two cables at each end for assembly of two elements. The first element must be connected to the cables marked L1 & N1. The second element must be connected to the cables marked L2 & N2.
   • 2000W & 3000W Models
   • 4000W & 6000W Models
3. Fasten elements to cables. Remove the other nut & lock washer from the threaded stud on the element. Assemble the ring terminal to the threaded stud & secure with the outer nut and lock washer. Use one spanner to hold the inner nut on the element, while fastening the outer nut with a second spanner. Repeat for the other end of the element.
4. Put elements in the support bracket. For 2000W & 3000W models, put the element in the centre position. For 4000W & 6000W models, put elements in the outside positions.
   • 2000W & 3000W Models
   • 4000W & 6000W Models
5. Close the element lock bracket & fasten with a screw. Repeat for the other end of the heater.
6. Assemble end caps at both ends of the heater with 2 screws. For 4000W & 6000W models, ensure that the middle tab of the end caps is slotted behind the element support bracket.
   • 2000W & 3000W Models
   • 4000W & 6000W Models
7. Attach the wire cover by pushing one side of it in between the reflector and under the edge of the heater. Perform the same process on the other edge of the heater.

Electrical Installation

1. Check product label for correct voltage and wattage – Make sure power source conforms to theater’s requirements.
2. Junction box has a Ø0.86” hole to suit M20 or PG13.5 cord grip. Insta all cord grip with a minimum rating of IPX4 to maintain the IPX4 rating of the heater. Cord grip must have a minimum temperature rating of 220°F.
3. Use appropriate power supply cables for the heaters’ voltage and wattage with a minimum temperature rating of 220°F. The fixed wiring must be positioned away from & protected from the enclosure of the heater.
4. Make electrical connections according to local electrical code regulations. For outdoor installation, all connections must be made according to local electrical code regulations for outdoor wiring. Only use wiring components approved for outdoor use with a minimum IPX4 rating. For 2000W & 3000W models, the junction box has one loop of cable. Cut the loop and use the two ends for the active and neutral connections for the element.
5. After installation, the distance between live parts and earth (or earthed metal) should not be less than 0.09”. The distance between live and neutral terminal BROMIC COBALT 2000W Electric Heater should not be less than 0.07”.
6. Assemble the junction box cover & gasket. Failure to install correctly will void the manufacturer’s warranty.

Wiring Diagram

• Standard Installation 2000w & 3000w Model

Maintennance

For the longest product life & to maintain product appearance, mount the heater under a cover & protect from rain & weather whenever possible. For locations near the coast, salt in the air can cause rusting of metal. Additional cleaning of the heater with a soft, damp cloth fortnightly will increase the life of the product’s appearance. Ensure that there is no excessive build-up of dirt/dust on the reflectors or elements, as this can cause overheating and premature element failure. To clean the reflectors BROMIC COBALT 2000W Electric Heater and elements, ensure the heater is off and has been off for at least 2 hours after operation, and wipe off any dirt/dust with a soft & dry cloth.

Tube Element Replacement

1. Remove the wire cover by pulling it out from under the edge of the heater and between the reflector.
2. Remove the first Element End Cover by unscrewing the 2 screws holding it in place.
3. Remove Outer Hex Nut, Lock Washer, and Lead Wire Ring Terminal from the threaded stud.
4. Remove the second Element End Cover by unscrewing the 2 screws holding it in place.
5. Remove Outer Hex Nut, Lock Washer, and Lead Wire Ring Terminal from the threaded stud.
6. Remove the old Tube Element.
7. Install the new Tube Element by following the element installation instructions on page 11 of this manual.

Replacement Part List

Troubleshooting

Customer Service

• Head Office: 10 Phiney Place, Ingleburn NSW 2565, Australia
• Telephone: 1800 301 1293
  • US: 1300 276 642
  • Within Australia:  or +61 2 9748 3900 (from overseas)
• Fax: +61 2 9748 4289
• Email: info@bromic.com
• Web: http://www.bromic.com/heating

FAQs

Q: What type of power connection does the Cobalt 2000W heater require?

Ans: According to local electrical standards, a certified electrician must install the heater, which runs on a 240V AC hardwired connection.

Q: What is the recommended mounting height?

Ans: Mount the heater between 6.5 feet (2 meters) and 8 feet (2.5 meters) above the ground for best results. Higher mounting may lessen the efficiency of the heat, while lower mounting may cause the room to overheat.

Q: How much area does it heat effectively?

Ans: In wind-sheltered settings, the Cobalt 2000W model offers targeted radiant heat for an area up to 65–70 square feet.

Q: Does it work well in windy or open outdoor spaces?

Ans: Semi-enclosed spaces are ideal for radiant heaters. Heat dispersion can lower performance in areas that are completely open or windy; take into account using several units or wind barriers.

Q: Can I install the heater myself?

Ans: No, in order to guarantee safety and warranty compliance, this hardwired device needs to be installed by a certified electrician.
