BROMIC TUNGSTEN Smart Heat Portable Heater User Manual

BROMIC TUNGSTEN Smart Heat Portable Heater

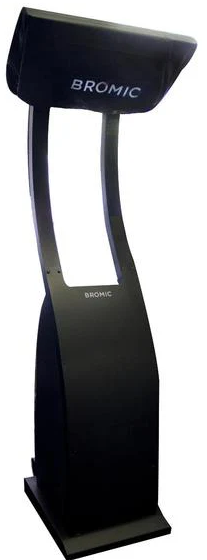

Product Description

The heater incorporates a pivoting head and adjustable heat output for precise heat control.

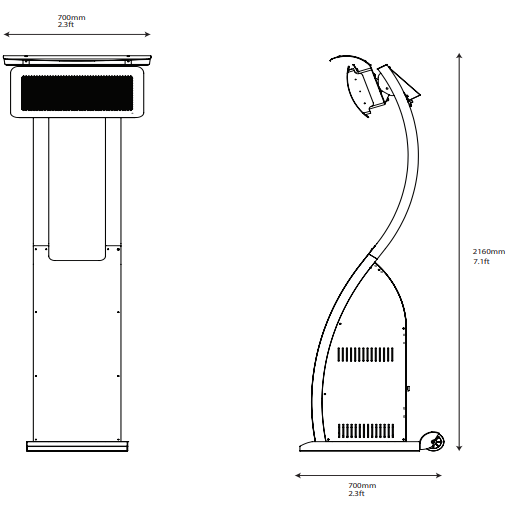

Dimensional Details

General Information

The TUNGSTEN Gas Patio Heaters are suitable for outdoor spaces. In addition to the installation Instructions provided, authorized installers must abide by local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2. Please note that these standards are subject to change.

Features

Gas Patio Heaters are revolutionizing the outdoor heating industry by introducing groundbreaking benefits never seen before in traditional gas or electric heaters. TUNGSTEN heaters have set the industry benchmark with stylish good looks and world-first innovation. TUNGSTEN heaters excel in the areas of:

• Aesthetic appeal
• Innovation
• Performance
• Flexibility
• Cost effectiveness

Installation Requirements

• natural ventilation
• without stagnant areas
• where gas leakage and products of combustion are rapidly dispersed by wind and natural convection

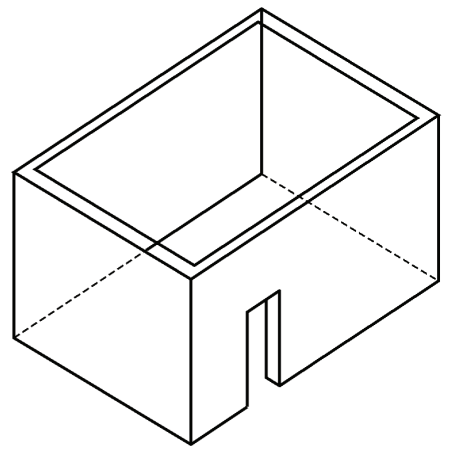

• An enclosure with walls on all sides, but at least one permanent opening at ground level (ref. Appendix A, Example 1)
• Within a partial enclosure that includes an overhead cover and no more than two walls (ref. Appendix A, Example 2)
• Within a partial enclosure that includes an overhead cover and more than two walls, the following shall apply.

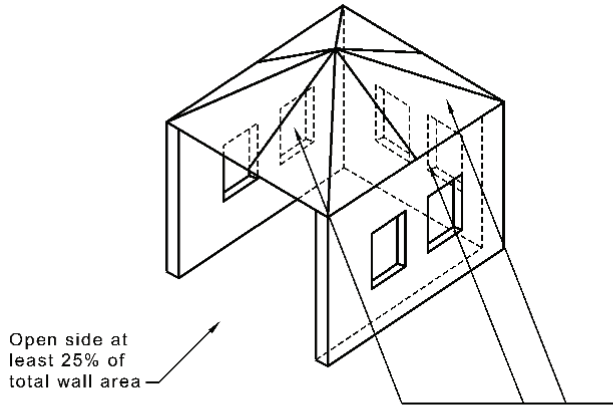

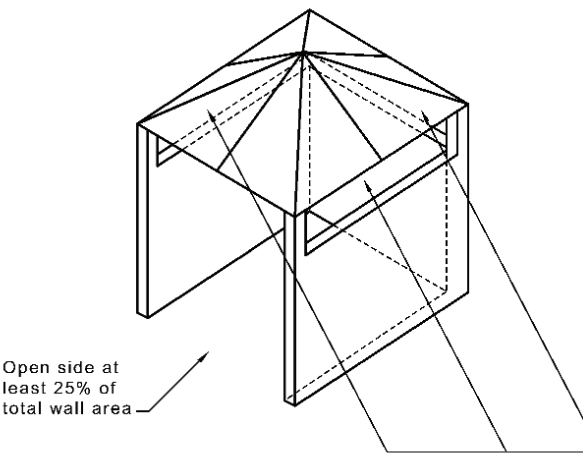

• At least 25% of the total wall area is completely open (ref. Appendix A, Example 4), and
• At least 30% of the remaining wall area is open and unrestricted (ref. Appendix A, Example 4)

Gas Requirements

TUNGSTEN Smart-Heat Propane Model

• • The MIN inlet pressure to the appliance is 11” W.C
  • The MAX inlet pressure to the appliance is 14” W.C

TUNGSTEN Smart-Heat Natural Gas Model

• • Use Natural Gas only
  • The MIN inlet pressure to the appliance is 6” W.C
  • The MAX inlet pressure to the appliance is 14” W.C

The Propane gas cylinder must be

• • Provided with a cylinder connection device compatible with the connection for the appliance.
  • The cylinder must include a collar to protect the cylinder valve

The Natural Gas hose must be

• • Constructed, marked, and approved for use with Natural Gas

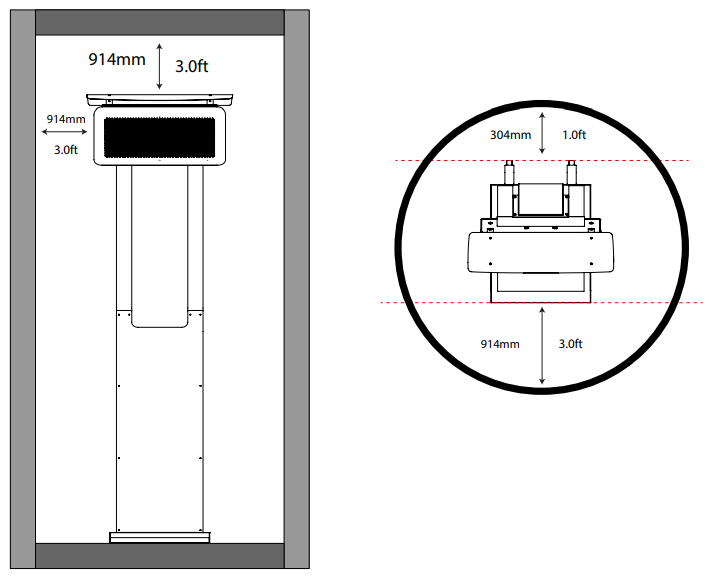

Location Clearance

When selecting the location for the TUNGSTEN Gas Patio Heater, the following clearances should be followed. Care should be taken to ensure that the heater is not installed:

• Where heat/ignition can cause damage to gas cylinders/lines
• Near other combustible materials
• In open locations subject to rain
• Clearance around air openings to the combustion chamber
• Clearance from combustible material
• Provisions for accessibility and clearance for combustion and ventilating air supply.

For Natural Gas Model

• The heater must be installed no further than 2m from the fixed supply line outlet.
• Ensure the chain is attached to the heater and a fixed connection external to the heater.

Contents Packed in (2) Boxes

• Box 1 Contents
  • Head Assembly
  • AAA Battery
• Box 2 Contents
  • Base Assembly
  • Front Assembly
  • Rear Arm Assembly x 2
  • Side Panels x 2
  • Top Arms x 2
  • Rear Cover
  • Top Flame Deflector
  • Gas Gose
  • LPG or Natural Gas Regulator
  • Retaining Chain (Natural gas only)
  • Mounting Bracket (Natural gas only)

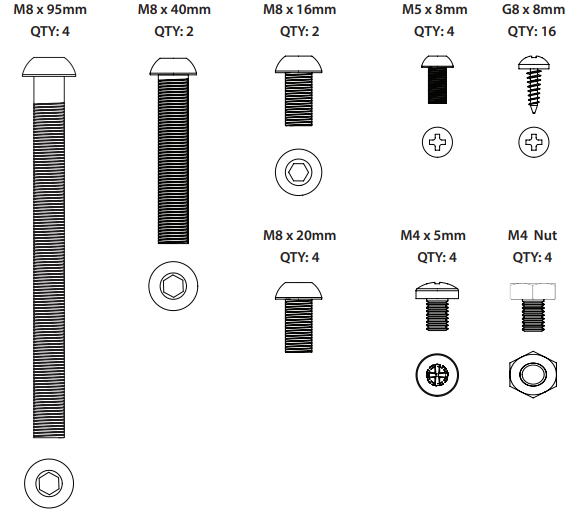

Supplied Fasteners

Supplied Tools

Tools Not Included

• Phillips head screw driver and Spray Bottle

Installation

1. Unpack boxes and place all items on a non-abrasive surface.

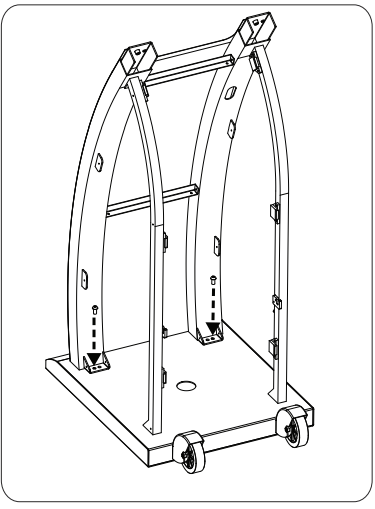

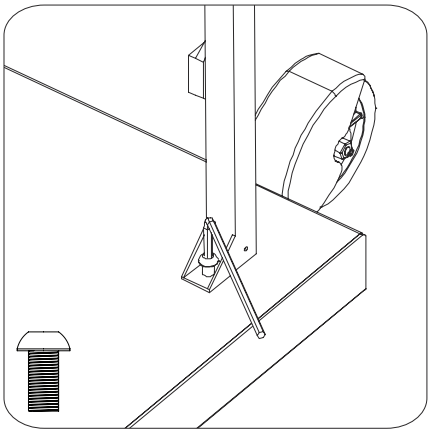

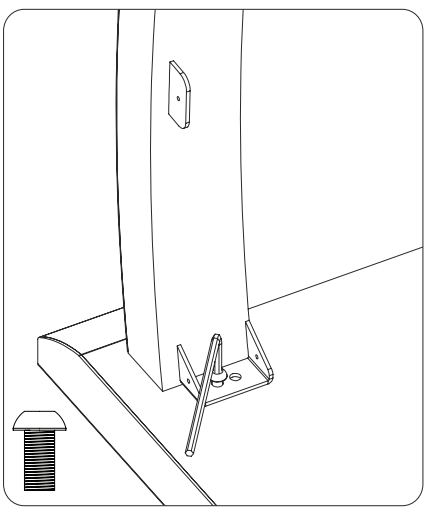

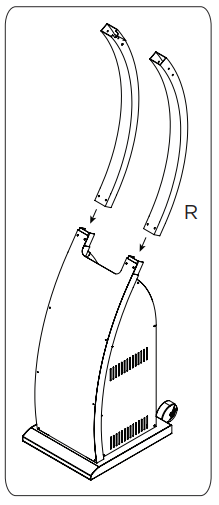

2. Fasten rear arms to base using 2 x M8 20mm screws and the supplied M8 Hex Key.
3. Position the front assembly and fasten using 2 x M8 20mm screws using the supplied M8 Hex Key.

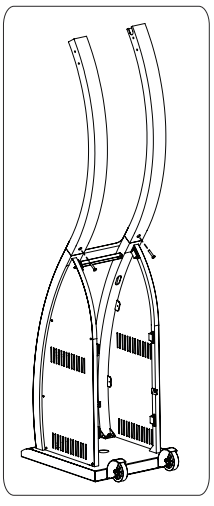

4. Secure the rear arms to the front assembly using 2 x M8 x 16mm screws and the supplied M8 Hex Key.

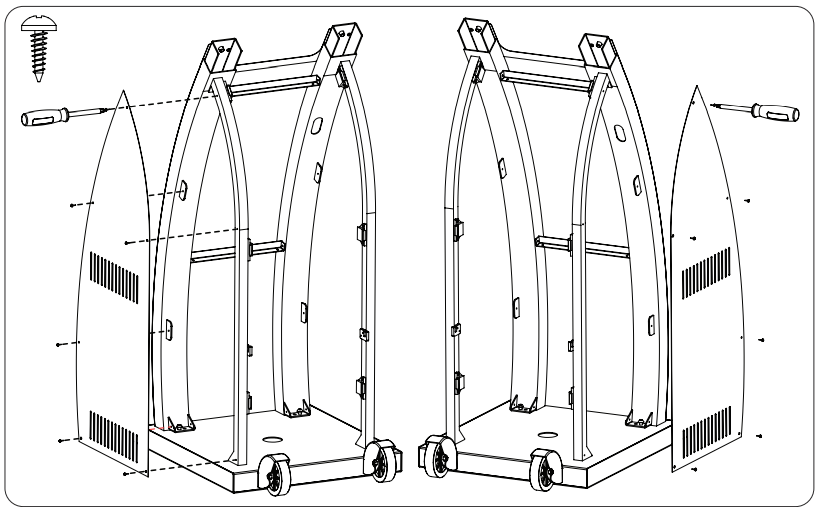

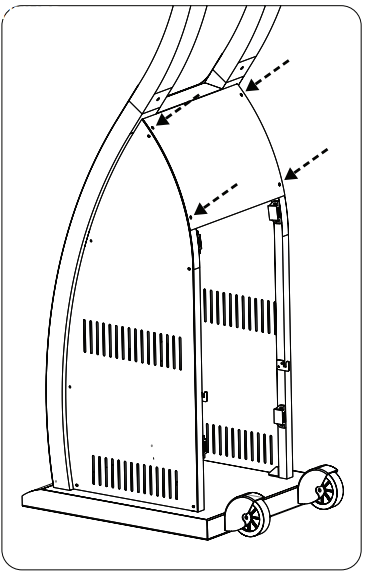

5. Secure the side panels to the frame using 12 x G8 screws – A Phillips screw driver is required for this step. Repeat for the opposite side.

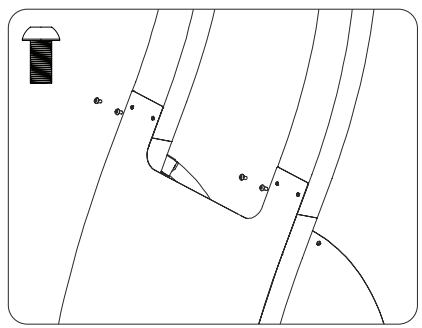

6. Slide top arms over front assembly slip joints – Ensure top screw holes are faced inwards. Secure the front panel to the top arms using 4 x M5 screws.

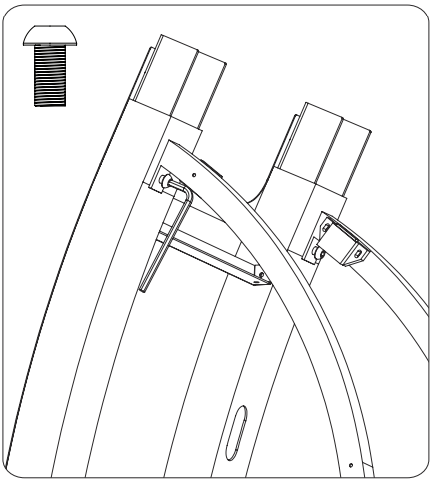

7. Secure the top arms to the lower arm slip joint using 2 x M8 x40 screws and the supplied M8 Hex Key.

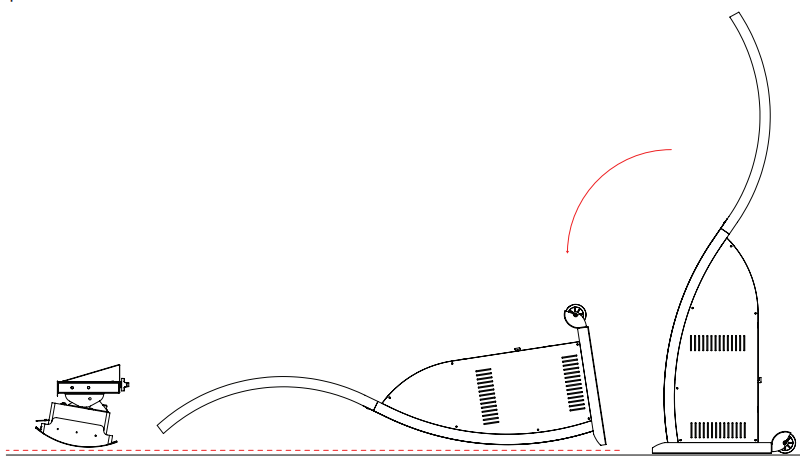

8. Lay both the heater head and the stand on a non-abrasive surface as shown. Two people are required for this step.

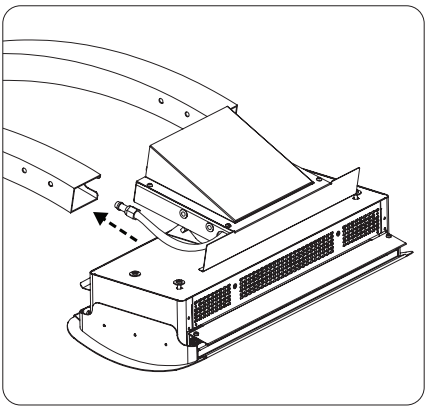

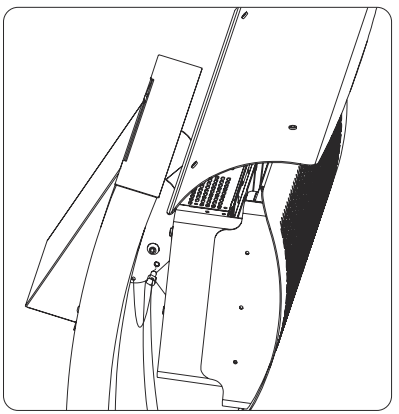

9. Feed the gas hose through the arm slot and push through until it reaches the slot in the bottom arm. Keep feeding the hose until all slack is taken up.

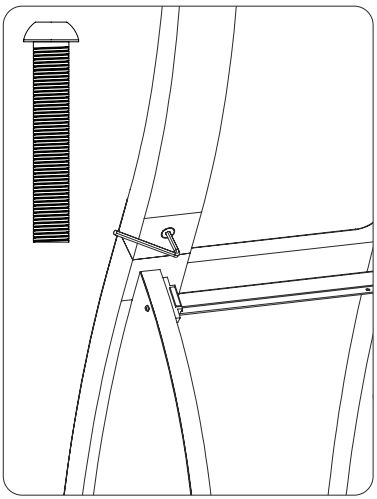

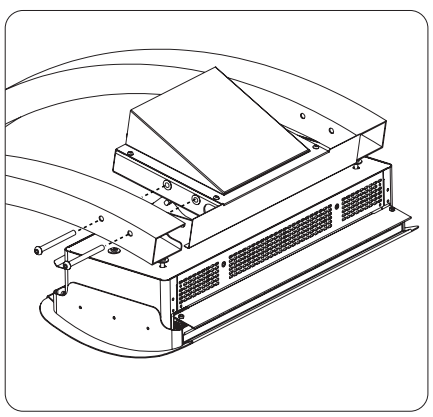

10. Secure the heater head to arms using 4 x M8 screws and supplied washers with M8 Hex Key.

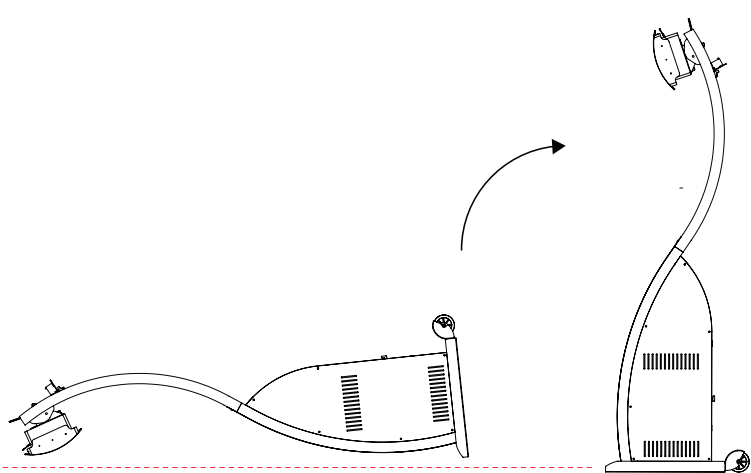

11. Return the heater to the upright position. Two people are required for this step.

LPG Model

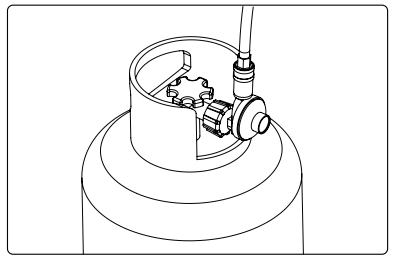

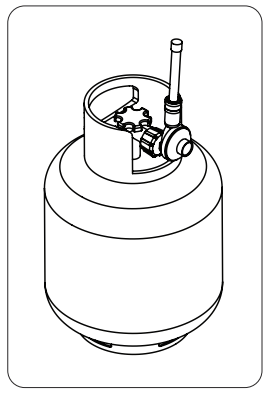

• • Attach the regulator assembly to the gas bottle.

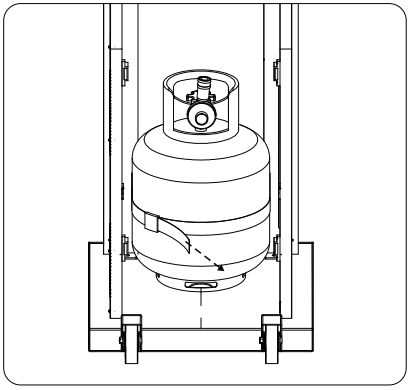

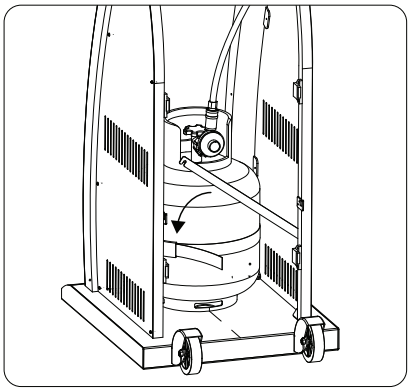

• • Place the gas bottle into the lower enclosure and fasten the strap tightly.

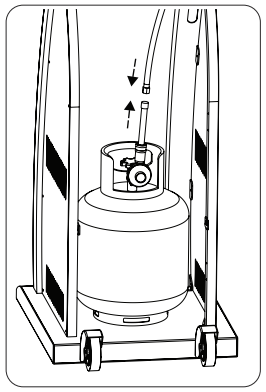

• • Attach the hose to the regulator assembly. Must be attached tightly with 2 spanners.
  • Lower the gas bottle bracket into position.

Natural Gas Model

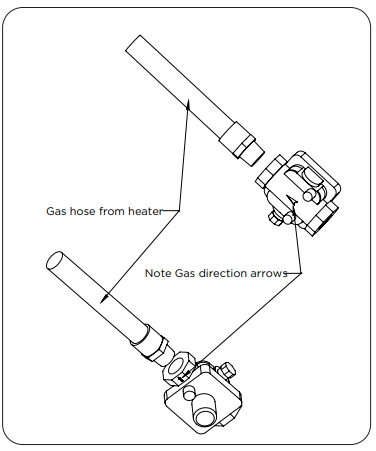

• • Attach heater hose to regulator outlet (note gas direction arrow).
  • Attach a fixed Natural Gas supply hose to the regulator inlet. Must be attached tightly with two spanners.
  • Mount the regulator between the regulator bracket and the side panel using four M4 bolts and nuts supplied.

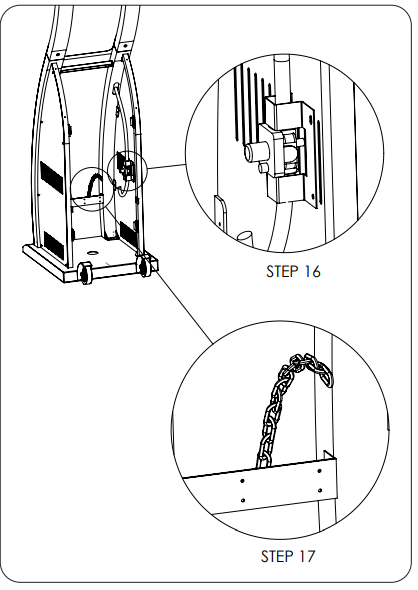

  • Attach the chain to the inner cross beam.
• Secure the deflector to the heater by loosening the two screws and securing the brackets underneath the washers. Re-tighten screws to the original position using screw screwdriver.

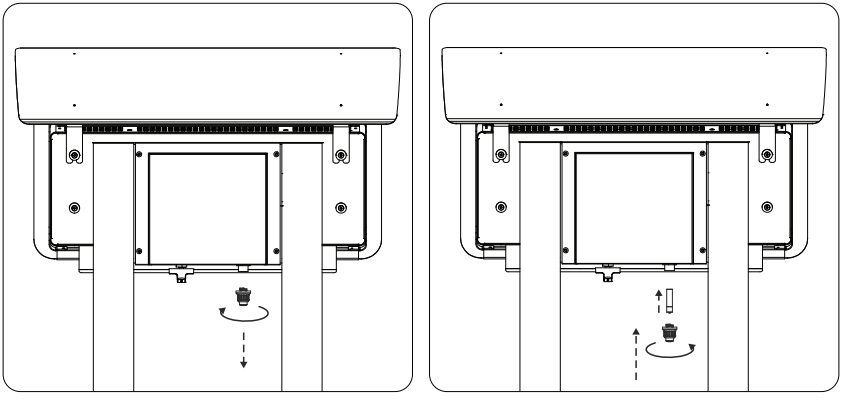

• Unscrew the igniter cap. Insert the supplied AAA battery into the cap and re-screw the o to the original position.

• Perform a Gas leakage test as shown on page 20.

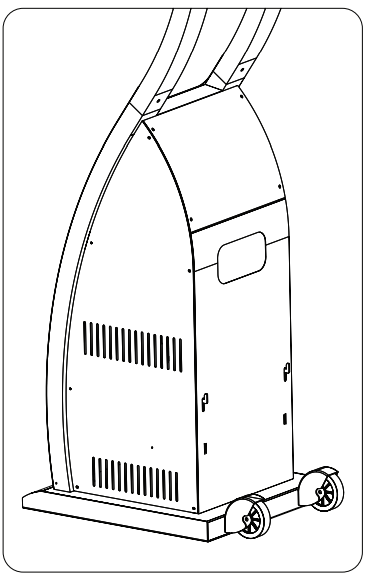

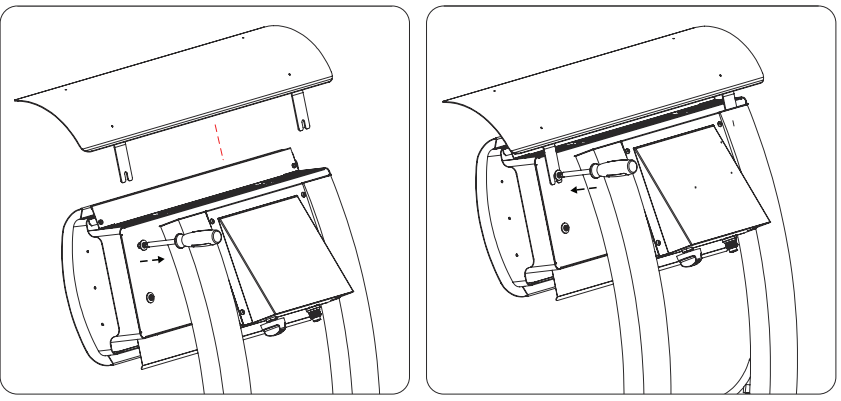

• Secure the top piece of the rear cover to the frame using 4 x G8 screws – A Phillips screw driver is required for this step.

For the Natural Gas Model only

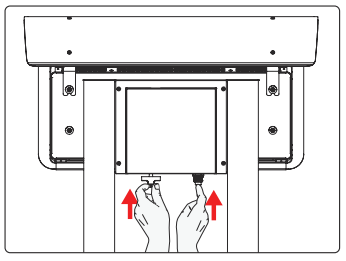

• Feed the fixed supply line hose and chain through the hole in the rear cover.
• Attach the chain to a fixed point near the fixed gas supply line.

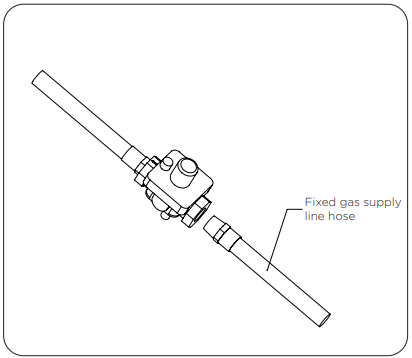

• Connect the fixed supply line hose to the fixed Natural Gas supply line.

Adjusting the heater head angle

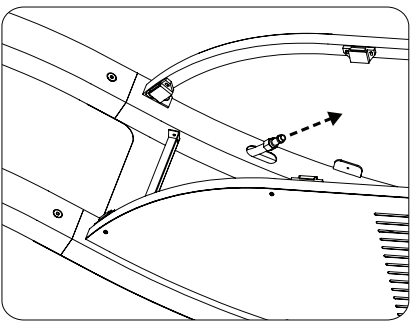

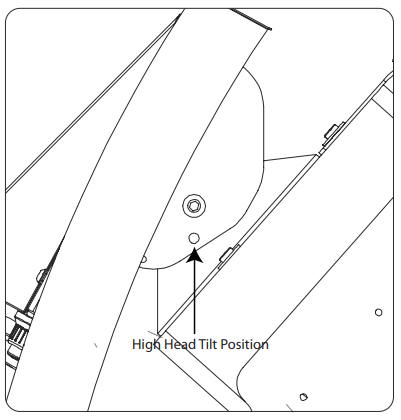

1. To set the head angle at the high position, manually push the heater head up to align the hole, then insert the slip pin.
2. To set the heater head angle at the low position, remove the slip pin & allow the heater head to rest in the low position. The slip pin does not need to be inserted.

Leak Test

Gas connections on the heater are leak tested at the factory before shipment. A complete gas leak test must also be performed after assembly before operating the heater due to possible damage occurring during transportation.

For Natural Gas Model

• The appliance and its shut-off valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures over 1/2 psi.
• The appliance must be isolated from the gas supply piping system by closing its manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig.

For NG/Propane Model

• Never leak test while smoking.
• The heater must be checked with a full gas cylinder (Propane model only)

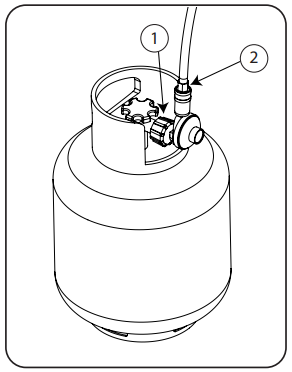

• Ensure connection all 3 connections illustrated below are connected correctly & tight.
• Make sure the control knob is in the OFF position.
• Make a mild soapy water solution. The soapy solution can be applied with a spray bottle or a soft cloth.
• Turn on the gas supply at the gas cylinder.

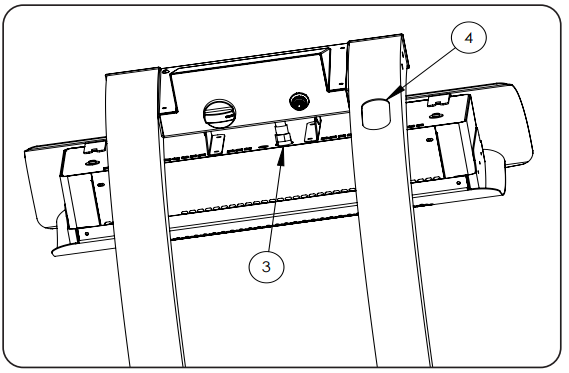

• Apply the soapy water solution to the 4 connections illustrated below. For the Natural gas model, replace connections 1 and 2 with hose connections on either side of the regulator.
• If bubbles appear at any of the connections, there is a gas leak.
• Tighten any leaking fittings, and repeat the process described above.
• If soap bubbles still appear (gas is still leaking), turn off the gas supply at the cylinder, disconnect the regulator from the gas cylinder or fixed gas supply hose from the natural gas supply outlet, and contact the store of purchase for assistance and advice.

TURNING THE APPLIANCE ON

1. Test the spark ignite button is working correctly by pressing the button and observing sparks at the ignition rods at the front of the heater.
2. Contact the store of purchase for assistance and advice.
3. Turn ON the gas supply at the LPG storage bottle.

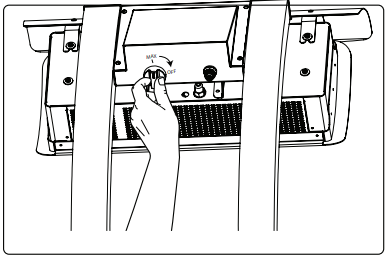

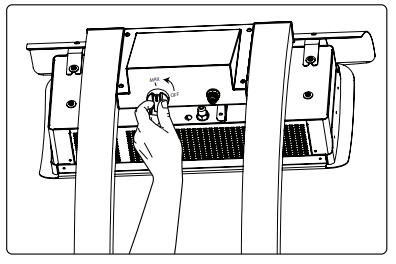

4. Turn on the gas control knob to the IGNITION setting.
5. Once at the IGNITION position, press the control knob while simultaneously pressing the spark ignition button. Continue to hold in controls for 10 seconds for ignition to complete.
6. Release the controls and turn the knob to the MAX position. If the heater has not ignited, wait 5 minutes and then repeat Step 5.

TURNING THE APPLIANCE OFF

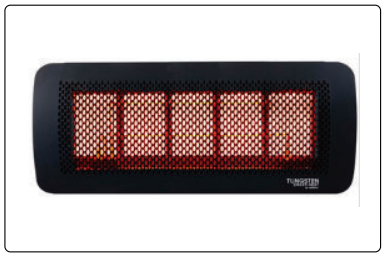

1. Press and turn the control knob to the “OFF” position to BROMIC TUNGSTEN Smart Heat Portable Heater to stop the supply of gas to the burner. The tiles should change colour from red to black.
2. Turn OFF the gas supply at the Propane storage bottle or disconnect the natural gas supply hose from the natural gas supply.
3. After turning the heater off, you must wait a minimum of 5 minutes to let excess gas dissipate before lighting again.

MAINTENANCE AND SERVICING

Inspect and clean at least every six months or more frequently in adverse conditions. Never obstruct the BROMIC TUNGSTEN Smart Heat Portable Heater from the flow of combustion and ventilation air. Always keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids. Do not clean the Eater BROMIC TUNGSTEN Smart Heat Portable Heater with cleaners that are combustible or corrosive.

Service Requirements

1. To check the gas hose within the mounting arm, disassemble the heater by reversing the installation instructions as outlined in the installation section of this manual.

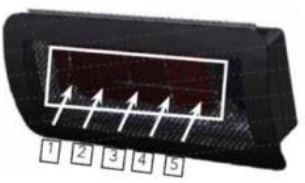

2. During the eating function, functionally check that all burners are alight and glowing hot.
3. Open up the rear housing and clear dust using BROMIC TUNGSTEN Smart Heat Portable Heater compressed air (max 20PSI) and a damp cloth.
4. Remove debris, spider, and insect nests from, control compartment, burn, er, and circulation air passageways of the heater with heavy-duty pipe BROMIC TUNGSTEN Smart Heat Portable Heater cleaner or compressed air to keep the appliance clean and safe for use.
5. Never clear ports or other openings with toothpicks or other articles that will break and block the ports.
6. In a salt-air environment, such as near an ocean, corrosion occurs more quickly than normal.
7. Remove salt spray from the heater immediately to BROMIC TUNGSTEN Smart Heat Portable Heater prolong the heater’s life.
8. Check frequently for corroded areas and repair them promptly.
9. Over the life of the heater, internal non-painted parts may slightly discolour from high temperatures emitted by the heater.
10. This is a normal occurrence and does not affect the operation of the appliance.

TROUBLESHOOTING

APPENDIX A

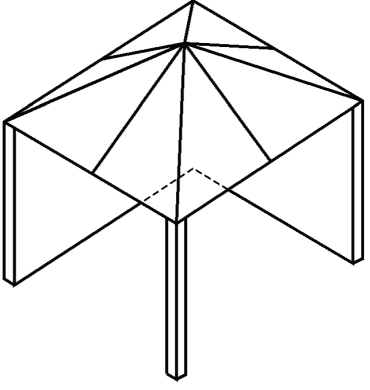

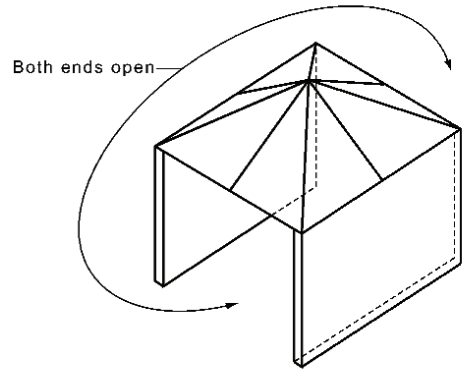

1. Outdoor Area Example 1
2. Outdoor Area Example 2
3. Outdoor Area Example 3
4. Outdoor Area Example 4
5. Outdoor Area Example 5

CONTACT

• Head Office: 10 Phiney Place, Ingleburn NSW 2565, Australia
• Telephone: 1800 301 1293 (US), 1300 276 642 (within Australia) or +61 2 9748 3900 (from overseas)
• Fax: +61 2 9748 4289
• Email: info@bromic.com
• Web: http://www.bromic.com
