Domo DO544FR 1800 W Deli Air Fryer Instruction Manual

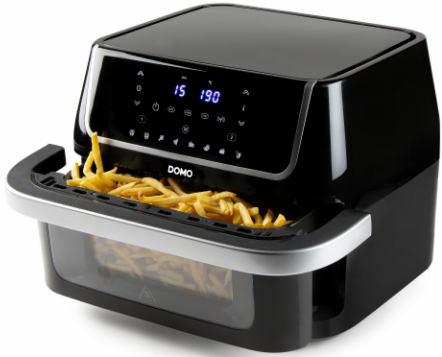

Domo DO544FR 1800 W Deli Air Fryer

Safety Instructions

Read all instructions before use.

• Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug.
• Never unplug by pulling the cord. Do not leave a working appliance unattended.
• Do not use the appliance outdoors. Only use the appliance for its intended use.
• Always use the appliance on a steady, dry, and level surface.
• Only use the appliance for domestic use.
• All repairs should be carried out by the manufacturer or its after-sales service.
• Never immerse the appliance, the cord, or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Before use, remove all packaging materials and any promotional stickers.
• Connect the appliance to an earthed socket.
• Make sure that no liquid can enter the appliance.
• Make sure that all ingredients stay in the basket, so that they do not come into contact with the heating elements. Never place this appliance near a gas stove or electric stove or in a place where it may come into contact with a warm appliance.

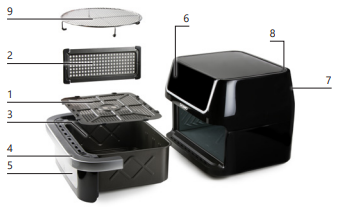

Parts

• Fryer grille
• Frying rack divider
• Frying pan
• Handle
• Observation window
• Control panel with display
• Air inlet
• Air outlet
• Grill rack

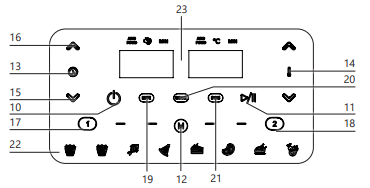

Control Panel

• On/Off button
• Start/pause button
• Menu button
• Timer setting
• Temperature setting
• Decrease setting
• Increase setting
• Button to set zone 1
• Button to set zone 2
• MUTE: Button to mute alarm sound
• SHAKE: Shake food reminder
• SYNC: Button to stop both zones at the same time
• Automatically set programs Display

Before first Use

• Remove all packaging materials and any promotional stickers.
• Clean the frying pan and basket with warm water, some washing-up liquid, and a non-abrasive sponge.
• Wipe the inside and outside of the fryer clean with a soft cloth.
• Caution: Do not add any frying oil or fat to the frying pan.

Using the Device

1. Place the appliance on a flat, stable, and heat-resistant surface.
2. Make sure that there is at least 10 cm of free space around the appliance.
3. Put the plug into the socket.
4. Turn the power on by holding down the power button for 3 seconds.
5. Set the desired temperature, using the buttons on the temperature control panel.
6. Set the time with the buttons on the timer control panel. Press the on-off button to start the heating.
7. The fan symbol appears on the display: The unit automatically preheats and has reached the desired temperature when the heating symbol disappears.

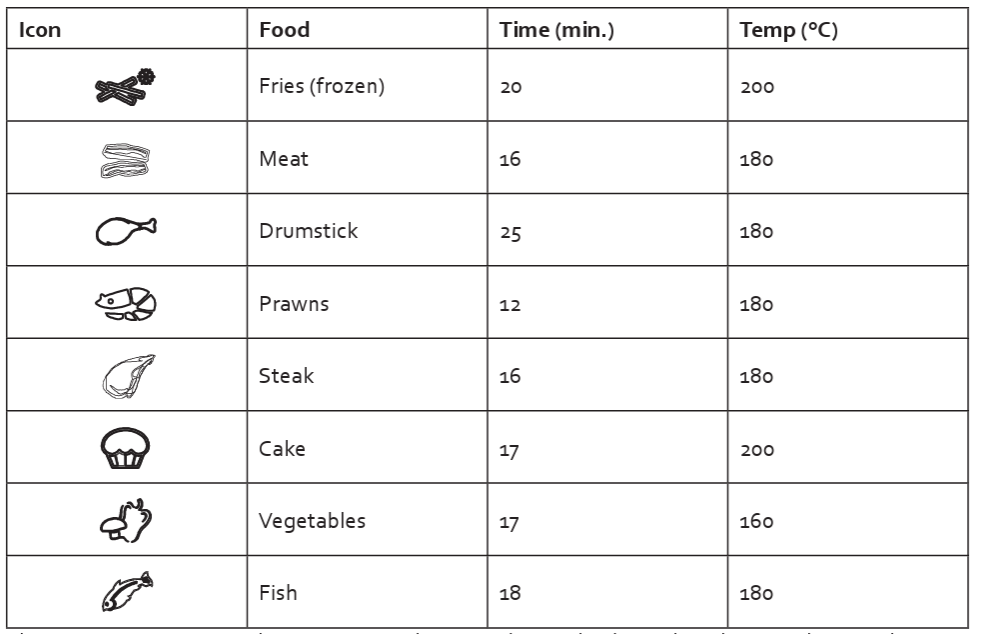

8. Or use one of the following pre-set programmes. Press the Menu button.
9. Each time you press the button, the next one of the following programmes will appear:
10. These programmes are only given as an indication.
11. The results depend on the size, shape, and amount of the food.
12. Once the desired time or the desired programme has been selected, press the on-off button.
13. The time will begin to count down from the time set and will be visible on the display.
14. You can also turn the appliance off earlier by pressing the on-off button.
15. Excessive oil will be caught in the frying pan.
16. When the set time has passed, a bell sound is heard. The fryer will automatically switch off.

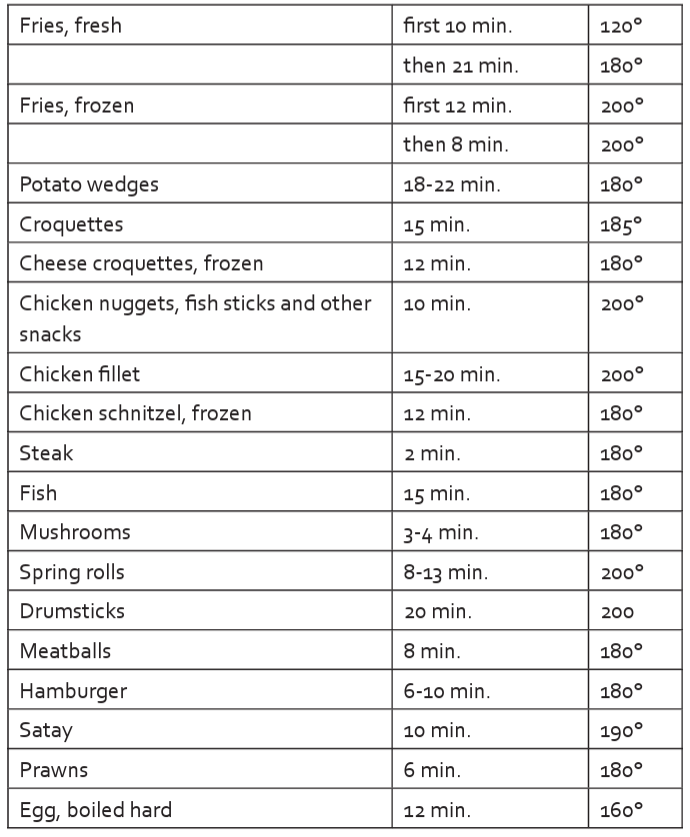

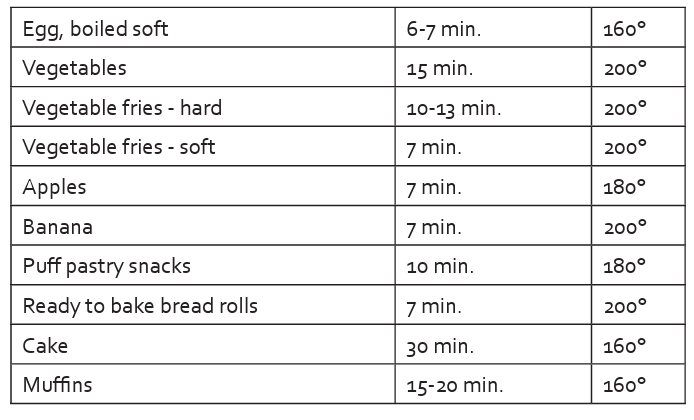

Baking Times and Temperatures

The table below holds a few guidelines for cooking and frying different ingredients. Caution: these are merely guidelines. The times also depend on the quantity and thickness of the food. Also, always take into account the above-mentioned frying tips.

Cleaning & Maintainance

• Clean the appliance after each use.
• Do not use any metal or abrasive cleaning products. These could damage the appliance.
• Unplug the appliance. Let the appliance cool down for at least 30 minutes before moving or cleaning it.
• Wipe the outside of the appliance clean with a damp cloth.
• Clean the frying pan and frying basket with warm water, some washing-up liquid, and a non-abrasive sponge. Clean the inside:
• DOMO DO533FR Deli-Fryer Air Fryer of the appliance with warm water and a soft sponge.
• Clean the heating element with a brush to remove any food residues.
• Dry all parts thoroughly.

Environmental Instructions

For more detailed information about the recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.

Warranty

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request that you contact our customer service. Our staff will gladly assist you. This appliance has a two-year warranty period. During this period, the manufacturer is responsible for any failures that are the direct result of construction failure.

Warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear and tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases.

• In case of incorrect connection, e.g., electrical voltage that is too high.
• In case of incorrect, rough, or abnormal use.
• In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

Customer Support

• Timings: Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00. Friday: 8.30 – 12.00 and 13.00 – 16.30
• Address: LINEA 2000 – Dompel 9 – 2200 Herentals, Belgium
• Website: http://webshop.domo-elektro.be
• Tel: +32 14 21 71 91
