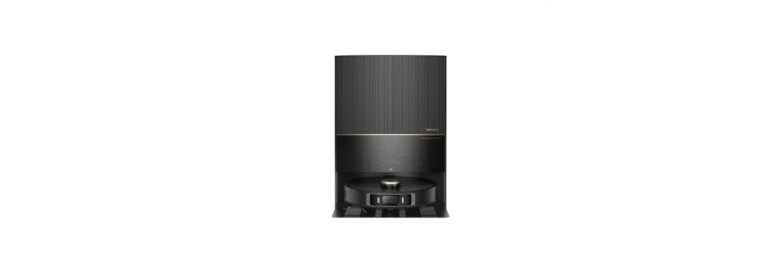

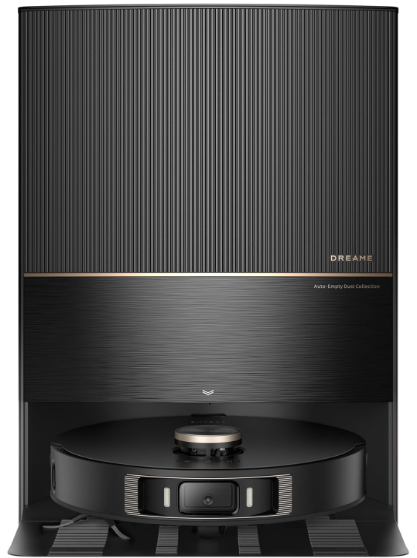

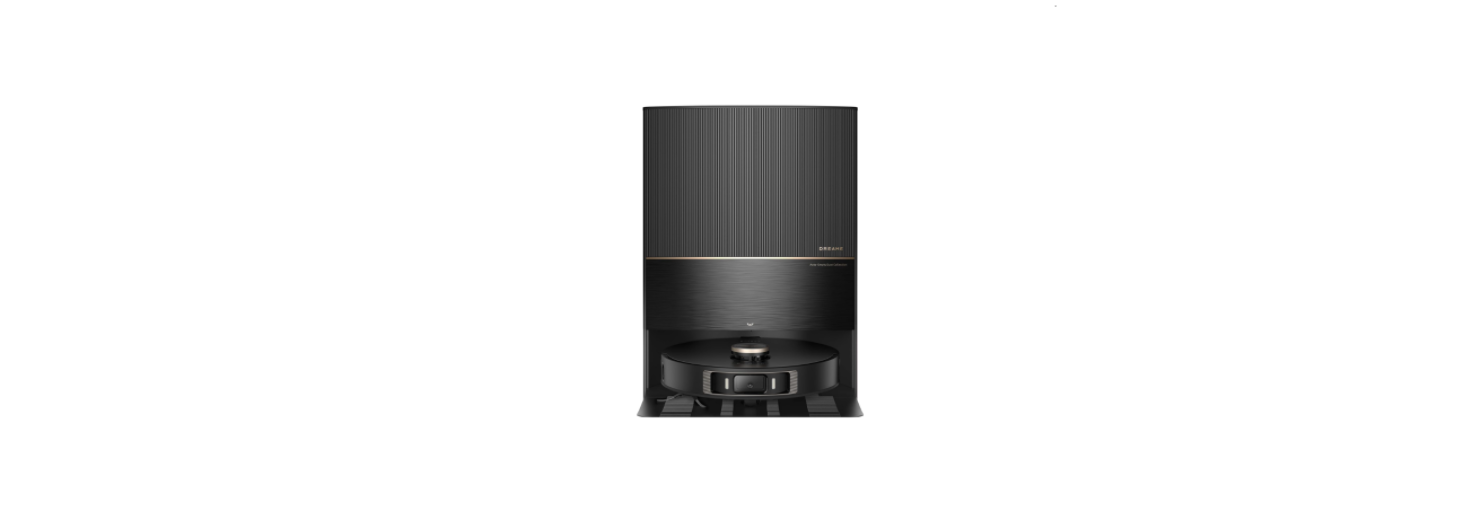

Dreame L50s Ultra Robot Vacuum and Mop
Safety Instructions
To avoid electric shock, fire, or injury caused by improper use of the appliance, please read the user manual carefully before using the appliance and keep it for future reference.
- Cleaning and maintenance shall not be performed by children without supervision.
- The appliance is only to be used with the power supply unit provided with the appliance.
- This appliance contains batteries that are only replaceable by skilled persons.
- Clear the area to be cleaned. Children shall not play with the appliance.
- Ensure children and pets are kept at a safe distance from the robot while it is operating.
- Do not install, charge, or use the appliance in the bathrooms or around the pools.
- This product is for floor cleaning in a home environment only.
- Do not use it outdoors, on non-floor surfaces, or in a commercial or industrial setting.
- Ensure that the appliance operates correctly in a proper environment.
- Do not use the robot in an area suspended above ground level without a protective barrier.
- Do not place the robot upside down. Do not use the robot cover or bumper as a handle for the robot.
- Use the robot in environments with an ambient temperature above 0° C and below 40° C.
- Make sure there is no liquid or sticky substance on the floor.
- Keep hair, fingers, and other body parts away from the suction opening of the robot.
- Do not operate the appliance in a room where an infant or child is sleeping.
- Only clean water and the officially-approved cleaning solution can be added to the clean water tank.
- Do not add any other liquid such as alcohol or disinfectant.
- The ratio of the cleaning solution to clean water can be checked on the cleaning solution bottle.
Product Overview
- Dock Button
- Power / Clean Button
- Button Status Indicator
- Solid White: Cleaning or cleanup completed
- Breathing White: Charging (not low battery)
- Solid Orange: Awaiting a low battery or paused at a low battery
- Breathing Orange: Charging (low battery)
- Blinking Orange: Error
- Active Binocular Obstacle Avoidance Sensor
- Dot Projector
- LED Auxiliary Light
- Microphones
- Bumper
- Bumper Window
- Rear ToF Sensor
- Reset Button
- 11. Wi-Fi Indicator
- Cover
- Auto-Empty Vent
- Edge Sensor
- Charging Contacts
- Automatic Water Refilling Inlet
- Connectors
- Cliff Sensors
- Carpet Sensor
- Side Brush Extension Assembly
- Main Brushes
- Main Wheel
- MopExtend Assembly
- Omnidirectional Wheel
- Brush Guard
- Main Wheel
- Brush Guard Clips
- Mop Pad Holder Mounting Holes
- Caster Wheel
Dust Box
- Auto-Empty Vent
- Filter
- Dust Box Clip
- Filter Clip
Mop Assembly
- Mop Pad Attachment Area
- Mop Pad Holder
- Mop Pad
Base Station
- 1. Cover
- Used Water Tank
- Clean Water Tank
- Dust Tank Cover
- Washboard
- Washboard Filter
- Heating Module
- Ramp Extension Plate
- Used Water Tank
- Clean Water Tank
- Water Tank Clip
- Float Ball
- Water Tank Clip
- Water Pipe
- Filter
- Floater
- Status Indicator
- Auto Solution Dispenser Module – Single Compartment
- Filter
- Auto-Empty Vents
- Signaling Area
- Dust Bag Slot
- Charging Contacts
- Automatic Water Adding Outlet
- Reserved Slot for Connecting the Water Hookup Kit for Auto Refilling and Draining
- Power Port
- Power Cord Storage Slot
Preparing Your Home
- Before cleaning, please move away unstable, fragile, valuable, or dangerous items, and clean up cables, cloths, toys, hard objects, and sharp objects on the ground to avoid being entangled, scratched, or knocked over by the robot and causing losses.
- Before cleaning, place a physical barrier at the edge of the stairs to ensure the secure and smooth operation of the robot.
- Open the door of the room to be cleaned, and put the furniture in its proper place to leave more space.
- To prevent the robot from missing areas that need to be cleaned, do not stand in front of the robot, threshold, hallway, or narrow places.
Before Use
- Place the Base Station and Connect to an Electrical Outlet.
- Place the base station in a location that is as open as possible with a good Wi-Fi signal.
- Leave enough space as shown in the figure and remove any objects in the shaded area.
- Insert the power cord into the base station and plug it into the socket.
Connecting with the Dreamehome App
- Download the Dreamehome App. Remove the robot cover and scan the QR code on the robot, or search “Dreamehome” in the app store to download and install the app.
- Add Device: Open the Dreamehome app, tap “Scan QR code to connect,” and scan the same QR code on the robot again to add the device. Please follow the prompts to finish the Wi-Fi connection.
How to Use
Turn On/Off
Press and hold the power button for 3 seconds to turn on the robot. The power indicator will remain lit. Or, place the robot onto the base station by aligning the charging contacts of the robot with those of the base station, and then the robot will turn on automatically and begin charging. To turn off the robot, move the robot away from the base station and press and hold the power button for 3 seconds.
Fast Mapping
After configuring the network for the first time, follow the instructions in the app to quickly create a map. The robot will start mapping without cleaning. When the robot returns to the base station, the mapping process has been completed, and the map will be saved automatically.
Pause/Sleep
When the robot is running, press any button to pause it. If the robot is paused for more than 10 minutes, it automatically enters sleep mode. All indicators on the robot will turn off. Press any button on the robot, or use the app to wake up the robot.
Auto Resume Cleaning
If the battery is too low, the robot will automatically return to the base station to charge. After charging to the appropriate battery level, it will resume unfinished cleaning tasks.
Do Not Disturb (DND) Mode
When the robot is set to the Do Not Disturb (DND) mode, the robot will be prevented from resuming cleaning. The DND mode is disabled by default at the factory. You can use the app to enable the DND mode or modify the DND period. The DND period is 22:00-8:00 by default.
Robot Restarting
If the robot stops responding or cannot be turned off, press and hold the power button for 10 seconds to forcefully turn it off. Then, press and hold the power button for 3 seconds to turn the robot on.
EN Vacuum and Mop
- Start cleaning: Press the power button on the robot, or use the app to make the robot start from the base station. Then the robot will plan the optimal cleaning route and perform the cleaning task based on the created map.
- Auto mop washing. When cleaning, the robot will automatically return to the base station to wash mop pads based on the mop pad cleaning frequency specified in the app. The base station will automatically refill the robot’s water tank, and the robot will resume cleanup.
- Automatically empty the dust box and wash and dry the mop pads. After the robot finishes a cleaning task and returns to the base station to charge, the base station will automatically empty the dust box and then wash and dry the mop pads.
- Clean the used water tank. After the robot has completed its task, please clean the used water tank to prevent any odor.
Mop After Vacuuming
Enable the mopping after vacuuming function in the app, and the robot will automatically remove the mop assembly from the base station to vacuum the floor. After vacuuming is completed, the robot will return to the base station to install the mop assembly, and the base station will automatically empty the dust box. And then, the robot will start mopping after the main brushes and side brushes are raised.
Vacuum Only
Enable the vacuuming function in the app, and the robot will automatically remove the mop assembly from the base station and start vacuuming.
Mop Only
Enable the mopping function in the app, and the robot will automatically check if the mop assembly is installed on the base station. If not, the robot will install the mop assembly and start mopping after the main brushes and side brush are raised.
Routine Maintenance

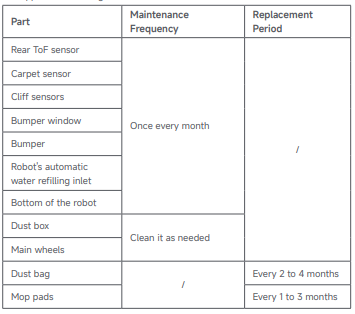

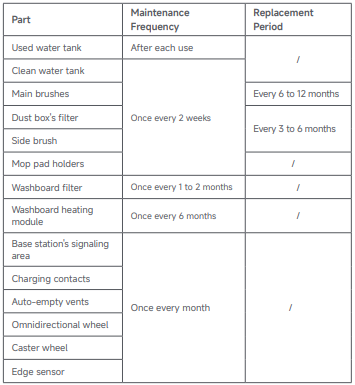

To keep the robot in good condition, it is recommended to refer to the accessory usage in the app or the following table for routine maintenance.
Washboard Filter
- Take out the robot and remove the washboard filter after the mop pad cleaning is complete.
- Rinse the washboard filter with clean water, wipe it clean, and then reinstall it in the washboard.
- Use the app or press the button to return the robot to the base station, or manually put the robot back.
Washboard Heating Module
During use, the washboard heating module may develop scale. To remove it, take out the robot, pour a small amount of white vinegar (5% acetic acid) on the surface of the heating module, and clean it with a proper tool.
Dust Bag
- Remove the dust tank cover and discard the dust bag.
- Remove the dust and debris from the filter with a dry cloth.
- Install a new dust bag.
- Reinstall the dust tank cover.
Main Brushes
- Press the brush guard clips inwards to remove the brush guard, and then lift the brushes out of the robot.
- Pull out the brushes as shown in the figure. Use a proper tool to remove any hair tangled in the brushes. After cleaning, push the brushes firmly into the main brush holder until they click into place.
- With the screen-printed arrows facing upwards, insert the main brush holder into the slots downwards in an inclined way.
- Align the front end of the brush guard with the slot, insert it downwards in an inclined way, and then press it into place.
Dust Box and Filter
- Remove the robot cover and press the dust box clip to remove the dust box.
- Remove the dust box filter, and then empty the dust box.
- Gently tap the basket of the filter to remove the dirt.
- Rinse the dust box and filter with water and dry them completely before reinstalling.
Robot Sensors
Wipe the robot sensors by using a soft and dry cloth, as shown in the figure below:
- Rear ToF Sensor
- Bumper Window
- Edge Sensor
- Bumper
- Cliff Sensors
- Carpet Sensor
Charging Contacts and Signaling Area
Clean the charging contacts and the signaling area with a soft and dry cloth.
Auto-empty Vents
Clean the auto-empty vents of the robot and the base station with a soft and dry cloth.
Charging Contacts and Signaling Area
Clean the charging contacts and the signaling area with a soft and dry cloth.
Auto-empty Vents
Clean the auto-empty vents of the robot and the base station with a soft and dry cloth.
Used Water Tank
- Remove the used water tank, open its cover, and pour out the used water.
- Rinse the used water tank with clean water, and use a proper tool to clean the inner wall of the used water tank.
Mop Pads
Remove the mop pads from the mop pad holders to replace them.
Battery
The robot contains a high-performance lithium-ion battery pack. Make sure that the battery remains well-charged for daily use to maintain optimal Dreame L50s Ultra Robot Vacuum and Mop battery performance. If the robot is not used for an extended period of time, turn it off and put it away. To prevent damage from over-discharging, charge the robot at least once every three months.

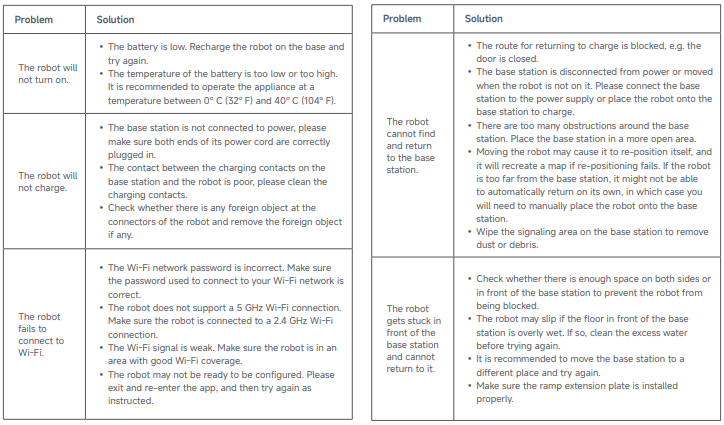

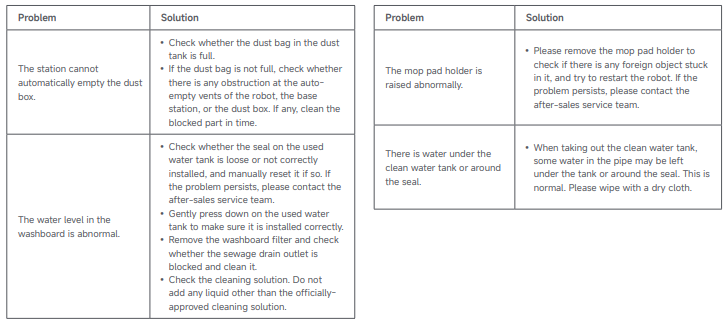

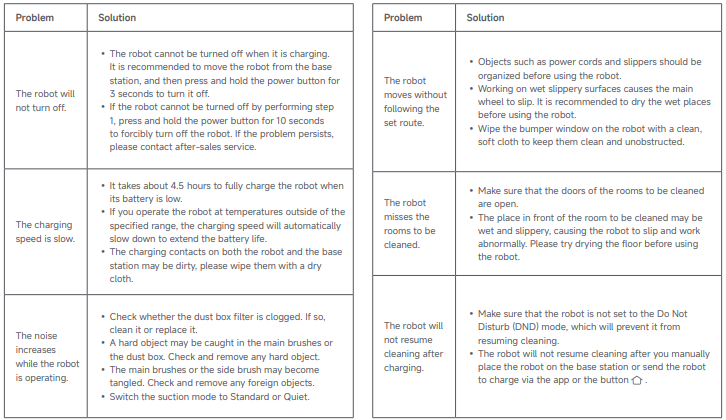

Troubleshooting
Specifications
Robot
- Model: RVL75DE
- Charging Time: Approx. 4.5 hours
- Rated Voltage: 14.4 V
- Rated Power: 75 W
- Operation Frequency: 2400-2483.5 MHz
- Maximum Output Power: < 20 dBm
Rechargeable Lithium-ion Battery Pack
- Model: R2416-4S2P-MMBK/R2416-4S2P-XDEV
- Nominal Voltage: 14.4 V
- Rated Capacity: 5.8 Ah
- Typical Capacity: 6.4 Ah 92.16 Wh
Base Station
- Model: RCLE0551
- Rated Input: 220-240 V 50-60 Hz
- Rated Output: 20 V 2 A
- Rated Power (during dust emptying): 700 W
- Rated Power (during hot water cleaning): 640 W
- Rated Power (during charging and drying): 103 W
Battery Disposal and Removal
The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disposing of the battery, make sure the battery is removed by qualified technicians and discarded at an appropriate recycling facility.
- The battery must be removed from the appliance before it is scrapped.
- The appliance must be disconnected from the supply mains when removing the battery.
- The battery is to be disposed of safely
Removal
- Turn over the robot, use a proper tool to remove the screws on the back of the robot, and then remove the cover.
- Unplug the terminals between the battery and the PCB board to remove the battery.
DECLARATION OF CONFORMITY
- Dreame Trading (Tianjin) Co., Ltd. No. 1-1-2112, Financial Dreame Roboticmower A1 Pro Lawn Mover and Trade Center South Zone, 6975 Asia Road, Tianjin Pilot Free Trade Zone (Dongjiang Bonded Port Zone), Tianjin 300461, P.R. China
- On behalf of Dreame declare that the product description is a Robotic Lawnmower.
- Type MLLA7210. Function Cutting grass
- Hereby, Dreame Trading (Tianjin) Co., Ltd. declares that the radio equipment model Dreame Roboticmower MLLA7210 complies with Directive 2014/53/EU.
- The full text of the EU declaration of conformity is available.e
Customer Service
- Tel: +1 (866) 977-5177
- Website: dreame.support@supernovabrands.co
FAQs
Q: What makes the Dreame L50s Ultra different from other robot vacuums?
High-precision hands-free cleaning is made possible by the L50s Ultra’s self-emptying dustbin technology, automatic mop cleaning, LiDAR navigation, and smart mapping.
Q: Does the L50s Ultra work on all floor types?
Hardwood, tile, laminate, low-pile carpet, and medium-pile rugs may all be handled by it. Steer clear of shag or high-pile carpets when mopping.
Q: How does the robot know where to clean?
To produce an accurate map, the LiDAR sensor scans your house. The program allows you to choose room-specific cleaning, create virtual borders, and designate cleaning zones.
Q: How often should I empty the dustbin?
Emptying is necessary less regularly (every few weeks, depending on use) if you use the self-emptying dock. For manual operation, empty when full or following each cleaning session.
Q: Can I schedule cleaning times?
Create daily, weekly, or personalised cleaning schedules using the app, making sure to include cleaning modes and rooms or zones.
Q: Can the robot avoid carpets while mopping?
You may program the app to automatically elevate the mop or steer clear of carpets by setting no-mop zones or turning on “carpet detection.”
Q: How loud is the L50s Ultra during cleaning?
Cleaning modes have different noise levels: turbo mode is louder (~65 dB), while normal mode is quieter (~55 dB). Steer clear of high-speed mode in public areas at night.
Q: Can the robot clean corners and edges effectively?
The mop module can clean along straight edges, and side brushes move dirt in the direction of the suction inlet. Occasionally, extreme corners can need manual attention.
