Dualit DCT2T Conveyor Toaster
Safety Instructions
- Before plugging in, check that the voltage on the rating label is the same as the mains supply.
- Failure to do this may cause an overload, trip a circuit breaker, or blow a fuse.
- Unplug from the outlet when not in use and before cleaning.
- Allow to cool before putting on or taking off parts.
- Do not insert hands, implements, or any metallic or sharp utensils into the toaster.
- Do not use foods, including tarts and pastries, that may drip fillings or coatings containing sugar when heated in your toaster, as this may cause a fire.
- Do not allow the device to freeze.
- This may compromise electrical safety and will degrade the performance of all lubricants.
- Risk of electric shock and damage.
- Bread may burn; therefore, do not use the toaster near or below combustible material such as curtains.
- If using the appliance close to a wall, ensure this is clad with non-combustible material and adheres
- Keep the area around the Air Intake clear.
- Do not place anything on top of or near the sides/ underneath the appliance.
- Do not modify the appliance.
- Remove all packaging before use.
- Do not put a pan on top of the toaster or warming rack.
- Risk of fire, electric shock, scalding or injury to persons.
- Never touch the Conveyor Belt. Risk of injury.

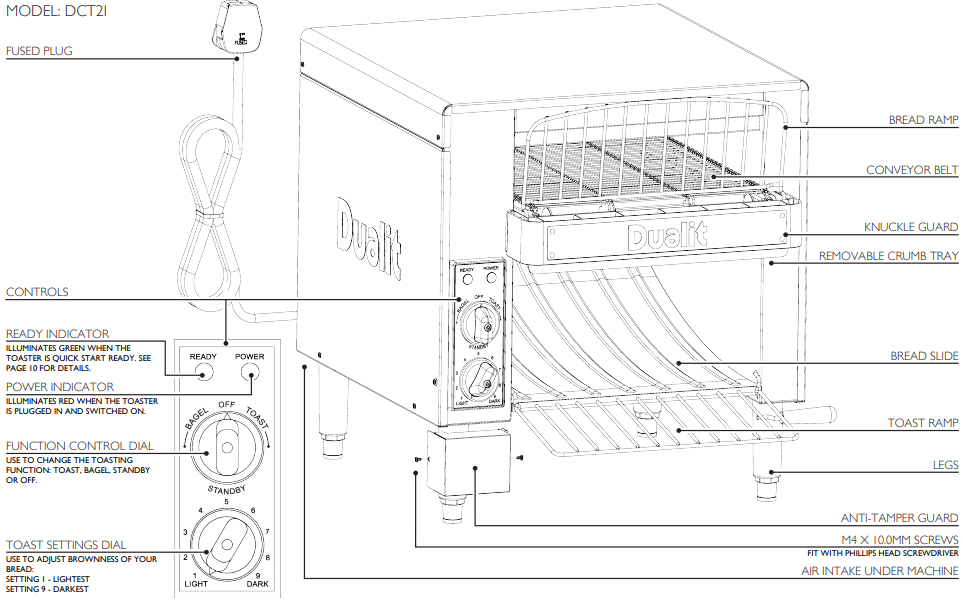

Know Your Product
Setting
- You will need the product model and serial numbers that are on the rating label on the base of the product.
- Ensure all packaging material is removed from the Conveyor Toaster.
- Carefully place your Conveyor Toaster on its side.
- Thread all 4 legs into the holes shown and tighten using a 21mm spanner.
- Pick up and place the Conveyor Toaster on its feet.
- Position the Crumb Tray into the mounting rails beneath the Conveyor Belt.
- Position the Bread and Toast Ramps as shown above. Once the Bread Ramp has been positioned,
- it cannot be moved. Dualit recommends having a basket underneath the Toast Ramp to catch toasted items.
- Take time to wipe down your Conveyor Toaster with a damp cloth to ensure it is ready for toasting.
- Ensure your Conveyor Toaster is not stored in an appliance garage or underneath cupboards. Overheating may occur if the appliance is not correctly positioned.
- Do not store or use your Conveyor Toaster next to curtains or flammable material.
- A fire may occur if incorrectly positioned.
- Place the Conveyor Toaster on an open level surface.
- Ensure that it is positioned 100cm away from any overhanging cupboards or ceilings.
- Ensure the Conveyor Toaster is positioned at least 50cm clear from walls. For best results, use away from drafts.
- Never cover the vents on the sides of the Conveyor Toaster. This will prevent necessary airflow and could cause a fire.
- The surfaces of the Conveyor Toaster will get extremely hot during operation.
- Ensure to touch only the dials when in use, as risk of scalding.
- Do not place items on top of the Conveyor Toaster, in particular plastic such as bread bags that could melt.
Resetting
- Turn off and unplug the toaster. Allow to cool for 1 hour. Risk of electrocution and burns.
- Remove the Crumb Tray and lay the toaster on its right-hand side.
- Dualit DCT2T Conveyor Toaster onto a cloth to protect the surfaces, and to gain access to the reset button.
- Locate the Reset Button that is situated on the underside of the toaster on the left-hand side.
- You can identify the location by the marking that says “Thermal Protection Device Reset Under Here”.
- You can use the end of a pen to press the reset button, situated within the hole.
- Once reset, ensure the toaster is set up and sat back on its legs.
- Turn the Control Dial to ‘TOAST’.
Use
Correct Toast Setting
Your Conveyor Toaster is designed to toast bread products in buffet and kitchen environments. To achieve optimum performance, make sure that any user understands how to operate and control the toaster for its intended use.

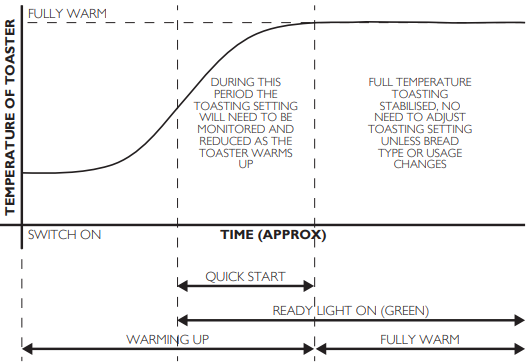

Warm-Up Procedures
Dualit always recommends this procedure when time is available. Switch on and allow your Conveyor Toaster to run empty. The Conveyor Toaster will be fully warm after 30 minutes. This procedure produces the most consistent toasting results, and no adjustment of the toast settings is required by the operator once toasting has started. See the diagram below and the table on page 11, which help explain the differences between Quick Start and Full Warm Start procedures.
Chart
Toasting
Plug in and switch on your Conveyor Toaster at the wall. Choose your function by turning the Function Control Dial to the desired setting.
Toast
- The top and bottom elements are on. Both sides of the bread will be toasted.
Bagel
- Only the bottom element is on. Place bagels, cut side down, on the conveyor.
Standby
- Do not use for toasting. See page 12 for details.
| Quick Start – Toast Setting | Full Temperature – Toast Setting | |||||
| Continuous | Intermittent | Buffet | Continuous | Intermittent | Buffet | |
| White | 6 | 5.5 | 5 | 5 | 4.5 | 4 |
| Granary | 9 | 8.5 | 8 | 6 | 5.5 | 5 |
| Fruit Bread | 4 | 3.5 | 3 | 2.5 | Not recommended* | |
| Rye | Not recommended** | 9 | 8.5 | 8 | ||
| Bagel | 6.5 | 6 | 5.5 | 6 | 5.5 | 5 |
Usage Types
- Continuous Toasting (toast every 1-5 secs)
Back-to-back or larger batches. - Intermittent Toasting (toast every 5-30 secs)
- Buffet Toasting (toast every 30+ secs)
#Irregular intervals over 30 seconds, used on demand.

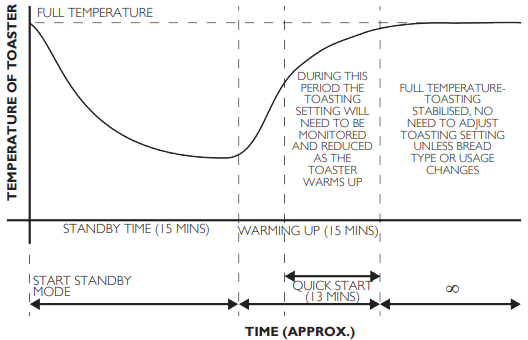

STANDBY MODE
During periods of inactivity, you can use Standby Mode to reduce the power consumption of your appliance by up to 70%. When you are ready to go again, switch the control dial to either ‘TOAST’ or ‘BAGEL’ and, in normal conditions, your machine will be ready to toast in just 2 minutes; that’s a 50% time saving over Quick Start. After 15 minutes on standby, your Conveyor Toaster will have used the same amount of energy as it would to get from room temperature to Quick Start temperature. As such, Dualit recommends switching the device off if you don’t intend to use it for longer than 15 minutes.
Your toaster is fitted with a temperature-limited thermostat. During periods of inactivity, longer than 5 minutes, the elements will turn off (indicated by the red power indicator going off). Only introduce bread to the conveyor when the red light is on and the elements are glowing cherry red.

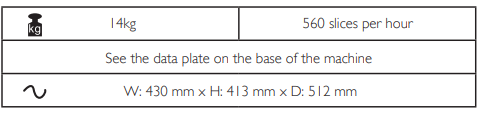

TECHNICAL PARAMETERS
ANTI-TAMPER
Your Conveyor Toaster features a removable Anti-Tamper Guard. Note: Before setting up your Conveyor Toaster, ensure that you remove the legs and Anti-Tamper Guard from the polyfoam insert in the bottom of the box. For buffet environments, Dualit recommends fitting the AntiTamper Guard to avoid customers adjusting the Toast Settings Dial. The Guard should be fitted using M4 x 10.0mm screws and a Phillips head screwdriver. After selecting the correct toast settings, the Anti-Tamper Guard can be fitted as follows.
- Remove the two screws seen on the left and right-hand sides of the controls. Align the Anti-Tamper Guard with the screw holes.
- Insert and tighten the left-hand screw.
- Insert and tighten the right-hand screw. To remove, repeat in reverse order.
Cleaning
- Remove the Crumb Tray. From a cold start, set the Conveyor Toaster Dualit DCT2T Conveyor Toaster to standby. Select toast setting 9.
- Unplug from mains, leave to cool for a minimum of 1 hour, then wipe all external Dualit DCT2T Conveyor Toaster surfaces with a damp, non-abrasive cloth.
- Remove the Crumb Tray, tip out all of the crumbs, then clean with a Dualit DCT2T Conveyor Toaster a damp cloth and replace.
Thermal Protection
Your Dualit Conveyor Toaster is fitted with a Thermal Protection Device. This is intended to protect the product and user in the event of a thermal overheat. The Thermal Protection Device will activate if:
- There is insufficient ventilation surrounding the product.
- There is a fault with the product.
If you find that your toaster’s red “POWER” light is not illuminating, the belt is not turning, and the elements are not heating, the Thermal Protection Device may have activated. First, check the Plug Fuse and replace e if necessary. If the toaster’s red “POWER” light is still not illuminating, you need to reset the Thermal Protection Device.
TROUBLESHOOTING
| Problem | Solutions |
| MY TOASTER ISN’T WORKING | |
| The Plug Fuse may need replacing. | The Plug Fuse may need replacing if the Power Indicator does not turn on and the device does not appear to work. |
| The thermal Fuse may need resetting. | Please contact Dualit customer services* for help. |
| THE ELEMENTS CYCLE ON AND OFF | |
| I GET UNEVEN TOASTING | |
| The toaster may not be Fully Warm. | Allow the toaster to reach full temperature; this should take 30 minutes, depending on conditions. |
| The toasting setting you are using may not be appropriate for the bread type. | Check that the type of bread you are using is appropriate for the toast setting your machine is on. |
| An element may have blown. | Check all elements glow when the toaster is Fully Warm. If not, contact Customer Services* for help. |
| MY TOAST COMES OUT TOO LIGHT | |
| Your Quick Start toast setting may be too low. | If using Quick Start, you will need to turn the toast setting up much higher than usual, then dial it back as the toaster heats up. |
| During periods of inactivity, longer than 5 minutes, the elements will turn off (indicated by the red power indicator going off). | Only introduce bread to the conveyor when the red light is on and the elements are glowing cherry red. |
| MY TOAST COMES OUT TOO DARK | |
| The toast setting may be too high for the type of bread you are using or the conditions in which you are using the toaster. | For information on toasting settings for different bread types and factors that affect toasting. |
| Quick Start setting may be too high or is not decreasing enough as the Conveyor Toaster continues to warm up. | Monitor toast colour and adjust toasting setting as the toaster warms up when using Quick Start. |
GUARANTEE
This Guarantee covers both parts and labour. Your Guarantee period is as follows: If your conveyor toaster fails within Dualit DCT2T Conveyor Toaster one year from the date of purchase, we will repair or replace it free of charge, except for the elements, provided:
- Dismantling of or interference with the product.
- Operational misuse, wear and tear from the Dualit DCT2T Conveyor Toaster, normal usage, incorrect adjustment, and neglect.
- Before returning any product under this Guarantee, please check that:
- You have followed the product Dualit DCT2T Conveyor Toaster instructions correctly.
- The defect is not due to a blown fuse. Please check and change the plug fuse.
- Please give exact details of the nature of the defect.
This Guarantee does not cover any other claims whatsoever, including, without limitation, any liability for incidental, indirect, or consequential damage, nor does it cover any claims for conversion or modification or the costs of repair carried out by any third party without the prior consent of Dualit.
REGISTER YOUR PRODUCT
- Fast and efficient customer service, important safety advice, and access to manuals and product information should you require assistance with your purchase.
- A library of mouth-watering recipes and regular articles, and blogs.
- Be the first to hear about exciting new Dualit products.
- Scan the QR code.
Customer Support
- Call: +44 (0)1293 652 500
- Monday to Friday: 09:00 to 17:00
- Email: info@dualit.com
- Visit: http://www.dualit.com
FAQs
Q: What electrical requirements are needed for installing the DCT2T conveyor toaster?
Ans: The Dualit DCT2T needs an electrical supply with a dedicated circuit that is 230V/50Hz (or as specified locally).
Q: Can I install the toaster on any countertop surface?
Ans: A solid, heat-resistant, and non-flammable surface is ideal for the installation of the conveyor toaster. To avoid overheating, make sure the area around the unit has enough airflow.
Q: How much clearance should I leave around the toaster?
Ans: To provide for airflow and to shield nearby surfaces or equipment from heat damage, leave a minimum of 6 inches (15 cm) of space on all sides.
Q: Can the toaster be installed under cabinets or shelves?
Ans: Installing immediately beneath flammable surfaces should be avoided unless there is adequate space and heat protection. Observe both Dualit’s installation instructions and local laws.
Q: What are the weight and dimensions of the DCT2T?
Ans: The DCT2T measures about (enter dimensions) and weighs about X kg (check precise specification).
Q: Can I connect the toaster to an extension cord or power strip?
Ans: No, plug the toaster straight into a wall socket for both performance and safety concerns. Using power strips or extension cords may result in overheating or voltage dips.
