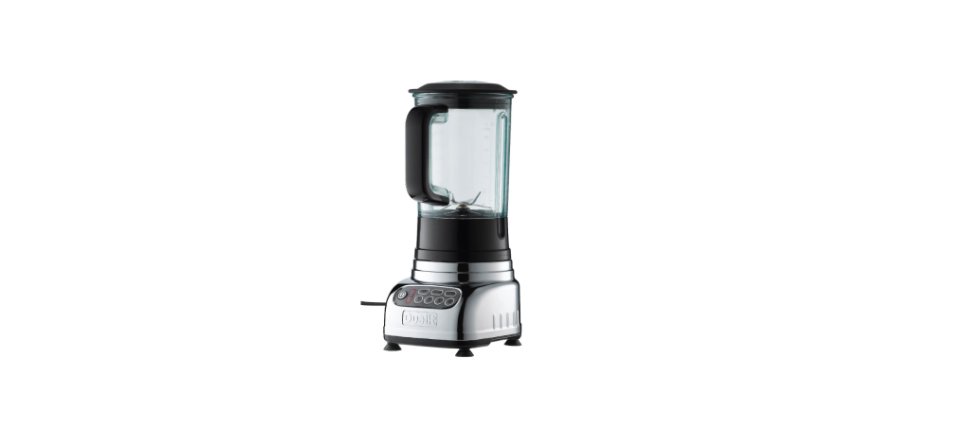

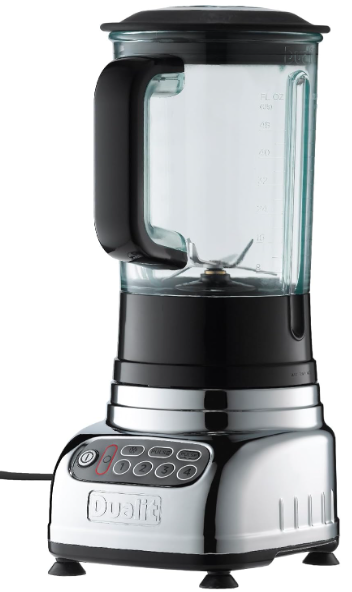

    Dualit VORTECS Blender & Smoothie Maker

    Dualit VORTECS-Blender-&-Smoothie-Maker-product

    Safety Instructions

    1. Before plugging in, check that the voltage on the rating label is the same as the mains supply.
    2. Failure to do this may cause an overload, trip a circuit breaker, or blow a fuse.
    3. Unplug from the outlet when not in use and before cleaning.
    4. Allow to cool before putting on or taking off parts.
    5. Do not insert hands, implements, or any metallic or sharp utensils into the toaster.
    6. Do not use foods, including tarts and pastries, that may drip fillings or coatings containing sugar when heated in your toaster, as this may cause a fire.
    7. Do not allow the device to freeze.
    8. This may compromise electrical safety and will degrade the performance of all lubricants.
    9. Risk of electric shock and damage.
    10. Bread may burn; therefore, do not use the toaster near or below combustible material such as curtains.
    11. If using the appliance close to a wall, ensure this is clad with non-combustible material and adheres
    12. Keep the area around the Air Intake clear.
    13. Do not place anything on top of or near the sides/ underneath the appliance.
    14. Do not modify the appliance.
    15. Remove all packaging before use.
    16. Do not put a pan on top of the toaster or warming rack.
    17. Risk of fire, electric shock, scalding or injury to persons.
    18. Never touch the Conveyor Belt. Risk of injury.

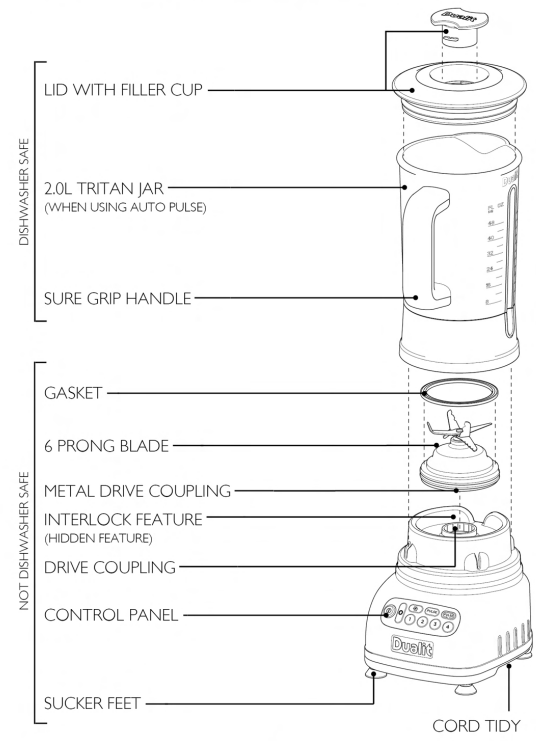

    Know Your Product
    Dualit VORTECS-Blender-&-Smoothie-Maker-figure-1

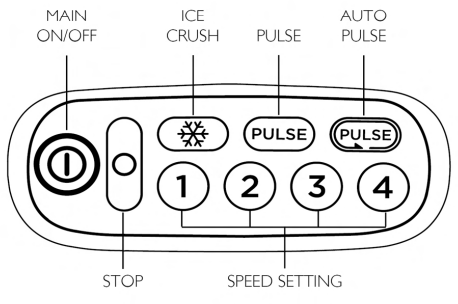

    ControlsDualit VORTECS-Blender-&-Smoothie-Maker-figure-2

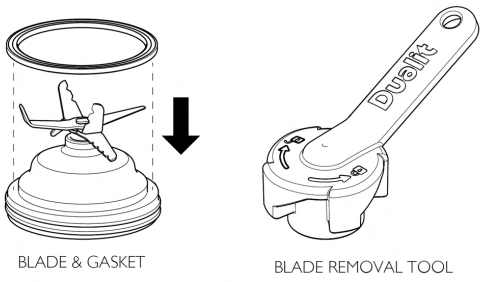

    Assembly & Blade Removal

    Dualit VORTECS-Blender-&-Smoothie-Maker-figure-3

    Setting

    1. This will only take 60 seconds. You will need the product model and serial numbers that are on the rating label on the base of the product.Dualit VORTECS-Blender-&-Smoothie-Maker-figure-4
    2. Unwind the required length of Cord. It is important to keep the Cord short. Wrap the excess Cord length around the Cord Tidy.Dualit VORTECS-Blender-&-Smoothie-Maker-figure-5
    3. Place the Blender on a level surface and push down so the Sucker Feet stick to the surface.Dualit VORTECS-Blender-&-Smoothie-Maker-figure-6
    4. Rinse and dry the Jar, Lid, and Blades before every use.Dualit VORTECS-Blender-&-Smoothie-Maker-figure-7

    RemoveableBllllllllllskDualit VORTECS-Blender-&-Smoothie-Maker-figure-8

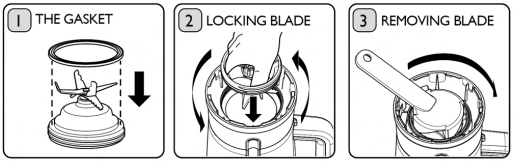

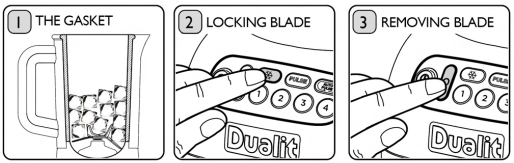

    1. Ensure the Gasket is seated on the collar of the Blade correctly before inserting it into the Jar. It can be placed either way round.
    2. Align the Blade Assembly to the base of the Jar. Using your  Dualit VORTECS Blender & Smoothie Maker fingers, ROTATЕ ANTI-CLOCKWISE TO TIGHTEN, then use the tool to lock in place.
    3. To remove the Blade, use the tool provided. Insert and rotate Dualit VORTECS Blender & Smoothie Maker the Blades CLOCKWISE TO LOOSEN. Continue to unscrew and lift to remove.

    Assembly

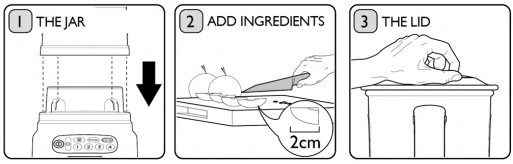

    1. Position the Jar with Blade on the Main Body. It can be located in 8 positions.
    2. If not correctly positioned, the Function Lights on the Control Panel will not illuminate.
    3. Add your ingredients to the Jar. Cut large items into evenly sized 2cm chunks.
    4. Do not fill above 2.0L. For ice, warm or solid items do not fill above 0.75L – IL.
    5. Attach the Lid by pushing down while applying a slight twisting action.
    6. Place your hand on the Lid to hold the Blender steady. Use a heat-proof gloved hand when blending hot items.

    STARTING & STOPPING

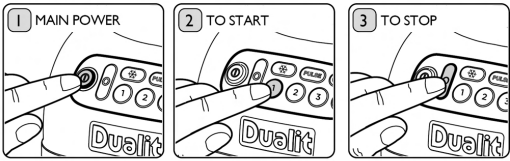

    1. Plug in the Blender, then press the main On/Off Button. All the lights will illuminate solidly if the Jar is in place and the Blender is ready to go.
    2. To start blending, press one of the Blending Cycles as described on the next pages. Only the Button selected will illuminate.
    3. To stop blending, press the Stop Button at any time; this will be Dualit VORTECS Blender & Smoothie Maker illuminated red. Always turn the main power off & unplug after each use.

    Auto Pulse

    USE AUTO PULSE FOR THICK SMOOTHIES OR BLENDING Dualit VORTECS Blender & Smoothie Maker TOUGH MIXTURES AND PULSE FOR CHOPPING AND THAT EXTRA WHIZZ.

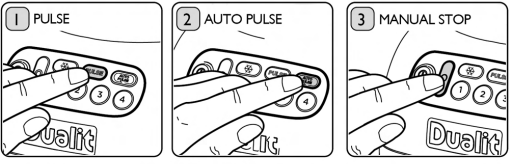

    1. Press and hold the Pulse Button; the Blades will rotate at full speed until the Button is released. The Button will illuminate while in use.
    2. The Auto Pulse blending cycle will pulse 10 times, then automatically stop. ONLY USE AUTOPULSE WITH INGREDIENTS BELOW 60°C.
    3. To stop the Auto Pulse function mid-cycle, press the stop button at any time.

    Ice Crushing

    CREATE CRUSHED ICE IN LESS THAN 10 SECONDS WITH THE AUTOMATED ICE CRUSHING FEATURE.

    1. Add ice cubes to the Jar. Separate cubes if stuck together, and do not fill above the IL mark. Once added, blend immediately.
    2. For finely crushed ice, press the Ice Crush Button. The Blade will pulse once at full speed, then automatically reduce speed and run for a further 9 pulses.
    3. For course ice, stop the cycle early. NB. The maximum Dualit VORTECS Blender & Smoothie Maker volume might vary depending on the size and shape of the ice cube.

    Setting & Uses

    This chart is only to be used as a guide. Auto Pulse is Dualit VORTECS Blender & Smoothie Maker suitable for most ingredients. Use this setting first, then use the other settings as required.

    SETTING FOOD BLENDING TIME
    Dualit VORTECS-Blender-&-Smoothie-Maker-figure-13 Thick Smoothies Press once
    Any tough ingredients (below 600) Press once
    Dualit VORTECS-Blender-&-Smoothie-Maker-figure-14 Chopping nuts/onions As required
    Additional pulses after auto pulsing 2-6 pulses
    Dualit VORTECS-Blender-&-Smoothie-Maker-figure-15 Fine ice / iced snow Press once
    Chopped ice Press & stop
    1 Warm soups (below 600) 10 – 30 secs
    Coarse chopping 10 – 20 secs
    2 Thin fruit drinks 20 – 30 secs
    Batters 20 – 20 secs*
    3 Ice-based fruit drink IO- 1 5 secs
    Lean meats 20 – 20 secs*
    4 Purees/baby food IO- 1 5 secs
    Sauces (thick) 20 – 20 secs*

    Blending

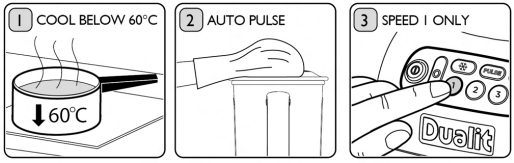

    • Allow hot items to cool below 60°C before blending. Do not fill above the IL mark to avoid spillages.
    • Place a hand wearing a heat-proof glove on the Lid. Do not fully cover the Filler Hole to allow the steam to escape.
    • Use speed I for blending warm items. Do not use the Auto Pulse function when blending warm liquids.

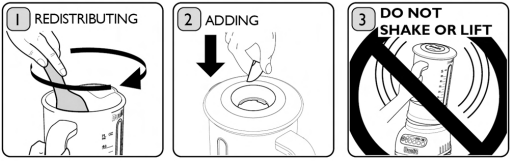

    • STOP AND REMOVE THE JAR FROM THЕ BASE. Use a spatula to redistribute the ingredients. Never use metal utensils, as you may damage the Jar or Blade.
    • Add additional ingredients into the Blender through the Filler Cap aperture. Do not do this when blending warm items.
    • Whilst blending, do not shake or lift off the Jar. If the motor is running, this will permanently damage the Drive Coupling.

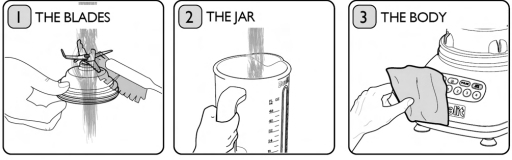

    Cleaning

    1. To remove the Blade for cleaning, follow the procedure on page 8. Brush clean under a tap. Hold using the black base only; the Blade is very sharp.
    2. Clean the Jar and Lid with warm, soapy water. The Jar can be dishwashed as described below (remove Blade and Seal). dooO
    3. Wipe the Main Base with a damp cloth, then dry. Do not use an abrasive cleaner or submerge the Power Base, Cord, or Plug in water.

    Maintainance & Storage

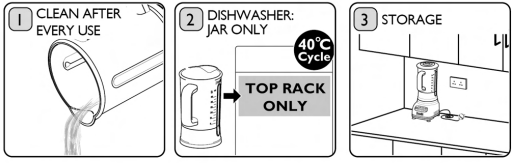

    • Decant the blended items after every use and rinse immediately.
    • Clean thoroughly and leave to dry.
    • The blades are sharp, so leave them to dry out of reach of children.
    • Remove blades, gasket, and lid.
    • Only dishwasher the jar on a wash cycle below 40°C.
    • Put on the top rack only and remove before the drying cycle.
    • Store unplugged with the blender jar, blade, gasket, and lid assembled.
    • Do not store the jar in a fridge or freezer with items in the jar.

    DO’S & DON’TS

    DO’S

    I . Add liquid items in the Jar first, then add solid food items on top.

    		 DON’TS

    I . Do not use the Blender Jar to store food, and do not store the Jar in the fridge.
    2. Use a combination of Blend Settings and

    Auto Pulse to suit the items being blended. Auto Pulse is ideal for solid items, chopping nuts, and smoothies.

    		 2. Do not over-process. The Blender works fast, and most food will blend in seconds.
    3. Redistribute the items in the Jar as required. When blending, thick mixtures may stick to the side of the Jar. Always turn off and unplug before redistributing. 3. Do not use with dough, mashed potatoes, or glutinous mixtures.
    4. Cut ingredients into evenly sized 2cm chunks for a more consistent blend. 4. Do not shake or remove the Jar while the Blender is operating. Always turn off the main power, unplug, and wait for the Blades to fully stop before taking the Jar off the base.
    5. Take extra caution when handling and storing the Blades. 5. Do not overfill the Jar as this may cause the Jar to leak l< or stall the motor. Max capacity, warm liquids .0L (see pg 1 2), frozen ingredients .0L (see pg 1 0), blending liquid or semi-liquid at ambient temperature 2.0L (using Auto Pulse only). For best results, blend meats and heavy solids in small quantities.
    6. Hold the Lid down with one hand (gloved if blending warm items) whilst blending. 6. Do not blend hot or boiling items, allow to cool below 600 °C before adding to the Jar & do not blend over IL at a time. Use Speed Setting I and do not use the Auto Pulse function.
    7. Blend ice immediately once added to the Jar. 7. Do not fill above the 2.01-.
    8. Never run the Blender empty.

    Troubleshooting

    POSSIBLE CAUSES SOLUTION
    ODOUR ON FIRST USE
    I. When new, the Blender may emit a ‘new’ smell; this is normal. I . Continue to use the Blender as normal; the smell will disappear after a few uses.
    THE BLADE IS NOT TURNING

    I. Drive Coupling may be damaged

    		 I. Never lift or shake the Jar while in use. If the Drive Coupling is sheared, then contact the Dualit repairs department for servicing advice.*
    2. The Blade may be jammed. The stoplight will continuously flash red. 2. Switch off and unplug the Blender, and remove the ingredients that block the Blades. You will need to process the food in smaller batches. Ensure chunks are no larger than 2cm.
    MY BLENDER STOPS TURNING WHILST PROCESSING
    I . Jar may not be correctly seated on the Main Body. It may have jumped up while blending. I . Check that the Jar has not lifted during blending. Always blend with a gloved hand holding the Jar down.
    2. To prevent over-processing, the Blender will switch off automatically after one minute and 30 seconds. 2. This safety feature will stop the motor. The Control Panel will flash 3 times, and the Blender will revert to standby.
    3. The ingredients you are processing are too thick. 3. Stop immediately, remove the Jar from the base, and unplug. Thin down the mixture, or this may not be suitable for blending.
    4. The Blender features a motor overload protection feature. If the motor is being overloaded, the Control Panel will remain lit and the motor will stop. 4. To restart it again, unplug it from the mains and let it cool down for a minimum of 30 minutes. The Blender will not be ready to use again until it has cooled down.
    MY JAR IS LOOKING CLOUDY
    l Over time, blending hard items may scratch the inside of the Jar. I . Over time, blending very hard items may cloud the Jar. Consider buying a spare jar if you intend to blend hard items regularly.
    2. You may have used the wrong dishwasher setting. 2. Only dishwasher on a cycle below 400 °C and place on the top shelf.
    MY MIXTURE IS NOT BLENDING

    . The wrong setting may be selected.

    		 EVENLY

    Use the chart on page I I as a guide. As a general rule, for dry ingredients, start by using Auto Puls, and for liquid mixtures, add the liquid first, then the solid items on top.
    Food is sticking to the sides of the Jar and not blending. Stop the Blender, remove the Jar from the Blender base and use a spatula to redistribute the food items into the centre of the Jar.
    THE JAR IS LEAKING
    . Blade not correctly threaded into the Jar . Switch off and unplug the Blender, remove the Blade and reattach, taking care that the Blade is securely attached to the base of the Jar.
    The gasket may be missing, damaged or not correctly seated on the Blade. Examine the Gasket for damage, ensure it is seated securely in place and reassemble.
    The blade assembly is not tight enough in the Jar. Hand-tighten the blade by turning anti-clockwise. Go as far as you can so it does not move. Only use the tool provided to undo the Blade assembly.
    THE LID IS LOOSENING OFF WHILST BLENDING
    The 6m of the Jar may have food items stuck, and the lid is not seated correctly. . Wipe the rim of the Jar after every use.
    The Lid is not pushed down enough. Always check that the Lid is securely pushed down. Attach the Lid by applying a slight twisting action whilst pushing down.

    GUARANTEE

    This Guarantee covers both parts and labour. Your Guarantee period is as follows: If your conveyor toaster fails within Dualit DCT2T Conveyor Toaster one year from the date of purchase, we will repair or replace it free of charge, except for the elements, provided:

    • Dismantling of or interference with the product.
    • Operational misuse, wear and tear from the Dualit DCT2T Conveyor Toaster, normal usage, incorrect adjustment, and neglect.
    • Before returning any product under this Guarantee, please check that:
    • You have followed the product Dualit DCT2T Conveyor Toaster instructions correctly.
    • The defect is not due to a blown fuse. Please check and change the plug fuse.
    • Please give exact details of the nature of the defect.

    This Guarantee does not cover any other claims whatsoever, including, without limitation, any liability for incidental, indirect, or consequential damage, nor does it cover any claims for conversion or modification or the costs of repair carried out by any third party without the prior consent of Dualit.

    REGISTER YOUR PRODUCT
    1. Fast and efficient customer service, important safety advice, and access to manuals and product information should you require assistance with your purchase.
    2. A library of mouth-watering recipes and regular articles, and blogs.
    3. Be the first to hear about exciting new Dualit products.
    4. Scan the QR code.

    Customer Support

    FAQs

    Q: What types of ingredients can the VORTECS Blender handle?

    Ans: Both soft and rough items can be blended using the VORTECS Blender. It can process fresh vegetables, nuts, seeds, ice, frozen fruits, and even coffee beans. Steer clear of boiling liquids, combining bones, and blending particularly hard objects (such as entire nutmeg).

    Q: Is the jug dishwasher-safe?

    Ans: Yes, you can use the dishwasher (top rack only) to clean the BPA-free Tritan mixing container. However, to increase its longevity and clarity, hand cleaning with warm, soapy water is advised.

    Q: What is the ‘Pulse’ function used for?

    Ans: High-speed blending is delivered in brief bursts using the Pulse mode. Use it to break up ice, cut food roughly, or rehydrate thick concoctions that have been lodged around the blades.

    Q: How do I clean the blades safely?

    Ans: The unit should always be unplugged first. Use warm, soapy water and a brush with a long handle. Keep your fingertips away from the blades at all times. Because they are sharp, the blades need to be handled carefully.

    Q: Can I use the VORTECS Blender to grind coffee or spices?

    Ans: Yes, coffee beans, spices, and seeds can be ground using the sturdy blades and high-torque engine. Avoid overloading and use brief pulses. If your model has a designated “Grind” setting, use it for optimal results.

    Q: My blender smells hot or burnt – what should I do?

    Ans: The motor may be overworked based on this. Unplug the device, turn it off, and let it cool. Always use the appropriate blending setting and make sure your items are not packed too tightly.
