HIGHPOINT SSD7104F 4x M.2 Port to PCIe 3.0×16
System Requirements
PC Requirements
- System with a free PCIe3.0 (or 4.0) x16 slot
- Windows 10, Windows Server 2016, and Windows Server 20199
- Linux kernel 3.10 and later
- MacOS 10.13 and later
Kit Content
- SSD7104F Controller Card
- Quick Installation Guide
Hardware

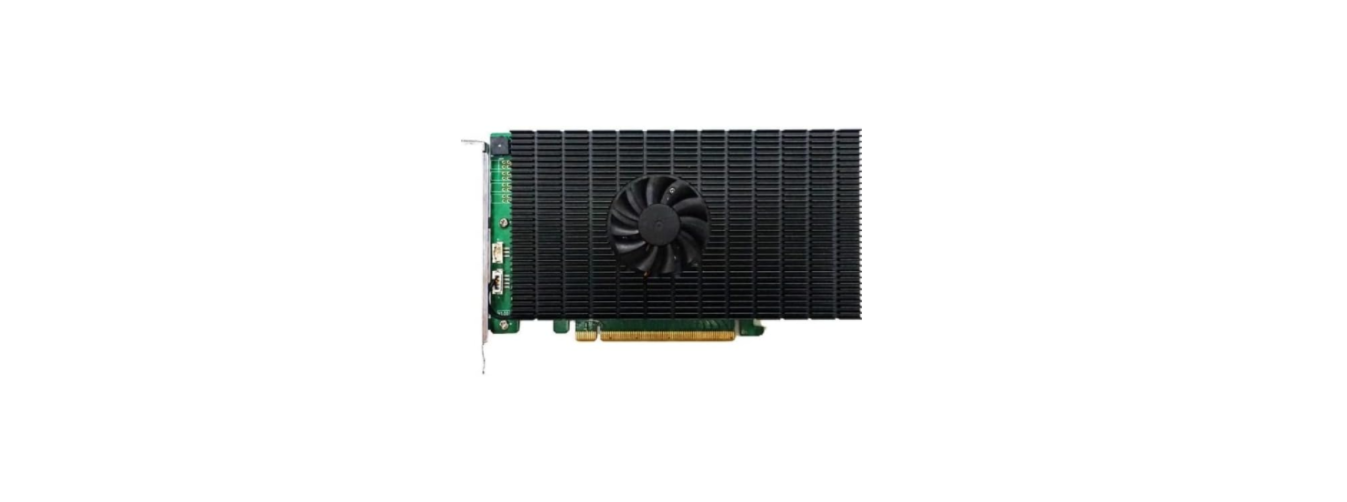

Front View
Hardware Installation
On the rear of the SSD7104F, remove the unit’s heat sink from the PCB.
After removing the screws, carefully remove the heat sink from the SSD7104F.
After removing the casing, carefully turn it over to view the thermal pad. The blue film must be removed from the pad before reinstalling the panel. This film protects the padfromdamageandforeign objects before installation; however, it the thermal pad HIGHPOINT SSD7104F 4x M.2 Port to PCIe 3.0×16 form conducting the heat away from the NVMeSSD’s if we don’t remove it.
These 4 screws are used to install the NVMe SSDs
The SSD7104F can support any M.2 form factor(2242, 2260,2280, and 22110).
Please remove the screws on the right side of SSD7104F.
Gently insert the SSD into the slot.
Refasten the screw to secure the SSD.
Repeat Steps 4 to 6 to install the remaining SSD.
The following example shows four M.2 SSDs installedintoPorts1-4:
Replace the heat sink after installing all SSDs
On the rear of the SSD7104F, refasten the sixscrewsthatwereremoved in step 1.
Resources
Various manuals, guides, and FAQs are available for the SSD7749M2NVMe RAID AIC. In addition, we recommend visiting the Software Downloads webpage for the latest drivers and RAID Management software.
- For Software Downloads, Documentation, and more product information
- Visit: https://www.highpoint-tech.com/nvme-individual/ssd7749m2
- FAQ & Troubleshooting
- Visit: http://helpjuice.com
Customer Support
If you encounter any problems while utilizing the SSD7749M2 or have questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department.
- Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc.
- websites: https://www.highpoint-tech.com
FAQs
Q: What type of SSDs does the SSD7104F support?
Ans: It is compatible with M-key PCIe Gen3 M.2 NVMe SSDs. There is no support for SATA M.2 drives.
Q: What type of PCIe slot is required for installation?
Ans: For full bandwidth support, the SSD7104F needs to be inserted into a full x16 PCIe 3.0 slot.
Q: Is this card a RAID controller or just an adapter?
Ans: It is a RAID controller that supports hardware RAID. RAID 0, 1, 5, 10, and JBOD can be set up using HighPoint’s management tools.
Q: How many drives can I install on the SSD7104F?
Ans: Each of its four internal M.2 slots can accommodate a 2280 (80mm) M.2 NVMe SSD, either single-sided or double-sided.
Q: What kind of performance can I expect with 4 drives?
Ans: Expect a throughput of up to 14GB/s when all four drives are in RAID 0, with PCIe Gen3 x16 bandwidth and SSD capabilities serving as limits.
Q: Can I boot from a RAID array created with this card?
Ans: Sure, provided that your motherboard is capable of UEFI boot from NVMe RAID. The RAID driver for HighPoint must be installed during OS installation.
