HIGHPOINT SSD7540 & SuperMicro X11QPH+
Introduction
HighPoint Product
- SSD7540
Host Platform or External Device
- SuperMicro X11QPH+
Compatibility Status
- Compatible (Data RAID/Boot RAID)
Description
- SuperMicro X11QPH+ is capable of supporting the HighPoint SSD7540. The motherboard utilizes the
Intel C612 chipset. - The motherboard is PCIe 3.0 and has an x16 riser card slot. The SSD7540 is a PCIe 4.0 x16 card, so it
will be unable to perform optimally if used with this motherboard. - The motherboard’s BIOS includes UEFI support and provides option ROM settings for UEFI and
legacy devices.
Compatibility Details
PCIe Host Interface
- The motherboard has a PCIe 3.0 host interface and has an x16 riser card slot.
- Link: https://www.supermicro.com/en/products/motherboard/X11QPH
Chipset & Processor
- Link: https://www.supermicro.com/en/products/motherboard/X11QPH+
Boot RAID Support
- Compatible: The Supermicro User Guide covers UEFI boot capability or option ROM support; it can
support Bootable RAID configurations - Link: https://www.supermicro.com/manuals/motherboard/C620/MNL-1983.pdf(page 94)
Data RAID Support
- There are no apparent restrictions for data-only storage configurations.
Manufacturer Reference Material
Product Website
- Link：https://www.supermicro.com/en/products/motherboard/X11QPH+
- Link：https://www.supermicro.com/en/products/motherboard/X11QPH+
User Guide
HighPoint RAID Controller

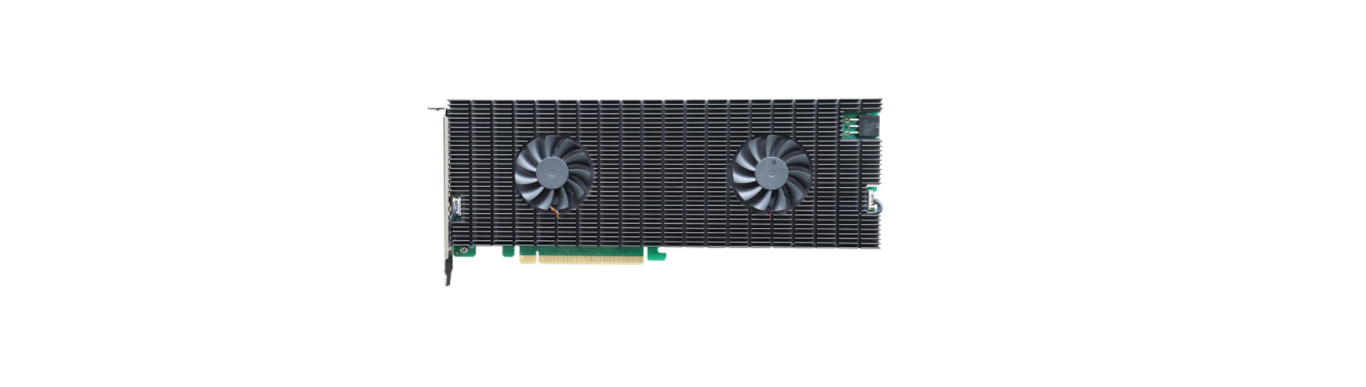

- Form Factor: Full-Height Dimensions: 11.22” (W) x 4.37” (H) x 0.83” (D) SSD7540
FCC Statement
This equipment generates and uses can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment under FCC rules. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- European Standard EN55022 (1998) Class B
- European Standard EN55024 (1998)
Customer Support
If you encounter any problems while utilizing this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department.
- Web Support: https://www.highpoint-tech.com/support-and-services
- HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com
FAQs
Q: Is the SuperMicro X11QPH+ fully compatible with the SSD7540?
Ans: Yes, the X11QPH+ can support the SSD7540 through its PCIe Gen3 x16 slot. However, keep in mind that the SSD7540 is a Gen4 card, meaning it can only function at Gen3 speeds unless paired with a motherboard that supports Gen4.
Q: Will the SSD7540 work at full speed in this system?
Ans: The SSD7540 will be restricted to Gen3 bandwidth (~16GB/s max over 8 lanes vs. 28GB/s on Gen4) because the X11QPH+ only supports PCIe Gen3.
Q: Which PCIe slot should I use for the SSD7540 on the X11QPH+?
Ans: For optimal performance, install the SSD7540 in a CPU-attached PCIe Gen3 x16 slot (usually Slot #6 or Slot #4). Make sure the lanes are direct CPU lanes rather than PCH lanes.
Q: Does the SSD7540 support bootable RAID arrays on this motherboard?
Ans: only if the controller is recognised by the motherboard’s UEFI BIOS at POST. To activate UEFI Boot Mode and NVMe support, check the BIOS settings.
Q: Is active cooling required for the SSD7540 in this setup?
Ans: Indeed. The NVMe and SSD7540 produce a lot of heat. Make sure the card and discs have server-grade ventilation, or install specialised fans.
Q: How many NVMe SSDs can I connect to the SSD7540?
Ans: Through its built-in M.2 slots, the SSD7540 can accommodate up to 8x PCIe Gen4 NVMe M.2 SSDs.
Q: Can I mix different brands or sizes of SSDs?
Ans: Yes, but it’s preferable to utilise identical versions with matching firmware, capacity, and interface for RAID stability and performance.
