INNOVA Fitness Volcanic Smart Watch
Safety Instructions
The materials used for our INNOVA Smartwatches and Smartbands are selected following a rigorous control of hypoallergenic measures, as well as guaranteeing that all materials comply with current regulations for materials in contact with the skin.
A small number of people, however, may experience some type of skin reaction. If you suspect, or know, that you are allergic or have an above-average sensitive skin type, you should monitor the use of these devices for any type of reaction due to said allergies, environmental factors, or prolonged exposure to irritants, like soap, sweat, or other causes.
Smartwatches and Smartbands may contain materials such as nickel and acrylate, which, even though they are within the permitted amounts in the manufacturing process, may cause skin to react if you are sensitive to them.
If you use these devices for a prolonged period of time, you may be more susceptible to developing skin sensitivities. To avoid possible skin irritation, we recommend that you do not expose the device to chemicals or use it if your skin has, or has been recently applied with, any of the products listed below:
- Insect repellents
- Moisturizing creams and lotions
- Oils
- Perfumes
- Antiseptic gels
- Soaps
- Sun protection creams
If the strap is too tight, it may cause skin irritation. If the strap is too loose, chafing may occur. The watch strap should be left so that it can move slightly back and forth on the wrist. If you wear the device for prolonged periods of time, remove it to give your skin a rest. To avoid irritation, swap the device to your other wrist. If you notice redness, swelling, itch, irritation, or any other irritation, remove the Smartwatch immediately and consult your physician before using the device again.
Features
- Screen: 1.52 inches
- BT: 5.2
- Battery capacity: 230 mAh
- Charging time: 2.5 – 3 h
- Standby time: 10 – 15 days approx.
- BT frequency: 2.4 GHz
- Maximum RF power emitted: < 100 mW
- Using time: 5 – 7 days approx.
- Notifications
- Call BT
- Multi sports
- Heart rate
- Blood pressure
- Blood oxygen
- Sleep monitor
- Steps
- Sedentary reminder
- Drink reminder
- Remote camera
- Weather
- Music control
- Find watch
- Change watchface
- Alarms
- Quick view
- Stop watch
- Not waterproof
Charging
Charging the device to activate before the first timer using: To charge your device, plug the charging cable into the adapter or USB port on your computer.
Connecting call BT

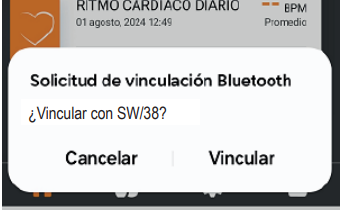

- Once you have successfully connected the smart watch to the APP, a pop-up window will appear with a Bluetooth prompt message.
- You need to press “Pair” for the BT call connection on the Smart Watch to be successful.
- If you don’t get the above pop-up, you need to go to your smartphone’s Bluetooth settings and pair the audio on the watch manually.
- Find “SW/38-audio” in the list of available BT devices and connect it like any other BT device on the market.

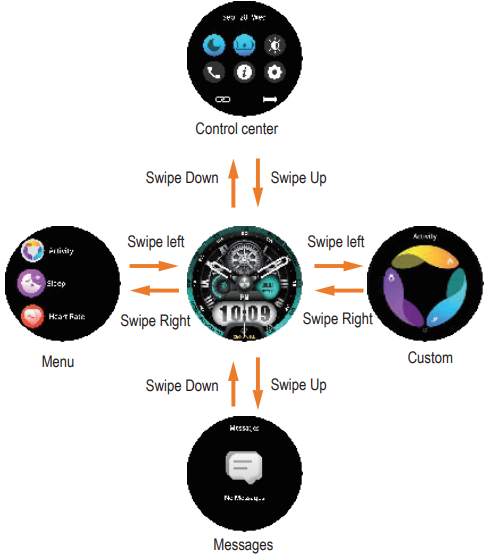

Use the Touch Screen
Heart Rate Test
- The Smart Watch could record your heart rate all day. You could also tap on the page to start measuring heart rate.
Blood pressure
- Tap on the blood pressure page to start measuring your blood pressure. On the blood pressure page, it can show the blood pressure measured data for the last time.
Blood oxygen
- Tap the blood oxygen page to start measuring your blood oxygen. On the blood oxygen page, it can show the blood oxygen measured data for the last time.
Sports
- SA smartwatch automatically tracks steps taken on the screen. Your movement stats reset to zero at midnight.
Training
- Tap the training icon on the menu to start a new training measure recording. There are several sports modes to choose from. The last training recording will be shown on the training page.
Sleep
- If you keep wearing a Smart Watch in your sleep, it can provide the hours slept and
quality of sleep stats on both the screen and the APP. Sleep stats reset to zero at 8:00 P.M
Player shutter
- After connecting the device, you can remotely control the music player on your phone.
Remote shutter
- After connecting the device, you can remotely control the camera on your phone.
Messages reminder
- The device can sync incoming notifications from Twitter, Facebook, WhatsApp, Instagram, etc.
Recently, 5 messages can be stored.
- You can switch on/off the incoming notification in the APP
Weather
- It could show the weather info for the current and tomorrow on the weather page. Weather info is synced after connecting with the APP It will not be updated after a long disconnection.
Period reminder
- Click on the menstrual period interface, through the management cycle calendar, intelligently predict victory cycles. On the period reminder page, it can show the period reminder measured data for the last time.
Other features
- Other features include a stopwatch, an alarm, a timer, brightness, mute on/off, theater mode, factory reset, power off, and about.
Remind to move
- The device will vibrate to remind you to relax after 1 hour of sitting. You can switch on/off the feature in the APP.
Remind to drink
- The smart watch will remind you “ Time to drink some water” at the planned drinking time.
Device Maintenance
- Clean the smart watch regularly, especially its inner side, and keep it dry.
- Adjust the smart watch tightness to ensure air circulation.
- Excessive skincare products should not be used on the wrist wearing the smart watch.
- Please cease wearing the smart watch in case of skin allergy or any discomfort.
Downloading and binding of the smart watch APP
- Download from the App Store or Google Play and install the app, or scan the QR code with your mobile phone to download the app.
APP / APK
INNOVA S-WATCH
- Pairing smart bracelet with APP: Please do not pair the watch directly to your phone’s Bluetooth. If you have already performed this operation, please remove it from the list of paired devices, as it will prevent the connection to the APP.
- Open the APP
- Update your details (gender, birth year, etc.) and press the check mark. Once done, grant all permissions requested by the APP.

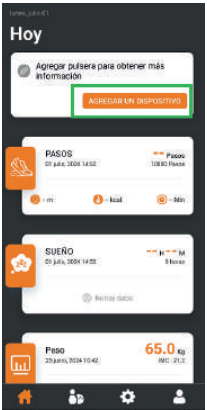

- To link the watch to your phone, press “To Add”.
- The phone will search and display SW-3. Select it to pair the watch to your phone. Once synchronization is complete, your watch will display the local date and time.

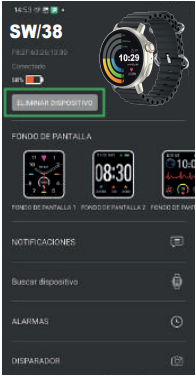

- When you press the watch icon (bottom middle) ,you will see the following screen:

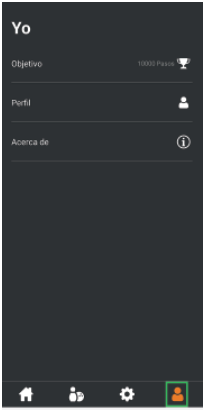

- The last icon, on the lower right, will show the “My” screen. Here you can complete the details of your profile and establish your objectives.
Here you can set up notifications, alarms, and the INNOVA Fitness Volcanic Smart Watch background image (can be personalized). In “Others,” you can establish the time format (12/24 hours), reminders, etc.
Guarantee
The INNOVA SMART WATCH FITNESS ARES (SW/46 (SW/50)) has a 3-year warranty from the date of purchase. Special importance in the durability of the products have the elements that compose it and that suffer from degradation and loss of capacities due to their use, being understood as normal wear that they lose capacity, especially in the case of rechargeable INNOVA Fitness Volcanic Smart Watch batteries, depending largely on infinity of external factors (hours of use, charge and discharge cycles, use of inappropriate chargers, temperatures of use, not respecting the recommended charging times, etc…)
For the guarantee of wear and tear parts, it must be taken into account that the loss of autonomy of the battery as a result of its aging does not imply a manufacturing defect, so it is considered considered normal that after 6 months have a loss of 10%, at 15 months 20% – 30% at 24 months 45%, all corresponding to proper use of the battery and the charge and discharge cycles carried out.
Any battery that presents symptoms other than those listed in this manual will be inspected by the technical service and assessed for its effect on to guarantee. If, after 24 months from its purchas,e the battery presents symptoms different from those detailed, it will be understood to be exempt from guarantee for the reasons stated above and will be left out of the inspection process, becoming the customer who, if they so wish, must reliably demonstrate that the battery presented defects other than those detailed in this manual before those 24 months.
Declaration of conformity
Through this INNOVA CELLULAR, it declares that the INNOVA SMART WATCH FITNESS VOLCANIC (SW/38 (SW/50)) complies with the essential requirements and any other applicable or enforceable provisions of Directives 2014/53/UE (RED) and RoHS 2011/65/EU annex II amending Directive (EU) 2015/863. To see the complete declaration of conformity, you can access it through the following link:
Customer service
- Call: 34 91 713 94 98
- Working hours
Mon to Thu from 08:00 to 14:00 and from 15:30 to 17:3,0, and Fri. from 09:00 to 14:00 - Visit: sac@innovacelular.com
FAQs
Q: What phones are compatible with the Volcanic Smart Watch?
Ans: Smartphones with iOS 11.0 or later and Android 6.0 or later can use the Volcanic Smart Watch. For a successful connection, Bluetooth 4.0 or later is necessary.
Q: How do I pair the Volcanic Smart Watch with my smartphone?
Ans: Get the INNOVA Fit app from the Apple App Store or Google Play. Launch the application, activate Bluetooth, click “Add Device,” pick the Volcanic Smart Watch, and adhere to the pairing guidelines displayed on the screen.
Q: What fitness tracking features does the Volcanic Smart Watch include?
Ans: It includes several activity modes, including running, cycling, swimming, and more, and tracks your heart rate, steps, calories burned, distance travelled, and sleep quality.
Q: Is the Volcanic Smart Watch waterproof?
Ans: The watch is appropriate for swimming, taking a shower, and being in water on a daily basis because it has an IP68 rating.
Q: How long does the battery last and how do I charge the watch?
Ans: When fully charged, the battery can last up to 10 days. The watch may be charged by plugging it into a USB power source and using the magnetic charging cable that comes with it. It takes around two hours to fully charge.
Q: Can I receive phone notifications on the Volcanic Smart Watch?
Ans: Indeed! When paired and notifications are enabled in the app, you can get alerts for calls, texts, emails, and app notifications (such as Facebook, Instagram, and WhatsApp).
Q: How do I change the watch face on my Volcanic Smart Watch?
Ans: The INNOVA Fit app allows you to choose or download new watch faces. All you have to do is select your favourite face and sync it with your watch.
Q: Does the Volcanic Smart Watch support GPS?
Ans: Although it lacks a built-in GPS, it can accurately track outdoor activities by connecting to your phone’s GPS through an app.
