INNOVA L01070II Outdoor Unit Formwork Kit Instruction Guide

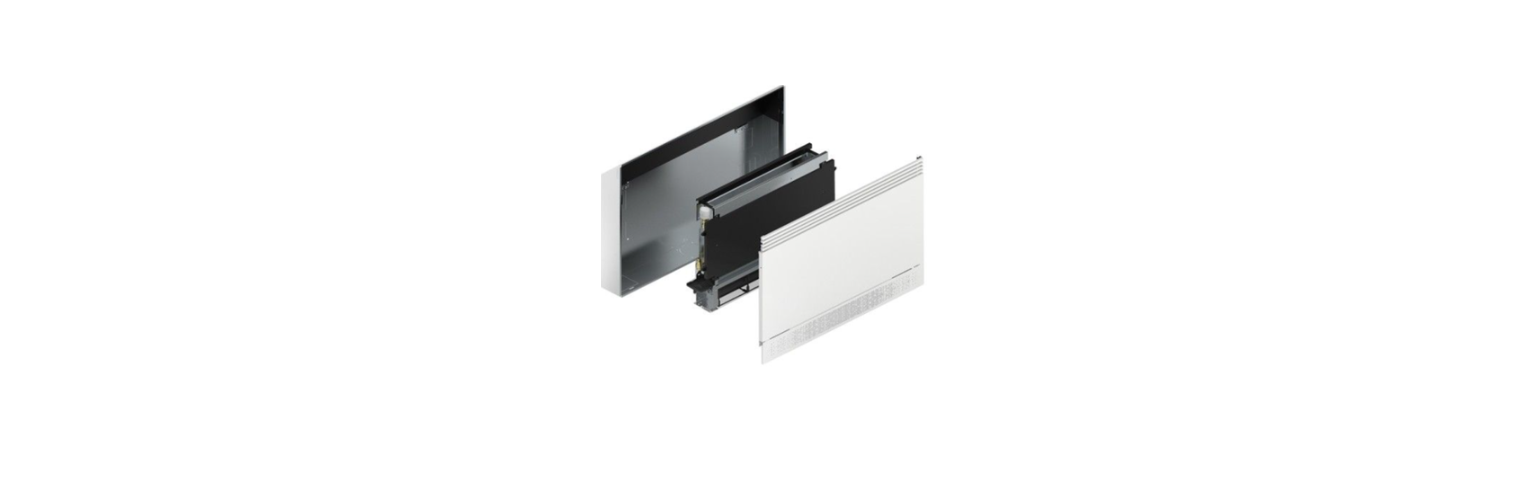

INNOVA L01070II Outdoor Unit Formwork Kit

Standard supply

• 1 backrest
• 1 upper metal sheet
•  1 lower metal sheet
• 2 side metal sheets
• 3 supporting frame brackets
• 2 upper side brackets
• 2 upper centre brackets
• 2 tracks
• fixing screws

1. Backrest
2. Upper metal sheet
3. Side metal sheet
4. Lower metal sheet
5. Supporting frame brackets
6. Upper side brackets
7. Upper centre brackets
8. Tracks

Pairing
Combination of outdoor unit formwork kit for built-in version installation IN:

• L01070II – for models 5M, 7M
• L01071II – for models 9M, 11M, 11T
• L01072II – for models 13M, 13T, 15M, 15T

Formwork dimensions and weights

1. Connection entry pre-cut lines
2. Refrigeration connections
3. electric connections

Model 9 – 11

1. Connection entry pre-cut lines
2. Refrigeration connections
3. electric connections

Model 13 – 15

1. Connection entry pre-cut lines
2. Refrigeration connections
3. electric connections

Reception

Preliminary warnings

• On receipt, check for any damage and, if any is found, accept the goods with reservation, and keep photographic evidence of any damage found.
• In the event of damage, notify the shipper within 3 days of receipt of any damage by registered mail with return receipt, submitting photographic evidence. Similar information should be sent by fax to the manufacturer (jurisdiction will be at the Court of Trento for any dispute).
• No notice of damage will be accepted after 3 days from delivery.

Package description

The packaging is made of suitable material and carried out by experienced personnel. There is a pallet underneath the packaging of the unit to facilitate transport and moving.

• The formwork arrives disassembled, to be assembled during installation.

Handling packaging

Preliminary warnings

• The appliance must be handled only by qualified personnel, adequately equipped, and with equipment suitable for the weight and dimensions of the appliance.
• Before moving the unit, check the lifting capacity of the machinery used, following the instructions on the packaging.
• Stay clear of the area below and around it when the load is lifted off the ground.
• If a forklift truck is used, put the base in the appropriate openings.
• Avoid dangerous situations when using a hoist to lift the appliance.

Movement methods

• Using a forklift or a transpallet that can bear its weight

Unpacking

Preliminary warnings

• Dispose of the packaging components following  the applicable waste disposal regulations. Check for disposal arrangements with your municipality.

Remove the package

Remove the packing

• transport the appliance to the installation area
• Cut the strapping
• remove the packing

Accompanying material

• Check the presence of the individual components.
• 1 instruction sheet
• screws

Installation

The location of the appliance must be determined by INNOVA L01070II Outdoor Unit Formwork Kit the plant engineer or a competent person and must take into account both purely technical requirements and any national/local legislation in force. The appliance is intended for outdoor installation. The planned installation methods are:

• built-in

Installation minimum distances

Backrest and frame

1. Backrest
2. Upper metal sheet
3. Side metal sheet
4. Lower metal sheet

Supporting frame

Accessory

Upper side brackets

Upper centre brackets

Tracks

Installation

Connections

• Polyethylene formwork insulation, 5 mm thick.
• When positioning the appliance, prepare the wall to house the formwork.

Open the anchor bolts

• Insert the formwork completely into the space provided
• Fix into the wall properly the fromwork.
