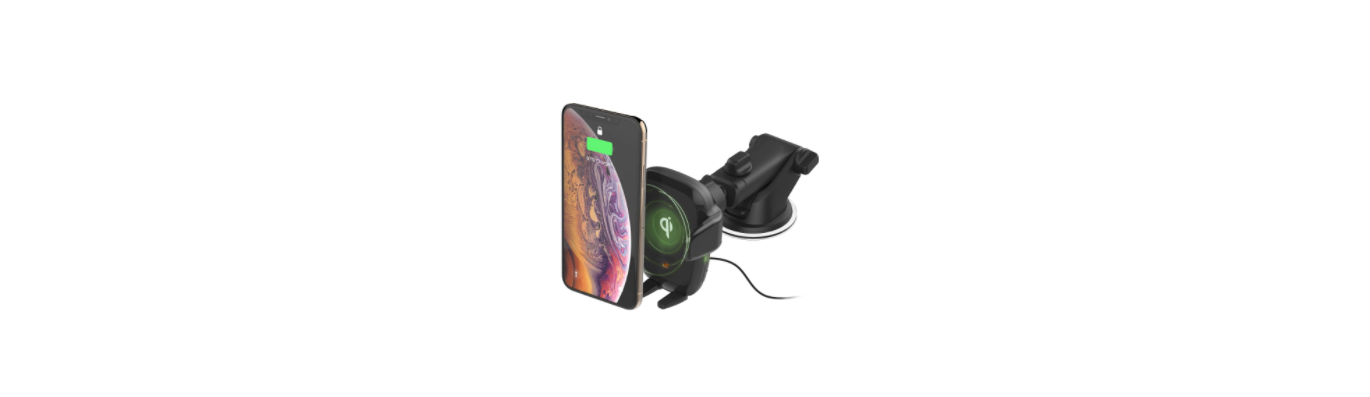

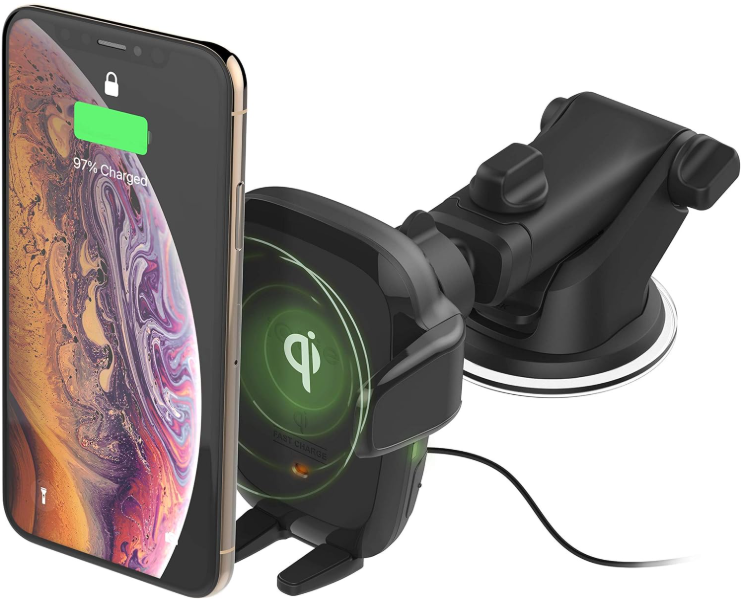

iottie Auto Sense Dash and Windshield Mount
Getting Started
For optimal mounting and charging, please follow the detailed instructions within this manual when using the Auto Sense Wireless Charging Mount. iOttie is not liable for possible damages due to product misuse.
Critical Information
Mounting at a perpendicular angle to the mount works best with the proximity sensor.
If mounting at an angle, the phone will need to be very close to the sensor for the arms to open.
Smartphone cases
Reflective Smartphone cases work best. Dark colored or textured cases do not reflect light well, making it difficult for the Proximity Sensor to detect the phone. If using a dark colored or textured case, the phone will have to be very close to the mount for the arms to open automatically.
Compatibility
Before using the product, make sure your device is Qi Wireless compatible. Compatible devices include iPhone X, iPhone XS, iPhone XR, Samsung Galaxy S10, S10+, Note9+, and Google Pixel 3.
Qi Wireless Charging in a Vehicle
Use the included iOttie Car Charger and Micro USB Cable. If you do use a third-party car charger, use a Qualcomm Quick Charge 2.0 or equivalent adapter to receive a wireless charge (with compatible devices).
Installation

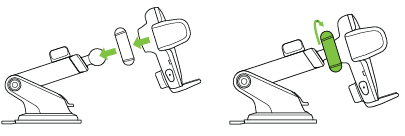

Assembling the Mount
- Connect the Mount Cradle with the Ball Joint.
- Then, tighten the Cradle Knob.
Selecting a Location
Choose an installation method: Dashboard/Flat Surface (A) or Windshield (B).
Dashboard or Flat Surface Installation
Choose an area on a flat surface on the vehicle’s dashboard and wipe any dust or debris from the surface. Before mounting the product, we recommend that the surface and product be above 40°F.

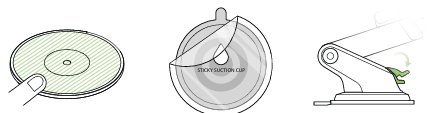

- Peel off the film on the pad & stick on the desired installation location.
- Wait 15-30 minutes for the adhesive to adhere before moving on to the next step.’
- Peel off the protective film on the Suction Cup and press the mount firmly onto the dashboard pad.
- Push the Locking Lever down to secure the mount.

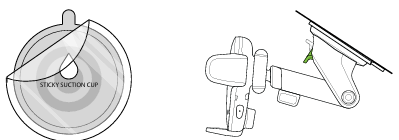

Windshield Installation or Curved Glass Installation
- Choose a location on the windshield and wipe any dust or debris from the surface.
- Peel off the protective film on the Suction Cup and press firmly onto the windshield.
- Push the Locking Lever down to engage the suction.

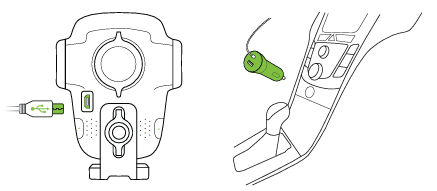

Connecting Power
- Plug the micro-USB cable into the USB port on the back of the Mounting Head.
- Insert the Car Charger into your vehicle’s power port.
Using the Auto Sense Mechanism
Once it is unplugged or the car is turned off, the Auto Sense’s internal battery keeps a charge for up to one hour.

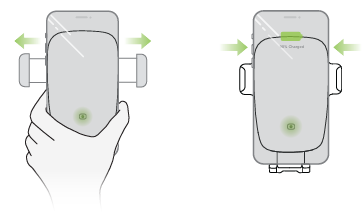

Mounting and Charging
- Side arms on the mount automatically open via a silent step motor for one second when the phone is detected in front of the Proximity Sensor on the mount.
- Once the phone is placed in the mount, the arms will automatically close after one second. Qi wireless charging will start immediately.
- Buttons under the light on both sides of the device can also open and close the arms. One or both buttons can be pressed.
The Auto Sense is powered via a micro-USB cable and a coin cell battery. There is no on/off switch on the device. Once it is plugged in, the device will remain on unless the vehicle shuts off power when in parking mode.
Adjusting the Mount

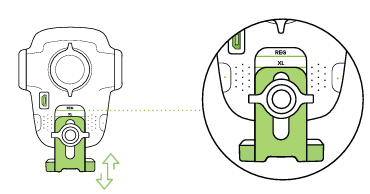

- Foot Knob
Out of the box, the foot knob is set to regular-sized phones. The foot will need to be adjusted for plus-sized phones or cases with thicker bottoms. Move the knob down until laser etching is aligned appropriately, as shown in the line drawing.

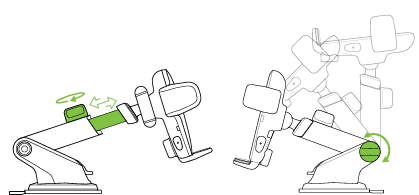

- Telescopic Knob
Located on top of the Telescopic Arm, loosen to extend the arm, and tighten to secure the distance - Pivot Knob
Located on the side of the Mount Base, turning allows you to pivot the telescopic arm. Tighten to secure the position.

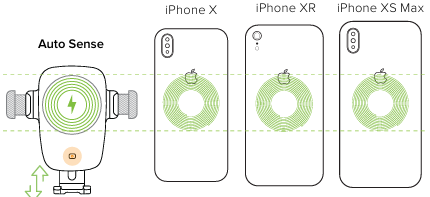

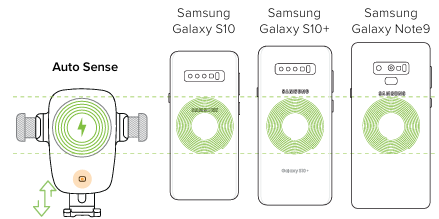

Qi Alignment Guide
The Qi Receiver Coil is usually located in the center area of the phone. Check with your phone’s manufacturer for the Qi coil location.
- The Qi coil on the mount is located at the top, above the iOttie logo. Please follow the guide below to line up your phone with the device for optimal wireless charging.
Specifications
Wireless Charger

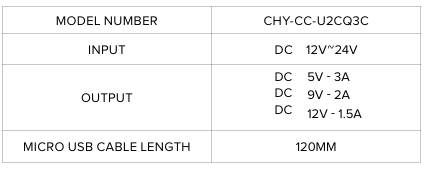

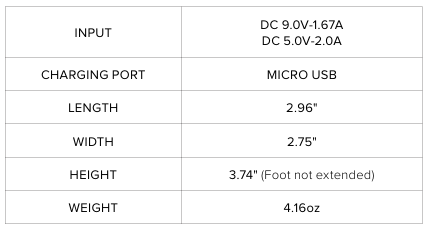

Car Charger Specifications

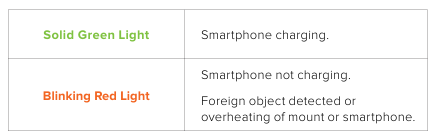

Charging Indicator
Declaration of Conformity (FCC)
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and usedbyh the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
Customer Service
- Website: cs@iottie.com
- Tel: (201) 580-2688
FAQs
Q: What is the iOttie Auto Sense Mount designed for?
A wireless phone mounting and charging option for cars is the Auto Sense mount. In order to safely hold compatible smartphones while wirelessly charging them, it automatically opens and closes its arms.
Q: Which phones are compatible with the Auto Sense mount?
The mount can hold devices up to 3.5 inches (90 mm) wide and supports Qi-enabled smartphones for wireless charging.
Q: Can the mount be used on both the dashboard and the windshield?
Indeed. For best adherence, make sure the surface is dry, clean, and smooth.
Q: Does the mount support fast charging?
Yes, however, the model of your phone and charger will determine how quickly it charges. Use a car charger that is compatible with QC 2.0 or 3.0 for optimal results (not included in some packages).
Q: Is the mount safe to use while driving?
Indeed. To reduce distractions, always put your phone away before driving.
Q: How do I reset the Auto Sense mechanism?
Reconnect the mount after unplugging it from the power source.
