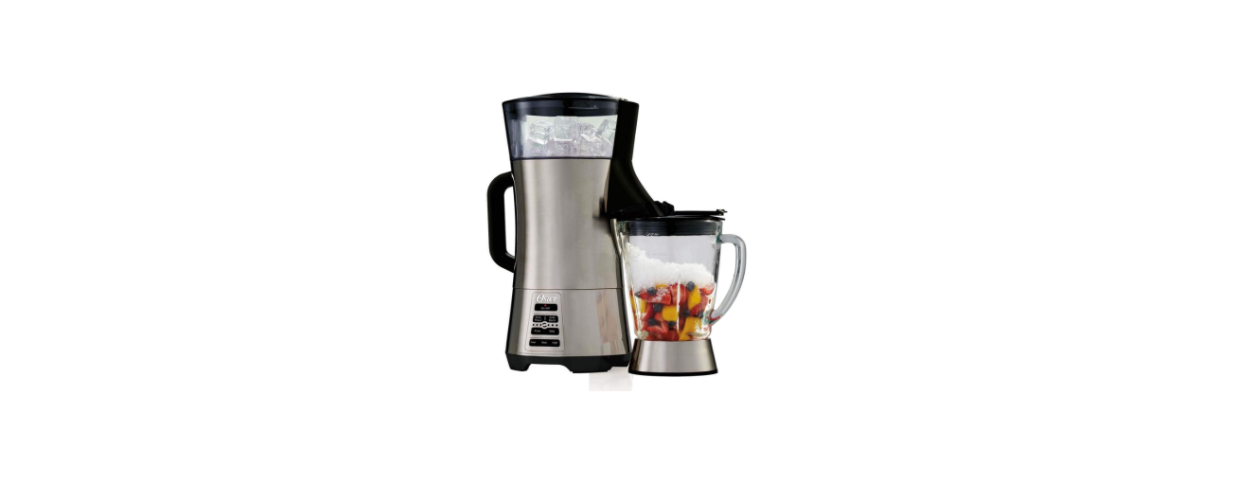

Oster BLSTET-C Series Ice Shaving blender User Manual

Oster BLSTET-C Series Ice Shaving blender

Safety Instructions

1. Read all instructions before using this product.
2. This appliance generates heat during use. Do not touch hot surfaces.
3. Use handles or knobs. Always protect your hands with non-slip oven mitts or similar.
4. Close supervision is necessary when any appliance is used near children.
5. Children should not play with the appliance.
6. Do not attempt to replace or splice a damaged cord.
7. Return appliance to the manufacturer (see warranty) for examination, repair, or adjustment.
8. Do not use outdoors or for commercial purposes.
9. Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
10. Do not use the appliance for anything other than its intended use.
11. Misuse can cause injuries. Intended for household countertop use only.
12. Keep 6 inches (152 mm) clear from the wall and on all sides.
13. Always use the appliance on a dry, stable, level surface.
14. Do not store any item on top of the appliance when in operation.
15. Do not clean with metal scouring pads.
16. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
17. Empty the crumb tray after each use.
18. The glass door is made of tempered glass.
19. Always inspect the glass door for chips, cracks, or any other damage.
20. Do not use the countertop oven if the glass door is damaged, as the glass may shatter during use.

Overview

Features

1. Ice Reservoir Lid – Covers the Ice Reservoir.
2. Ice Reservoir – Holds the ice for making frozen drinks.
3. Shaving Paddle – Moves ice across the Shaving Blade.
4. Inner Ice Bowl
5. Ice Shaver Main Body
6. Shaving Blade Assembly Clip – Holds Shaving Blade in place.
7. Ice Shaving Blade – Shaves ice.
8. Ice Chute – Directs ice from the Ice Bowl into the Blending Jar.
9. Ice Melt Reservoir – Catches water from melted ice.
10. Motor Base – Holds Blending Jar and Ice Shaver assembly securely in place.
11. Control Panel – Contains all necessary controls to operate your unit.
12. Jar Lid – Seals the blending jar.
13. Blending Jar – Maximum capacity of 40 oz.
14. Blending Blade Sealing Ring – Seals the Blending Jar and Jar Base.
15. Blending Blade
16. Jar Base

Control Panel

1. ON/OFF Button – Press this button to turn the unit “On” or “Off”.
2. Power Indicator Light – Turns on and blinks rapidly, indicating the unit has power.
3. Auto Shave/Auto Blend – Activates auto shaving and blending cycles.
4. Status Indicator Lights
5. Blue Lights – Pulse slowly to indicate which button to press during auto cycle, OR remain illuminated during auto cycle.
6. Red Lights – show that product safety interlocks are not engaged.
7. Pulse Button
8. Stop Button
9. Low Button – Blender low speed
10. Med Button – Blender medium speed
11. High Button – Blender high speed

Making Frozen Drinks

1. Place the motor base on a clean, dry, flat surface with the control panel facing you.
2. With the handle on the LEFT, place the Ice Shaver Main Body on top of the Motor Base and lock into position by turning counter-clockwise (use aligning arrows).
3. Install the Ice Reservoir to the Ice Shaver Main Body by first removing the Ice Reservoir Lid (turning it clockwise to the Unlock position).
4. Then place the Ice Reservoir on top of the unit and lock into position by turning counterclockwise (use aligning arrows)
5. Plug the unit into a standard 120-Volt wall socket.
6. For best results, use store-bought ice that has been out of the freezer between 20-30 minutes.
7. Fill the Ice Reservoir with ice cubes.
8. Replace the Ice Reservoir Lid and rotate counterclockwise to the locked position.
9. Remove Blending Jar Lid.
10. Add an appropriate amount of liquid ingredients to the Blending Jar.
11. Push the ON/OFF button to turn the unit on.
12. The Power Indicator Light will blink slowly until the ice shaver or blender is placed on the Motor Base.

Automatic Frozen Drink Making

1. If you want to use the automatic frozen drink cycle, start by pushing the “Auto Shave/Auto Blend” button.
2. The unit will shave ice for the appropriate time.
3. The unit will stop after the cycle.
4. When ice shaving is complete, the lights under Auto Blend will flash slowly.
5. Remove the ice shaver assembly from the Motor Base.
6. Place the Blending Jar assembly on the Motor Base.
7. Restart frozen drink cycle by pushing the “Auto Shave/Auto Blend” button again.
   Status Indicator Lights will be illuminated during the auto cycle.
8. To serve:
   • Turn the unit off.
   • Open Lid Cap (make sure Blender Jar Lid is secure).
   • Lift and remove the Blending Jar.
   • Pour and serve.

Blending Operation

1. Place the Blending Jar assembly on the Motor base.
2. To start blending, press “Low”, “Med”, or
   “High”.
3. To stop blending, press the “Stop” button.

Customizing Your Drink

To make a thicker drink

1. Press and hold the “Pulse” button to add more ice to the blending jar.
2. To stop adding shaved ice, release the “Pulse” button.
3. To blend the added shaved ice, remove the Ice Shaver assembly from the Motor Base and place the Blender assembly on the Motor Base.
4. Hold the “Pulse” button until the desired consistency is achieved.

To make a thinner drink

1. If you have already made your drink using the Auto mode, make sure your drink is blended to the desired consistency.
2. Add more liquid ingredients to the Blending Jar assembly.
3. Press and hold the “Pulse” button until the desired consistency is achieved (you may also use the Low, Med, or High buttons to blend your drink).

Cleaning and Maintenance

1. Make sure the unit is unplugged. Place on a clean, dry surface.
2. Turn the unit so the back is facing you.
3. Remove the Ice Reservoir Lid by turning counterclockwise to the unlock position.
4. To remove the Ice Reservoir, grasp the Reservoir Handle with your hand, turn clockwise, and lift to remove.
5. Note the location of the Shaving Blade inside the Ice Hopper.
6. Rinse the Shaving Paddle assembly with water and dry thoroughly before storing.
7. Turn the Blending Jar upside down and unscrew the Jar Base.
8. Carefully remove the Blending Blade and Blending Blade Sealing Ring.
9. To remove the Ice Melt Reservoir, hold the unit still and pull straight out on the handle.
10. B lending Jar Lid, Blending Jar, Blending Blade, Blending Blade Sealing Ring, Jar Base, and Ice Melt.
11. The reservoir can be safely washed in the top rack of your dishwasher.
12. Use only the top rack. Failure to do so will result in damage.
13. The Ice Reservoir Lid, Ice Reservoir, Shaving Paddle, Ice Bowl, Ice Deflector Blade Assembly,
14. Use a damp cloth to clean the outside of the unit.
15. The Shaving Blade and Ice Melt Reservoir are only exposed to ice and water, and they should be rinsed with soap and warm water and allowed to air dry.

One-Year Warranty

Sunbeam Products, Inc., or if in Canada, Sunbeam Corporation (Canada) Limited (collectively “Sunbeam”) warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. Sunbeam, at its option, will repair or replace this product or any component of the product found to be defective during the guarantee period.

Doing so will void this guarantee. This guarantee is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain satisfaction guarantee performance. Sunbeam dealers, service centers, or retail stores selling Sunbeam products do not have the right to alter, modify, or in any way change the terms and conditions of this guarantee.

This guarantee does not cover damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair, or alteration by anyone other than Sunbeam or an authorized Sunbeam service center. Further, the guarantee does not cover: Acts of God, such as fire, flood, hurricanes, and tornadoes.

What are the limits on Sunbeam’s Liability?

Sunbeam shall not be liable for any incidental or consequential damages caused by the breach of any express, implied, or statutory guarantee or condition. Except to the extent prohibited by applicable law, any implied guarantee or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above guarantee. Sunbeam disclaims all other guarantees, conditions, or representations, express, implied, statutory, or otherwise.

Some provinces, states, or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied guarantee lasts, so the above limitations or exclusion may not apply to you. This guarantee gives you specific legal rights, and you may also have other rights that vary from province to province, state to state, or jurisdiction to jurisdiction.

Customer Service

• Ph: 1-800-33,4-0759
• Website: https://www.oster.com/

FAQs

Q: What are the main functions of the Oster BLSTET-C Series Blender?

The Oster BLSTET-C is intended for pureeing fruits and vegetables, blending smoothies, preparing frozen drinks, and crushing ice. Smooth, fine ice textures for cocktails, slushies, and desserts are made possible by its ice-shaving blades.

Q: Can this blender crush ice?

Indeed! The BLSTET-C is made especially to effectively shatter ice. Don’t overfill the jar; instead, add ice cubes gradually for optimal results.

Q: Is it safe to blend hot liquids?

No, cold or room-temperature ingredients are what this blender is meant for. When hot liquids are blended, pressure can build up and result in spills or injuries.

Q: What is the maximum capacity of the jar?

There is a marked maximum fill line on the jar; don’t go over it. Overfilling may result in spills, motor damage, or improper blending.

Q: Can I make smoothies with frozen fruit?

Yes, the Oster BLSTET-C can handle frozen fruit, but it’s recommended to add a small amount of liquid to help the blades process the ingredients smoothly.

Q: Is the blade assembly removable?

Indeed, the blade assembly can be removed for cleaning. Handle: You can clean the blade assembly by removing it. Because the blades are sharp and potentially harmful, handle them with caution.the blades with caution because they are sharp and potentially harmful.

Q: Can I blend nuts, seeds, or hard ingredients?

Harder components can be blended in little amounts, yes. To prevent stressing the motor, start with pulsing and add liquid if necessary.

Q: Does the blender come with a warranty?

Indeed, a limited guarantee is included with the Oster BLSTET-C. For information on the warranty period and coverage, consult the handbook.
