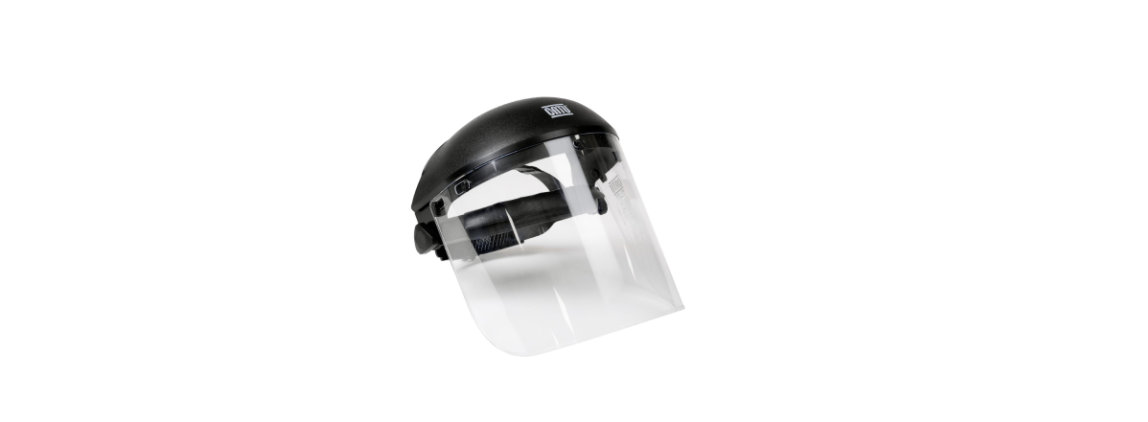

Sealey EV18 1000V Arc Flash Face Shield
Introduction

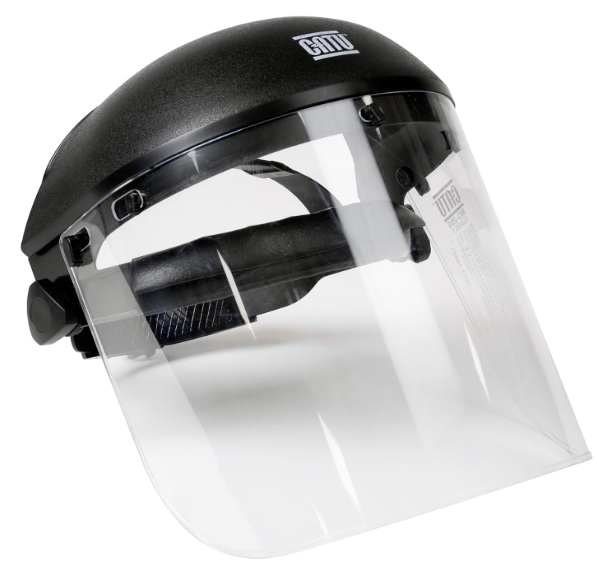

Protects against arc flash caused by short circuits on live electrical systems. Manufactured from clear polycarbonate, with anti-misting and anti-scratch treatment. Ratchet mechanism so the visor can be flipped up when not used. Ratchet adjustable headband with nylon comfort band. Suitable for use while wearing glasses. Shield dimensions: 220 x 396mm. Conforms to EN 166, EN 170, Class 1, GS-ET-29, ANSI Z 87.1. Notified Body Number: 1883 ECS GmbH – European Certification Service, Augenschutz und Personliche Schutzausrustung, Laseschutz und Optische Messtechnik, Obere Bahnstrasse 74, 73431 Aaien, Germany
Safety Instructions
- DO NOT overexpose to sunlight. DO NOT use for welding. DO NOT expose to open fire for long periods
- Replace when exposed to chemicals, replace if damaged by mechanical impact.
- Only use original replacement parts. Make sure that your workplace is sufficiently illuminated.
- Insufficient storage packaging may decrease the level of protection.
- Follow the instructions as per the Storage Section.
- The following warnings are standard WS per EN 166:
- The manufacturer carefully selects the materials and is not aware of any allergic reaction so far.
- This product protects against high-speed particles. When worn over standard ophthalmic spectacles, they may transmit impacts, thus creating a hazard to the wearer.
- This Arc Shield only provides safety if used as intended.
- DO NOT use this product for electric arc welding or use / store close to arc welding work.
Fitting
- Place on head and tighten the atchet on the back of the trap to fit the head radius.
- Shorten/expand as required. Adjust the top strap to the correct position.
- Pull the visor down and tighten the side knobs to ensure the visor will stay in the up position.
Maintainance
- If the visor will not remain in the stowed position, retighten the pivot screws at the sides.
- The visor must be replaced if: The product is scratched or damaged product has been exposed to an arc flash product has been exposed to chemicals product is damaged by mechanical impact.
- The product has reached its normal life span (Obsolescence Section).
- The product has been exposed to high heat or overexposed to sunlight.
- The product has been exposed to fire for long periods. Damage may not be visible to the end user.
New Visor Lens
Disassembling the product shall be performed as follows:
- Unlock the cam locks on the headgear.
- Remove the visor. To assemble a new visor onto the headgear, fit the upper slots in the shield over the cam locks and turn the cam locks into a vertical position for a secure fit.
Cleaning
- Inspect after each use.
- As long as the structure of the facial screen, and the screen itself, are in good condition (no major cracks or scratches, it should be cleaned with water and neutral soap and wiped dry.
Storage
- For best results, store the product in its original packaging.
- Other packing materials contain solvents, which may decrease the level of protection.
- Store the product out of sunlight in a clean, dry environment.
- The storage temperature shall be between 0°C and 35°C, and the operating temperature -10°C and 45°C. 8 DO NOT expose the product to any arc welding operation.
Specifications
- Model No: EV18
- Weight: 0.41kg
- Operating Temperature: -10°C to 45°C.
WEEE Regulations
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment (WEEE). Contact your local solid waste authority for recycling information.
Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. When the product becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids according to local regulations.
Customer Support
- Address: Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk.
- Website: www.sealey.co.uk
- Ph: 01284 757500
- Timings: 8:30 am – 5:30 pm (Monday – Friday)
FAQs
Q: What is the Sealey EV18 Arc Flash Face Shield designed for?
When working on electric vehicles, live electrical panels, batteries, and high-voltage components, the EV18 is designed to shield the wearer’s face and eyes from arc flash risks up to 1000V AC.
Q: What level of arc flash protection does the EV18 provide?
The face shield provides excellent thermal, optical, and impact resistance and satisfies requirements for 1000V electrical protection.
Q: Is the face shield suitable for mechanical tasks or grinding?
Although the shield is impact-resistant, it is not intended for cutting or grinding activities that produce sparks or metal particles. For those purposes, use a grinding visor that has been certified.
Q: Does the EV18 shield protect against UV and IR radiation?
Indeed. When performing electrical work that involves bright flashes and high-energy light, the lens’s complete UV and IR protection helps lower the danger of eye damage.
Q: How do I adjust the headband for proper fit?
To make the shield fit comfortably and securely on your head, turn the crank to tighten or loosen the band.
Q: What should I do if the visor fogs up?
Verify that the visor is dry and clean. Although the EV18 features an anti-fog coating, air circulation can be necessary in humid conditions. Use a microfiber towel to gently clean the visor; stay away from harsh chemicals that can harm the covering.
