Sealey SAC5030VA Air Compressors
Introduction

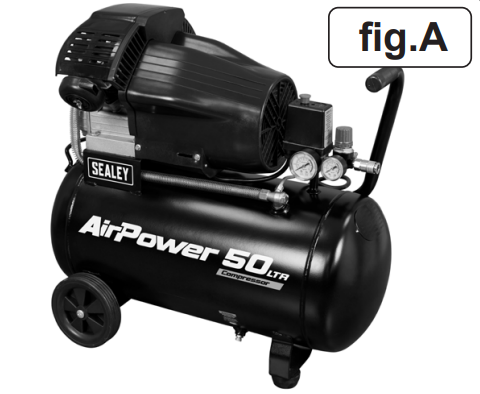

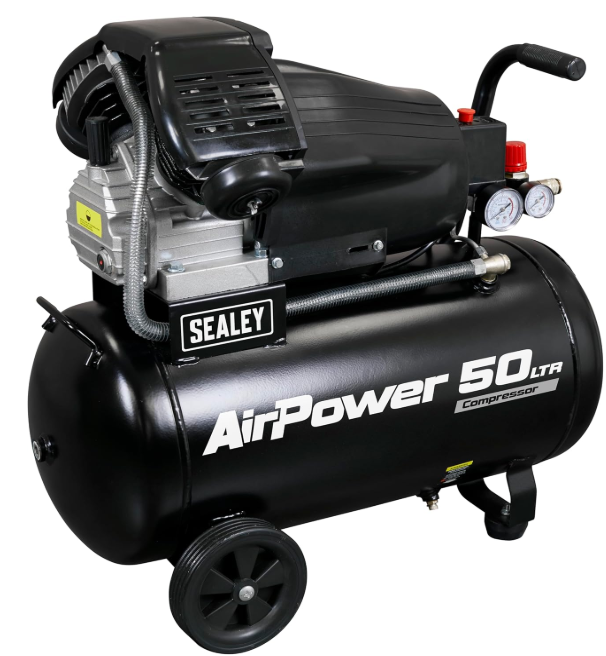

V-Twin pump aluminium cylinder head with cast iron cylinder gives added resistance to wear. The pump head is directly coupled to a heavy-duty induction motor for reliable and quiet operation.
Precision-welded receiver tank manufactured to meet the Pressure Vessel Directive. Suitable for general-purpose workshop applications. Fitted with a fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures. Fitted with a 3-pin plug.
Operation
Air tool manufacturers normally express the volume of air required to operate a tool in cubic feet per minute (cfm). This refers to free air delivered by the compressor (‘air out’), which varies according to the pressure setting. DO NOT confuse this with the compressor displacementwhich is the air taken in by the compressor (‘air in’). ‘Air out’ is always less than ‘air in’ – due to losses within the compressor FIG 2
Starting

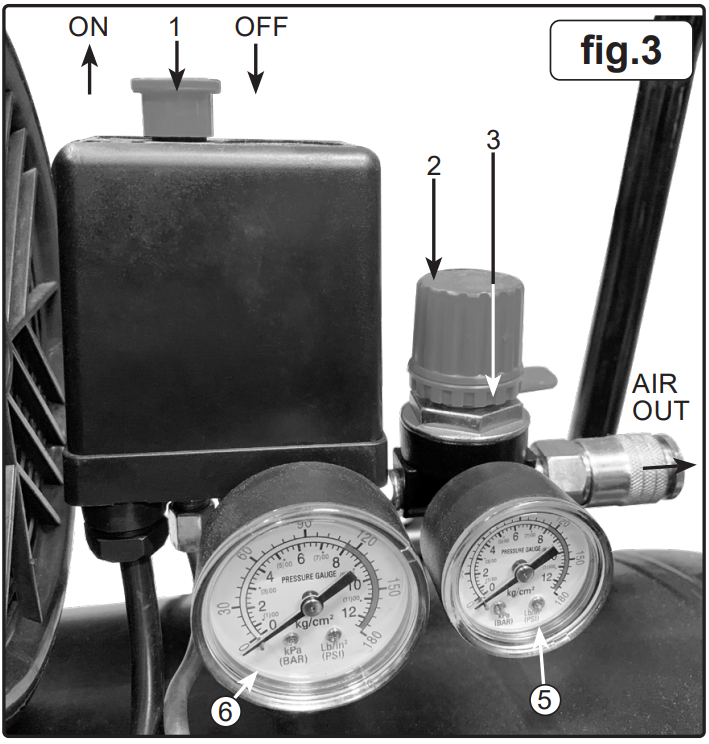

Your compressor is fitted with a push/pull type of ON/OFF switch. To compressor ‘ON’, pull the switch knob upwards. To turn the compressor F’, push the knob downwards. (See Check that the ON/OFF switch is in the “OFF” position, the regulator tap is closed (Zero ‘0’ bar). Plug the mains lead into the mains supply and start the compressor by pulling the switch knobupwards. 5.3.4. When starting the compressor for the first time, leave it running for several minutes with the air tap open to ensure good distribution of the lubricant. FIG 3

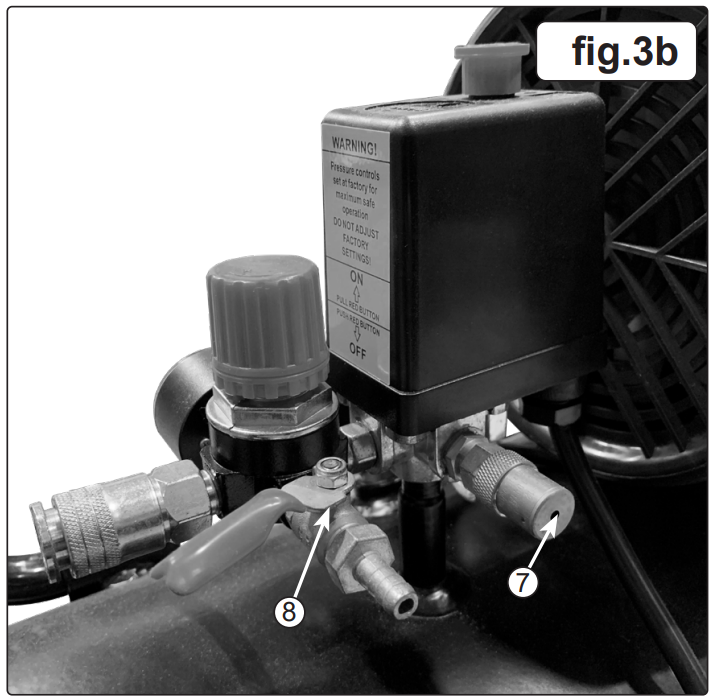

Turn the compressor off and close the air tap. Restart the compressor and leave it running with the air tap closed and the regulator set to maximum pressure. Make sure that the pressure in the tank rises and that the compressor stops automatically when the maximum. FIG 3B
pressure value allowed – written on the specification plate and shown on the gauge(- is achieved. The compressor will now operate automatically. The pressure switch stops the motor when the maximum tank pressure is reached and restarts it when pressure falls below the minimum threshold -approximately 2 bar (29psi) less than the maximum pressure. FIG 4
Stop the compressor by pushing the switch KB downwards.
Maintainance
Drain condensation, place a container under the valve, and open the valve by turning counterclockwise -tighten the valve. Check that all nuts and bolts are tight, particularly those retaining the crankcase and cylinder heads.

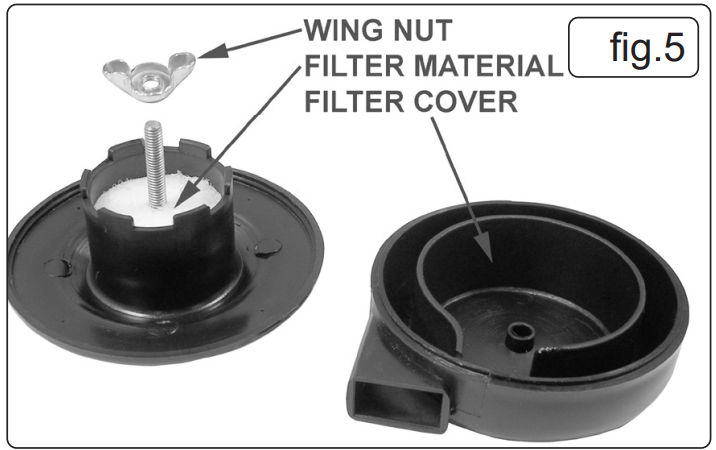

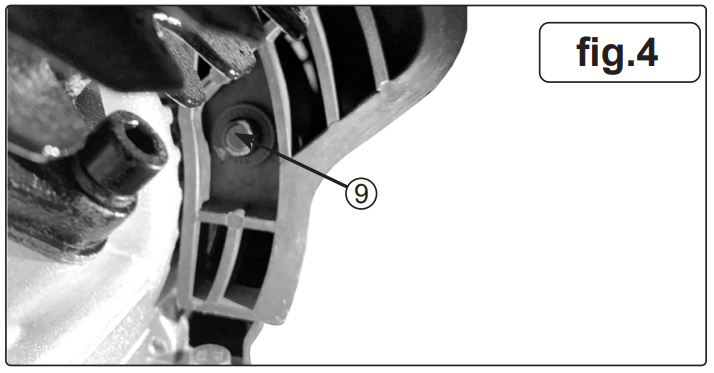

Frequently, if the compressor operates in a very dusty atmosphere, check the oil level and, if necessary, top it up. Remove the air filter element by unscrewing the air filter holder and prying open the holder. Clean the air filter by blowing through with an air line at low pressure, from the clean side. Alternatively, wash the air filter in soapy water, rinse, and dry. DO NOT operate Sealey SAC5030VA Air Compressors the compressor without the air filters, as foreign bodies or dust could seriously damage the pump. Check for oil leaks. FIG 5

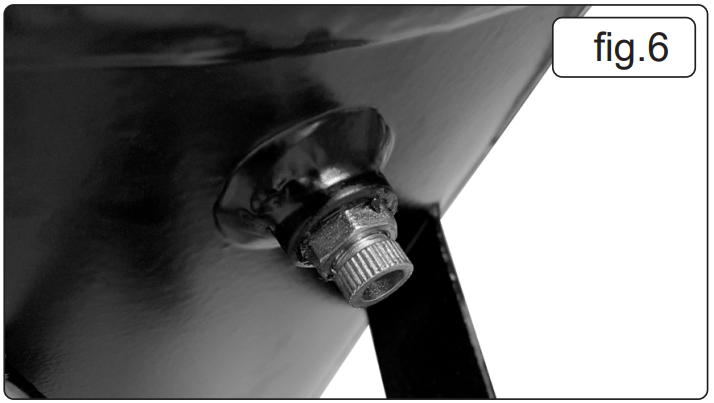

Replace the lubricating oil. Remove the oil filler/breather and unscrew the drain bolt, and drain the oil into a suitable container. Drain when the compressor is hot so that the oil drains rapidly and completely. Incline the compressor to ensure complete drainage. Replace the drain bolt and refill with fresh oil through the filler aperture. DO NOT overfill. Replace oil filler/breather (fig.6
RRecommendedOil
Suitable for room temperatures ranging from +5ºC to +25ºC: SEALEY CPO or equivalent SAE 40 compressor oil. Room temperature below +5ºC: SAE 20 compressor oil. WARNING! Never mix different oilsands, and DO NOT use non-detergent/low-quality oils the compressor may be damaged. Dispose of waste oil only according to local authority requirements. Check the automatic cut-out at maximum pressure and the automatic cut-in at 2 bar below that. Replace air filter (fig.7).
Check all tube fittings and electrical connections. IMPORTANT! Failure to carry out maintenance tasks may invalidate the warranty on your compressor. Example: Bodyfiller dust or paint overspray will clog the pump intake filter and may cause internal damage to pump/motor components.
Specifications
| Model No: | SAC5030VA | SAC10030VA |
| Air Displacement cfm(L/min): | 12.4cfm(350L/min) | 12.4cfm(350L/min) |
| Maximum Free Air Delivery cfm(L/min):
| 7cfm(198L/min) | 7cfm(198L/min) |
| Maximum Pressure: | 116psi(8bar) | 116psi(8bar) |
| Minimum Rated Supply: | 13A | 13A |
| Motor Output: | 3hp | 3hp |
| Nett Weight:
| 38.8kg | 48kg |
| Noise level: | 97dB | 97dB |
| Oil Capacity: | 350ml | 350ml |
| Outlet: | Quick Release Coupling | Quick Release Coupling |
| Phase: | 1ph | 1ph |
| Plug Type: | 3-pin BS | 3-pin BS |
| Power Cable length: | 1.8m | 1.8m |
| Receiverr Capacity: | 50L | 100L |
| Size (W x D x H):
| 705mm x 335mm x 610mm | 1040mm x 350mm x 720mm |
| Supply: | 230V/13A | 230V/13A |
Additional Specification
- Short circuit current rating for each incoming power supply: 25A
- Type of distribution system in the system: Lower voltage
- Full load current for each incoming supply: 9A
- Intended media: Air
- Inlet intermediate pressure and temperatures: N/A
- Inlet discharge pressure & temperatures: 0.8MPA
- Temperature 70°C
- Maximum pressure ratio: 0.8MPA
- Pressure limits of the lubrication system: Pressure 0.1MPA / 1BAR
- Temperature limits of the lubrication system: 100°C
- Maximum speed of the unit: 2880RPM
- Minimum speed of the unit: 2880RPM
Removing
Remove the compressor from the packaging and inspect for any shortages or damage. If anything is found to be missing or damaged, contact your supplier. Save the Sealey SAC5030VA Air Compressors’ packing material for future transportation of the compressor. We Sealey SAC5030VA Air Compressors, recommend that you store the packing in a safe location, at least for the period of the guarantee. Then, if necessary, it will be easier to send the compressor to the service centre.
Confirm that the mains voltage corresponds with the voltage shown on the compressor data plate. Assemble the wheels (fi AA.) to the main frame using the nuts, bolts, ts, and washers supplied. Attach the handle with the bolts provided.

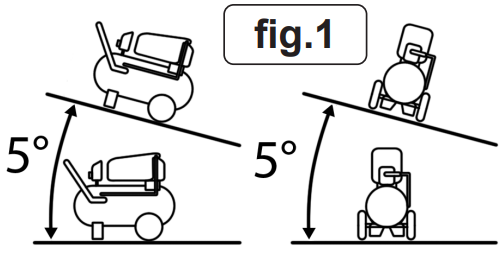

The compressor should be operated on a flat surface, or one that does not exceed 10°either transversely or longitudinally (fig.1), and should be in a position that allows good air circulation around the unit.

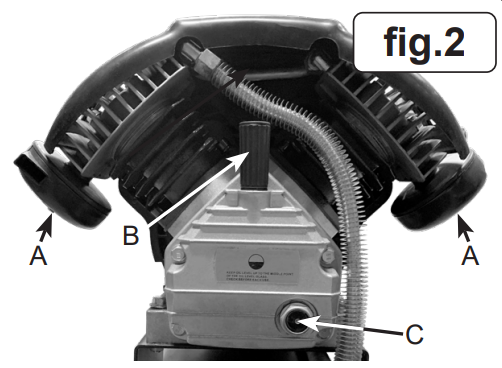

Before using the compressor, check the oil level by referring to the oil sight glass (fig.2C). Screw the filler/breather cap into the aperture as shown in fig.2B.
Troubleshooting
| FAULT | CAUSE | REMEDY |

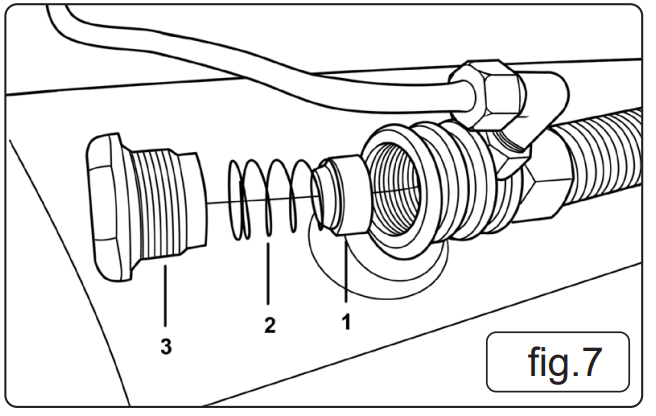

| Re switch valve leaks when the compressor is idle. | The non-return valve seal is defective. | Empty the air tank. Referring to (fig.7), remove the non-return valve ap (fig.7.3), spring (fig.7., and seal (fig.7.1). Clean the seal and its seat, or if necessary, replace the seal and refit. |
| Motor stops and will not restart. |
|
|
| Compressor stops and will not restart. | Motor failure. | Contact the Authorised Service Agent. |
| The compressor does not stop at maximum pressure. | 1. Pressure switch fault. 2. Filter clogged 3. Head gasket or valve fault | 1. Contact Authorised Service Agent. 2. Replace filter element. 3. Contact Authorised Service Agent. |
| The compressor is noisy with a metallic knock. | Bearing or piston damage. | Contact the Authorised Service Agent. |
| Excessive moisture in discharged air. | High-humidity environment. | Drain the tank after each use. |
