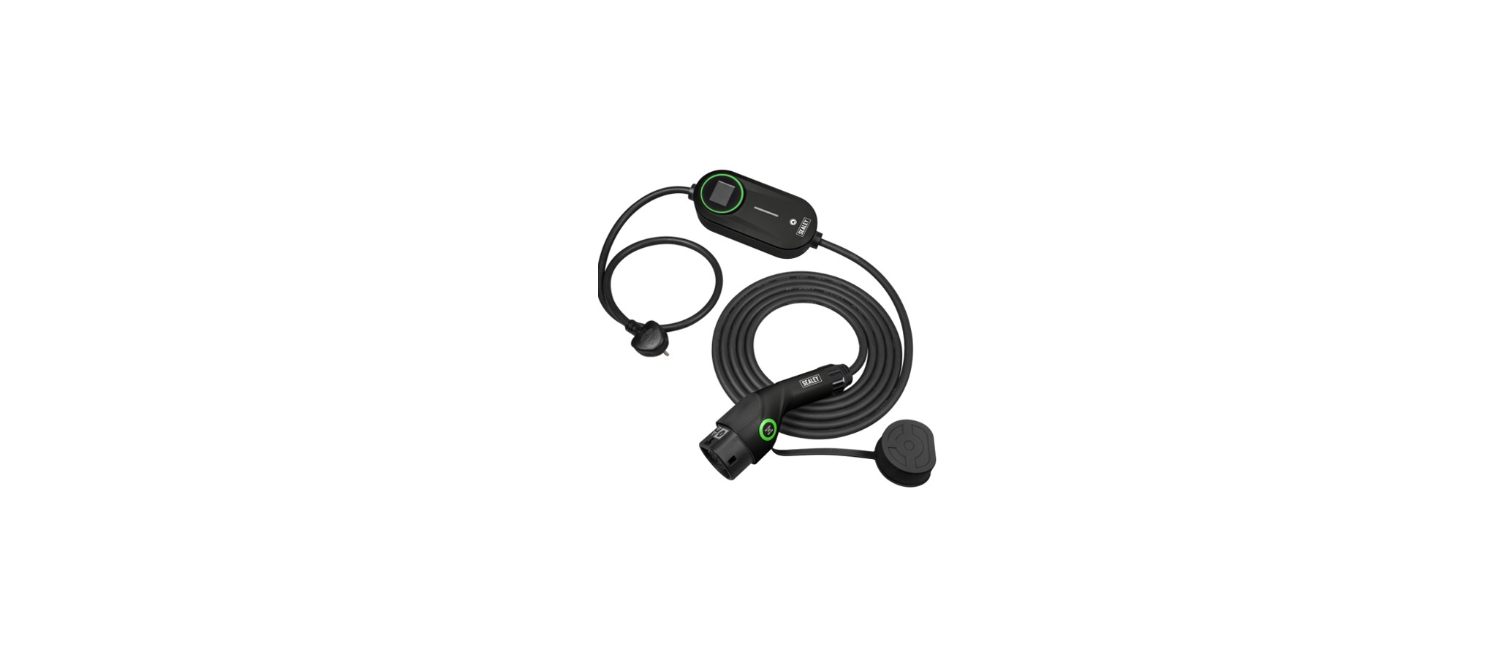

Sealey EVAC2 3-Pin Plug Portable EV Charger
Introduction
Portable Type-2 charger is fitted with a 3-pin plug so it can be used with any standard 13A socket. Delay timing function enables users to program delayed start time to benefit from off peak electricity tariffs. The intuitive LCD screen offers users fault codes, charging time, power and temperature displays. Supplied with storage bag.

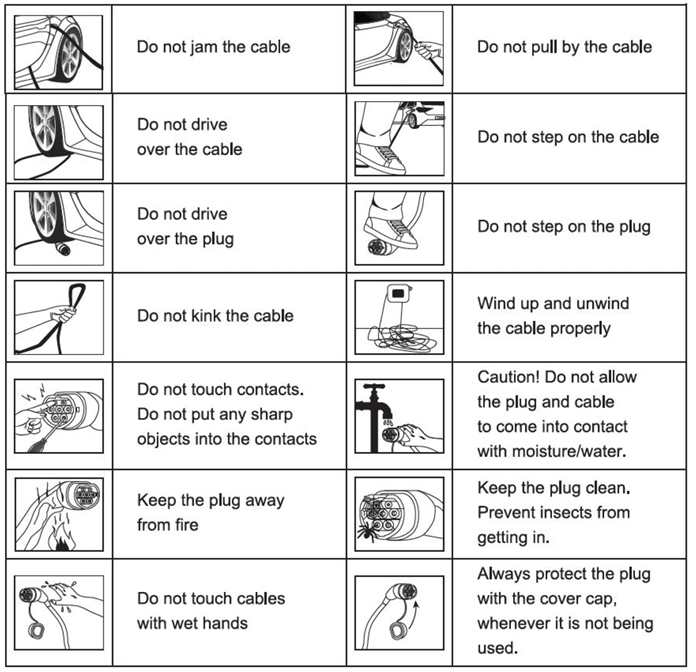

Safety Instructions
- When the mobile charging station is being used, observe the instructions as described.
- The product must only be used by people who have been trained to do so.
- Keep children and animals away from the mobile charging station.
- DO NOT allow children to play with the device.
- Cleaning and day-to-day maintenance must not be performed by children without supervision.
- Children must be supervised to ensure that they DO NOT play with the device.
- 9 During operation, never point the device at yourself or other individuals.
- Keep the device in a dry location and out of the reach of children
- DO NOT use the device while driving the vehicle.
- DO NOT submerge the device in water. There is a risk of electric shock.
- Keep the vent on the underside of the device clear during operation.
- DO NOT block the vent with your hands or fingers.
- DO NOT cover the device or block any of the openings.
- Keep the opening clear and clean at all times to reduce risk of overheating.
- Ensure that sand, dust and other small foreign objects cannot enter the air inlet or air outlet openings.
- DO NOT leave the device in the car during hot weather. This could permanently damage the device.
- The device becomes warm during use. There is a risk of burn injuries from touching the hot surfaces.
- DO NOT operate the device near to flammable liquids or gases.
Electromagnetic Compatibility
- The Mobile Charging Station meets the requirements for use in residential areas according to 61000-6-3:2020.

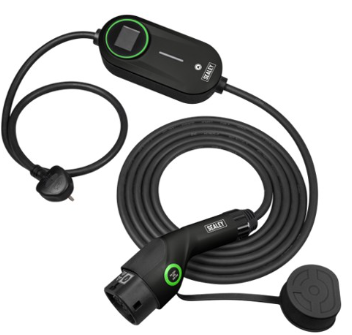

Features
- Control Box LED Indicator
- Digital Charging
- Display Control
- Button
- Cable Wire
- Power Plug
- Cover Cap for T2 Plug
- T2 Plug

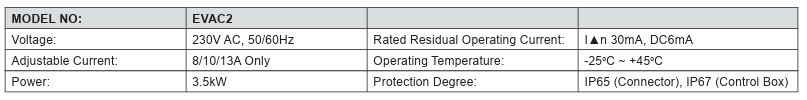

Specfications
Changes to technical and visual aspects of the product may be made as part of future developments without notice. Accordingly, no warranty is offered for the physical dimensions, information, and specifications in these instructions. The operating instructions cannot, therefore, be used as the basis for asserting a legal claim.

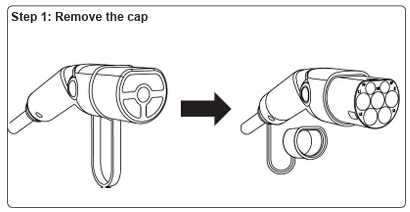

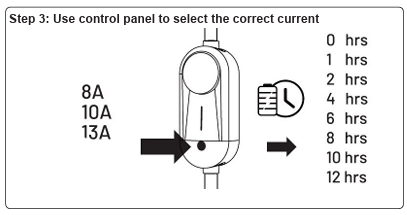

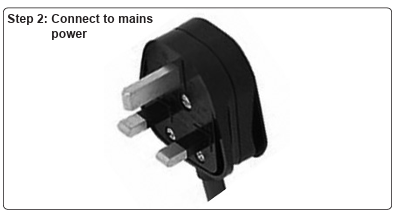

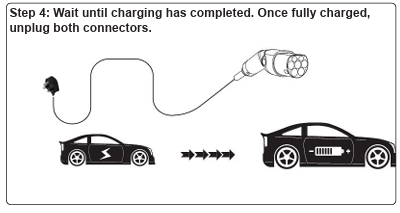

Operation

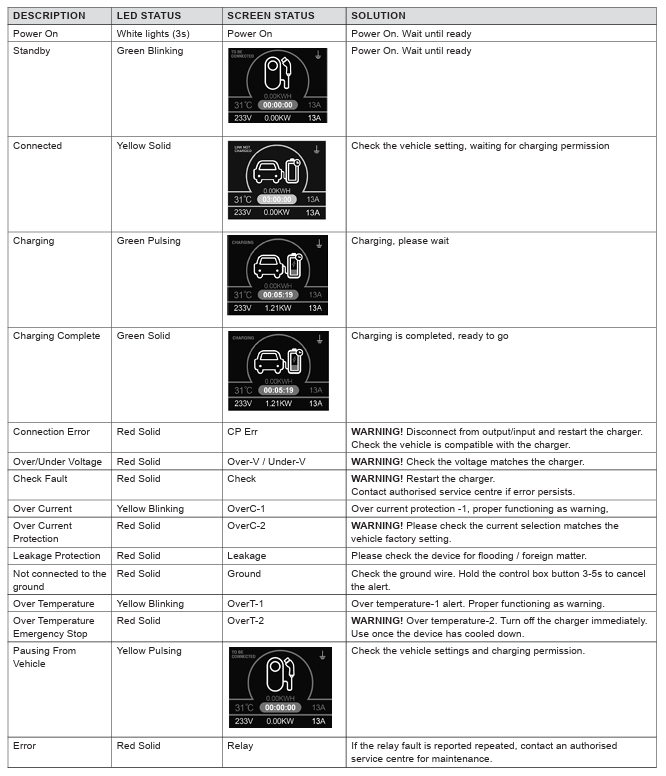

Error Messages
Maintainance
- There is a risk of injury due to electric shock if moisture enters the device.
- DO NOT use cleaners or solvents. These could damage the device beyond repair.
- Keep the housing and device accessories clean.
- Use a damp cloth or a soft brush to clean the device and the accessories.
STORAGE
- Keep the device in a dry location and out of the reach of children.
- To avoid damage, take care to ensure that the charging cable does not become kinked.
- This device must only be used and stored in conditions between -25 °C and +45 °C.
WEEE Regulations
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment (WEEE). Contact your local solid waste authority for recycling information.
Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. When the product becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids according to local regulations.
Customer Support
- Address: Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk.
- Website: www.sealey.co.uk
- Ph: 01284 757500
- Timings: 8:30 am – 5:30 pm (Monday – Friday)
FAQs
Q: What vehicles are compatible with the Sealey EVAC2 charger?
Any electric car (EV) or plug-in hybrid (PHEV) with a Type 2 (IEC 62196) charging inlet is compatible with the EVAC2. Verify the charging standard of your car before using it.
Q: Can I plug the EVAC2 into a standard household outlet?
Indeed. This charger is perfect for charging at home, at work, and on the go because it is made for UK 3-pin (230V) domestic outlets.
Q: What is the maximum charging current?
Usually delivering up to 10A, the EVAC2 can be used for gradual charging via a home outlet. The onboard charger in your car determines the charging speed.
Q: Can I use the EVAC2 with an extension lead?
It is not advised to use extension leads. Use only a heavy-duty, fully unwound, 13A-rated extension if at all possible, and keep an eye out for heat accumulation on a frequent basis.
Q: Does the unit need installation or setup?
No. The EVAC2 is a plug-and-play device. Just attach the Type 2 connector to your car and the 3-pin plug to an appropriate outlet.
Q: Is the EVAC2 suitable for travel?
Of course. It is perfect as a backup or travel charger because of its small size and standard 3-pin plug, especially in areas with few public charging stations.
