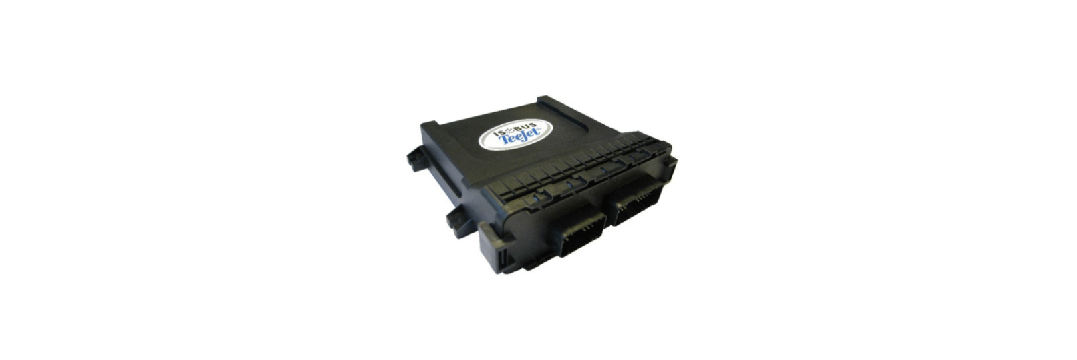

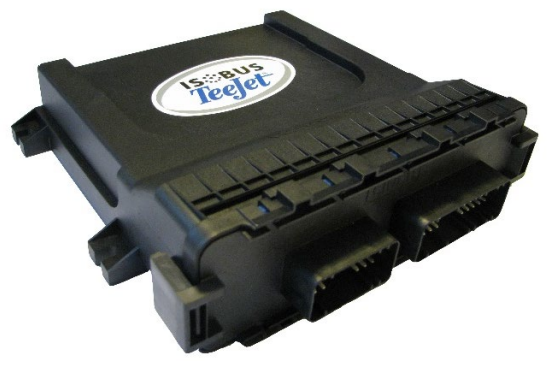

TeeJet TECHNOLOGIES IC35 Sprayer v1.20 Control
New Features
- Maximum pressure limiter for hydraulic pump. This is a safety function.
- IC35 flow controller compensated for turn compensation, to control the correct application rate while turning.
- Boom wing up/down, softkey added for adjusting wings.
- The virtual switch box needs an unlock to be available.
Fixes
- PLP module 1, the serial number was always 0.
- Switchbox supports Task Controller TeeJet TECHNOLOGIES IC35 Sprayer v1.20 Control servers with fewer sections than the capability of the Task Controller client.
- Switchbox support for booms with fewer than 9 sections.
- Some sections as drawn as even though they are OFF.
- Error in turn compensation fixed.The
- Updated Tip table.
Key Features and Benefits
- Global first release of the C35 series
- Based on an enhanced hardware platform with more processing power and memory for increased performance
- Provides a USB connector for program updates and import/export of data
- Fully pin compatible with IC34 and supports drop-in replacement
- Provides an overall feature set similar to the IC34 series
- Supports section control for 30 sections via PowerLink+ modules
- Provides Turf mode
- Enables application rate control via hydraulic pump speed control when a master valve is present in the system
- Integrates with DynaJet IC7140 v1.11 and later versions via exchange of dedicated CAN messages for better overall system performance
- Offers Individual Nozzle Shut Off for a maximum of 100 nozzles, when used in combination with DynaJet IC7140 v1.11 or later
- Provides dedicated DynaJet regulation modes based on either pressure or flow when combined with DynaJet IC7140 v1.11 or later.
- Manual section control of individual nozzles via a Virtual Switchbox when unlocked and supported by DynaJet IC7140
- GUI enhanced to enable symmetrical setup of the boom
- Tank shape calibration algorithm updated
- Added more TeeJet nozzles
Customer Support
- Tel: (502) 912-0055
- Website: @teejet.com
FAQs
Q: What is the primary function of the IC35 Sprayer Control?
Ans: A rate control system called the IC35 was created to precisely regulate the application of liquids during agricultural spraying operations. It ensures precise and effective chemical distribution by controlling section control, pressure, and flow rate.
Q: What’s new in version 1.20 of the IC35 software?
Ans: Performance enhancements, revised calibration procedures, and improved compatibility with more recent sensors and ISOBUS displays are all included in version 1.20. Additionally, it might provide improved data handling capabilities and bug fixes.
Q: Is the IC35 compatible with GPS and mapping systems?
Ans: Indeed. Depending on the system configuration, the IC35 can interact with field mapping software and GPS devices to support field boundary control and variable rate applications.
Q: Can the IC35 control multiple boom sections?
Ans: In order to minimise overlap and cut down on waste, the IC35 does indeed provide multi-section boom control, which enables individual control of spray parts.
Q: What sensors are compatible with the IC35?
Ans: In addition to various third-party ISOBUS-compatible sensors, the IC35 supports TeeJet flowmeters, pressure sensors, and ground speed sensors. Make sure it is compatible with the version being used at all times.
Q: What kind of sprayers can the IC35 be installed on?
Ans: Particularly in precision farming setups, it works with a variety of pull-type, self-propelled, and tractor-mounted sprayers.
Q: Can the IC35 save and recall application settings?
Ans: It is simple to swap between fields, crops, or chemicals with the IC35’s ability to store work profiles and rate settings.
Q: Does the IC35 work with ISOBUS systems?
Ans: Depending on your model setup, the IC35 can connect to virtual terminals (VTs) in the cab that accept ISOBUS standards.
