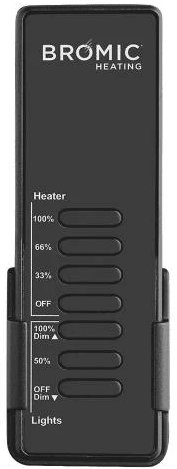

BROMIC ECLIPSE Smart Heat Wireless Remote
Introduction
UHF band remote with PLL-controlled carrier frequency. This appliance transmits a rolling code-type signal to prevent duplication and guarantee maximum secrecy. With the second possibility, you can add new remotes to an existing system without having to touch the receiver.
Safety Rules
- Keep the remote out of the reach of children and animals.
- Do not keep or use the remote in damp places, where there is steam, high air humidity, dust, or where it is exposed to the direct rays of the sun or similar environmental conditions.
- Do not let the remote drop: it could be damaged or its range of action reduced.
- Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- The operator is in no way protected against interference from other telecommunication equipment or systems (e,.g. authorized radio systems working on the same frequency range).
- If you are having problems with its range of action, put the remote up high. Change the battery if necessary. sary
Changing the Battery
- Replace the battery with a CR 2430 type battery only.
- Dispose of damaged or finished batteries immediately in compliance with the law.
- Do not throw the battery away with household rubbish

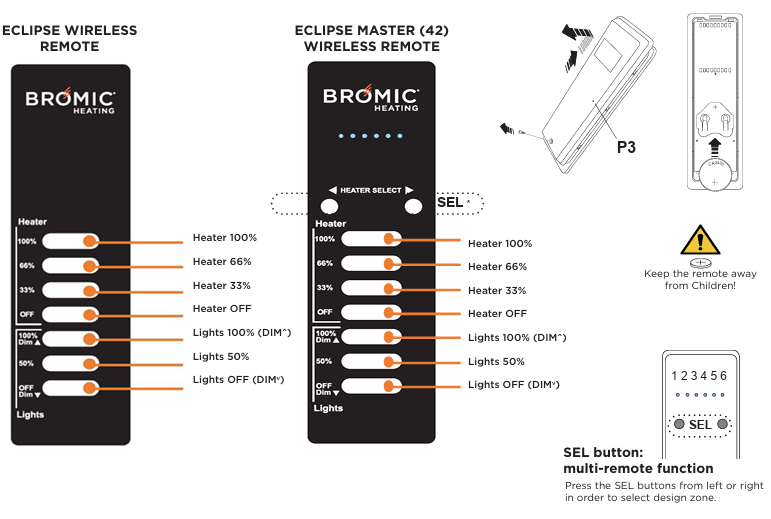

- Open the back cover (manual remote)
Perivously Stored Remote
- Press the P3 button inside the already programmed remote. The active receiver will sound continuously. If there is no sound, the remote is not programmed into the receiver.
- Within 5 seconds, press a button of the already programmed remote, relative to the function to copy.
Technical Data
| Model | Eclipse-Wireless Remote | Eclipse-Master (42) Wireless Remote |
| Carrier Frequency | 916MHz (US/AU) / 868.3MHz (EU) | |
| Modulation | FSK | |
| Power Supply | 3V ±10% CR2430 battery | |
| Consumption when transmitting | 10mA | |
| Working Temperature | -10+55°C / 14+131°F | |
| Range | 30m / 100ft. | |
Guarantee
The guarantee complies with the law. Bromic declares that the remotes supplied satisfy the following technical regulations.
- Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate.
- Even used batteries may cause severe injury or death.
- Call a local poison control center for treatment information.
- Do not force discharge, recharge, disassemble, heat above 55°C / 131°F, or incinerate.
- Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep them away from children.
FCC Rules
- This device may not cause harmful interference, and
- FCC (Federal Communications Commission) Part 15 (FCC ID: P59TVTXI916S; P59TVEVO916S)
- IC (Industry Canada) RSS-102 (IC: 11242A-TVTXI916S; IC: 11242A-TVEVO916S) UL4200A
Diposal
The refrigerant used and contained within a hermetically tight circuit is environmentally friendly and does not contain chlorine and has zero ODP.
- Before disposal, render it unserviceable by disconnecting the power plug and severing the power cable.
- Consult your local authorities or authorised dealers for details of collection and disposal facilities.
- Children are often unable to recognise the dangers associated with commercial refrigeration equipment.
- The refrigerant used in all appliances covered by this manual is flammable.
Customer Support
- Website: www.bromicgroup.com/
- Tel: 1300 276 642
FAQs
Q: What does the BROMIC ECLIPSE Smart-Heat Wireless Remote control?
Ans: With compatible Bromic Eclipse Pendant and portable heaters, you can wirelessly manage the power (ON/OFF), lighting, and heat levels with the Eclipse Smart-Heat Remote.
Q: How many heaters can I control with one Eclipse remote?
Ans: Multiple heaters can be grouped into each of the two distinct zones (Zone A and Zone B) that can be controlled by a single Eclipse remote.
Q: What is the wireless range of the remote?
Ans: Usually, the Eclipse remote operates within a 30-meter (100-foot) line-of-sight range.
Q: What type of battery does the Eclipse remote use?
Ans: The CR2032 lithium coin battery powers the Eclipse remote. When the LED indicator weakens or the response becomes erratic, change the battery.
Q: Is the remote waterproof or weather-resistant?
Ans: The Eclipse remote control has some water damage. Always keep it somewhere dry while not in use.
Q: How do I switch between Zone A and Zone B?
Ans: To flip between the two zones, use the remote’s Zone A/B selector switch. This enables you to individually operate many sets of lights or heaters.
Q: Can I use multiple remotes with the same heater or zone?
Ans: Indeed. Make sure you use the same procedure to pair each remote separately.
