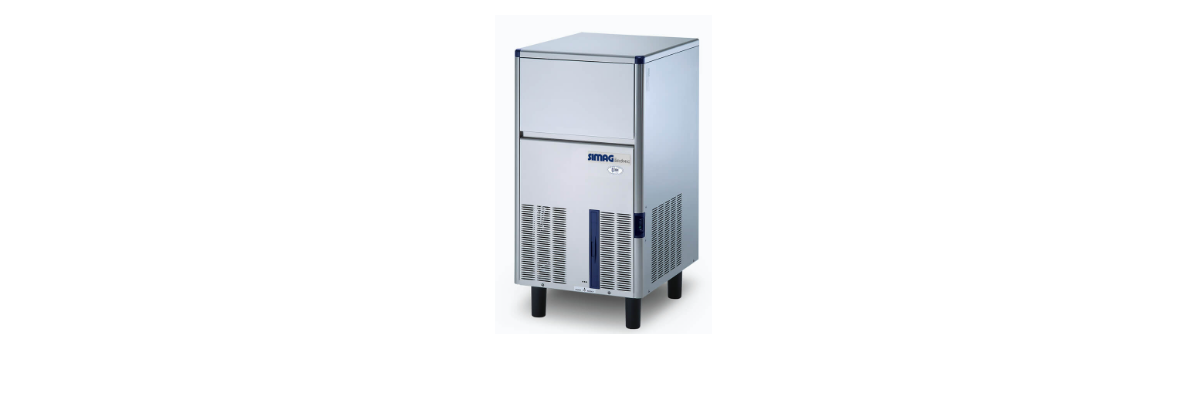

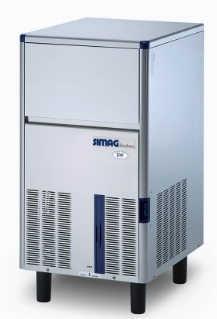

BROMIC IM0050HC-NR 17kg Capacity Ice Machine
Safety Instructions
- Use this appliance only as described in this manual.
- Any other use not recommended by the manufacturer may cause fire, electric shock, or injury.
- The manufacturer is not responsible for any damage that could happen from improper use.
- Check the appliance for damage.
- Do not operate a damaged unit.
- Check for damage to the appliance regularly.
- Keep packaging material out of each child’s reach.
- Do not attempt to alter the appliance in any manner.
- Please pay attention to the maximum load limit when filling the shelves.
- Do not operate the appliance with panels, covers, or guards removed.
- Keep the air intake and outlets free of obstructions.
- Do not use the appliance outdoors.
- Remove transit protection before use.
Plug and Supply Cord
- Use an appropriately rated plug and supply cord – check the power requirements of the connected loads. The socket outlet used must be near the equipment.
Overcurrent Device
- The outputs are NOT protected against short circuits or overcurrents, which can damage the electronic board. Evaluate the characteristics of the connected loads and apply the appropriate safety devices to the power line.
Self-Contained Ice Machine

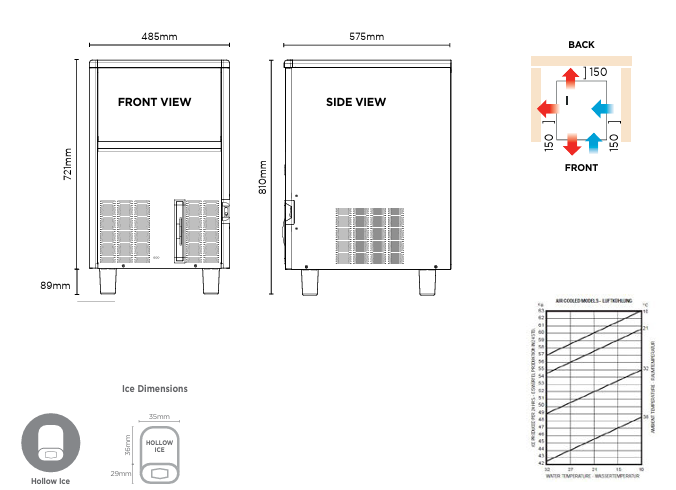

Specifications & Dimensions
| SPECIFICATIONS | DIMENSIONS | |||||||||
| Model Part Number Unit Weight Packaged Weight Ambient Temperature Energy Consumption Refrigeration Capacity Refrigerant Current Electrical Voltage External height excludes legs | IM0050HC-NR 3935193 45kg 53kg 43°C 6.2 kWh/24h 250W R290 1.5A 230V | Frequency Power Supply Plug Supplied Plug Location Water Consumption Maximum Daily Production Ice Type Storage Bin Capacity Warranty | 50Hz Single Phase 1 x 10A Rear, bottom left 2L/h 50kg/24h Hollow Cube 17kg 3 Years Parts & 1 Year Labour Bromic Extra Care | Width Depth Height Width Depth Height | External (mm) 485 575 810 Packaged (mm) 550 640 840 | |||||
Customer Support
- Website: www.bromicgroup.com/
- Tel: 1300 276 642
FAQs
Q: What type of ice does the IM0050HC-NR produce?
Ans: The firm, crystal-clear cube ice produced by BROMIC IM0050HC-NR 17kg Capacity Ice Machine the BROMIC IM0050HC-NR is perfect for food presentations, drinks, and other hospitality applications.
Q: How much ice can this machine produce and store?
Ans: Up to 17 kg of ice can be produced daily by this device, which also features a 7 kg internal storage bin to retain ice until it is needed.
Q: How long does it take to make the first batch of ice?
Ans: After starting up, the machine will make its first batch of ice in around 20 to 30 minutes under ideal conditions, which include an ambient temperature between 10°C and 32°C and water that is between 10°C and 20°C.
Q: Does the machine require a water connection?
Ans: Yes, a potable cold water supply needs to be connected to the IM0050HC-NR. A drainage system is also necessary to get rid of excess water and melted water.
Q: Is this an automatic ice maker, or does it need manual operation?
Ans: This ice maker is completely automated. It will keep making and storing ice until the bin is full after installation and powering on. As soon as the ice is removed, manufacturing will instantly resume.
Q: What power supply does the machine require?
Ans: The device requires a grounded socket and runs on a typical 220-240V/50Hz electrical supply.
