BROMIC TUNGSTEN Wireless On-Off Remote Control
Safety Instructions
- Use this appliance only as described in this manual.
- Any other use not recommended by the manufacturer may cause fire, electric shock, or injury.
- The manufacturer is not responsible for any damage that could happen from improper use.
- Check the appliance for damage.
- Do not operate a damaged unit.
- Check for damage to the appliance regularly.
- Keep packaging material out of each child’s reach.
- Do not attempt to alter the appliance in any manner.
- Please pay attention to the maximum load limit when filling the shelves.
- Do not operate the appliance with panels, covers, or guards removed.
- Keep the air intake and outlets free of obstructions.
- Do not use the appliance outdoors.
- Remove transit protection before use.
Plug and Supply Cord
- Use an appropriately rated plug and supply cord – check the power requirements of the connected loads. The socket outlet used must be near the equipment.
Overcurrent Device
- The outputs are NOT protected against short circuits or overcurrents, which can damage the electronic board. Evaluate the characteristics of the connected loads and apply the appropriate safety devices to the power line.
Installation
Description
- The Wireless ON/OFF control is for resistive and infrared heaters. The controller allows the power output of the heater to be turned on/off. The wireless control can be used with 110 – 230VAC supply voltages.
Features
- Controls TWO 3400W heaters at 230VAC (1500W at 110VAC) cos φ = 1.
- ON/OFF function with dual output control
KIT CONTENTS

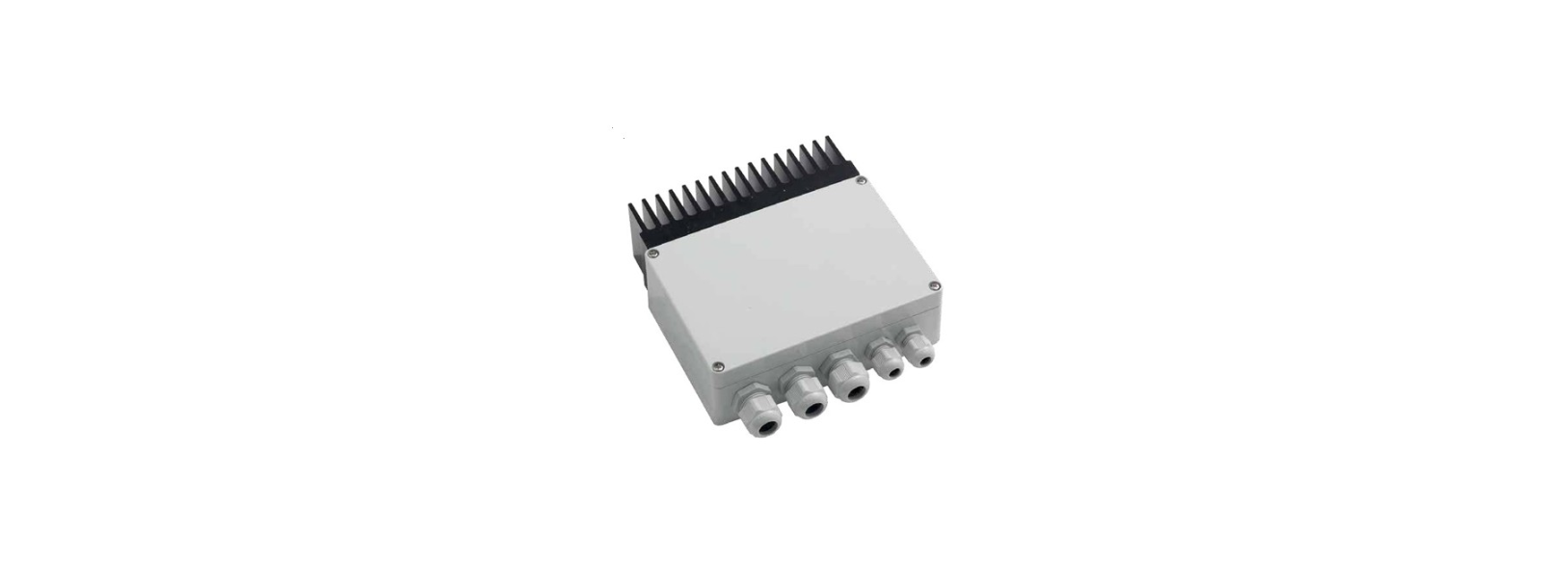

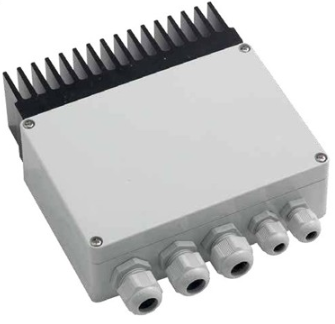

- Wireless controller enclosed in a protective box.
- 4-channel remote
- Do not cover the product.
- Do not use or store flammable materials close to the product.
- Open the cover of the box.

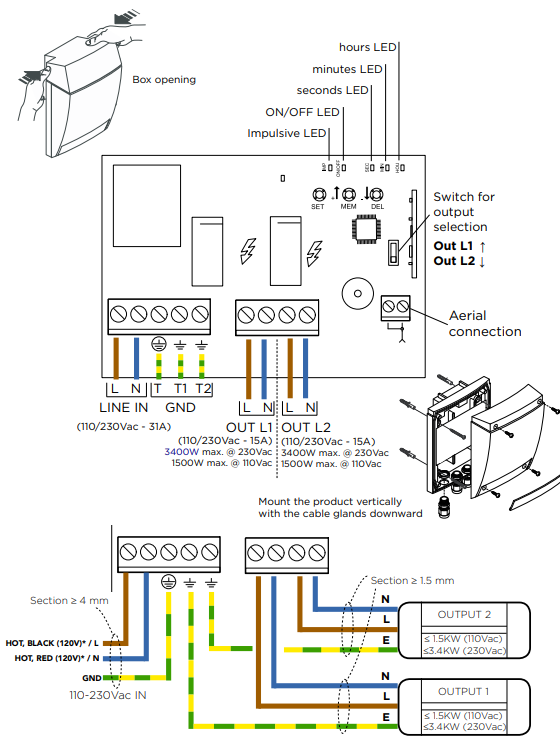

- Wire in the power and heater as per the wiring diagram.
- Power on the wireless control.
- Program the wireless control as per the ‘OPERATION’ section.
- Refit the cover to the box.
OPERATION
Setting relay function – ON/OFF

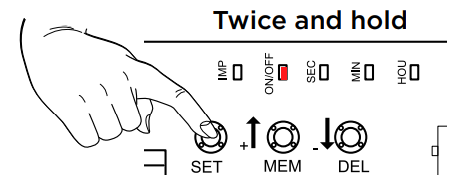

- Press the ‘SET’ button twice and hold it down until the ‘ON-OFF’ LED turns on.
- Wait until the LED turns off to confirm the memorisation of the data.
- Before starting, select the output L1 or L2 using the switch.
- The following memorization/deletion will be applied only to the selected output.
- Anyway, it’s possible to associate a double channel to both outputs, repeating the procedure.
Programming of a double channel

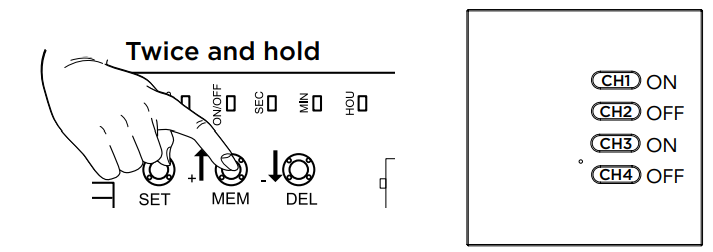

- Press the ‘MEM’ button two times and hold the button on the second time.
- There will be 2 beeps and followed by a continuous sound.
Programming of a 42 Channel remote

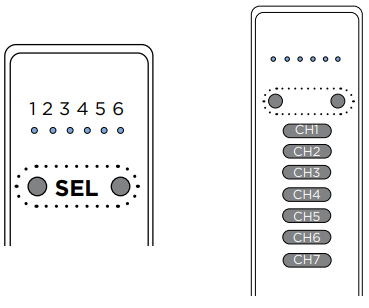

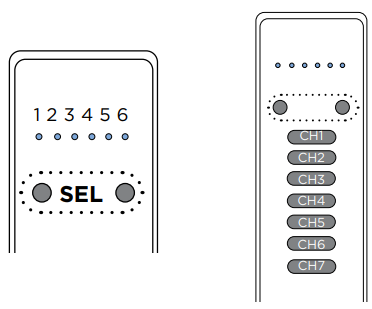

- Follow the steps above by using the 42-channel BROMIC TUNGSTEN Wireless On-Off Remote Control remote instead, first, using the ‘SEL’ buttons to activate the group position (1 to 6) and then pressing your choice of button 1 or 3, or 5.
- ON/OFF programming operations are paired. The programming is confirmed by an intermittent sound.

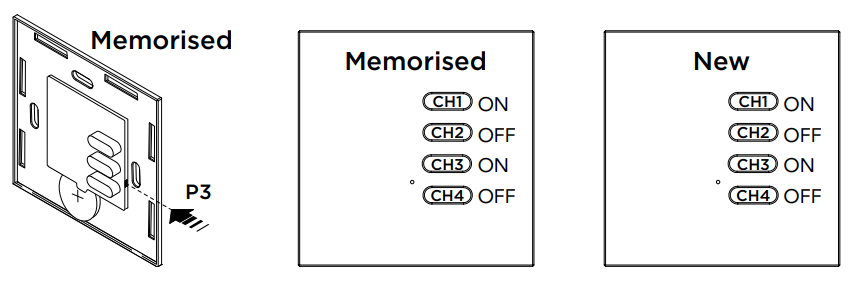

- Press the P3 button inside the already programmed remote. The active receiver will sound continuously.
- Within 5 seconds, press a button of the already programmed remote, relative to the function to copy.
- During the sound, press the ‘SEL’ button to activate the group position (1 to 6) required and then press one button from the 1 to 7 range.
- The programming is indicated by an intermittent sound.
Deleting a double-channel function

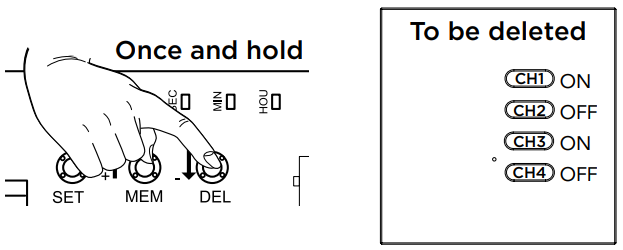

- Press the DEL button once and hold it down. There will be a slow and intermittent sound.
- During the sound, press the ‘SEL’ button to activate the group position (1 to 6)
and then press the desired button to delete.
Deleting all remotes

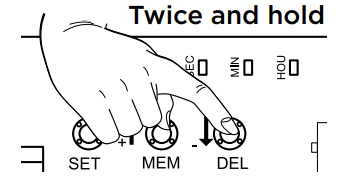

- Press the DEL button two times and hold the DEL button on the second time until there is a continuous sound after a quick and intermittent sound.

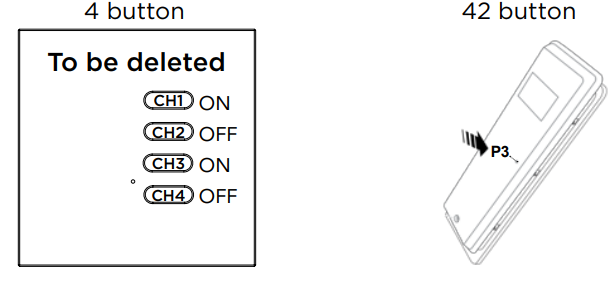

- Press the P3 button inside the remote three times. There will be slow and intermittent sound.
Specification
- Power Supply 110/230VAC, 31A
- Max Output Power with resistive load 3400W each relay @ 230VAC
- 1500W each relay @ 110VAC
- Reception Frequency 916MHz (AUS/US)
- Operating Temperature Range -20/+50°C
- Maximum Remotes Memorised 42
- Dimensions 205 x 145 x 85mm
- Protection Class IP54
Wiring Diagram

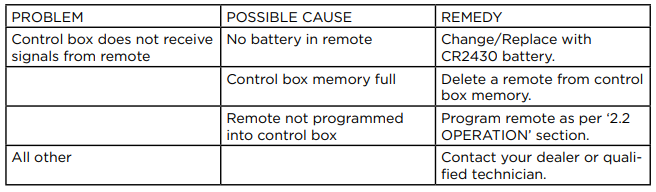

Troubleshooting
Customer Support
- Website: www.bromicgroup.com/
- Tel: 1300 276 642
