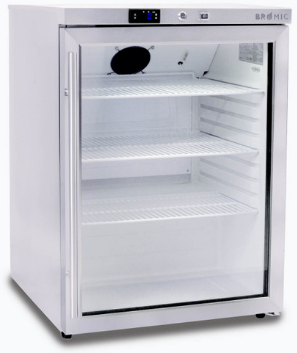

BROMIC UBC0140GD-NR Underbench Display Fridge
Safety Instructions
- Use this appliance only as described in this manual.
- Any other use not recommended by the manufacturer may cause fire, electric shock, or injury.
- The manufacturer is not responsible for any damage that could happen from improper use.
- Check the appliance for damage.
- Do not operate a damaged unit.
- Check for damage to the appliance regularly.
- Keep packaging material out of each child’s reach.
- Children should be carefully supervised to ensure that they do not play with the appliance.
- Do not attempt to alter the appliance in any manner.
- Please pay attention to the maximum load limit when filling the shelves.
- All work on electrical equipment must be carried out by a qualified and licensed technician only.
- Do not perform maintenance until the appliance has been turned off and the power disconnected.
- Do not operate the appliance with panels, covers, or guards removed.
- Keep the air intake and outlets free of obstructions.
- Do not use the appliance outdoors.
- If the appliance has not been used or will not be used for a long period, disconnect the power supply.
- The refrigerant used in all appliances covered by this manual is flammable.
Display
Bar Fridge & Freezers

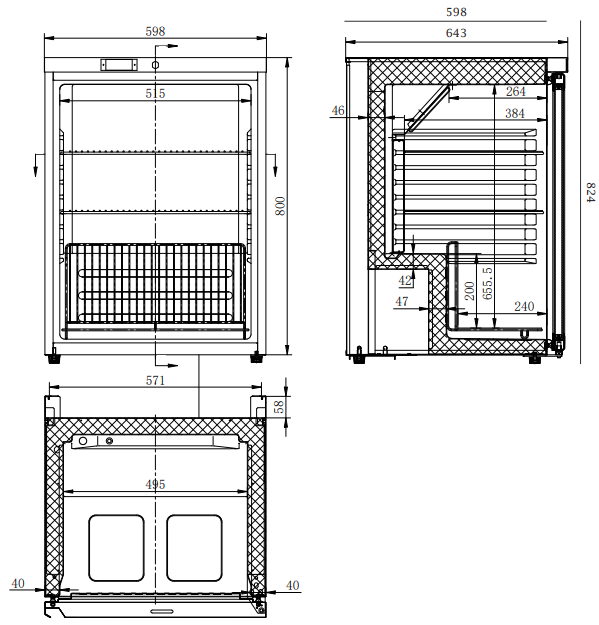

Dimensions
Specifications
| SPECIFICATIONS | DIMENSIONS | ||||||||||||
| Model Number Part Number Volume Unit Weight Packaged Weight Adjustable Temp. Range Max. Ambient Temp. Climate Class Energy Consumption GEMS Star Rating Refrigeration Capacity Refrigerant Rated Current Electrical Voltage Frequency Power Supply Power Plug Plug Location | UBC0140GD-NR 3736255 138L 45kg 46kg +1 to +10°C 32°C 3M1 1.396kWh/24h 6 stars 100W R600a 1.2A 220-240V 50Hz Single Phase 1 x 10A Rear, bottom | Colour Internal Light No. of Doors Door Type Door Glass Type Door Style Door Lock Self-Closing Door Door Swing Dimension Total Depth of Door Open No. of Shelf Tiers inc base Shelf Type Shelves Dimensions Temp. Controller Castors Warranty | Stainless Steel LED 1 Glass Double glazed Hinged Yes Yes 594mm 1153mm 4 Adjustable 510(w) x 360(d) mm Digital No, Feet + Rollers 2 Years Parts & Labour Bromic Extra Care | External (mm) Width 598 Depth 635 Height 824 Internal (mm) Width 490 Depth 400 Height 680 Packaged (mm) Width 650 Depth 650 Height 885 | |||||||||
Diposal
The refrigerant used and contained within a hermetically tight circuit is environmentally friendly and does not contain chlorine and has zero ODP.
- Before disposal, render it unserviceable by disconnecting the power plug and severing the power cable.
- Consult your local authorities or authorised dealers for details of collection and disposal facilities.
- Children are often unable to recognise the dangers associated with commercial refrigeration equipment.
- The refrigerant used in all appliances covered BROMIC UBC0140GD-NR Underbench Display Fridge by this manual is flammable.
Warranty
Warranty Terms vary across the range. Please ensure you are familiar with the Terms and Conditions that apply to the purchase of your Bromic product by referring to the Warranty Policy included with your purchased product.
Customer Support
- Website: www.bromicgroup.com/
- Tel: 1300 276 642
FAQs
Q: What is the BROMIC UBC0140GD-NR designed for?
Ans: This refrigerator offers high-visibility refrigerated storage for drinks, food, or ingredients and is intended for commercial underbench use. It is perfect for any workspace with limited space, including cafes, restaurants, and bars.
Q: What does the “NR” in the model number mean?
Ans: The letter “NR” denotes that the refrigerator uses Natural Refrigerant (R290 propane gas), which is more energy-efficient and less harmful to the environment than conventional refrigerants.
Q: What is the storage capacity of this fridge?
Ans: With a gross capacity of roughly 138 litres, the BROMIC UBC0140GD-NR features movable shelves for effective product organisation.
Q: What is the temperature range of the UBC0140GD-NR?
Ans: The device can safely store a range of perishable goods and beverages since it maintains a temperature range of +1°C to +10°C.
Q: Can this fridge be used for food preparation and storage?
Ans: Yes, it can be used to store food and drink goods, but raw meat and unwrapped items should not be kept in it unless they are in sealed containers.
Q: How many shelves does the fridge have, and are they adjustable?
Ans: With the help of the unit’s two movable wire shelves, you can alter the internal arrangement to accommodate different product heights.
Q: Does the fridge have interior lighting?
Ans: Indeed, it has inside LED lighting, which uses less energy and improves product visibility.
Q: Is the door self-closing?
Ans: Indeed. Particularly in crowded settings, the self-closing glass door helps regulate interior temperature and energy efficiency.
