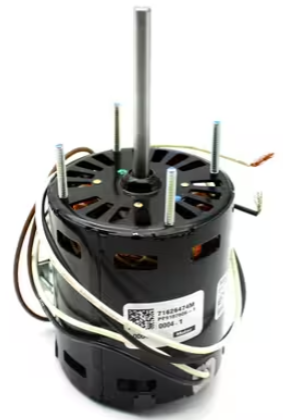

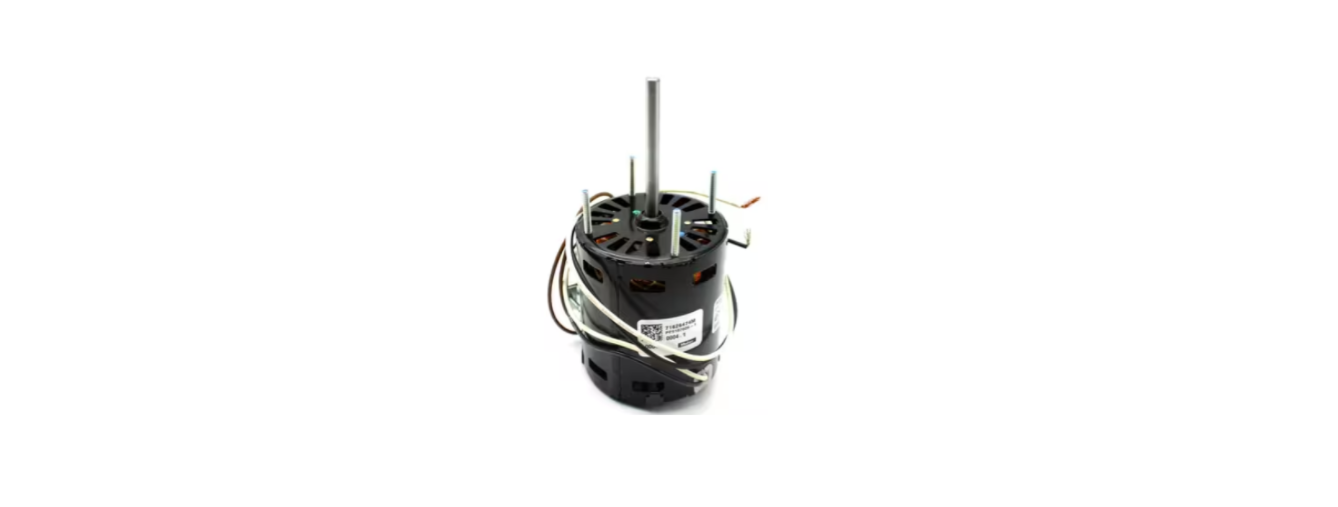

Renzor RPV, SCA, Venter Motor Replacement Kit
General Information
- Refer to the installation manual provided with the heater for important safety information.
- Ensure that all components listed in Table 1 are available before beginning installation.
| Table 1. Venter Motor Replacement Kit Components | ||||
| Component | Description | Supply Voltage | ||
| 115V, 575V | 208V, 230V | 460V | ||
| Kit PN | ||||
| 132377 | 132378 | 165986 | ||
| PN (Quantity) | ||||
| Venter motor and capacitor | Assembly | 131410 (1) | 131415 (1) | 165986 (1) |
| Venter motor | Magnetek #JE1F026 | 163891 (1) | — | 163893 (1) |
| Magnetek #JE1F027 | — | 163892 (1) | — | |
| Capacitor | Magnetek #60P52-561-8 | 163894 (1) | ||
| Mounting plate | Motor | 131445 (1) | ||
| 131446 (1) | ||||
| 131447 (1) | ||||
| 131448 (1) | ||||
| Locknut | #8-32 | 31522 (2) | ||
Mounting Plates
To be multifunctional, each kit includes four motor mounting plates for use with all voltages.
Installation
Install the replacement motor kit as follows
Check the replacement motor label and the furnace rating plate to verify the agreement of the motor voltage nd the supply voltage of the furnace being serviced.
- Remove access panel(s).

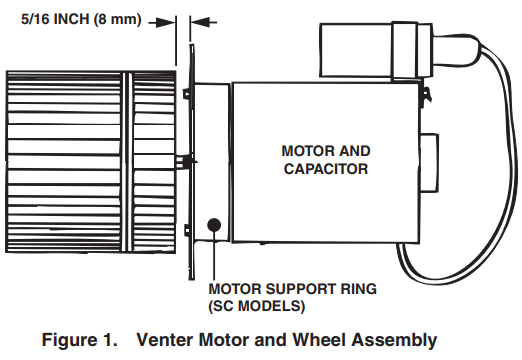

- Remove ve existing vent motor and wheel assembly:
- Mark and disconnect the vent motor wires.
- Remove hardware that secures the Venternter Renzor RPV, SCA, Venter Motor Replacement Kit motor and wheel assembly, the furnace, and the over assembly.
- The over hardware that the res veofthe heele motor shaft and remove the over wheel.
- Save all hardware for reuse. Use the ding support ring on SC models
- Assemble replacement motor and mounting plate:

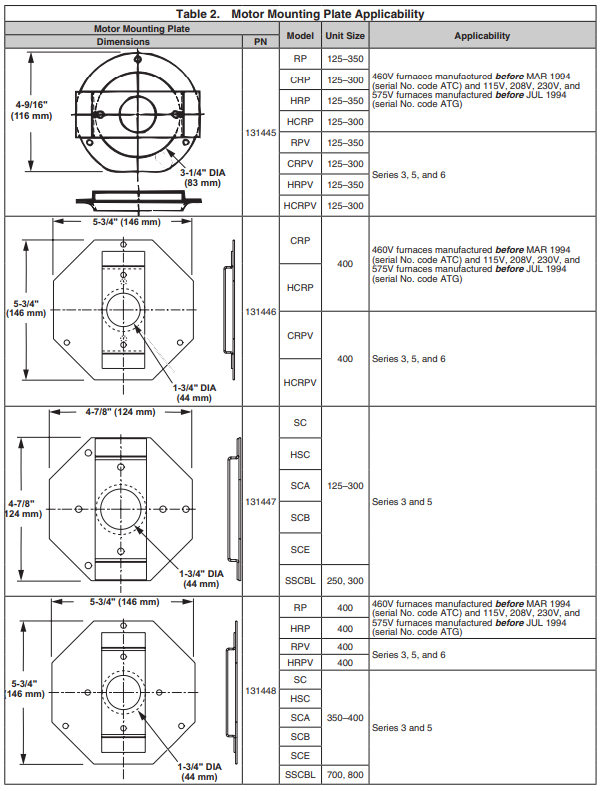

- Select the motor mounting plate in accordance with the Table. The remaining mounting plates in the kit will not be used.
Limited Warranty
Reznor LLC warrants to the original owner-user that this product will be free from defects in material and workmanship. This warranty is limited to twelve (12) months from the date of original installation, whether or not actual use begins on that date, or eighteen (18) months from the date of shipment, whichever occurs first.
Manufacturer Replacement Parts Limited Warranty
Reznor LLC warrants replacement parts for thirty (30) days after installation or thirteen (13) months from the date of shipment, whichever occurs first.
Customer Support
- Website: www.reznorhvac.com
- Ph: 800-695-1901
FAQs
Q: Which Reznor models are compatible with this kit?
RPV, SCA, and several Reznor Venter units are compatible with this package. Before beginning installation, make sure your unit’s model and serial number match the compatibility list in the kit.
Q: Is professional installation required?
Indeed. Reznor advises hiring a certified HVAC specialist who is knowledgeable in mechanical alignment, electrical wiring, and ventilation system specifications to replace the motor.
Q: Do I need to adjust wiring after replacing the motor?
Indeed. Follow the wiring schematic supplied in the kit carefully. Make sure the connections are in line with the voltage and phase specifications of your particular machine.
Q: Does this kit require adjusting airflow or other system settings?
After installation, make sure the system is operating properly by checking the airflow.
Q: Can I replace the motor myself without prior experience?
Safety risks, decreased performance, and warranty problems all result from improper installation.
