K-Mate BTH002NI Bluetooth Stereo Headset User Manual

K-Mate BTH002NI Bluetooth Stereo Headset

Introduction

Bluetooth is a standard of close-range radio-communication technology that was developed by Ericsson, IBM, Intel, Nokia, and Toshiba. With Bluetooth technology, we can achieve the highest transmission rate among cell phones, computers, printers, PDAs, and other devices. The max transmission range of class II is 10 meters, while the max transmission range of class I can reach up to 100 meters.

About BTH002NI

BTH002NI is a stereo Bluetooth headset. It supports the following Bluetooth profiles.

• HSP —— Headset Profile
• HFP —— Hands-free Profile
• A2DP—— Advanced Audio Distribution Profile
• AVRCP—Audio/Video Remote Control Profile

You can enjoy music wirelessly by using the BTH002NI. Steps are as follows.

1. Pairing with the Bluetooth mobile phone that supports HFP.
   • Answer, end, and reject the call
   • Redial last number
   • Voice dial
   • Adjust the volume.
   • Switch the conversation between the headset and the mobile phone
   • Microphone mute
2. Pairing with Bluetooth music devices and Bluetooth transmitters that support A2DP
   • Enjoy music wirelessly
   • Adjust the volume
   • Remote control the function of pause/play function
   • Remote control last/next song
   • Remote control fast forward/rewind
3. Easy to switch between conversation and music, you will not miss the incoming call while listening to music.
4. Automatically connects with the last paired device when turning on the headset.

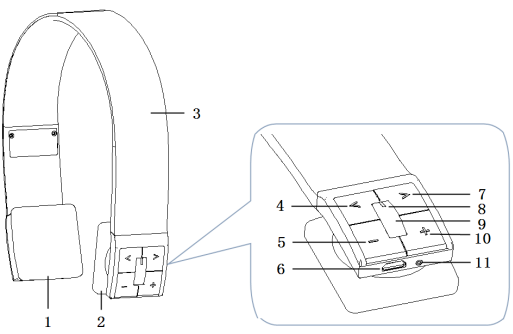

Parts Description

Charging the headset

The headset comes with a built-in rechargeable battery. Prior to using it, it is recommended to charge the battery fully for the first time. When the headset is low power, the headset emits“Dongdong” tones and the red LED flashes twice every 20 seconds. Please recharge the battery of the headset.

Using a USB cable

The way of charging is as follows

1.  Plug one side of the USB cable into the USB port of the PC
2. Plug the other side of the cable into the charging jack of the headset
   • Red light on: Charging
   • Red light off: Finish charging
3.  It will take about 1.5 hours to finish charging.

How to Use

Turning on / off the headset

Pairing the headset with Bluetooth devices: How to enter pairing mode

Pairing the headset with a Bluetooth mobile phone

Prior to using the headset for the first time, you have to pair it with a Bluetooth-enabled cell phone. The pairing procedures are subject to different models of cell phones. Please refer to your cell phone user’s manual for further information. The general pairing procedures are as follows:

1. Keep your headset and phone within 1 meter when pairing.
2. Make the headset enter pairing mode (please refer to “How to enter pairing mode);
3. Activate your cell phone’s Bluetooth function and set your cell phone to search for Bluetooth devices within range, and select “BTH002NI” from the list of devices shown.
4. According to the indication, enter password or PIN No: “0000”. ( If the mobile phone supports Bluetooth V2.1, a password is not required.). If prompted by your cell phone to connect, select “Yes” (this will vary among cell phone models).
5. After successful pairing, choose and connect “BTH002NI” from the list of devices shown on the cell phone.
6. After a successful connection, the blue LED of the headset will flash twice every 5 seconds.

Pairing the headset with the Bluetooth transmitter

You can enjoy music wirelessly by connecting a headset to a stereo Bluetooth transmitter. Hereby take BTT005 (Bluetooth transmitter, not included in accessories) for example. The pairing steps are as follows:

1. Keep your headset and transmitter within 1 meter when pairing.
2. Make the headset enter pairing mode (Please refer to “How to enter pairing mode.;
3. Turn on the Bluetooth transmitter and make it enter pairing mode. It will search for Bluetooth devices automatically and send a pairing request.
4. When the headset requests to enter a PIN No., the transmitter will respond “0000” automatically;
5. After successful pairing and connecting, the blue LED of the headset flashes twice every 5 seconds.

Reconnecting to a Bluetooth device

• Automatic connecting: Every time the headset is turned on, it will connect to the last connected device automatically.
• Manual connecting: When the headset is in standby mode and doesn’t connect to a device, short-press press MFB button once, it will connect to the last connected device.

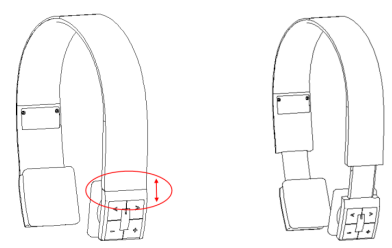

Wearing the headset

This headset is designed for a retractable headband. Please adjust it according to actual use. The logo “L” of the headset represents the left ear, the Logo “R” of the headset represents the right ear. Please wear the headset according to the instructions of the Logo.

Basic Operation

Making calls with the headset

Three-way call operation

Playing Music

When the headset connects with the mobile phone or Bluetooth transmitter that supports A2DP, you can enjoy music through the headset wirelessly.

LED indicator

Charging

Pairing with the Bluetooth devices

Indication tone

Factory reset

In the status of turn off, long-press press MFB and volume up “+” button for about 11 seconds and release it until all LED indicator lights are off.

Care and maintenance

Please read the following suggestions carefully, which will help you to fulfill any warranty obligations and to enjoy this product for many years.

• Keep dry and don’t put it in the dump place, in the K-Mate BTH002NI Bluetooth Stereo Headset case, as it may affect the interior circuit of the product.
• Don’t put the product in the sunlight or place hot areas. High temperatures will shorten the life of an electronic device, destroy the battery, or distort certain plastics.
• Don’t expose the product to cold areas. It may damage the internal circuit board.
• Don’t try to take apart the product. It may damage the product if you are not a professional.
• Don’t fall off the floor or knock the hard K-Mate BTH002NI Bluetooth Stereo Headset. It may damage the interior circuit.
• Doesn’t use intense chemicals or detergents to clean the product.
• Don’t scrape the surface with sharp things.
• Don’t use this product during strenuous exercise. It may damage the product if the sweat gets into it.

Specifications

FCC Statements

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used following the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
   Interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Customer Support

• Telephone: 86-0760-88320910
• Address: E Bldg., Fuwan Ind.Zone, Fuwan Nan Rd. , Zhongshan, China, Jining, Shandong, China
• Website: https://kmate8.goldsupplier.com/
