K-Mate BTH069 Bluetooth Stereo Headset
Introduction
BTH069 is a Bluetooth stereo headset. It is concise, vogue, and easy to operate. You can use it to make a call and listen to music wirelessly.

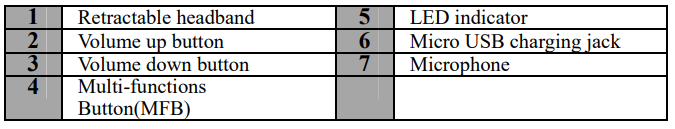

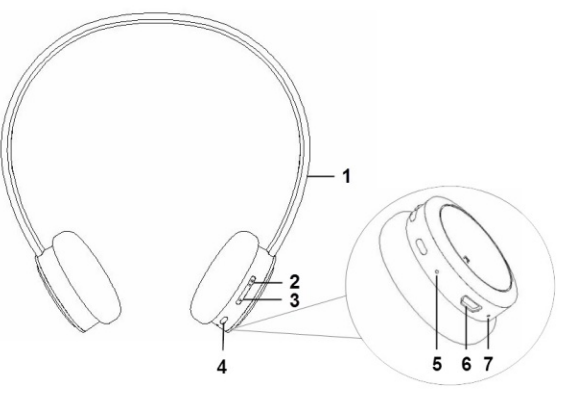

Parts Description
Charging for a headset
BTH069 comes with a built-in rechargeable battery. Prior to using it, it is recommended to charge the battery fully for the first time. When the red LED of the headset flashes twice and emits “dong dong” tones every 20 seconds. It means the battery is low. Please recharge the battery fully.
- Plug the USB charging cable into the port of the PC
- Plug the USB charging cable into the charging jack of the headset.. Red light on: Chargi.ng Red light off: Finish charging
- It takes about 2.5 hours to finish charging
Using the headset

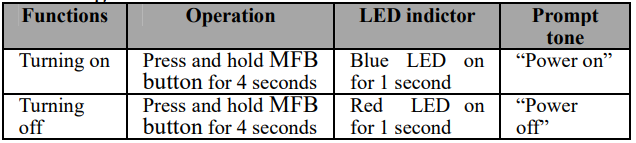

Turning on/off the headset
Wearing the headset

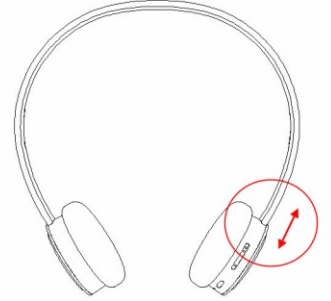

The headset is designed in a retractable style. Please adjust it according to the actual use. The logo “L” corresponds to the left ear, and the logo “R” corresponds to the right ear. Please wear the headset according to the indicator.
Pairing/connecting
Pairing a headset with a Bluetooth cell phone
Prior to using the headset for the first time, you K-Mate BTH069 Bluetooth Stereo Headset have to pair it with a Bluetooth-enabled cell phone. The general pairing steps are as follows:
- Keep the headset and your Bluetooth cell K-Mate BTH069 Bluetooth Stereo Headset phone within 1 meter when pairing, the closer the better.

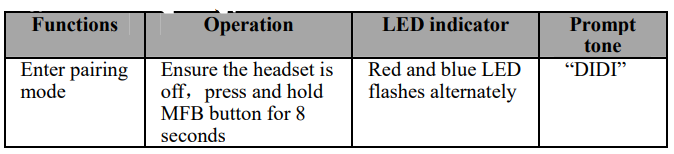

- Make the headset enter pairing mode. ( Please refer to “How to enter pairing mode”.)
- Activate your cell phone’s Bluetooth function and search for Bluetooth devices within range. Select “BTH069” from the list of devices shown. After a successful connection, the blue LED of the headset flashes twice every 5 seconds.
Pairing a headset with a Bluetooth transmitter
You can connect the headset with a Bluetooth K-Mate BTH069 Bluetooth Stereo Headset transmitter to enjoy music wirelessly. Hereby take BTT005 for example (not included in the accessory). The pairing steps are as follows.
- Keep the headset and Bluetooth transmitter within 1 meter when pairing, the closer the better.
- Make the headset enter pairing mode. (Please refer to “How to enter pairing mode.)
- Turn on the Bluetooth transmitter and make it enter pairing mode. It will search for Bluetooth devices automatically and send a pairing request.
- After successful pairing and connecting, the blue LED of the headset flashes twice every 5 seconds.
Basic Operation
Making calls with the headset
| Functions | Status of headset | Operation |
| Cancel a call | Calling | Short-press MFB once |
| Answer a call | Incoming ringing | Short-press MFB once |
|
Reject a call |
Incoming ringing |
Long-press MFB for 2 seconds and release it until you hear a tone. |
| End a call | During a call | Short-press MFB once |
| Volume up | During a call | Short-press the volume up button |
| Volume down | During a call | Short-press the volume down button |
| Transfer the conversation to a mobile phone. |
During a call |
Long-press MFB for 2 seconds |
| Transfer conversation to headset. | During a call | Long-press MFB for 2 seconds |
| Microphone mute | During a call | Double click MFB |
| Cancel mute | During a call (microphone mute) | Double click MFB |
|
Voice dial |
Standby mode
(connected device) |
Long-press MFB for 2 seconds and release it until you hear a tone. |
| Redial the last number | Standby mode
(connected device) |
Double click MFB |
Three-way call operation
| Functions | Status of headset | Operation | ||
| Answer the new call and end the current call | During a call, there is a second incoming call | re | Short-press MFB once | |
| Answer new call and retain current call | Incoming ringing | Double click MFB | ||
| Switch calls | Keep the conversation a another call retains | nd | Double click MFB | |
| End current call and switch retained call | Keep the conversation a another call retains | nd | Short-press MFB once | |
Playing Music
| Functions | Status of the headset | Operation |
| Volume up | Playing music | Short press Volume up button |
| Volume down | Playing music | Short-press Volume down button |
| Last song | Playing music | Long press Volume up button |
| Next song | Playing music | Long press Volume down button |
| Pause | Playing music | Short-press MFB once |
| Play | Pausing | Short-press MFB once |
LED indicator
| LED indicator | Status of headset |
| Red and blue LED flashes alternately | Pairing mode |
| Blue LED flashes once every 2 seconds | Not connected to the device |
| Blue LED flashes twice every 5 seconds | Connected to the device |
| Red LED flashes twice every 20 seconds | Low battery |
- In the status of turning off, long-press-press press MFB button and volume up button (or volume down button) for about 10 seconds and release it until the LED does not flash.
Care and maintenance
Read the following recommendations carefully before using BTH069. Following these, you will be able to enjoy this product for many years.
- Keep it dry and don’t put it in the dump place to avoid the product’s internal circuit being affected.
- Keep the product away from direct sunlight or hot places. High temperatures will shorten the life of electronic devices, destroy the battery, or distort certain plastic parts.
- Don’t expose the product to cold areas. It may damage the internal circuit board.
- Don’t try to disassemble the product as it may get damaged if you are na ot proa professional.
- Don’t let it fall onto the floor or other hard surfaces. The internal circuit might get damaged.
- Don’t use intensive chemical products or detergents to clean the product.
- Don’t scratch the surface with sharp K-Mate BTH069 Bluetooth Stereo Headset things. It may get damaged by sweat.
In case the product doesn’t function properly, send it to the store where you bought it. The staff will help you solve the problem.
Specifications
- Bluetooth version Bluetooth V3.0
- Bluetooth profiles HFP, HSP, A2DP, AVRCP
- Operating distance 10 meters
- Music time Up to 11hours
- Talk time Up to 12 hours
- Standby time: Approx. 250 hours
- Charging Input DC 5V 500mA
- Charging time: approx. 2.5 hours
FCC Statements
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used following the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including
Interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Customer Support
- 86-0760-88320910
- E Bldg., Fuwan Ind.Zone, Fuwan Nan Rd. , Zhongshan, China, Jining, Shandong, China
- https://kmate8.goldsupplier.com/
